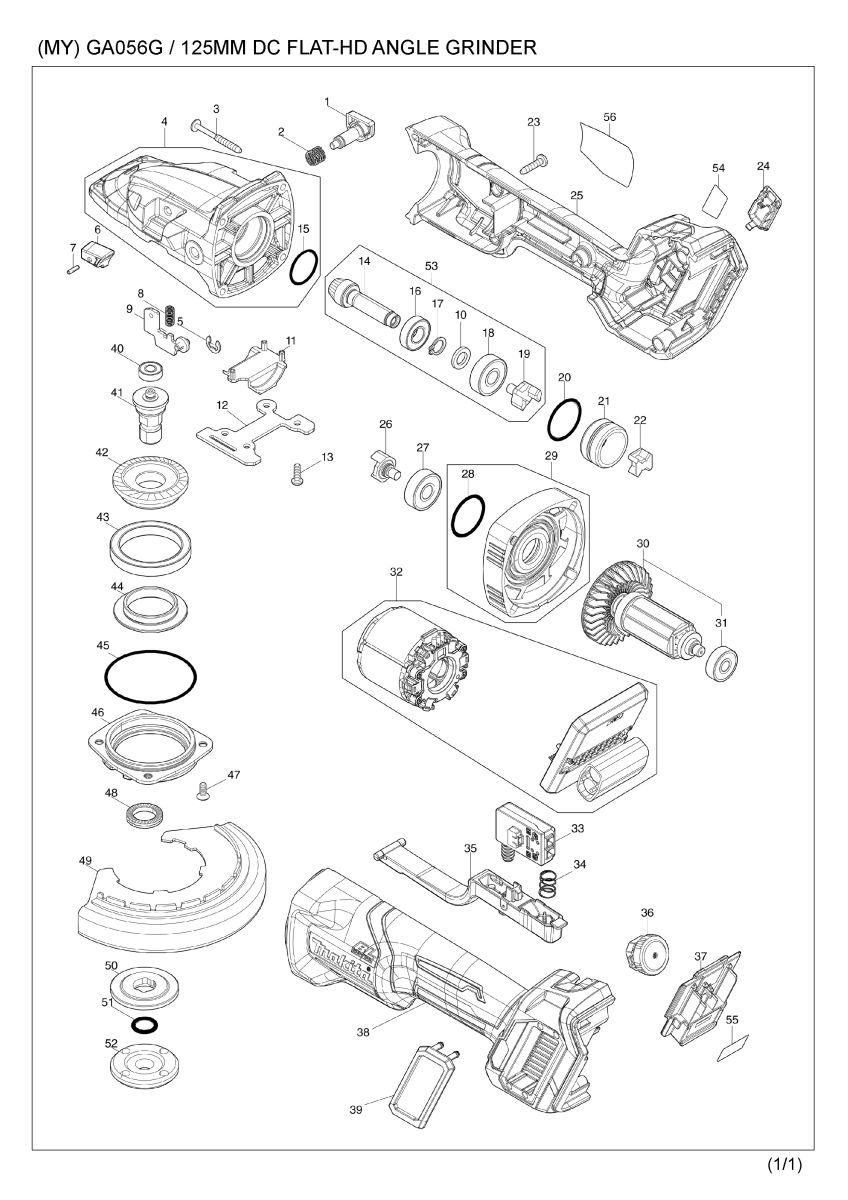

Part Diagram
Total: 71 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 137404-4 | PIN CAP ASS'Y | 1 | |
| 002 | 232926-0 | COMPRESSION SPRING 9 | 1 | |
| 003 | 266048-4 | TAPPING SCREW 4X40 | 4 | |
| 004 | 137385-2 | GEAR HOUSING ASS'Y | 1 | |
| 004 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 004 | D10 | INC. 15 | ||
| 005 | 961012-7 | STOP RING E-6 | 1 | |
| 006 | 4132B5-1 | LEVER CAP | 1 | |
| 007 | 258021-8 | SPRING PIN 2-9 | 1 | |
| 008 | 232490-1 | COMPRESSION SPRING 4 | 1 | |
| 009 | 1411A0-5 | LEVER COMPLETE | 1 | |
| 010 | 253639-0 | WASHER 9 | 1 | |
| 011 | 422C20-6 | LOWER COVER | 1 | |
| 012 | 347D52-7 | LOWER RETAINER | 1 | |
| 013 | 911117-3 | PAN HEAD SCREW M4X12 | 4 | |
| 014 | 227C01-3 | SPIRAL BEVEL GEAR 10 | 1 | |
| 015 | 213961-7 | O RING 22 | 1 | |
| 016 | 210214-5 | BALL BEARING 6900DDW | 1 | |
| 017 | 961006-2 | RETAINING RING S-10 | 1 | |
| 018 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 019 | 324639-8 | COUPLING | 1 | |
| 020 | 213445-5 | O-RING 26 | 1 | |
| 021 | 327E79-9 | SLEEVE 23 | 1 | |
| 022 | 422C57-3 | SPACER | 1 | |
| 023 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 024 | 4132B6-9 | CAP | 1 | |
| 025 | 183W45-2 | MOTOR HOUSING SET | 1 | |
| 025 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 025 | D10 | INC. 38 | ||
| 026 | 324639-8 | COUPLING | 1 | |
| 027 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 028 | 213445-5 | O-RING 26 | 1 | |
| 029 | 136989-7 | GEAR HOUSING COVER ASS'Y | 1 | |
| 029 | D10 | INC. 28 | ||
| 030 | 519890-5 | ROTOR ASS'Y | 1 | |
| 030 | D10 | INC. 31 | ||
| 031 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 032 | 629D00-1 | STATOR COMPLETE | 1 | |
| 033 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 034 | 233263-5 | COMPRESSION SPRING 9 | 1 | |
| 035 | 140T33-4 | SWITCH LEVER COMPLETE | 1 | |
| 036 | 620D30-5 | DIAL CIRCUIT | 1 | |
| 037 | 632P65-6 | TERMINAL UNIT | 1 | |
| 038 | 183W45-2 | MOTOR HOUSING SET | 1 | |
| 038 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 038 | D10 | INC. 25 | ||
| 039 | 422610-7 | DUST COVER | 1 | |
| 040 | 210033-9 | BALL BEARING 696ZZ | 1 | |
| 041 | 327E75-7 | SPINDLE | 1 | |
| 042 | 227C02-1 | SPIRAL BEVEL GEAR 37 | 1 | |
| 043 | 210324-8 | BALL BEARING 6808LLB | 1 | |
| 044 | 327E78-1 | BEARING RETAINER 31-48 | 1 | |
| 045 | 213673-2 | O RING 52 | 1 | |
| 046 | 312H79-0 | BEARING BOX | 1 | |
| 047 | 265135-6 | + COUNTERSUNK HEAD SCREW M4X1 | 4 | |
| 048 | 253627-7 | LEAD WASHER 15 | 1 | |
| 049 | 1410Y9-9 | WHEEL COVER 125 COMPLETE | 1 | |
| 049 | C10 | 8086D8-0 | CAUTION LABEL | 1 |
| 050 | 224641-0 | INNER FLANGE 45 | 1 | |
| 051 | 213910-4 | O-RING 11 | 1 | |
| 052 | 224485-8 | LOCK NUT 14-45 | 1 | |
| 053 | 137408-6 | SPIRAL BEVEL GEAR 10 ASS'Y | 1 | |
| 053 | D10 | INC. 10,14,16-19 | ||
| 054 | 8085A5-9 | INDICATION LABEL | 1 | |
| 055 | 8149T1-4 | GA056G SERIAL NO. LABEL | 1 | |
| 056 | 8149T0-6 | GA056G NAME PLATE | 1 | |
| A01 | 141J72-7 | GRIP 35 COMPLETE | 1 | |
| A02 | 327405-2 | ADAPTER | 1 | |
| A04 | 782423-1 | LOCK NUT WRENCH 35 | 1 | |
| F01 | 1910X6-8 | GRIP 35 SET | 1 | |
| F03 | 194514-0 | VIBRATION PROOF GRIP SET | 1 |
