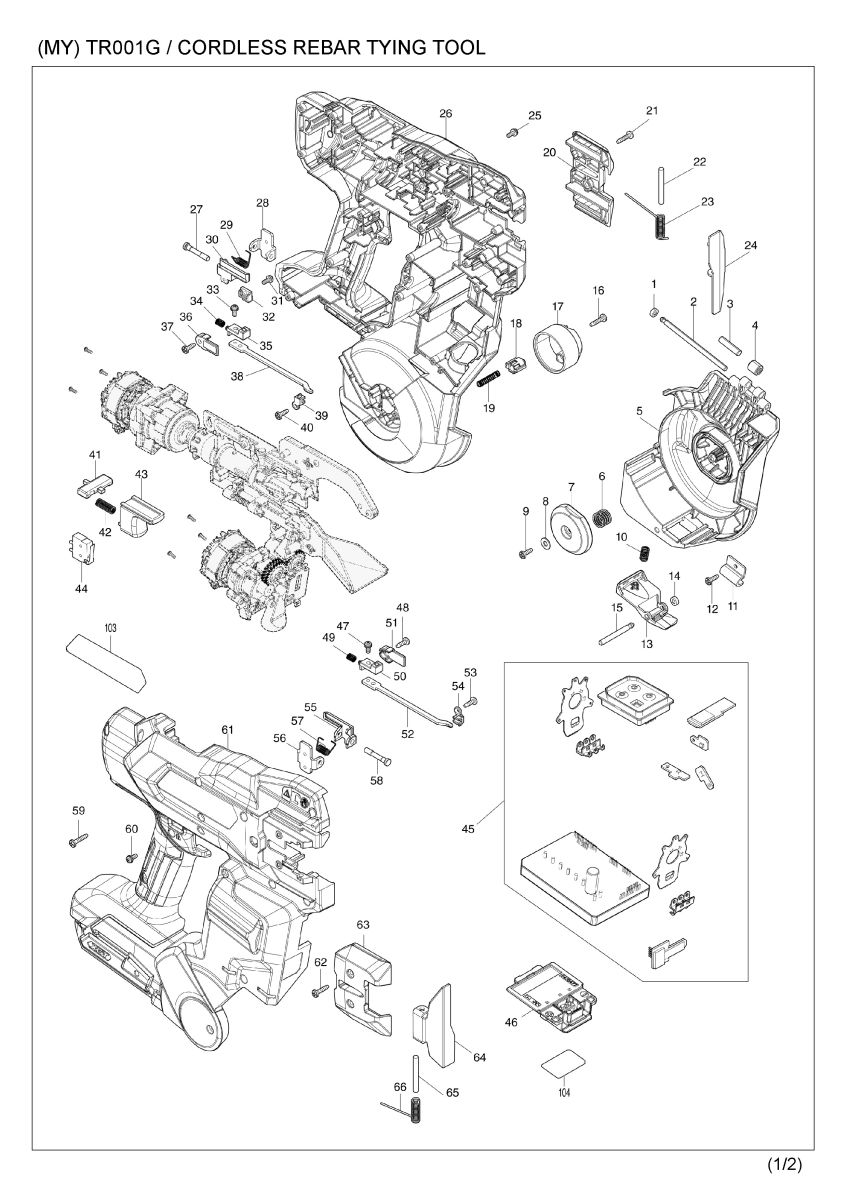

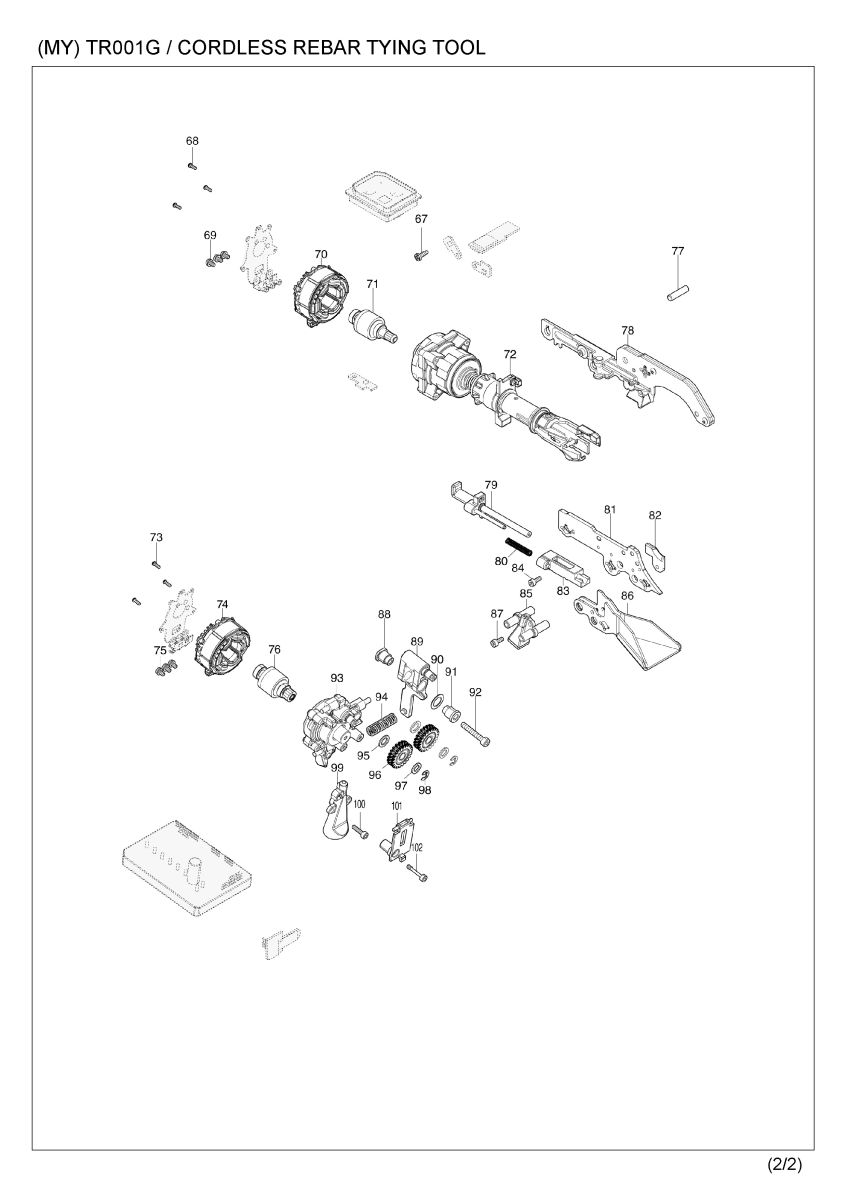

Part Diagram
Total: 128 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 262054-7 | URETHANE RING 3 | 1 | |
| 002 | 256A96-7 | GROOVED PIN 4B | 1 | |
| 003 | 268238-5 | PIN 5 | 1 | |
| 004 | 212009-2 | NEEDLE BEARING 509 | 1 | |
| 005 | 1412D2-8 | MAGAZINE COVER COMPLETE | 1 | |
| 006 | 232924-4 | COMPRESSION SPRING 11 | 1 | |
| 007 | 312H72-4 | REEL BEARING | 1 | |
| 008 | 941051-3 | FLAT WASHER 4 | 1 | |
| 009 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 010 | 233388-5 | COMPRESSION SPRING 5 | 1 | |
| 011 | 347D47-0 | GUIDE PLATE | 1 | |
| 012 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 013 | 4131T9-3 | MAGAZINE COVER LOCK | 1 | |
| 014 | 262054-7 | URETHANE RING 3 | 1 | |
| 015 | 256A93-3 | GROOVED PIN 4A | 1 | |
| 016 | 266404-8 | TAPPING SCREW BIND 3X14 | 2 | |
| 017 | 312H73-2 | REEL BASE | 1 | |
| 018 | 1410Y0-7 | MAGNET HOLDER D COMPLETE | 1 | |
| 019 | 232921-0 | COMPRESSION SPRING 4C | 1 | |
| 020 | 4131U3-2 | PLATE COVER | 1 | |
| 021 | 266404-8 | TAPPING SCREW BIND 3X14 | 2 | |
| 022 | 268136-3 | PIN 4 | 1 | |
| 023 | 232925-2 | TORSION SPRING 4A | 1 | |
| 024 | 347D33-1 | SIDE PLATE | 1 | |
| 025 | 911008-8 | PAN HEAD SCREW M3X8 | 2 | |
| 026 | 1831M0-3 | HOUSING SET | 1 | |
| 026 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 026 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 026 | C30 | 8091F3-7 | CAUTION LABEL A | 1 |
| 026 | C40 | 8091F5-3 | CAUTION LABEL B | 1 |
| 026 | C50 | 8091F1-1 | INDICATION LABEL | 1 |
| 026 | D10 | INC. 61 | ||
| 027 | 256A89-4 | SHOULDER PIN 4C | 1 | |
| 028 | 347D30-7 | STOPPER BASE | 1 | |
| 029 | 232916-3 | TORSION SPRING 4B | 1 | |
| 030 | 313610-7 | STOPPER | 1 | |
| 031 | 911008-8 | PAN HEAD SCREW M3X8 | 1 | |
| 032 | 1410X5-0 | MAGNET HOLDER C COMPLETE | 1 | |
| 033 | 911008-8 | PAN HEAD SCREW M3X8 | 1 | |
| 034 | 232922-8 | COMPRESSION SPRING 4B | 1 | |
| 035 | 1410Y1-5 | MAGNET HOLDER A COMPLETE | 1 | |
| 036 | 4131U6-6 | SLIDE PLATE COVER | 1 | |
| 037 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 038 | 347D32-3 | SLIDE PLATE | 1 | |
| 039 | 347D38-1 | SLIDE PLATE GUIDE | 1 | |
| 040 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 041 | 458219-9 | TRIGGER LOCK | 1 | |
| 042 | 234037-7 | COMPRESSION SPRING 5 | 1 | |
| 043 | 458220-4 | TRIGGER | 1 | |
| 044 | 632W63-2 | SWITCH UNIT | 1 | |
| 045 | 1411B8-6 | CONTROLLER COMPLETE | 1 | |
| 046 | 632P65-6 | TERMINAL UNIT | 1 | |
| 047 | 911008-8 | PAN HEAD SCREW M3X8 | 1 | |
| 048 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 049 | 232922-8 | COMPRESSION SPRING 4B | 1 | |
| 050 | 1410Y1-5 | MAGNET HOLDER A COMPLETE | 1 | |
| 051 | 4131U6-6 | SLIDE PLATE COVER | 1 | |
| 052 | 347D32-3 | SLIDE PLATE | 1 | |
| 053 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 054 | 347D38-1 | SLIDE PLATE GUIDE | 1 | |
| 055 | 313610-7 | STOPPER | 1 | |
| 056 | 347D30-7 | STOPPER BASE | 1 | |
| 057 | 232916-3 | TORSION SPRING 4B | 1 | |
| 058 | 256A89-4 | SHOULDER PIN 4C | 1 | |
| 059 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 17 | |
| 060 | 911008-8 | PAN HEAD SCREW M3X8 | 2 | |
| 061 | 1831M0-3 | HOUSING SET | 1 | |
| 061 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 061 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 061 | C30 | 8091F3-7 | CAUTION LABEL A | 1 |
| 061 | C40 | 8091F5-3 | CAUTION LABEL B | 1 |
| 061 | C50 | 8091F1-1 | INDICATION LABEL | 1 |
| 061 | D10 | INC. 26 | ||
| 062 | 266404-8 | TAPPING SCREW BIND 3X14 | 2 | |
| 063 | 4131U3-2 | PLATE COVER | 1 | |
| 064 | 347D33-1 | SIDE PLATE | 1 | |
| 065 | 268136-3 | PIN 4 | 1 | |
| 066 | 232925-2 | TORSION SPRING 4A | 1 | |
| 067 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | |
| 068 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 069 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 070 | 629D10-8 | STATOR | 1 | |
| 071 | 619896-4 | ROTOR | 1 | |
| 072 | 122K70-6 | TWIST ASSEMBLY | 1 | |
| 073 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 074 | 629D11-6 | STATOR | 1 | |
| 075 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 076 | 619897-2 | ROTOR | 1 | |
| 077 | 256A08-0 | PIN 5 | 1 | |
| 078 | 122K54-4 | CURL GUIDE ASSEMBLY | 1 | |
| 079 | 1411G5-7 | CUTTER COMPLETE | 1 | |
| 080 | 232923-6 | COMPRESSION SPRING 4D | 1 | |
| 081 | 347D29-2 | CUTTER BASE | 1 | |
| 082 | 313613-1 | WIRE BENDER | 1 | |
| 083 | 313606-8 | CUTTER GUIDE | 1 | |
| 084 | 265634-8 | HEX SOCKET HEAD BOLT M3X8 | 4 | |
| 085 | 313608-4 | WIRE GUIDE B | 1 | |
| 086 | 347D34-9 | CURL GUIDE C | 1 | |
| 087 | 265634-8 | HEX SOCKET HEAD BOLT M3X8 | 1 | |
| 088 | 327E72-3 | SHOULDER SLEEVE 4B | 1 | |
| 089 | 122K71-4 | RELEASE LEVER ASSEMBLY | 1 | |
| 090 | 253623-5 | FLAT WASHER 9 | 1 | |
| 091 | 327E71-5 | SHOULDER SLEEVE 4A | 1 | |
| 092 | 922147-9 | HEX. SOCKET HEAD BOLT M4X25 | 1 | |
| 093 | 122K72-2 | FEED GEAR BASE ASSEMBLY | 1 | |
| 094 | 232919-7 | COMPRESSION SPRING 6 | 1 | |
| 095 | 253632-4 | FLAT WASHER 7 | 2 | |
| 096 | 137328-4 | SPUR GEAR 21 ASSEMBLY | 2 | |
| 097 | 253077-6 | FLAT WASHER 6 | 2 | |
| 098 | 961011-9 | STOP RING E-4 | 2 | |
| 099 | 313603-4 | WIRE GUIDE A | 1 | |
| 100 | 266080-8 | HEX. SOCKET HEAD BOLT M3X12 | 2 | |
| 101 | 4131T8-5 | GEAR COVER | 1 | |
| 102 | 265E18-0 | H.S.H.BOLT M3X17 | 1 | |
| 103 | 8151G5-0 | TR001G NAME PLATE | 1 | |
| 104 | 8151G9-2 | TR001G SERIAL NO. LABEL | 1 | |
| A01 | 194381-3 | OIL SUPPLY SET | 1 | |
| A02 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A03 | 347D31-5 | HOOK | 1 | |
| A04 | 783208-8 | HEX. WRENCH 2.5 | 1 | |
| A05 | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A05 | C10 | 453974-8 | LATCH | 4 |
| A06 | 836433-1 | INNER TRAY | 1 | |
| F01 | 1915N0-0 | TIE WIRE SET | 1 | |
| F02 | 1915N1-8 | GALVANIZED TIE WIRE SET | 1 | |
| F03 | 1915N2-6 | POLY COATED TIE WIRE SET | 1 | |
| F04 | 1915N3-4 | STAINLESS STEEL TIE WIRE SET | 1 | |
| F05 | 1915N6-8 | EXTENSION HANDLE SET | 1 |
