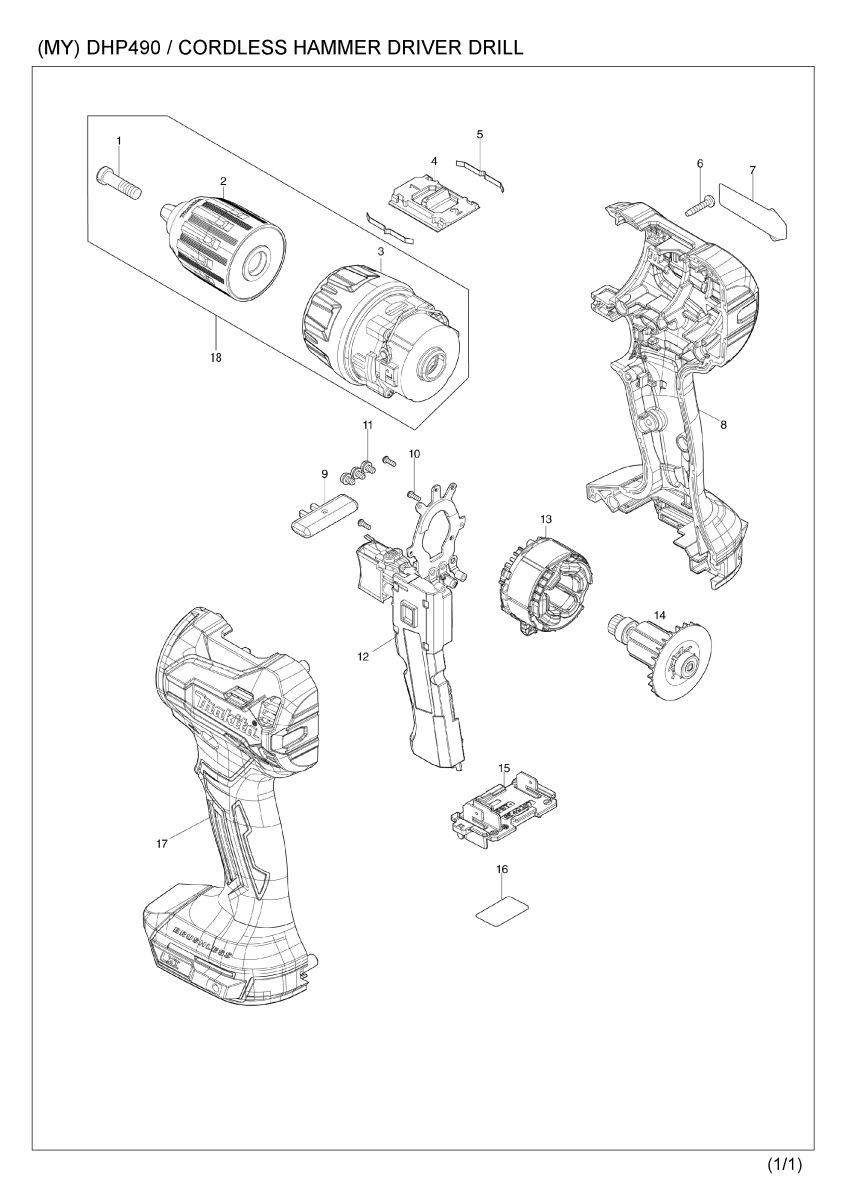

Part Diagram
Total: 53 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 251468-5 | - FLAT HEAD SCREW M6X22 | 1 | |
| 002 | 763260-2 | KEYLESS DRILL CHUCK 13 | 1 | |
| 003 | 122H74-0 | GEAR ASSEMBLY | 1 | |
| 004 | 4132C1-6 | SPEED CHANGE LEVER | 1 | |
| 005 | 232220-0 | LEAF SPRING | 2 | |
| 006 | 266429-2 | TAPPING SCREW 3X16 | 9 | |
| 007 | 8149W2-3 | DHP490 NAME PLATE | 1 | |
| 008 | 1831H5-8 | HOUSING SET | 1 | |
| 008 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 008 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 008 | D10 | INC. 17 | ||
| 009 | 4132C2-4 | F/R CHANGE LEVER | 1 | |
| 010 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 011 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 012 | 620R57-9 | CONTROL MODULE | 1 | |
| 013 | 629372-0 | STATOR | 1 | |
| 014A | 619899-8 | ROTOR | 1 | |
| 014B | 619899-8 | ROTOR | 1 | |
| 014C | 619899-8 | ROTOR | 1 | |
| 014D | 619899-8 | ROTOR | 1 | |
| 014E | 619899-8 | ROTOR | 1 | |
| 014-1A | 619899-8 | ROTOR | 1 | |
| 014-1B | 619899-8 | ROTOR | 1 | |
| 014-1C | 619899-8 | ROTOR | 1 | |
| 014-1D | 619899-8 | ROTOR | 1 | |
| 014-1E | 619899-8 | ROTOR | 1 | |
| 014-1F | 619899-8 | ROTOR | 1 | |
| 015 | 654938-7 | TERMINAL | 1 | |
| 016 | 8149W4-9 | DHP490 SERIAL NO. LABEL | 1 | |
| 017 | 1831H5-8 | HOUSING SET | 1 | |
| 017 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 017 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 017 | D10 | INC. 8 | ||
| 018 | 122H72-4 | GEAR CHUCK ASSEMBLY | 1 | |
| 018 | D10 | INC. 1-3 | ||
| A01C | 832758-1 | TOOL BAG | 1 | |
| A01E | 821931-8 | PLASTIC CARRYING CASE | 1 | |
| A01E | C10 | 417724-5 | LATCH | 2 |
| A01F | 821931-8 | PLASTIC CARRYING CASE | 1 | |
| A01F | C10 | 417724-5 | LATCH | 2 |
| A02C | ***DC18SD | DC18SD BATTERY CHARGER | 1 | |
| A02C | D10 | COMPO-PARTS | ||
| A02E | ***DCB18WA | DCB18WA CHARGER | 1 | |
| A02F | ***DCB18WA | DCB18WA CHARGER | 1 | |
| A03B | 197600-6 | BATTERY BL1830B SET | 4 | |
| A03C | 197600-6 | BATTERY BL1830B SET | 1 | |
| A03D | 197280-8 | BATTERY BL1850B SET | 4 | |
| A03E | 1915F4-6 | BATTERY BLB182 SET | 1 | |
| A03F | 1915F4-6 | BATTERY BLB182 SET | 2 | |
| A04B | 450128-8 | BATTERY COVER | 3 | |
| A04C | 450128-8 | BATTERY COVER | 1 | |
| A04D | 450128-8 | BATTERY COVER | 3 | |
| A04F | 450128-8 | BATTERY COVER | 1 |
