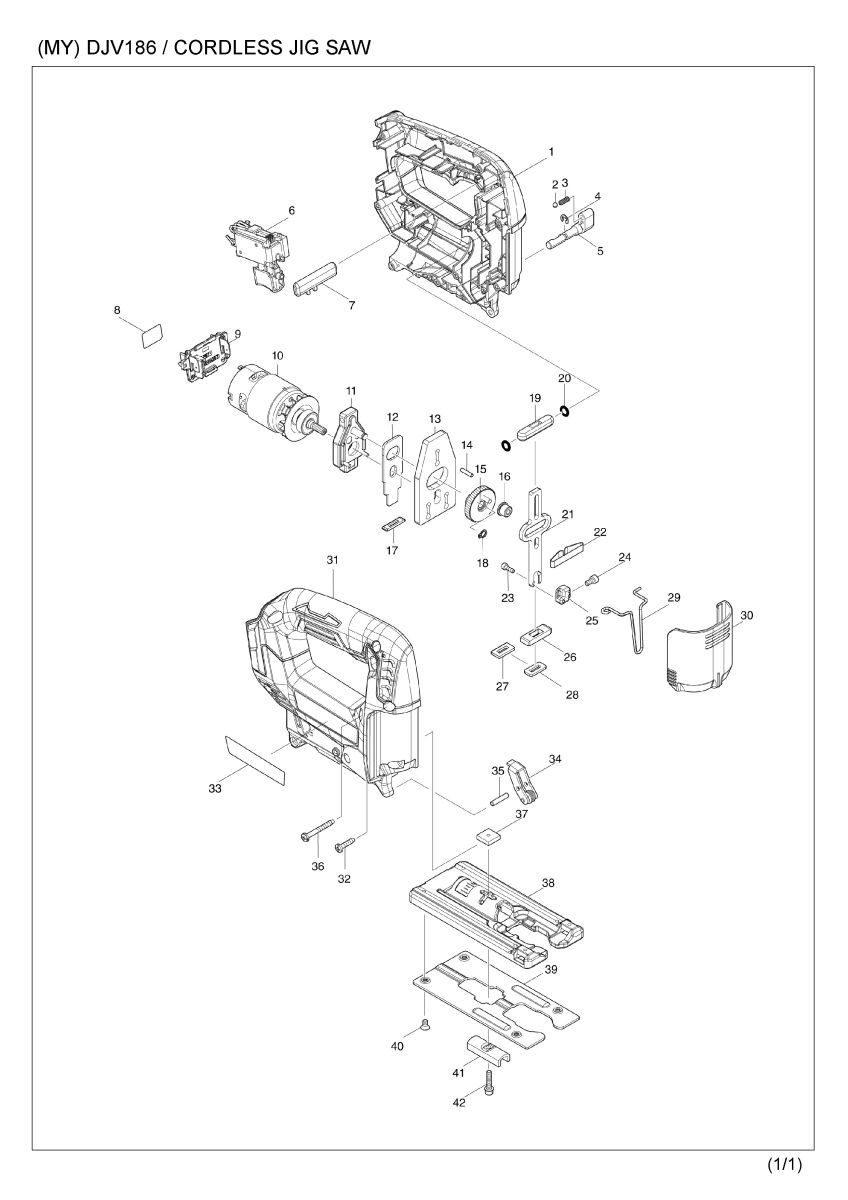

Part Diagram
Total: 50 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 1831K6-7 | HOUSING SET | 1 | |
| 001 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 001 | D10 | INC. 31 | ||
| 002 | 216008-6 | STEEL BALL 4 | 1 | |
| 003 | 233151-6 | COMPRESSION SPRING 4 | 1 | |
| 004 | 961011-9 | STOP RING E-4 | 1 | |
| 005 | 272239-7 | LEVER 18 | 1 | |
| 006 | 632W36-5 | SWITCH UNIT | 1 | |
| 007 | 454742-2 | LOCK OFF BUTTON | 1 | |
| 008 | 8150U7-8 | DJV186 SERIAL NO. LABEL | 1 | |
| 009 | 654938-7 | TERMINAL | 1 | |
| 010 | 629113-4 | DC MOTOR | 1 | |
| 011 | 152600-3 | BEARING CASE COMPLETE | 1 | |
| 012 | 344683-9 | PUSH PLATE | 1 | |
| 013 | 344614-8 | BALANCE PLATE | 1 | |
| 014 | 256254-9 | PIN 3 | 1 | |
| 015 | 153260-4 | GEAR COMPLETE | 1 | |
| 016 | 257683-9 | COLLAR SLEEVE | 1 | |
| 017 | 416703-0 | DUST SEAL | 1 | |
| 018 | 961002-0 | RETAINING RING S-6 | 1 | |
| 019 | 313082-6 | SLIDER GUIDE | 1 | |
| 020 | 213038-8 | O RING 5 | 2 | |
| 021 | 344613-0 | SLIDER | 1 | |
| 022 | 232183-0 | LEAF SPRING | 1 | |
| 023 | 266177-3 | HEX. SOCKET HEAD BOLT M3X10 | 2 | |
| 024 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 1 | |
| 025 | 313140-8 | BLADE CLAMP | 1 | |
| 026 | 313086-8 | SLIDER SUPPORT | 1 | |
| 027 | 344686-3 | SEAL PLATE | 1 | |
| 028 | 423307-1 | POLYURETHANE SPONGE SEAL | 1 | |
| 029 | 323748-0 | SAFETY WIRE | 1 | |
| 030 | 416476-5 | DUST COVER | 1 | |
| 031 | 1831K6-7 | HOUSING SET | 1 | |
| 031 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 031 | D10 | INC. 1 | ||
| 032 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 033 | 8150U6-0 | DJV186 NAME PLATE | 1 | |
| 034 | 158392-2 | RETAINER COMPLETE | 1 | |
| 035 | 256117-9 | PIN 4 | 1 | |
| 036 | 266351-3 | TAPPING SCREW 4X35 | 1 | |
| 037 | 343540-8 | HOLDER | 1 | |
| 038 | 317796-9 | BASE | 1 | |
| 039 | 345441-6 | BASE PLATE | 1 | |
| 040 | 912107-9 | COUNTERSUNK HEAD SCREW M4X8 | 4 | |
| 041 | 344685-5 | CLAMP PLATE | 1 | |
| 042 | 922138-0 | H.S.H.BOLT M4X20 WITH WR | 1 | |
| A01 | A-85628 | JIGSAW BLADE NO.B10 | 1 | |
| A02 | 783201-2 | HEX. WRENCH 3 | 1 | |
| F05 | 1913K5-7 | PUSH CLAMP SET | 1 | |
| F06 | 1915R3-2 | SUPPORT BASE SET | 1 |
