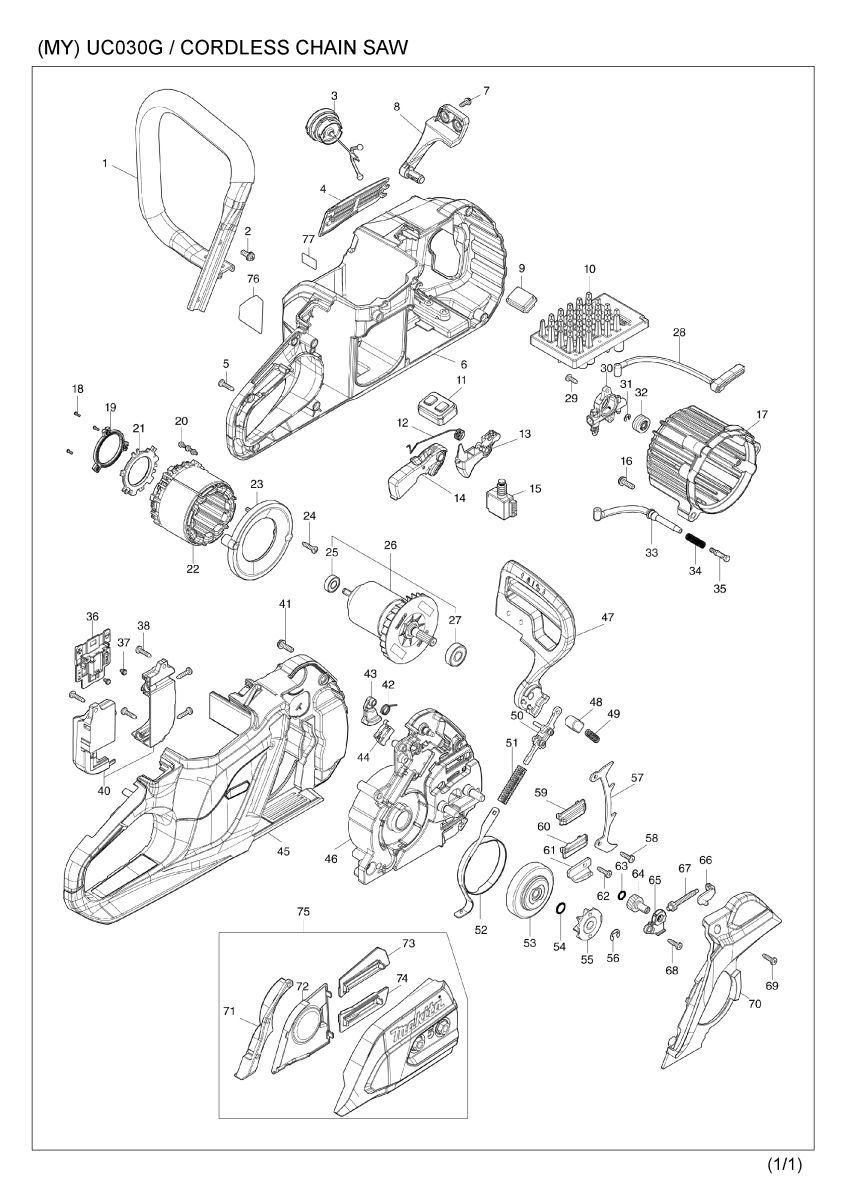

Part Diagram
Total: 100 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 327F81-8 | FRONT HANDLE | 1 | |
| 002 | 911218-7 | PAN HEAD SCREW M5X14 | 4 | |
| 003 | 122K21-9 | TANK CAP ASSEMBLY | 1 | |
| 003 | C10 | 213A77-4 | O-RING 29.5 | 1 |
| 004 | 4133J6-1 | DUST COVER | 1 | |
| 005 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 006 | 1831N9-2 | HOUSING SET | 1 | |
| 006 | C10 | 8091S4-6 | CAUTION LABEL | 1 |
| 006 | D10 | INC. 45 | ||
| 007 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 008 | 4133G1-0 | FRONT HAND GUARD RETAINER | 1 | |
| 009 | 620S23-2 | INDICATION CIRCUIT | 1 | |
| 010 | 620P60-8 | CONTORLLER | 1 | |
| 011 | 620S22-4 | SWITCH CIRCUIT | 1 | |
| 012 | 232850-7 | TORSION SPRING 10 | 1 | |
| 013 | 413C93-0 | SWITCH LEVER | 1 | |
| 014 | 141V01-2 | LOCK OFF LEVER COMPLETE | 1 | |
| 015 | 650049-6 | SWITCH C3JR-1A-PAXD5 | 1 | |
| 016 | 911228-4 | PAN HEAD SCREW M5X18 | 3 | |
| 017 | 4133F9-7 | MOTOR HOUSING | 1 | |
| 018 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 019 | 687H54-8 | STOPPER | 1 | |
| 020 | 652031-1 | PAN HEAD SCREW M3X6 | 3 | |
| 021 | 620P43-8 | CONTROLLER B | 1 | |
| 022 | 629D24-7 | STATOR | 1 | |
| 023 | 4133G3-6 | BAFFLE PLATE | 1 | |
| 024 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 025 | 210311-7 | BALL BEARING 698ZZ | 1 | |
| 026 | 519915-5 | ROTOR ASS'Y | 1 | |
| 026 | D10 | INC. 25,27 | ||
| 027 | 210274-7 | BALL BEARING 6000DDW | 1 | |
| 028 | 422C81-6 | OIL TUBE 3-154 | 1 | |
| 029 | 266427-6 | TAPPING SCREW 4X12 | 2 | |
| 030 | 142857-4 | OIL PUMP COMPLETE | 1 | |
| 031 | 961011-9 | STOP RING E-4 | 1 | |
| 032 | 226884-0 | WORM GEAR | 1 | |
| 033 | 422C80-8 | OIL TUBE 3-117 | 1 | |
| 034 | 231975-4 | SPRING | 1 | |
| 035 | 452666-6 | NIPPLE | 1 | |
| 036 | 632V23-8 | TERMINAL UNIT | 1 | |
| 037 | 652031-1 | PAN HEAD SCREW M3X6 | 2 | |
| 038 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 040 | 1830H3-6 | TERMINAL BOX SET | 1 | |
| 040 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 041 | 911228-4 | PAN HEAD SCREW M5X18 | 4 | |
| 042 | 232956-1 | TORSION SPRING 10 | 1 | |
| 043 | 4133G8-6 | SWITCH LEVER | 1 | |
| 044 | 650057-7 | SWITCH D2SW-P01L30-3M-C2(S) | 1 | |
| 045 | 1831N9-2 | HOUSING SET | 1 | |
| 045 | C10 | 8091S4-6 | CAUTION LABEL | 1 |
| 045 | D10 | INC. 6 | ||
| 046 | 137318-7 | HOUSING BASE ASSEMBLY | 1 | |
| 046 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 047 | 4133G0-2 | FRONT HAND GUARD | 1 | |
| 048 | 313667-8 | HAND GUARD GUIDE | 1 | |
| 049 | 232955-3 | COMPRESSION SPRING 5 | 1 | |
| 050 | 1411X1-4 | LINK PLATE COMPLETE | 1 | |
| 051 | 232452-9 | COMPRESSION SPRING 7 | 1 | |
| 052 | 347E17-5 | BRAKE BAND COMPLETE | 1 | |
| 053 | 162E14-8 | BRAKE DRUM | 1 | |
| 054 | 213060-5 | O RING 10 | 1 | |
| 055 | 227C36-4 | SPROCKET 8 | 1 | |
| 056 | 961013-5 | STOP RING E-7 | 1 | |
| 057 | 347E15-9 | SPIKE BUMPER | 1 | |
| 058 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 059 | 4133H5-9 | GUARD A | 1 | |
| 060 | 4133H4-1 | GUARD B | 1 | |
| 061 | 347924-2 | CHAIN CATCHER | 1 | |
| 062 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | |
| 063 | 213594-8 | O RING 7 | 1 | |
| 064 | 227744-9 | HELICAL GEAR 18 | 1 | |
| 065 | 4133G5-2 | GEAR COVER | 1 | |
| 066 | 347E16-7 | TENSION SLIDE | 1 | |
| 067 | 227743-1 | HELICAL GEAR 11 | 1 | |
| 068 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | |
| 069 | 266034-5 | TAPPING SCREW CT 4X16 | 3 | |
| 070 | 4133H0-9 | BRAKE COVER | 1 | |
| 071 | 422C82-4 | CHIP GUIDE | 1 | |
| 072 | 4133G9-4 | INNER COVER | 1 | |
| 073 | 4133G6-0 | GUARD C | 1 | |
| 074 | 4133G7-8 | GUARD D | 1 | |
| 075 | 137335-7 | SPROCKET COVER ASS'Y | 1 | |
| 075 | D10 | INC. 71-74 | ||
| 076 | 8151R7-3 | UC030G NAME PLATE | 1 | |
| 077 | 8151R9-9 | UC030G SERIAL NO. LABEL | 1 | |
| A01 | 1915Y9-9 | GUIDE BAR 20 SET | 1 | |
| A02 | D-70960 | FILE HOLDER SET 4.8MM(3/16") | 1 | |
| A03 | 4133H6-7 | GUIDE BAR CASE 535 | 1 | |
| A04 | 1916A3-9 | SAW CHAIN 20 SET | 1 | |
| A05 | 782023-7 | WRENCH 13-16 | 1 | |
| A05-1 | 782042-3 | BOX WRENCH 13 | 1 | |
| F02 | 1915Y7-3 | GUIDE BAR 16 SET | 1 | |
| F03 | 1915Y8-1 | GUIDE BAR 18 SET | 1 | |
| F04 | 1915Y9-9 | GUIDE BAR 20 SET | 1 | |
| F05 | 1916A0-5 | GUIDE BAR 20 SET | 1 | |
| F06 | 1916A1-3 | SAW CHAIN 16 SET | 1 | |
| F07 | 1916A2-1 | SAW CHAIN 18 SET | 1 | |
| F08 | 1916A3-9 | SAW CHAIN 20 SET | 1 | |
| F09 | 1916A4-7 | SAW CHAIN 20 SET | 1 | |
| F10 | 1916A5-5 | SPROCKET 8 SET | 1 |
