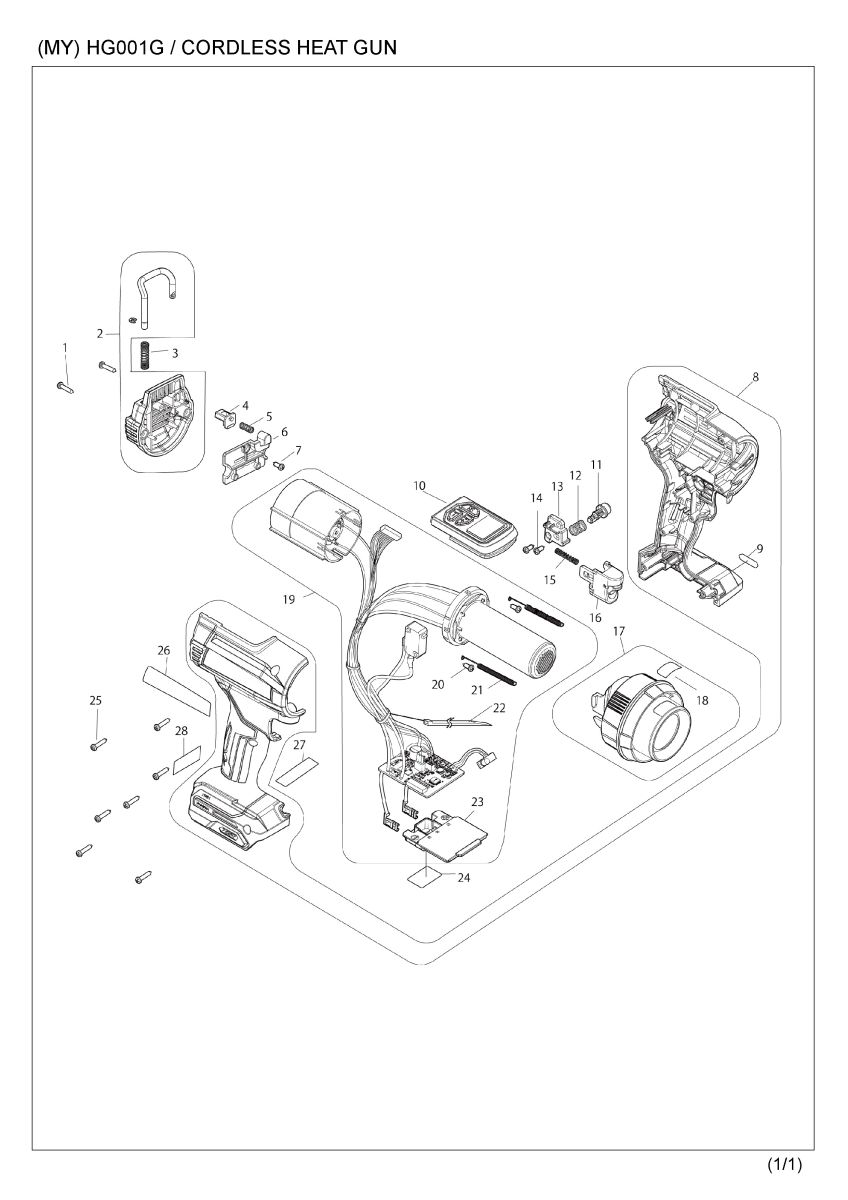

Part Diagram
Total: 40 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | PR00000395 | TAPPING SCREW ST2.9X16 | 2 | |
| 002 | PR00000567 | BACK COVER ASSEMBLY | 1 | |
| 003 | PR00000385 | SPRING6 | 1 | |
| 004 | PR00000387 | HOOK RELEASE BUTTON | 1 | |
| 005 | PR00000388 | SPRING5 | 1 | |
| 006 | PR00000531 | BACK COVER INSIDE | 1 | |
| 007 | PR00000293 | TAPPING SCREW ST2.9X10 | 2 | |
| 008 | PR00000523 | HOUSING SET | 1 | |
| 008 | D10 | INC. 9 | ||
| 009 | 8007R2-2 | XGT LOGO LABEL | 1 | |
| 010 | PR00000524 | CONTROL PANEL ASSY | 1 | |
| 011 | PR00000380 | LOCK ON BUTTON | 1 | |
| 012 | PR00000381 | SPRING9 | 1 | |
| 013 | PR00000382 | SUPPORT FRAME | 1 | |
| 014 | PR00000293 | TAPPING SCREW ST2.9X10 | 2 | |
| 015 | PR00000393 | SPRING 4 | 1 | |
| 016 | PR00000539 | TRIGGER ASSY | 1 | |
| 017 | PR00000537 | FRONT COVER WITH CAUTION LABEL | 1 | |
| 017 | D10 | INC. 18 | ||
| 018 | PR00000538 | HIGH TEMPERATURE CAUTION LABEL | 1 | |
| 019 | PR00000532 | HEATER MOTOR&CONT. ASSY | 1 | |
| 019 | D10 | INC. 20-23 | ||
| 020 | PR00000426 | PAN HEAD SCREW M2.5X10 | 2 | |
| 021 | PR00000428 | TENSION SPRING 3 | 2 | |
| 022 | PR00000534 | CABLE TIE | 3 | |
| 023 | 632R99-1 | TERMINAL UNIT | 1 | |
| 024 | PR00000535 | SERIAL NUMBER LABEL | 1 | |
| 025 | PR00000395 | TAPPING SCREW ST2.9X16 | 7 | |
| 026 | PR00000549 | NAME PLATE | 1 | |
| A03 | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A03 | C10 | 453974-8 | LATCH | 4 |
| A04 | PR00000560 | INNER TRAY FOR HG001G | 1 | |
| A05 | PR00000561 | MAKPAK LABEL FOR HG001G(COLOR | 1 | |
| A06 | PR00000562 | MAKPAK LABEL FOR HG001G(BLACK | 1 | |
| A07 | 191B26-6 | BATTERY BL4040 SET | 2 | |
| A08 | 191E07-8 | DC40RA FAST CHARGER | 1 | |
| A09 | PR00000028 | GLASS PROTECTION NOZZLE | 1 | |
| A10 | PR00000029 | WIDE-SLOT NOZZLE | 1 | |
| A11 | PR00000030 | REFLECTOR NOZZLE | 1 | |
| A12 | PR00000031 | REDUCTION NOZZLE 20mm | 1 |
