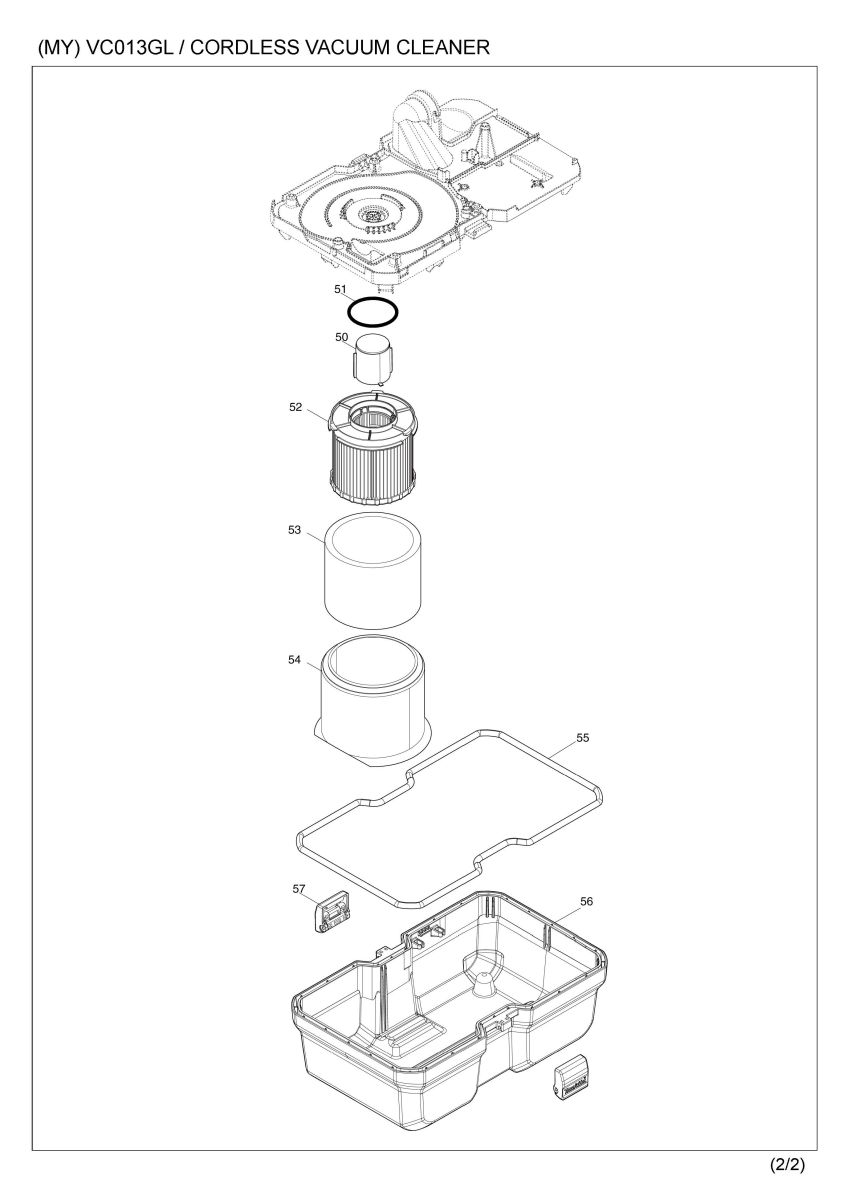

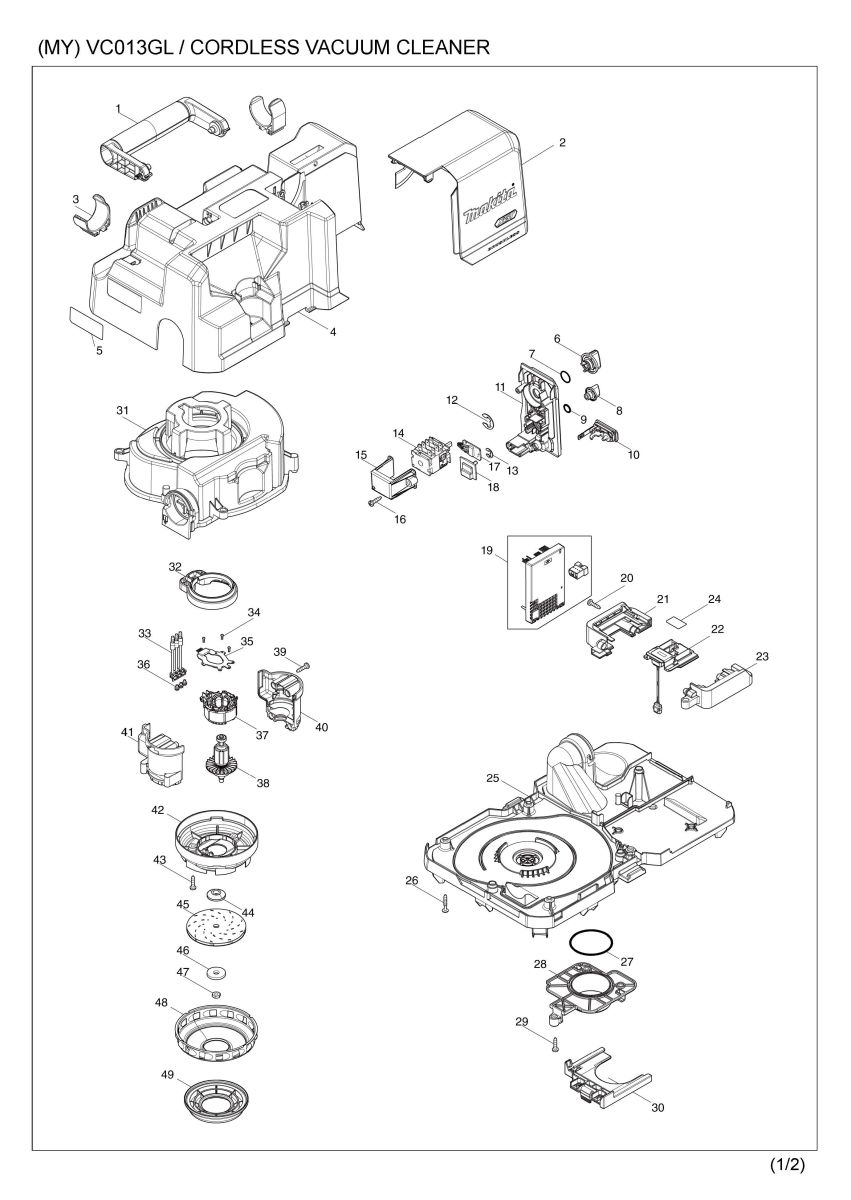

Part Diagram
Total: 87 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 4131X7-5 | HANDLE | 1 | |
| 002 | 137262-8 | BATTERY COVER ASSEMBLY | 1 | |
| 003 | 4131X6-7 | HOSE HOOK | 2 | |
| 004 | 137312-9 | TOP COVER ASSEMBLY | 1 | |
| 004 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 004 | C20 | 891977-8 | CAUTION LABEL | 1 |
| 005 | 8150P3-1 | VC013GL NAME PLATE | 1 | |
| 006 | 455733-6 | SWITCH LEVER | 1 | |
| 007 | 213176-6 | O RING 14 | 1 | |
| 008 | 451344-5 | SWITCH DIAL | 1 | |
| 009 | 213054-0 | O RING 9 | 1 | |
| 010 | 1410V2-2 | CAP COMPLETE | 1 | |
| 010-1 | 1413F4-4 | CAP COMPLETE | 1 | |
| 011 | 1410V5-6 | SWITCH BASE COMPLETE | 1 | |
| 012 | 961062-2 | STOP RING E-12 | 1 | |
| 013 | 961013-5 | STOP RING E-7 | 1 | |
| 014 | 650066-6 | SWITCH 1703.4704 | 1 | |
| 015 | 451343-7 | SWITCH HOLDER | 1 | |
| 016 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 017 | 620R97-7 | INDICATION CIRCUIT | 1 | |
| 018 | 620D39-7 | SUB CONTROLLER | 1 | |
| 019 | 620R91-9 | CONTROLLER | 1 | |
| 020 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 021 | 1831K5-9 | TERMINAL CASE SET | 1 | |
| 021 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 021 | D10 | INC. 23 | ||
| 022 | 632W77-1 | TERMINAL UNIT | 1 | |
| 023 | 1831K5-9 | TERMINAL CASE SET | 1 | |
| 023 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 023 | D10 | INC. 21 | ||
| 024 | 8150P4-9 | VC013GL SERIAL NO. LABEL | 1 | |
| 025 | 4131W9-4 | TANK COVER | 1 | |
| 026 | 266374-1 | TAPPING SCREW 4X25 | 8 | |
| 027 | 213A93-6 | O-RING 55 | 1 | |
| 028 | 4131X4-1 | INLET | 1 | |
| 029 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 030 | 4131W3-6 | STAY | 1 | |
| 031 | 1410U8-3 | SEPARATOR COMPLETE | 1 | |
| 031 | C10 | 422C10-9 | BAND DAMPER B | 1 |
| 031 | C20 | 422C11-7 | BAND DAMPER C | 1 |
| 032 | 422794-1 | RUBBER RING | 1 | |
| 033 | 632W57-7 | LEAD UNIT | 1 | |
| 034 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 035 | 620F39-9 | CONTROLLER B | 1 | |
| 036 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 037 | 629C29-1 | STATOR | 1 | |
| 038 | 619704-9 | ROTOR | 1 | |
| 039 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 040 | 183U05-2 | MOTOR HOUSING SET | 1 | |
| 040 | D10 | INC. 41 | ||
| 041 | 183U05-2 | MOTOR HOUSING SET | 1 | |
| 041 | D10 | INC. 40 | ||
| 042 | 4131X1-7 | FAN BASE | 1 | |
| 043 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 044 | 313062-2 | FLANGE | 1 | |
| 045 | 240243-4 | FAN 80 | 1 | |
| 046 | 253752-4 | FLAT WASHER 8 | 1 | |
| 047 | 252268-6 | HEX. NUT M6 | 1 | |
| 048 | 347D45-4 | FAN COVER | 1 | |
| 049 | 422C08-6 | SUPPORT RING | 1 | |
| 050 | 140G00-1 | FLOAT COMPLETE | 1 | |
| 051 | 422364-6 | SEAL RING A | 1 | |
| 052 | 162518-0 | FILTER COMPLETE | 1 | |
| 053 | 422449-8 | DAMPER | 1 | |
| 054 | 162635-6 | PRE FILTER | 1 | |
| 055 | 422C07-8 | SEAL RING B | 1 | |
| 056 | 4131X0-9 | TANK | 1 | |
| 057 | 162315-4 | LATCH | 2 | |
| A01 | 140G04-3 | HOSE COMPLETE | 1 | |
| A02 | 199486-4 | SHOULDER BELT SET | 1 | |
| A03 | 4132U6-2 | SASH NOZZLE | 1 | |
| A04 | 458891-7 | WIDE NOZZLE | 1 | |
| F02 | 191Y12-5 | HOSE COMPLETE SET | 1 | |
| F03 | 1912G4-5 | TELESCOPIC PIPE COMPLETE SET | 1 | |
| F04 | 1912G5-3 | BENT PIPE COMPLETE SET | 1 | |
| F05 | 1914Y6-9 | ROTARY BRUSH NOZZLE SET | 1 | |
| F06 | 1914Y7-7 | ROTARY BRUSH NOZZLE SET | 1 | |
| F07 | 1915G5-1 | CASTER SET | 1 | |
| F08 | 1915G6-9 | HOSE COMPLETE 28-5 SET | 1 | |
| F12 | 1915W5-3 | PAPER FILTER BAG SET | 1 | |
| F13 | 191657-9 | ROUND BRUSH SET 38 BLK | 1 | |
| F14 | 192236-6 | TAPERED NOZZLE SET | 1 | |
| F15 | 192563-1 | STRAIGHT PIPE SET 565-38 | 1 | |
| F16 | 195432-5 | POLY BAG SET(650X650) | 1 | |
| F17 | 195548-6 | JOINT 22-38 SET | 1 | |
| F21 | 199486-4 | SHOULDER BELT SET | 1 | |
| F22 | 199827-4 | PRE FILTER SET | 1 |
