Part Diagram
Total: 145 record(s) at page 1 of 1

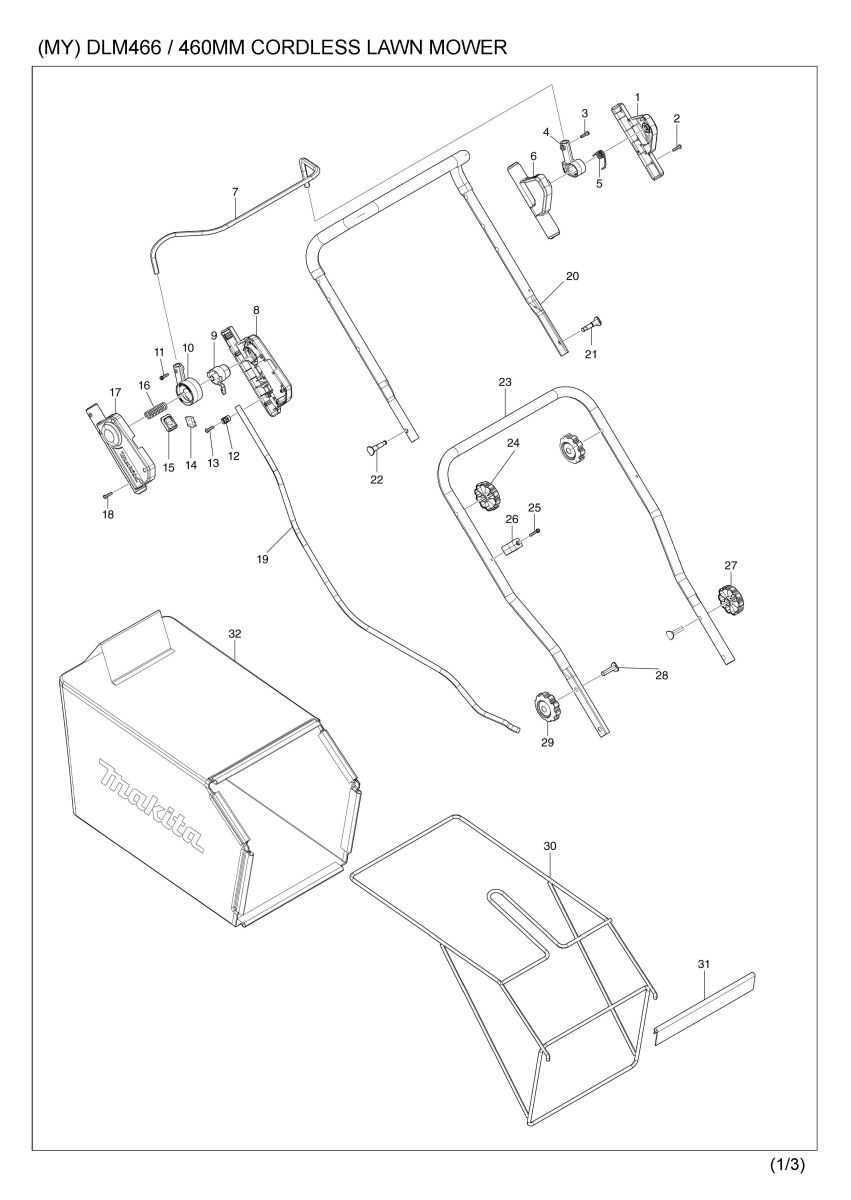

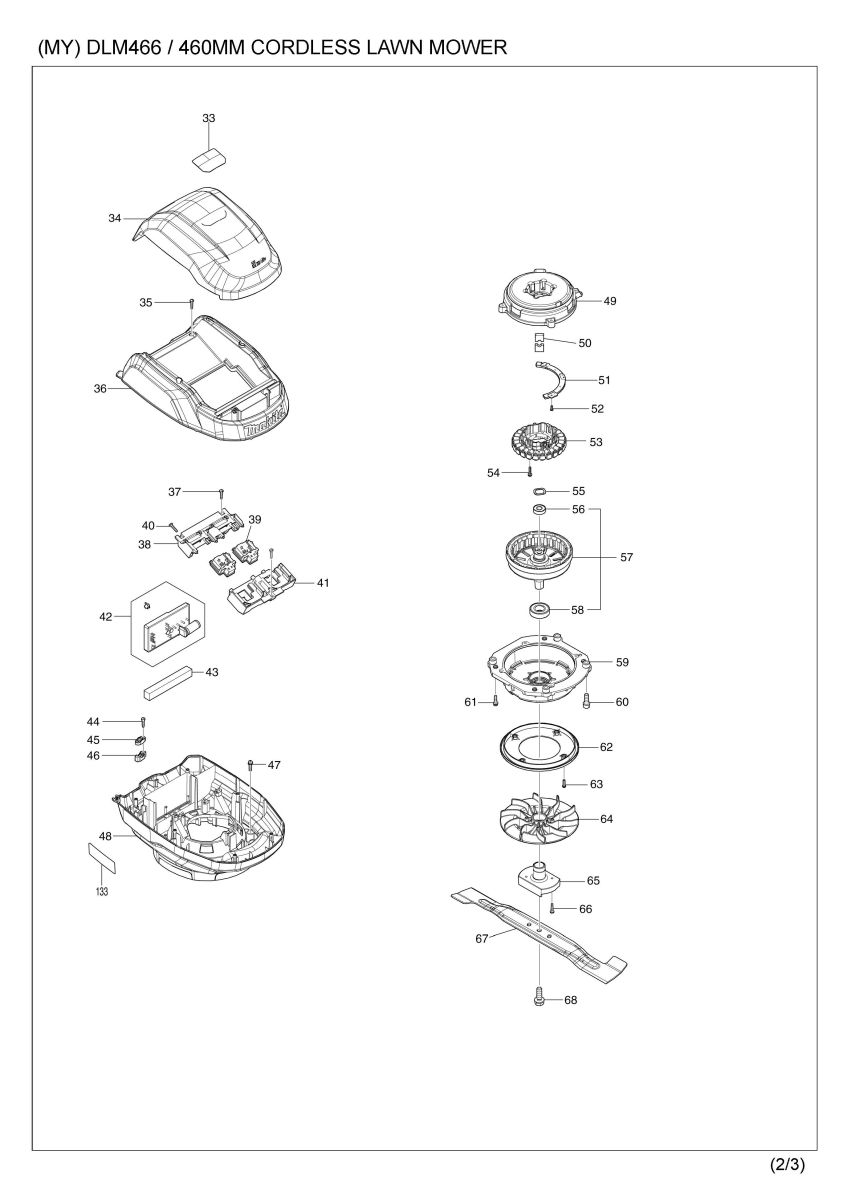

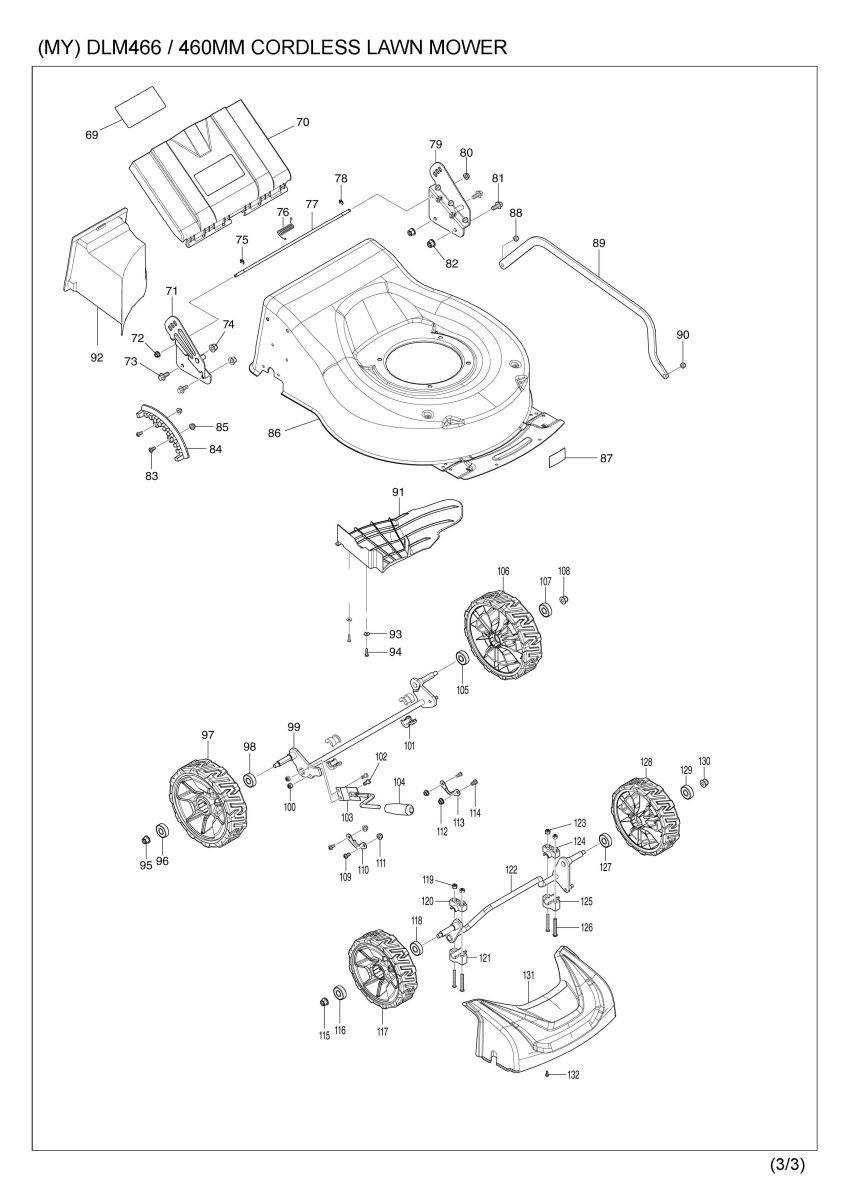

| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183U21-4 | LEVER BOX SET | 1 | |
| 001 | D10 | INC. 6 | ||
| 002 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 003 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 004 | 459863-5 | SWITCH LEVER SUPPORT L | 1 | |
| 005 | 232575-3 | TORSION SPRING 12 | 1 | |
| 006 | 183U21-4 | LEVER BOX SET | 1 | |
| 006 | D10 | INC. 1 | ||
| 007 | 327424-8 | SWITCH LEVER | 1 | |
| 008 | 1831S2-1 | SWITCH BOX SET | 1 | |
| 008 | D10 | INC. 17 | ||
| 009 | 459857-0 | LOCK OFF BUTTON | 1 | |
| 010 | 459856-2 | SWITCH LEVER SUPPORT R | 1 | |
| 011 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 012 | 687123-7 | STRAIN RELIEF | 1 | |
| 013 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 014 | 632E26-0 | SWITCH UNIT | 1 | |
| 015 | 1411B0-2 | SWITCH CIRCUIT COMPLETE | 1 | |
| 016 | 231227-3 | COMPRESSION SPRING 15 | 1 | |
| 017 | 1831S2-1 | SWITCH BOX SET | 1 | |
| 017 | D10 | NC. 8 | ||
| 018 | 266424-2 | TAPPING SCREW 4X20 | 6 | |
| 019 | 699255-8 | POWER SUPPLY CORD UNIT | 1 | |
| 020 | 327871-3 | HANDLE UPPER | 1 | |
| 021 | 265C08-1 | FLAT HEAD BOLT M8X50 | 1 | |
| 022 | 265C08-1 | FLAT HEAD BOLT M8X50 | 1 | |
| 023 | 327E80-4 | HANDLE LOWER | 1 | |
| 024 | 265C06-5 | THUMB NUT M8 | 2 | |
| 025 | 911163-6 | PAN HEAD SCREW M4X35 | 1 | |
| 026 | 413944-9 | CLAMP | 1 | |
| 027 | 265C06-5 | THUMB NUT M8 | 1 | |
| 028 | 265A62-3 | FLAT HEAD BOLT M8X38 | 2 | |
| 029 | 265C06-5 | THUMB NUT M8 | 1 | |
| 030 | 162D75-2 | GRASS CATCHER BRACKET | 1 | |
| 031 | 4132N2-1 | GUARD | 1 | |
| 032 | 162D74-4 | GRASS CATCHER | 1 | |
| 033 | 8088R5-6 | INDICATION LABEL | 1 | |
| 034 | 4132C7-4 | BATTERY COVER | 1 | |
| 035 | 266424-2 | TAPPING SCREW 4X20 | 6 | |
| 036 | 1411A9-7 | COWLING UPPER COMPLETE | 1 | |
| 037 | 266424-2 | TAPPING SCREW 4X20 | 3 | |
| 038 | 183N35-1 | TERMINAL HOUSING SET | 1 | |
| 038 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 038 | D10 | INC. 41 | ||
| 039 | 644809-6 | TERMINAL | 2 | |
| 040 | 266424-2 | TAPPING SCREW 4X20 | 3 | |
| 041 | 183N35-1 | TERMINAL HOUSING SET | 1 | |
| 041 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 041 | D10 | INC. 38 | ||
| 042 | 620R80-4 | CONTROLLER | 1 | |
| 043 | 422956-1 | SPONGE | 1 | |
| 044 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 045 | 687123-7 | STRAIN RELIEF | 1 | |
| 046 | 687051-6 | STRAIN RELIEF | 1 | |
| 047 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 048 | 4132C6-6 | COWLING LOWER | 1 | |
| 049 | 141M30-1 | STATOR BASE COMPLETE | 1 | |
| 050 | 422955-3 | GROMMET | 2 | |
| 051 | 620J44-0 | CONTROLLER B | 1 | |
| 052 | 265C89-5 | FLAT HEAD SCREW M3X10 | 3 | |
| 053 | 629D09-3 | STATOR | 1 | |
| 054 | 911138-5 | P.H.SCREW M4X20 WITH WR | 6 | |
| 055 | 253455-0 | WAVE WASHER 19 | 1 | |
| 056 | 210141-6 | BALL BEARING 6000DDW | 1 | |
| 057 | 519893-9 | ROTOR ASS'Y | 1 | |
| 057 | D10 | INC. 56,58 | ||
| 058 | 210237-3 | BALL BEARING 6004DDW | 1 | |
| 059 | 312H81-3 | BRACKET | 1 | |
| 060 | 922441-9 | HEX. SOCKET HEAD BOLT M8X25 | 4 | |
| 061 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 062 | 413L53-6 | BAFFLE PLATE | 1 | |
| 063 | 911126-2 | PAN HEAD SCREW M4X16 | 4 | |
| 064 | 240229-8 | FAN 170 | 1 | |
| 065 | 312H80-5 | BLADE SUPPORT 460 | 1 | |
| 066 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 067 | 191W86-4 | BLADE 460 SET | 1 | |
| 068 | 265D72-8 | HEX. BOLT M10X35 WG | 1 | |
| 069 | 8076C0-6 | CAUTION LABEL | 1 | |
| 070 | DA00001295 | REAR COVER | 1 | |
| 071 | DA00001315 | RIGHT HANDLE BRACKET | 1 | |
| 072 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 1 | |
| 073 | DA00001324 | HEX.FLANGE BOLT M8X18 | 2 | |
| 074 | DA00001316 | HEX. FLANGE LOCK NUT M8 | 2 | |
| 075 | 671009017 | STOP RING E-6 | 1 | |
| 076 | 671011101 | REAR FLAP TORSION SPRING | 1 | |
| 077 | 671001518 | REAR FLAP HINGE ROD | 1 | |
| 078 | 671009017 | STOP RING E-6 | 1 | |
| 079 | DA00001314 | LEFT HANDLE BRACKET | 1 | |
| 080 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 1 | |
| 081 | DA00001324 | HEX.FLANGE BOLT M8X18 | 2 | |
| 082 | DA00001316 | HEX. FLANGE LOCK NUT M8 | 2 | |
| 083 | 671002019 | TRUSS HEAD SCREW M6X12 | 2 | |
| 084 | 459361-9 | ADJUST PLATE | 1 | |
| 085 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | |
| 086 | DA00001312 | DECK | 1 | |
| 087 | DA00001321 | RUBBER SHEET | 1 | |
| 088 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 | 1 | |
| 089 | DA00001311 | CONNECTING ROD | 1 | |
| 090 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 | 1 | |
| 091 | DA00001313 | DECK LOWER COVER | 1 | |
| 092 | DA00001320 | MULCHING PLUG ASSEMBLY | 1 | |
| 093 | DA00001325 | PLAIN WASHER | 2 | |
| 094 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 095 | DA00001316 | HEX. FLANGE LOCK NUT M8 | 1 | |
| 096 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 097 | DA00001323 | REAR WHEEL ASSEMBLY | 1 | |
| 098 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 099 | DA00001322 | REAR SHAFT | 1 | |
| 100 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 | 2 | |
| 101 | DA00001025 | REAR AXLE MOUNT | 4 | |
| 102 | 671002030 | PAN HEAD SCREW M6X14 | 2 | |
| 103 | DA00001310 | HEIGHT ADJUSTMENT HANDLE KNOB | 1 | |
| 104 | DA00001309 | HEIGHT ADJUSTMENT HANDLE | 1 | |
| 105 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 106 | DA00001323 | REAR WHEEL ASSEMBLY | 1 | |
| 107 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 108 | DA00001316 | HEX. FLANGE LOCK NUT M8 | 1 | |
| 109 | 671002019 | TRUSS HEAD SCREW M6X12 | 2 | |
| 110 | DA00000542 | AXLE RETAINER | 1 | |
| 111 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | |
| 112 | DA00000543 | HEX.FLANGE LOCK NUT M6 | 2 | |
| 113 | DA00000542 | AXLE RETAINER | 1 | |
| 114 | 671002019 | TRUSS HEAD SCREW M6X12 | 2 | |
| 115 | DA00001316 | HEX. FLANGE LOCK NUT M8 | 1 | |
| 116 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 117 | DA00001319 | FRONT WHEEL ASSEMBLY | 1 | |
| 118 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 119 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 | 2 | |
| 120 | 671445001 | FRONT AXLE RETAINER | 1 | |
| 121 | 671418001 | FRONT AXLE MOUNT | 1 | |
| 122 | DA00001318 | FRONT SHAFT | 1 | |
| 123 | DA00000549 | NYLON INSERT HEX.LOCK NUT M6 | 2 | |
| 124 | 671445001 | FRONT AXLE RETAINER | 1 | |
| 125 | 671418001 | FRONT AXLE MOUNT | 1 | |
| 126 | 671002028 | PAN HEAD SCREW M6X45 | 4 | |
| 127 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 128 | DA00001319 | FRONT WHEEL ASSEMBLY | 1 | |
| 129 | DA00000538 | BALL BEARING 6201ZZ | 1 | |
| 130 | DA00001316 | HEX. FLANGE LOCK NUT M8 | 1 | |
| 131 | DA00001317 | FRONT COVER | 1 | |
| 132 | DA00000911 | TAPPING SCREW ST4.2X10 | 6 | |
| 133 | 8150D5-3 | DLM466 NAME PLATE | 1 | |
| A01 | 782210-8 | SOCKET WRENCH 17 | 1 | |
| F01 | 191W86-4 | BLADE 460 SET | 1 | |
| F02 | 191Y63-8 | BLADE 460 SET | 1 |
