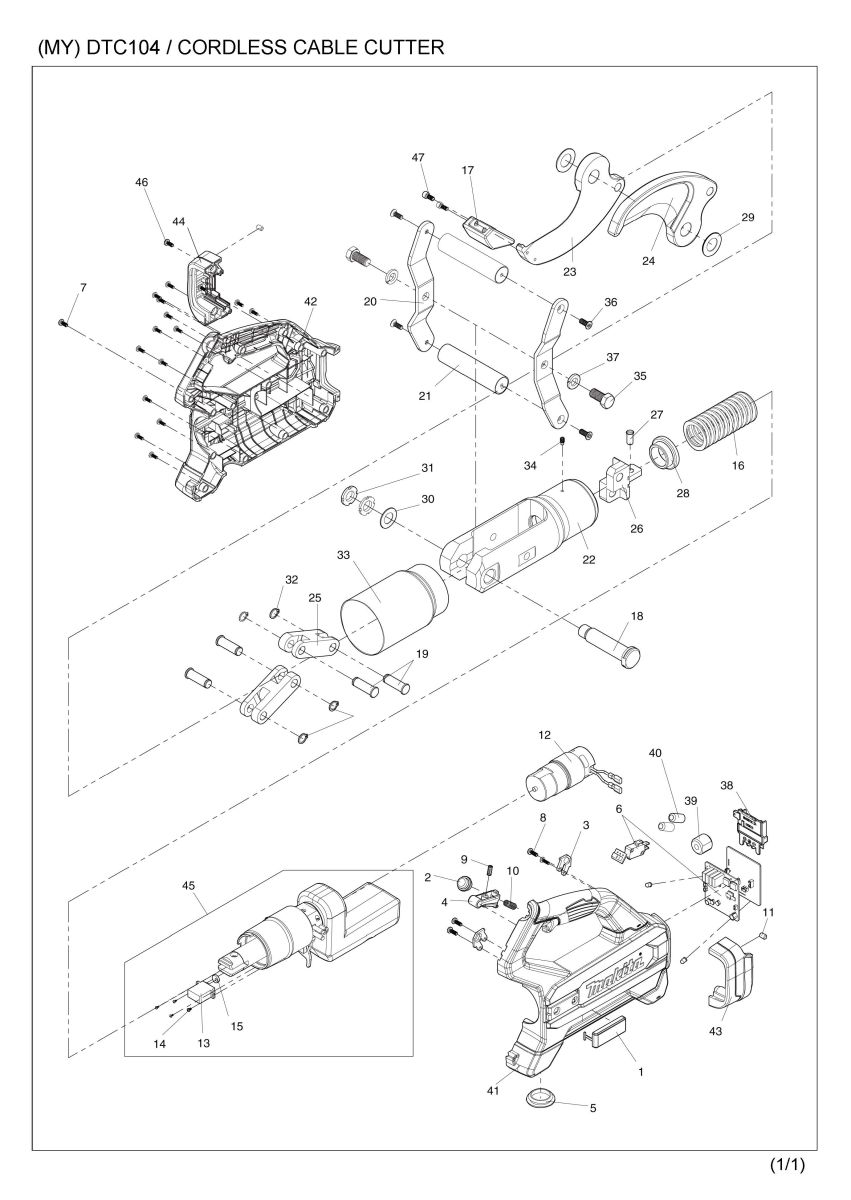

Part Diagram

Item	Sub	Parts No.	Parts Description	Qty
001		ZM00000274	COVER	1
002		ZM00000275	RELEASE KNOB	1
003		ZM00000157	STRAP PLATE	2
004		ZM00000276	TRIGGER ASS'Y	1
005		ZM00000277	OIL FEED CAP	1
006		ZM00000278	SIWTCH UNIT	1
007		ZM00000149	PAN HEAD SCREW M4X12	15
008		ZM00000156	TAPPING SCREW 4X12	4
009		ZM00000279	SPRING (187)	1
010		ZM00000232	COMPRESSION SPRING (599)	1
011		263005-3	RUBBER PIN 6	2
012		ZM00000244	POWER UNIT ASSY	1
013		ZM00000280	RELEASE UNIT	1
014		ZM00000281	PAN HEAD SCREW M2X4	4
015		ZM00000282	CAM	1
016		ZM00000283	RAM SPRING(714)	1
017		ZM00000284	BLADE GUIDE	1
018		ZM00000285	SHOULDER BOLT	1
019		ZM00000286	PIN(276)	4
020		ZM00000287	SUPPORT PLATE	2
021		ZM00000288	GRIP	2
022		ZM00000289	BODY HEAD	1
023		ZM00000290	BLADE(1)	1
024		ZM00000291	BLADE(2)	1
025		ZM00000292	LINK	2
026		ZM00000293	LINK HEAD	1
027		ZM00000294	PIVOT PIN	1
028		ZM00000295	RAM SPRING HOLDER	1
029		ZM00000296	THRUST WASHER (2035)	2
030		ZM00000297	THRUST WASHER (1730)	1
031		ZM00000298	NUT AN03	2
032		ZM00000299	SNAP RING JG-12	4
033		ZM00000300	HEAT SHRINK TUBE	1
034		ZM00000301	H.S. SET SCREW (D.P.) M5X10	1
035		ZM00000302	HEX.BOLT M12 X 18	2
036		ZM00000303	COUNTER SUNK SCREW M6X16	4
037		ZM00000304	LOCK WASHER M12	2
038		643874-2	TERMINAL	1
039		ZM00000305	FERRITE CORE 1	1
040		ZM00000201	FERRITE CORE 2	2
041		ZM00000306	HOUSING SET	1
041	D10		INC. 42
042		ZM00000306	HOUSING SET	1
042	D10		INC. 41
043		ZM00000307	BATTERY HOUSING SET	1
043	D10		INC. 44
044		ZM00000307	BATTERY HOUSING SET	1
044	D10		INC. 43
045		ZM00000308	OIL UNIT ASSY	1
045	D10		INC. 13-15
046		ZM00000149	PAN HEAD SCREW M4X12	2
047		ZM00000309	H.S. BOLT M5 X 14	2
