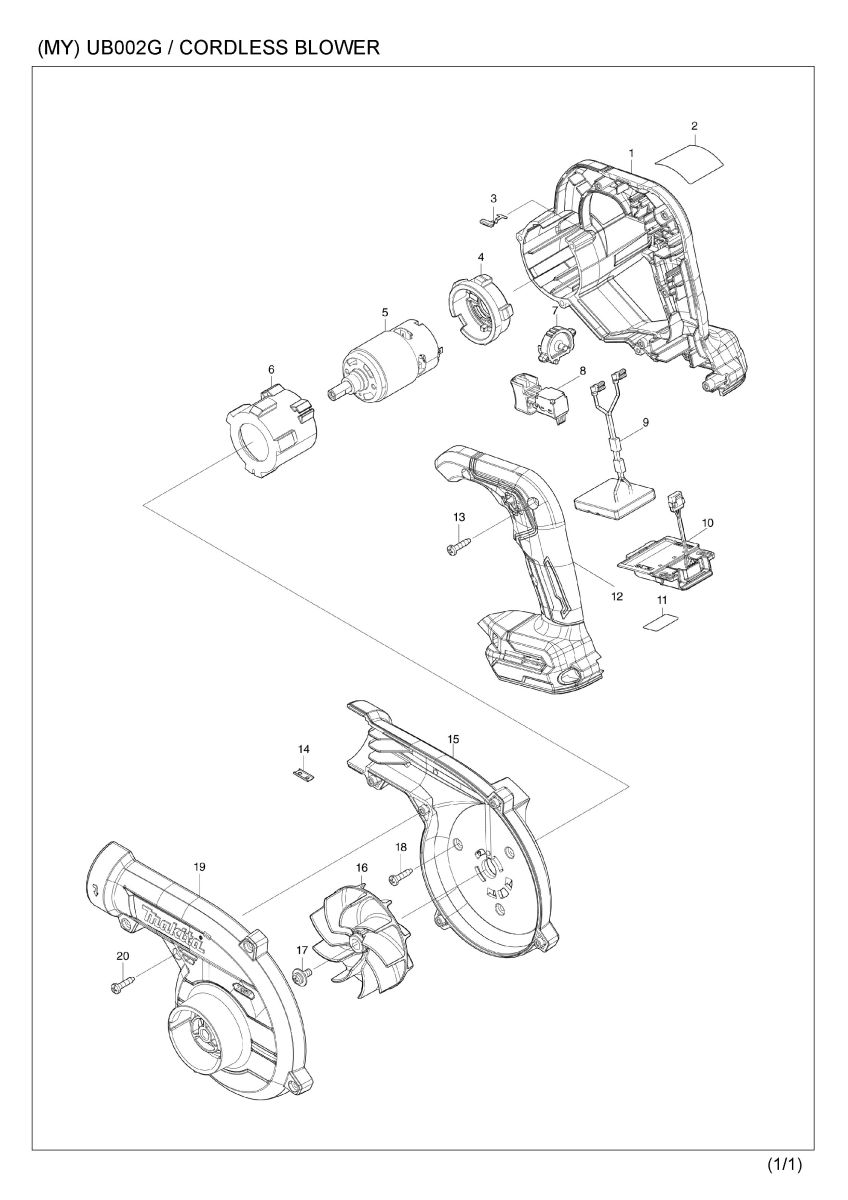

Part Diagram
Total: 30 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 1831D4-2 | MOTOR HOUSING SET | 1 | |
| 001 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 001 | D10 | INC. 12 | ||
| 002 | 8148Y6-3 | UB002G NAME PLATE | 1 | |
| 003 | 232620-4 | LEAF SPRING | 1 | |
| 004 | 422C19-1 | MOTOR RUBBER RING B | 1 | |
| 005 | 629D06-9 | DC MOTOR | 1 | |
| 006 | 422588-4 | MOTOR RUBBER RING A | 1 | |
| 007 | 412573-5 | DIAL | 1 | |
| 008 | 650065-8 | SWITCH | 1 | |
| 009 | 632W19-5 | CONTROLLER UNIT | 1 | |
| 010 | 632R99-1 | TERMINAL UNIT | 1 | |
| 011 | 8148Y8-9 | UB002G SERIAL NO. LABEL | 1 | |
| 012 | 1831D4-2 | MOTOR HOUSING SET | 1 | |
| 012 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 012 | D10 | INC. 1 | ||
| 013 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 014 | 345998-7 | SET PLATE | 1 | |
| 015 | 1831J4-4 | FAN HOUSING SET | 1 | |
| 015 | C10 | 8085F3-8 | CAUTION LABEL | 1 |
| 015 | D10 | INC. 19 | ||
| 016 | 240210-9 | FAN 85 | 1 | |
| 017 | 265B25-5 | PAN HEAD SCREW M5X12 WITH WG | 1 | |
| 018 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 019 | 1831J4-4 | FAN HOUSING SET | 1 | |
| 019 | C10 | 8085F3-8 | CAUTION LABEL | 1 |
| 019 | D10 | INC. 15 | ||
| 020 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| A01 | 123245-4 | NOZZLE ASS'Y | 1 | |
| A01 | C10 | 454703-2 | JOINT | 1 |
