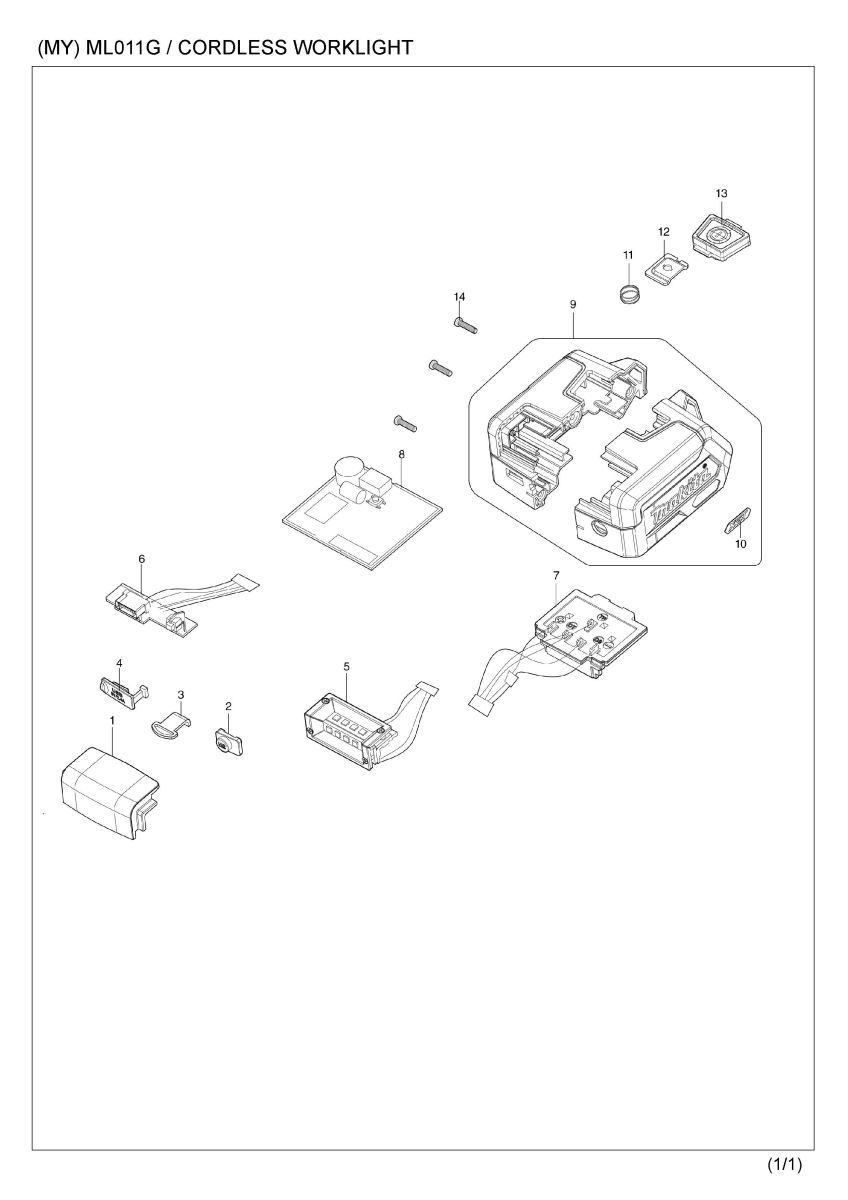

Part Diagram
Total: 16 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | GM00002458 | LENS | 1 | |
| 002 | GM00002459 | USB SWITCH BUTTON | 1 | |
| 003 | GM00002460 | STRAP HOOK | 1 | |
| 004 | GM00002461 | USB COVER | 1 | |
| 005 | GM00002462 | LED PCBA ASSY | 1 | |
| 006 | GM00002463 | USB PCBA ASSY | 1 | |
| 007 | GM00002464 | BATTERY HOLDER ASSY | 1 | |
| 008 | GM00002465 | MAIN PCBA ASSY | 1 | |
| 009 | GM00002466 | BODY ASSY BLUE | 1 | |
| 009 | D10 | INC. 10 | ||
| 010 | GM00002496 | XGT LABEL | 1 | |
| 011 | GM00002468 | SWITCH SPRING | 1 | |
| 012 | GM00002469 | SWITCH SPRING BRACKET | 1 | |
| 013 | GM00002470 | SWITCH ASSY | 1 | |
| 014 | GM00001012 | SCREW 3X12 PB BLACK ZN | 3 | |
| A01 | GM00002457 | LAMP SHADE | 1 |
