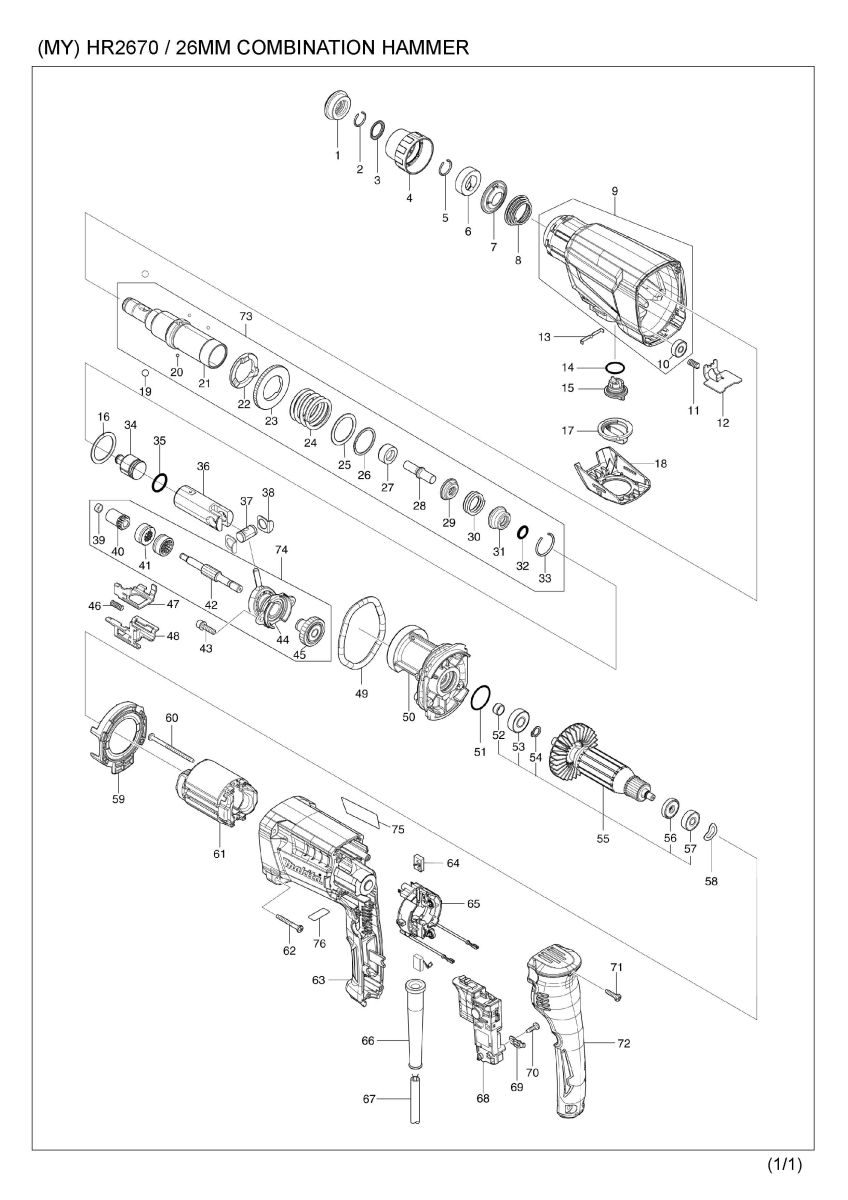

Part Diagram
Total: 196 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 286288-8 | CAP 35 | 1 | |
| 002 | 233989-9 | RING SPRING 14 | 1 | |
| 003 | 346834-0 | WASHER 16 | 1 | |
| 004 | 4130J0-5 | CHUCK COVER | 1 | |
| 005 | 233992-0 | RING SPRING 15 | 1 | |
| 006 | 327269-4 | RING 17 | 1 | |
| 007 | 347944-6 | GUIDE WASHER | 1 | |
| 008 | 232503-8 | CONICAL COMP. SPRING 21-34 | 1 | |
| 009 | 137222-0 | GEAR HOUSING ASS'Y | 1 | |
| 009 | D10 | INC. 10 | ||
| 010 | 210143-2 | BALL BEARING 626ZZ | 1 | |
| 011 | 233360-7 | COMPRESSION SPRING 4 | 1 | |
| 012 | 347C59-7 | LOCK PLATE | 1 | |
| 013 | 232286-0 | LEAF SPRING | 1 | |
| 014 | 213278-8 | O RING 17 | 1 | |
| 015 | 137166-4 | CHANGE LEVER ASSEMBLY | 1 | |
| 015 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 016 | 267153-0 | FLAT WASHER 30 | 1 | |
| 017 | 455394-2 | CHANGE LEVER CAP | 1 | |
| 018 | 4130H9-3 | CHANGE LEVER COVER | 1 | |
| 019 | 216022-2 | STEEL BALL 7.0 | 2 | |
| 020 | 216019-1 | STEEL BALL 3 | 3 | |
| 020-1 | 216068-8 | STEEL BALL 3 | 3 | |
| 021 | 141W48-2 | TOOL HOLDER COMPLETE | 1 | |
| 022 | 327D75-1 | DRIVING FLANGE | 1 | |
| 023 | 227B57-0 | SPUR GEAR 40 | 1 | |
| 024 | 234148-8 | COMPRESSION SPRING 31 | 1 | |
| 025 | 267153-0 | FLAT WASHER 30 | 1 | |
| 026 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | |
| 027 | 327D80-8 | SLEEVE 9 | 1 | |
| 028 | 327D81-6 | IMPACT BOLT A | 1 | |
| 029 | 325792-3 | WASHER 10 | 1 | |
| 030 | 234149-6 | COMPRESSION SPRING 20 | 1 | |
| 031 | 325793-1 | O-RING CASE B | 1 | |
| 032 | 213073-6 | O RING 9 | 1 | |
| 033 | 233979-2 | RING SPRING 28 | 1 | |
| 034 | 325784-2 | STRIKER | 1 | |
| 035 | 213258-4 | O RING 17.5 | 1 | |
| 036 | 327D74-3 | PISTON CYLINDER | 1 | |
| 037 | 327D79-3 | PISTON JOINT | 1 | |
| 038 | 347C60-2 | GUIDE PLATE | 2 | |
| 039 | 257A41-5 | RING 6 | 1 | |
| 040 | 227B56-2 | SPUR GEAR 9 | 1 | |
| 041 | 310678-4 | CLUTCH CAM | 2 | |
| 042 | 327D78-5 | CAM SHAFT | 1 | |
| 043 | 265D67-1 | HEX SOCKET HEAD BOLT M5X20 WIT | 2 | |
| 044 | 219036-0 | SWASH BEARING 9-15 | 1 | |
| 045 | 141W51-3 | HELICAL GEAR 30 COMPLETE | 1 | |
| 046 | 234343-0 | COMPRESSION SPRING 5 | 1 | |
| 047 | 346833-2 | CHANGE PLATE B | 1 | |
| 048 | 346832-4 | CHANGE PLATE A | 1 | |
| 049 | 213728-3 | O-RING 68 | 1 | |
| 050 | 141W46-6 | INNER HOUSING COMPLETE | 1 | |
| 051 | 213407-3 | O RING 26 | 1 | |
| 052 | 257A43-1 | SLEEVE 9 | 1 | |
| 053 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 054 | 961006-2 | RETAINING RING S-10 | 1 | |
| 055 | 510613-4 | ARMATURE ASS'Y 240V | 1 | |
| 055 | D10 | INC. 52-54,56,57 | ||
| 056 | 681652-2 | INSULATION WASHER | 1 | |
| 057 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 058 | 267804-5 | WAVE WASHER 15 | 1 | |
| 059 | 4130J1-3 | BAFFLE PLATE | 1 | |
| 060 | 266340-8 | TAPPING SCREW 4X65 | 2 | |
| 061 | 634864-6 | FIELD 240V | 1 | |
| 062 | 266053-1 | TAPPING SCREW 4X35 | 4 | |
| 063 | 4130H6-9 | MOTOR HOUSING | 1 | |
| 064 | 194074-2 | CARBON BRUSH CB-325 | 1 | |
| 065 | 632V64-4 | BRUSH HOLDER UNIT | 1 | |
| 066 | 682566-8 | CORD GUARD 10 | 1 | |
| 067 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 068 | 651087-1 | SWITCH | 1 | |
| 069 | 687682-1 | STRAIN RELIEF | 1 | |
| 070 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 071 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 072 | 4130H8-5 | HANDLE COVER | 1 | |
| 073 | 137223-8 | TOOL HOLDER ASS'Y | 1 | |
| 073 | D10 | INC. 20-33 | ||
| 073-1 | 137259-7 | TOOL HOLDER ASS'Y | 1 | |
| 073-1 | D10 | INC. 20-33 | ||
| 074 | 137224-6 | CAM SHAFT ASS'Y | 1 | |
| 074 | D10 | INC. 39-42,44,45 | ||
| 075 | 8147U1-9 | HR2670 NAME PLATE | 1 | |
| 076 | 8147U2-7 | HR2670 SERIAL NO. LABEL | 1 | |
| A01 | 122G56-6 | GRIP ASSEMBLY | 1 | |
| A01 | C10 | 265D68-9 | THUMB SCREW M6X52 | 1 |
| A02 | 321144-6 | DEPTH GAUGE | 1 | |
| A03 | 821925-3 | PLASTIC CARRYING CASE | 1 | |
| A03 | C10 | 417724-5 | LATCH | 2 |
| A04 | D-08713 | BULL POINT 250 | 1 | |
| A06 | 194041-7 | DRILL CHUCK SET | 1 | |
| A07 | D-17784 | SDS-PLUS BIT SET | 1 | |
| B01 | 196967-9 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 195127-0 | OIL VESSEL SET | 2 |
| B01 | D10 | INC. 1,2,5,19,32,33,35,64 | ||
| F06 | 1914L7-6 | DUSTCUP SET | 1 | |
| F07 | 1914L9-2 | DUSTCUP SET | 1 | |
| G12 | 1914X3-8 | DUST EXTRACTION PAD SET | 1 | |
| 001 | 286288-8 | CAP 35 | 1 | |
| 002 | 233989-9 | RING SPRING 14 | 1 | |
| 003 | 346834-0 | WASHER 16 | 1 | |
| 004 | 4130J0-5 | CHUCK COVER | 1 | |
| 005 | 233992-0 | RING SPRING 15 | 1 | |
| 006 | 327269-4 | RING 17 | 1 | |
| 007 | 347944-6 | GUIDE WASHER | 1 | |
| 008 | 232503-8 | CONICAL COMP. SPRING 21-34 | 1 | |
| 009 | 137222-0 | GEAR HOUSING ASS'Y | 1 | |
| 009 | D10 | INC. 10 | ||
| 010 | 210143-2 | BALL BEARING 626ZZ | 1 | |
| 011 | 233360-7 | COMPRESSION SPRING 4 | 1 | |
| 012 | 347C59-7 | LOCK PLATE | 1 | |
| 013 | 232286-0 | LEAF SPRING | 1 | |
| 014 | 213278-8 | O RING 17 | 1 | |
| 015 | 137166-4 | CHANGE LEVER ASSEMBLY | 1 | |
| 015 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 016 | 267153-0 | FLAT WASHER 30 | 1 | |
| 017 | 455394-2 | CHANGE LEVER CAP | 1 | |
| 018 | 4130H9-3 | CHANGE LEVER COVER | 1 | |
| 019 | 216022-2 | STEEL BALL 7.0 | 2 | |
| 020 | 216019-1 | STEEL BALL 3 | 3 | |
| 020-1 | 216068-8 | STEEL BALL 3 | 3 | |
| 021 | 141W48-2 | TOOL HOLDER COMPLETE | 1 | |
| 022 | 327D75-1 | DRIVING FLANGE | 1 | |
| 023 | 227B57-0 | SPUR GEAR 40 | 1 | |
| 024 | 234148-8 | COMPRESSION SPRING 31 | 1 | |
| 025 | 267153-0 | FLAT WASHER 30 | 1 | |
| 026 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | |
| 027 | 327D80-8 | SLEEVE 9 | 1 | |
| 028 | 327D81-6 | IMPACT BOLT A | 1 | |
| 029 | 325792-3 | WASHER 10 | 1 | |
| 030 | 234149-6 | COMPRESSION SPRING 20 | 1 | |
| 031 | 325793-1 | O-RING CASE B | 1 | |
| 032 | 213073-6 | O RING 9 | 1 | |
| 033 | 233979-2 | RING SPRING 28 | 1 | |
| 034 | 325784-2 | STRIKER | 1 | |
| 035 | 213258-4 | O RING 17.5 | 1 | |
| 036 | 327D74-3 | PISTON CYLINDER | 1 | |
| 037 | 327D79-3 | PISTON JOINT | 1 | |
| 038 | 347C60-2 | GUIDE PLATE | 2 | |
| 039 | 257A41-5 | RING 6 | 1 | |
| 040 | 227B56-2 | SPUR GEAR 9 | 1 | |
| 041 | 310678-4 | CLUTCH CAM | 2 | |
| 042 | 327D78-5 | CAM SHAFT | 1 | |
| 043 | 265D67-1 | HEX SOCKET HEAD BOLT M5X20 WIT | 2 | |
| 044 | 219036-0 | SWASH BEARING 9-15 | 1 | |
| 045 | 141W51-3 | HELICAL GEAR 30 COMPLETE | 1 | |
| 046 | 234343-0 | COMPRESSION SPRING 5 | 1 | |
| 047 | 346833-2 | CHANGE PLATE B | 1 | |
| 048 | 346832-4 | CHANGE PLATE A | 1 | |
| 049 | 213728-3 | O-RING 68 | 1 | |
| 050 | 141W46-6 | INNER HOUSING COMPLETE | 1 | |
| 051 | 213407-3 | O RING 26 | 1 | |
| 052 | 257A43-1 | SLEEVE 9 | 1 | |
| 053 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 054 | 961006-2 | RETAINING RING S-10 | 1 | |
| 055 | 510613-4 | ARMATURE ASS'Y 240V | 1 | |
| 055 | D10 | INC. 52-54,56,57 | ||
| 056 | 681652-2 | INSULATION WASHER | 1 | |
| 057 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 058 | 267804-5 | WAVE WASHER 15 | 1 | |
| 059 | 4130J1-3 | BAFFLE PLATE | 1 | |
| 060 | 266340-8 | TAPPING SCREW 4X65 | 2 | |
| 061 | 634864-6 | FIELD 240V | 1 | |
| 062 | 266053-1 | TAPPING SCREW 4X35 | 4 | |
| 063 | 4130H6-9 | MOTOR HOUSING | 1 | |
| 064 | 194074-2 | CARBON BRUSH CB-325 | 1 | |
| 065 | 632V64-4 | BRUSH HOLDER UNIT | 1 | |
| 066 | 682566-8 | CORD GUARD 10 | 1 | |
| 067 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 068 | 651087-1 | SWITCH | 1 | |
| 069 | 687682-1 | STRAIN RELIEF | 1 | |
| 070 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 071 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 072 | 4130H8-5 | HANDLE COVER | 1 | |
| 073 | 137223-8 | TOOL HOLDER ASS'Y | 1 | |
| 073 | D10 | INC. 20-33 | ||
| 073-1 | 137259-7 | TOOL HOLDER ASS'Y | 1 | |
| 073-1 | D10 | INC. 20-33 | ||
| 074 | 137224-6 | CAM SHAFT ASS'Y | 1 | |
| 074 | D10 | INC. 39-42,44,45 | ||
| 075 | 8147U1-9 | HR2670 NAME PLATE | 1 | |
| 076 | 8147U2-7 | HR2670 SERIAL NO. LABEL | 1 | |
| A01 | 122G56-6 | GRIP ASSEMBLY | 1 | |
| A01 | C10 | 265D68-9 | THUMB SCREW M6X52 | 1 |
| A02 | 321144-6 | DEPTH GAUGE | 1 | |
| A03 | 821925-3 | PLASTIC CARRYING CASE | 1 | |
| A03 | C10 | 417724-5 | LATCH | 2 |
| A04 | D-08713 | BULL POINT 250 | 1 | |
| A06 | 194041-7 | DRILL CHUCK SET | 1 | |
| A07 | D-17784 | SDS-PLUS BIT SET | 1 | |
| B01 | 196967-9 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 195127-0 | OIL VESSEL SET | 2 |
| B01 | D10 | INC. 1,2,5,19,32,33,35,64 | ||
| F06 | 1914L7-6 | DUSTCUP SET | 1 | |
| F07 | 1914L9-2 | DUSTCUP SET | 1 | |
| G12 | 1914X3-8 | DUST EXTRACTION PAD SET | 1 |
