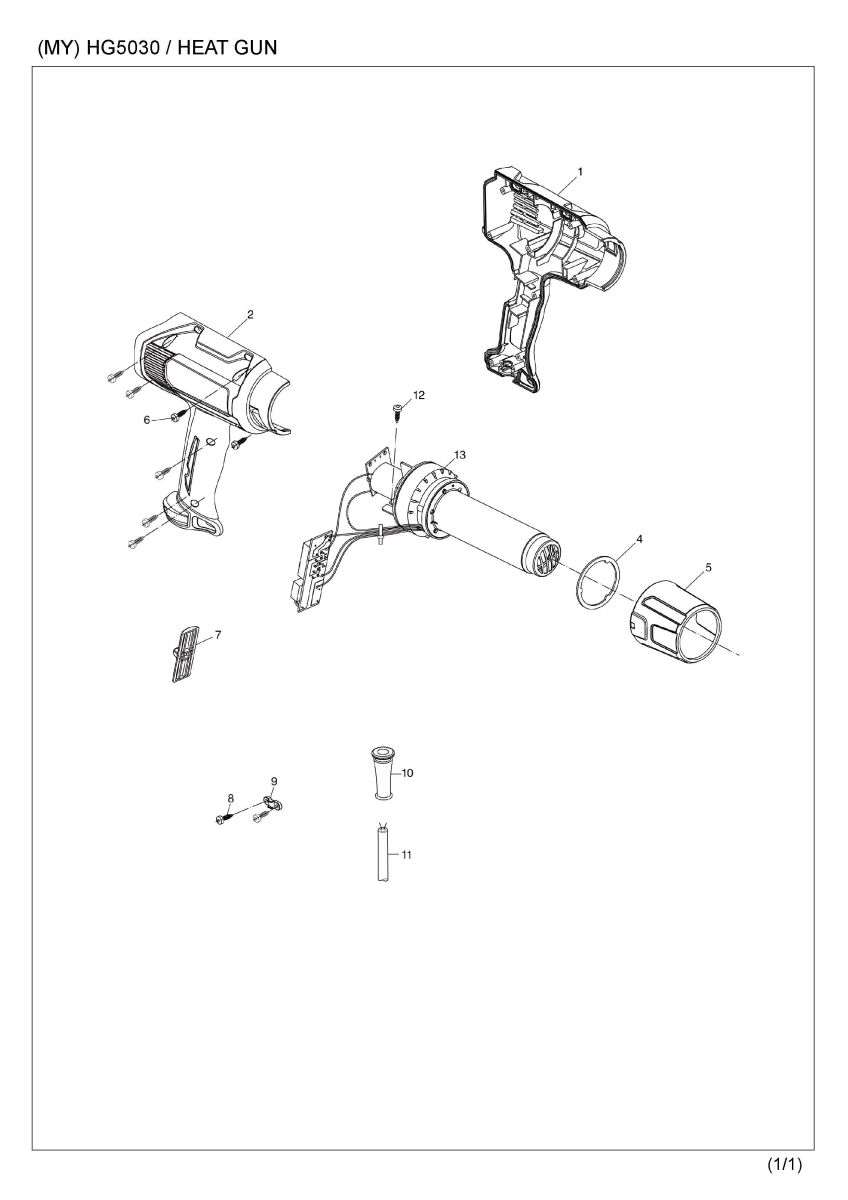

Part Diagram
Total: 62 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | PR00000001 | HOUSING LEFT | 1 | |
| 002 | PR00000003 | HOUSING RIGHT | 1 | |
| 004 | PR00000011 | SUPPORT RING | 1 | |
| 005 | PR00000010 | FRONT COVER COMPLETE | 1 | |
| 006 | PR00000004 | TAPPING SCREW | 7 | |
| 007 | PR00000005 | SWITCH COVER | 1 | |
| 008 | PR00000007 | TAPPING SCREW ST2.9X15 | 2 | |
| 009 | PR00000006 | CORD CLAMP | 1 | |
| 010 | PR00000008 | CORD GUARD | 1 | |
| 011 | PR00000057 | POWER SUPPLY CORD | 1 | |
| 012 | PR00000007 | TAPPING SCREW ST2.9X15 | 1 | |
| 013A | PR00000002 | HEATING ELEMENT ASSY 230-240V | 1 | |
| 013B | PR00000002 | HEATING ELEMENT ASSY 230-240V | 1 | |
| A01A | PR00000028 | GLASS PROTECTION NOZZLE | 1 | |
| A02A | PR00000029 | WIDE-SLOT NOZZLE | 1 | |
| A03A | PR00000030 | REFLECTOR NOZZLE | 1 | |
| A04A | PR00000031 | REDUCTION NOZZLE 20mm | 1 | |
| A05A | PR00000032 | OVERLAP WELDING NOZZLE | 1 | |
| A06A | PR00000033 | SOLDER SLEEVES REFLECTOR | 1 | |
| A07A | PR00000034 | WELDING NOZZLE | 1 | |
| A08A | PR00000035 | PRESSURE ROLLER | 1 | |
| A09A | PR00000036 | WELDING RODS (ABS) | 1 | |
| A10A | PR00000037 | WELDING RODS (HDPE) | 1 | |
| A11A | PR00000038 | WELDING RODS (PP) | 1 | |
| A12A | PR00000039 | SPEED WELDING NOZZLE | 1 | |
| A13A | PR00000040 | SCRAPER | 1 | |
| A14A | PR00000041 | SCRAPER SET | 1 | |
| A15A | PR00000042 | SCRAPER | 1 | |
| A16A | PR00000060 | PLASTIC CASE | 1 | |
| A16A | C10 | PR00000127 | PLASTIC CASE LATCH | 2 |
| C01B | PR00000101 | CARTON | 1 | |
| 001 | PR00000001 | HOUSING LEFT | 1 | |
| 002 | PR00000003 | HOUSING RIGHT | 1 | |
| 004 | PR00000011 | SUPPORT RING | 1 | |
| 005 | PR00000010 | FRONT COVER COMPLETE | 1 | |
| 006 | PR00000004 | TAPPING SCREW | 7 | |
| 007 | PR00000005 | SWITCH COVER | 1 | |
| 008 | PR00000007 | TAPPING SCREW ST2.9X15 | 2 | |
| 009 | PR00000006 | CORD CLAMP | 1 | |
| 010 | PR00000008 | CORD GUARD | 1 | |
| 011 | PR00000057 | POWER SUPPLY CORD | 1 | |
| 012 | PR00000007 | TAPPING SCREW ST2.9X15 | 1 | |
| 013A | PR00000002 | HEATING ELEMENT ASSY 230-240V | 1 | |
| 013B | PR00000002 | HEATING ELEMENT ASSY 230-240V | 1 | |
| A01A | PR00000028 | GLASS PROTECTION NOZZLE | 1 | |
| A02A | PR00000029 | WIDE-SLOT NOZZLE | 1 | |
| A03A | PR00000030 | REFLECTOR NOZZLE | 1 | |
| A04A | PR00000031 | REDUCTION NOZZLE 20mm | 1 | |
| A05A | PR00000032 | OVERLAP WELDING NOZZLE | 1 | |
| A06A | PR00000033 | SOLDER SLEEVES REFLECTOR | 1 | |
| A07A | PR00000034 | WELDING NOZZLE | 1 | |
| A08A | PR00000035 | PRESSURE ROLLER | 1 | |
| A09A | PR00000036 | WELDING RODS (ABS) | 1 | |
| A10A | PR00000037 | WELDING RODS (HDPE) | 1 | |
| A11A | PR00000038 | WELDING RODS (PP) | 1 | |
| A12A | PR00000039 | SPEED WELDING NOZZLE | 1 | |
| A13A | PR00000040 | SCRAPER | 1 | |
| A14A | PR00000041 | SCRAPER SET | 1 | |
| A15A | PR00000042 | SCRAPER | 1 | |
| A16A | PR00000060 | PLASTIC CASE | 1 | |
| A16A | C10 | PR00000127 | PLASTIC CASE LATCH | 2 |
| C01B | PR00000101 | CARTON | 1 |
