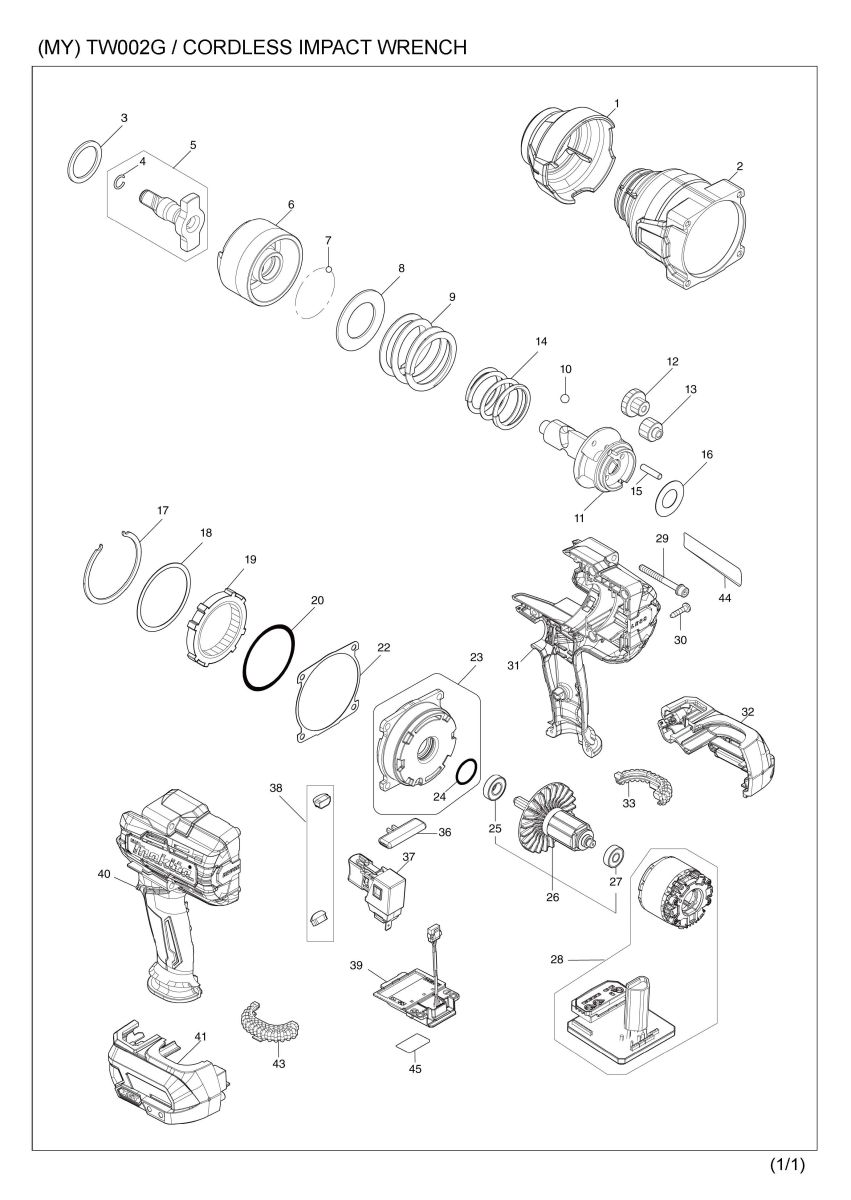

Part Diagram
Total: 69 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 422594-9 | BUMPER | 1 | |
| 002 | 141V80-0 | HAMMER CASE COMPLETE | 1 | |
| 003 | 267250-2 | FLAT WASHER 30 | 1 | |
| 004 | 232323-0 | RING SPRING 10 | 1 | |
| 005 | 137152-5 | ANVIL W ASS'Y | 1 | |
| 005 | D10 | INC. 4 | ||
| 006 | 327D63-8 | HAMMER | 1 | |
| 007 | 216002-8 | STEEL BALL 4.8 | 27 | |
| 008 | 253604-9 | FLAT WASHER 35 | 1 | |
| 009 | 232869-6 | COMPRESSION SPRING 46 | 1 | |
| 010 | 216009-4 | STEEL BALL 7.1 | 2 | |
| 011 | 327D62-0 | SPINDLE | 1 | |
| 012 | 226990-1 | SPUR GEAR 11-22 | 2 | |
| 013 | 227935-2 | SPUR GEAR 15 | 2 | |
| 014 | 232870-1 | COMPRESSION SPRING 34 | 1 | |
| 015 | 268238-5 | PIN 5 | 4 | |
| 016 | 267235-8 | FLAT WASHER 18 | 1 | |
| 017 | 346947-7 | RETAINER | 1 | |
| 018 | 253479-6 | FLAT WASHER 57 | 1 | |
| 019 | 226991-9 | INTERNAL SPUR GEAR 50 | 1 | |
| 020 | 213663-5 | O RING 55 | 1 | |
| 022 | 422595-7 | GASKET | 1 | |
| 023 | 136279-8 | INTERNAL GEAR CASE ASS'Y | 1 | |
| 023 | D10 | INC. 24 | ||
| 024 | 213961-7 | O RING 22 | 1 | |
| 025 | 210069-8 | BALL BEARING 6900DDW | 1 | |
| 026 | 510604-5 | ROTOR ASSY | 1 | |
| 026 | D10 | INC. 25,27 | ||
| 027 | 210169-4 | BALL BEARING 607LLB | 1 | |
| 028 | 520195-8 | STATOR ASSY 36V | 1 | |
| 028 | C10 | 8012S9-8 | SWITCH LABEL | 1 |
| 029 | 265B38-6 | H. S. HEAD BOLT M5X50 WITH WRM | 4 | |
| 030 | 265995-6 | TAPPING SCREW 4X18 | 9 | |
| 030-1 | 265E16-4 | TAPPING SCREW 4X18 | 9 | |
| 031 | 1830R8-6 | HOUSING SET | 1 | |
| 031 | D10 | INC. 40 | ||
| 031-1 | 1831B9-8 | HOUSING SET | 1 | |
| 031-1 | D10 | INC. 40 | ||
| 032 | 183S33-5 | BATTERY HOUSING SET | 1 | |
| 032 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 032 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 |
| 032 | D10 | INC. 41 | ||
| 033 | 422A55-5 | CUSHION RUBBER | 1 | |
| 036 | 456268-0 | F/R CHANGE LEVER | 1 | |
| 037 | 141V82-6 | SWITCH COMPLETE | 1 | |
| 037 | C10 | 424774-3 | SWITCH COVER | 1 |
| 038 | 620N85-0 | LED CIRCUIT | 1 | |
| 039 | 632P49-4 | TERMINAL UNIT | 1 | |
| 040 | 1830R8-6 | HOUSING SET | 1 | |
| 040 | D10 | INC. 31 | ||
| 040-1 | 1831B9-8 | HOUSING SET | 1 | |
| 040-1 | D10 | INC. 31 | ||
| 041 | 183S33-5 | BATTERY HOUSING SET | 1 | |
| 041 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 041 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 4 |
| 041 | D10 | INC. 32 | ||
| 043 | 422A55-5 | CUSHION RUBBER | 1 | |
| 044 | 8145L6-4 | TW002G NAME PLATE | 1 | |
| 045 | 8145L8-0 | TW002G SERIAL NO. LABEL | 1 | |
| A01 | 251314-2 | + SCREW M4X12 | 2 | |
| A02 | 346949-3 | HOOK | 1 | |
| A03B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A03B | C10 | 453974-8 | LATCH | 4 |
| A04B | 835K85-1 | INNER TRAY | 1 | |
| A05B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A06B | 412393-7 | BATTERY COVER | 2 | |
| A07B | 191B26-6 | BATTERY BL4040 SET | 2 | |
| F01 | 191G67-2 | EXTENSION HANDLE SET | 1 |
