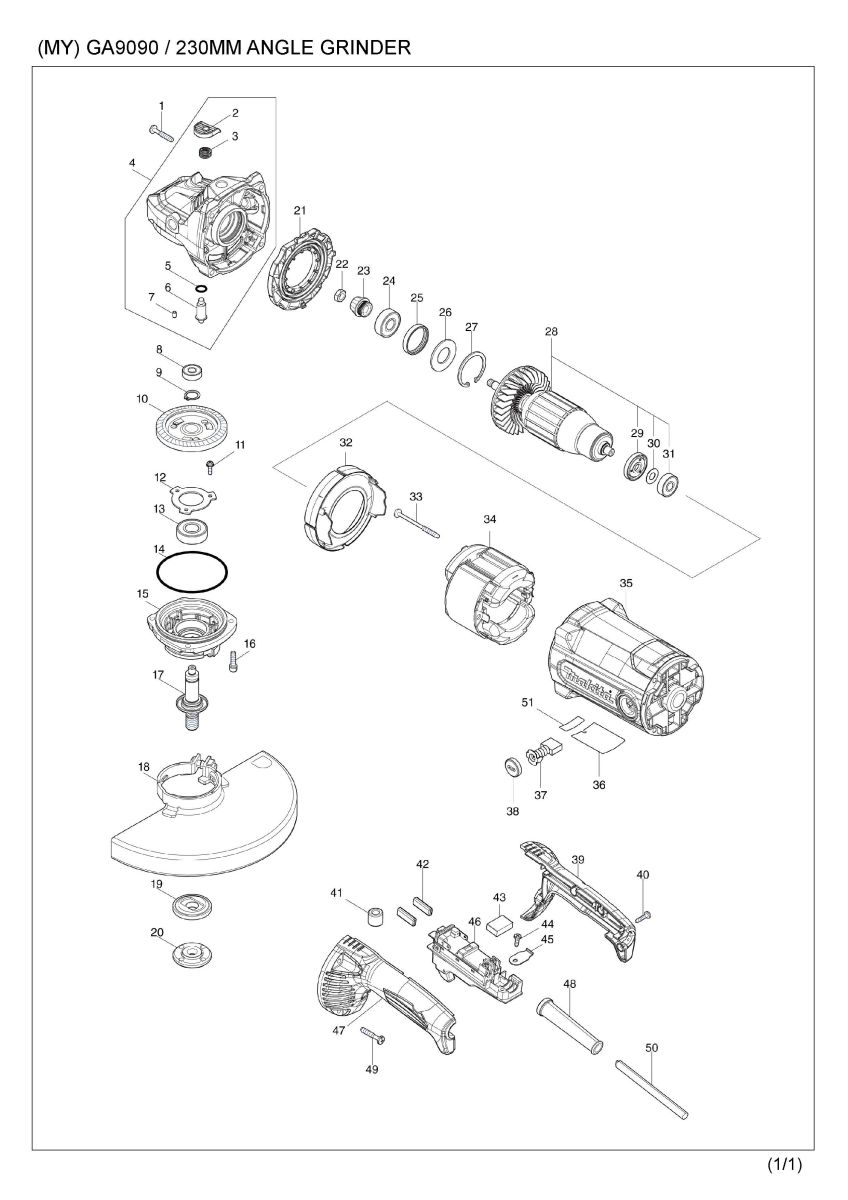

Part Diagram
Total: 120 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 002 | 413H41-9 | PIN CAP | 1 | |
| 003 | 233292-8 | COMPRESSION SPRING 12 | 1 | |
| 004 | 137149-4 | GEAR HOUSING ASSEMBLY | 1 | |
| 004 | D10 | IN. 2,3,5-7 | ||
| 005 | 213062-1 | O RING 9 | 1 | |
| 006 | 256491-5 | SHOULDER PIN 5 | 1 | |
| 007 | 263002-9 | RUBBER PIN 4 | 1 | |
| 008 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 009 | 961055-9 | RETAINING RING S-15 | 1 | |
| 010 | 227B04-1 | SPIRAL BEVEL GEAR 54 | 1 | |
| 011 | 911123-8 | PAN HEAD SCREW M4X14 | 3 | |
| 012 | 285851-4 | BEARING RETAINER | 1 | |
| 013 | 211487-3 | BALL BEARING 6202DDW | 1 | |
| 014 | 213760-7 | O RING 78 | 1 | |
| 015 | 312E61-1 | BEARING BOX | 1 | |
| 016 | 922231-0 | HEX. SOCKET HEAD BOLT M5X20 | 4 | |
| 017 | 141T31-1 | SPINDLE COMPLETE | 1 | |
| 018 | 141P32-5 | WHEEL COVER 230K COMPLETE | 1 | |
| 018 | C10 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 018 | C20 | 8050A1-8 | CAUTION LABEL | 1 |
| 018-1 | 141P32-5 | WHEEL COVER 230K COMPLETE | 1 | |
| 018-1 | C10 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 018-1 | C20 | 8050A1-8 | CAUTION LABEL | 1 |
| 019 | 224490-5 | INNER FLANGE 14-45 | 1 | |
| 020 | 224485-8 | LOCK NUT 14-45 | 1 | |
| 021 | 413U69-5 | DIFFUSER | 1 | |
| 022 | 252194-9 | HEX. NUT M8 | 1 | |
| 023 | 227652-4 | SPIRAL BEVEL GEAR 13 | 1 | |
| 024 | 210195-3 | BALL BEARING 6201DDW | 1 | |
| 025 | 422A90-3 | RUBBER RING 33 | 1 | |
| 026 | 253587-3 | FLAT WASHER 20 | 1 | |
| 027 | 962157-4 | RETAINING RING R-40 | 1 | |
| 028 | 518388-9 | ARMATURE ASSEMBLY 240V | 1 | |
| 028 | D10 | INC. 29-31 | ||
| 029 | 681666-1 | INSULATION WASHER | 1 | |
| 030 | 267231-6 | FLAT WASHER 9 | 1 | |
| 031 | 210194-5 | BALL BEARING 629DDW | 1 | |
| 032 | 413U68-7 | BAFFLE PLATE | 1 | |
| 033 | 266352-1 | TAPPING SCREW 5X65 | 2 | |
| 034 | 634849-2 | FIELD 240V | 1 | |
| 035 | 141S76-3 | MOTOR HOUSING COMPLETE | 1 | |
| 036 | 8145B9-8 | GA9090 NAME PLATE | 1 | |
| 037 | 194992-4 | CARBON BRUSH SET CB-204 | 1 | |
| 038 | 644802-0 | HOLDER CAP | 2 | |
| 039 | 1830J9-8 | HANDLE SET | 1 | |
| 039 | D10 | INC. 47 | ||
| 040 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 042 | 686036-9 | RECEPTACLE SLEEVE | 2 | |
| 044 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 045 | 687169-3 | STRAIN RELIEF | 1 | |
| 046 | 632F74-5 | SWITCH UNIT | 1 | |
| 047 | 1830J9-8 | HANDLE SET | 1 | |
| 047 | D10 | INC. 39 | ||
| 048 | 682585-4 | CORD GUARD 10 | 1 | |
| 049 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 050 | 692516-5 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | |
| 051 | 8145C0-3 | GA9090 SERIAL NO. LABEL | 1 | |
| A01 | 143486-6 | GRIP 37 COMPLETE | 1 | |
| A02 | 782040-7 | LOCK NUT WRENCH 35 | 1 | |
| 001 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 002 | 413H41-9 | PIN CAP | 1 | |
| 003 | 233292-8 | COMPRESSION SPRING 12 | 1 | |
| 004 | 137149-4 | GEAR HOUSING ASSEMBLY | 1 | |
| 004 | D10 | IN. 2,3,5-7 | ||
| 005 | 213062-1 | O RING 9 | 1 | |
| 006 | 256491-5 | SHOULDER PIN 5 | 1 | |
| 007 | 263002-9 | RUBBER PIN 4 | 1 | |
| 008 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 009 | 961055-9 | RETAINING RING S-15 | 1 | |
| 010 | 227B04-1 | SPIRAL BEVEL GEAR 54 | 1 | |
| 011 | 911123-8 | PAN HEAD SCREW M4X14 | 3 | |
| 012 | 285851-4 | BEARING RETAINER | 1 | |
| 013 | 211487-3 | BALL BEARING 6202DDW | 1 | |
| 014 | 213760-7 | O RING 78 | 1 | |
| 015 | 312E61-1 | BEARING BOX | 1 | |
| 016 | 922231-0 | HEX. SOCKET HEAD BOLT M5X20 | 4 | |
| 017 | 141T31-1 | SPINDLE COMPLETE | 1 | |
| 018 | 141P32-5 | WHEEL COVER 230K COMPLETE | 1 | |
| 018 | C10 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 018 | C20 | 8050A1-8 | CAUTION LABEL | 1 |
| 018-1 | 141P32-5 | WHEEL COVER 230K COMPLETE | 1 | |
| 018-1 | C10 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 018-1 | C20 | 8050A1-8 | CAUTION LABEL | 1 |
| 019 | 224490-5 | INNER FLANGE 14-45 | 1 | |
| 020 | 224485-8 | LOCK NUT 14-45 | 1 | |
| 021 | 413U69-5 | DIFFUSER | 1 | |
| 022 | 252194-9 | HEX. NUT M8 | 1 | |
| 023 | 227652-4 | SPIRAL BEVEL GEAR 13 | 1 | |
| 024 | 210195-3 | BALL BEARING 6201DDW | 1 | |
| 025 | 422A90-3 | RUBBER RING 33 | 1 | |
| 026 | 253587-3 | FLAT WASHER 20 | 1 | |
| 027 | 962157-4 | RETAINING RING R-40 | 1 | |
| 028 | 518388-9 | ARMATURE ASSEMBLY 240V | 1 | |
| 028 | D10 | INC. 29-31 | ||
| 029 | 681666-1 | INSULATION WASHER | 1 | |
| 030 | 267231-6 | FLAT WASHER 9 | 1 | |
| 031 | 210194-5 | BALL BEARING 629DDW | 1 | |
| 032 | 413U68-7 | BAFFLE PLATE | 1 | |
| 033 | 266352-1 | TAPPING SCREW 5X65 | 2 | |
| 034 | 634849-2 | FIELD 240V | 1 | |
| 035 | 141S76-3 | MOTOR HOUSING COMPLETE | 1 | |
| 036 | 8145B9-8 | GA9090 NAME PLATE | 1 | |
| 037 | 194992-4 | CARBON BRUSH SET CB-204 | 1 | |
| 038 | 644802-0 | HOLDER CAP | 2 | |
| 039 | 1830J9-8 | HANDLE SET | 1 | |
| 039 | D10 | INC. 47 | ||
| 040 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 042 | 686036-9 | RECEPTACLE SLEEVE | 2 | |
| 044 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 045 | 687169-3 | STRAIN RELIEF | 1 | |
| 046 | 632F74-5 | SWITCH UNIT | 1 | |
| 047 | 1830J9-8 | HANDLE SET | 1 | |
| 047 | D10 | INC. 39 | ||
| 048 | 682585-4 | CORD GUARD 10 | 1 | |
| 049 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 050 | 692516-5 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | |
| 051 | 8145C0-3 | GA9090 SERIAL NO. LABEL | 1 | |
| A01 | 143486-6 | GRIP 37 COMPLETE | 1 | |
| A02 | 782040-7 | LOCK NUT WRENCH 35 | 1 |
