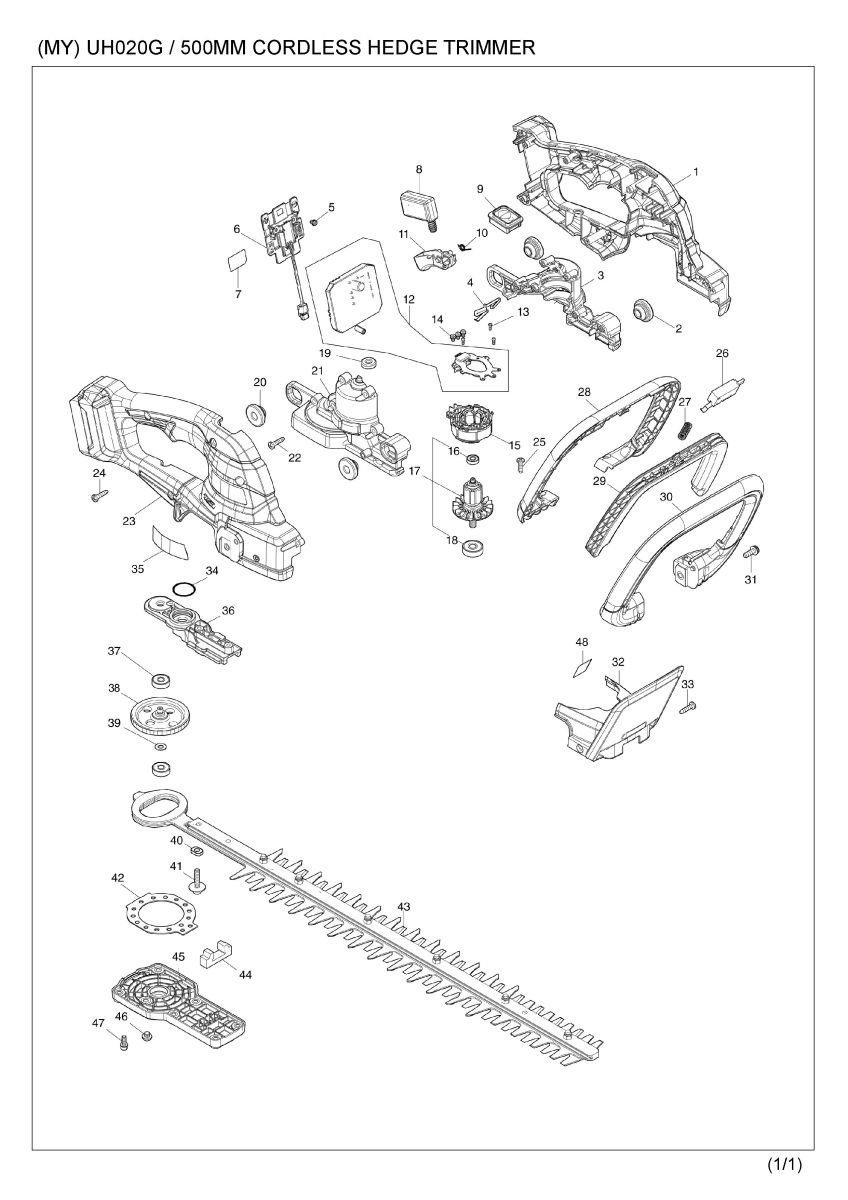

Part Diagram
Total: 65 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 1830R7-8 | HANDLE SET | 1 | |
| 001 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 001 | D10 | INC. 23 | ||
| 002 | 424394-3 | RUBBER RING 8 | 2 | |
| 003 | 1830S8-3 | MOTOR HOUSING SET | 1 | |
| 003 | D10 | INC. 21 | ||
| 004 | 654909-4 | EARTH PLATE | 1 | |
| 005 | 652031-1 | PAN HEAD SCREW M3X6 | 2 | |
| 006 | 632V23-8 | TERMINAL UNIT | 1 | |
| 007 | 8146S4-3 | UH020G SERIAL NO. LABEL | 1 | |
| 008 | 632V58-9 | SWITCH UNIT | 1 | |
| 009 | 141V89-2 | SWITCH CIRCUIT COMPLETE E | 1 | |
| 010 | 232770-5 | TORSION SPRING 6 | 1 | |
| 011 | 413J41-1 | SWITCH LEVER RE | 1 | |
| 012 | 620N57-5 | CONTROLLER | 1 | |
| 013 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 014 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 015 | 629C08-9 | STATOR | 1 | |
| 016 | 211157-4 | BALL BEARING 695ZZ | 1 | |
| 017 | 519764-0 | ROTOR ASSY | 1 | |
| 017 | D10 | INC. 16,18 | ||
| 018 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 019 | 424195-9 | RUBBER RING 6 | 1 | |
| 020 | 424394-3 | RUBBER RING 8 | 2 | |
| 021 | 1830S8-3 | MOTOR HOUSING SET | 1 | |
| 021 | D10 | INC. 3 | ||
| 022 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 023 | 1830R7-8 | HANDLE SET | 1 | |
| 023 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 023 | D10 | INC. 1 | ||
| 024 | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 025 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 026 | 632V59-7 | SWITCH UNIT | 1 | |
| 027 | 231325-3 | COMPRESSION SPRING 6 | 1 | |
| 028 | 413J39-8 | FRONT HANDLE COVER E | 1 | |
| 029 | 413J40-3 | SWITCH LEVER FE | 1 | |
| 030 | 413J38-0 | FRONT HANDLE E | 1 | |
| 031 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | |
| 032 | 141V87-6 | PROTECTOR COMPLETE | 1 | |
| 033 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 034 | 213961-7 | O RING 22 | 1 | |
| 035 | 8146S3-5 | UH020G NAME PLATE | 1 | |
| 036 | 137196-5 | BEARING HOUSING ASS'Y | 1 | |
| 036 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 037 | 211016-2 | BALL BEARING 626LLB | 2 | |
| 038 | 141K44-8 | GEAR COMPLETE | 1 | |
| 039 | 253715-0 | FLAT WASHER 6 | 1 | |
| 040 | 313436-7 | SPACER | 2 | |
| 041 | 265A89-3 | H.S.H.BOLT M5X25 WITH WR | 2 | |
| 042 | 347A10-5 | PLATE | 1 | |
| 043 | 1914G4-7 | SHEAR BLADE 500E SET | 1 | |
| 043 | C10 | 199450-5 | GREASE VESSEL SET | 1 |
| 043 | C20 | 313436-7 | SPACER | 2 |
| 043 | C30 | 264013-7 | HEX. LOCK NUT M5-8 | 6 |
| 043 | C40 | 257876-8 | RING 5 | 6 |
| 043 | C50 | 347990-9 | LOWER PLATE | 1 |
| 043 | C60 | 253571-8 | FLAT WASHER 5 | 3 |
| 043 | C70 | 265A40-3 | +TRUSS HEAD SCREW M5X20 | 6 |
| 043 | C80 | 327981-6 | GUIDE BAR 500E | 1 |
| 043 | C90 | 347986-0 | PLATE 500E | 1 |
| 044 | 422904-0 | DUST GUARD | 1 | |
| 045 | 413J26-7 | UNDER COVER | 1 | |
| 046 | 266559-9 | H.S.BUTTON HEAD BOLT M6X4 | 1 | |
| 047 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 6 | |
| A01 | 413L91-8 | BLADE COVER 500 | 1 |
