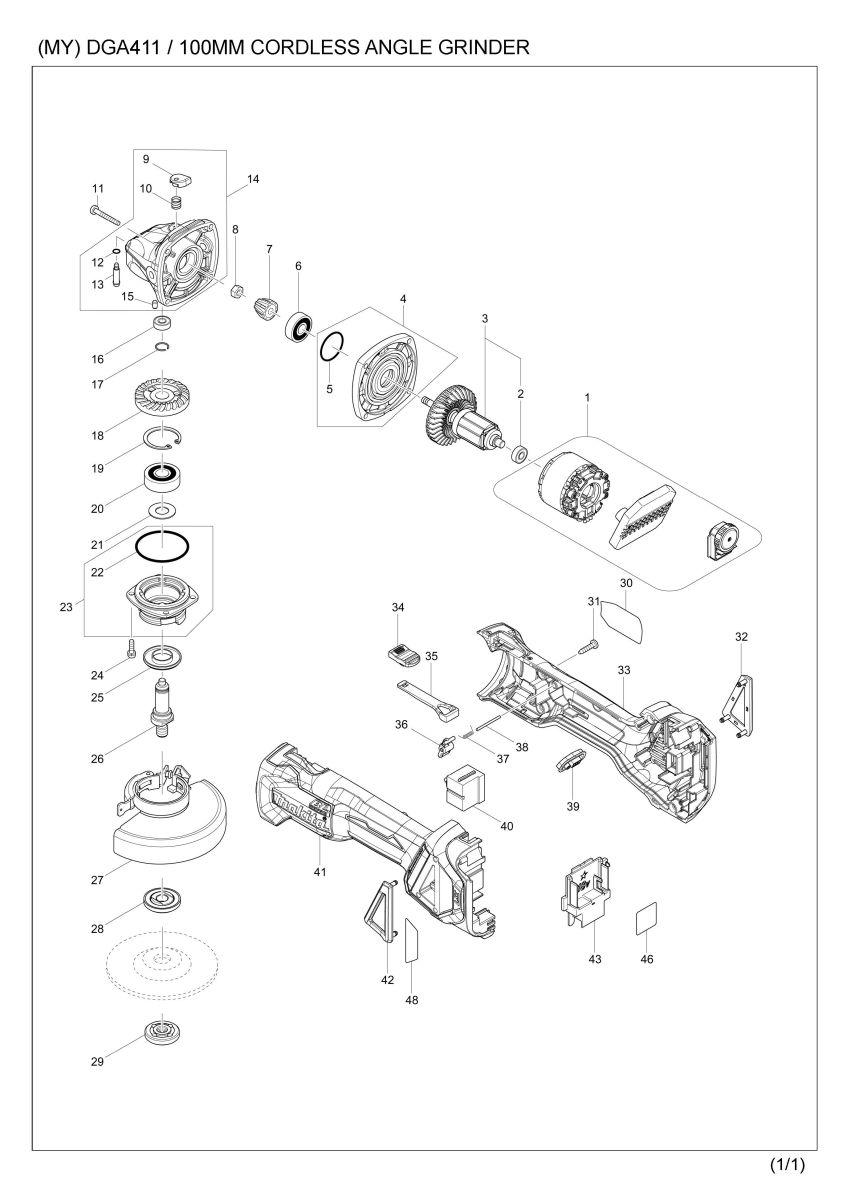

Part Diagram
Total: 77 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 629296-0 | STATOR COMPLETE | 1 | |
| 001-1 | 629B61-9 | STATOR | 1 | |
| 2 | 210169-4 | BALL BEARING 607LLB | 1 | |
| 3 | 510329-1 | ROTOR ASS'Y | 1 | |
| 3 | D10 | INC. 2 | ||
| 003-1 | 510329-1 | ROTOR ASS'Y | 1 | |
| 003-1 | D10 | INC. 2 | ||
| 4 | 135930-7 | GEAR HOUSING COVER ASSEMBLY | 1 | |
| 4 | D10 | INC. 5 | ||
| 5 | 213445-5 | O-RING 26 | 1 | |
| 6 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 7 | 227541-3 | SPIRAL BEVEL GEAR 10 | 1 | |
| 007-1 | 226861-2 | SPIRAL BEVEL GEAR 10 | 1 | |
| 8 | 252186-8 | HEX. NUT M6 | 1 | |
| 9 | 417771-6 | PIN CAP | 1 | |
| 10 | 233072-2 | COMPRESSION SPRING 8 | 1 | |
| 11 | 266361-0 | TAPPING SCREW 4X30 | 4 | |
| 12 | 213960-9 | O RING 5 | 1 | |
| 13 | 256546-6 | SHOULDER PIN 4 | 1 | |
| 14 | 135929-2 | GEAR HOUSING ASSEMBLY | 1 | |
| 14 | D10 | INC. 9,10,12,13,15 | ||
| 15 | 263002-9 | RUBBER PIN 4 | 1 | |
| 16 | 210033-9 | BALL BEARING 696ZZ | 1 | |
| 17 | 233950-6 | RING SPRING 11 | 1 | |
| 18 | 227641-9 | SPIRAL BEVEL GEAR 37 | 1 | |
| 018-1 | 226862-0 | SPIRAL BEVEL GEAR 37 | 1 | |
| 19 | 962151-6 | RETAINING RING R-32 | 1 | |
| 20 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 21 | 267113-2 | FLAT WASHER 12 | 1 | |
| 021-1 | 267238-2 | FLAT WASHER 12 | 1 | |
| 22 | 213622-9 | O RING 45 | 1 | |
| 23 | 135928-4 | BEARING BOX ASSEMBLY | 1 | |
| 23 | D10 | INC. 22 | ||
| 24 | 911121-2 | PAN HEAD SCREW M4X14 | 4 | |
| 25 | 345464-4 | LABYRINTH RING | 1 | |
| 26 | 324956-6 | SPINDLE | 1 | |
| 27 | 122893-6 | TOOLLESS WHEEL COVER 100K ASSY | 1 | |
| 27 | C10 | 213009-5 | O RING 4 | 1 |
| 27 | C20 | 265180-1 | PAN HEAD SCREW M5X16 | 1 |
| 28 | 224314-5 | INNER FLANGE 30 | 1 | |
| 29 | 224559-5 | LOCK NUT 10-30 | 1 | |
| 30 | 853W97-4 | DGA411 NAME PLATE | 1 | |
| 31 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 32 | 455450-8 | DUST COVER R | 1 | |
| 33 | 183H82-6 | MOTOR HOUSING SET | 1 | |
| 33 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 33 | D10 | INC. 41 | ||
| 34 | 455447-7 | SWITCH KNOB | 1 | |
| 35 | 455446-9 | SWITCH LEVER | 1 | |
| 36 | 455448-5 | LEVER | 1 | |
| 37 | 231679-8 | TORSION SPRING 2 | 1 | |
| 38 | 268330-7 | PIN 2 | 1 | |
| 39 | 142901-7 | INDICATOR PANEL COMPLETE | 1 | |
| 40 | 650579-7 | SWITCH 1246.3223 | 1 | |
| 41 | 183H82-6 | MOTOR HOUSING SET | 1 | |
| 41 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 41 | D10 | INC. 33 | ||
| 42 | 455449-3 | DUST COVER L | 1 | |
| 43 | 643874-2 | TERMINAL | 1 | |
| 46 | 853W99-0 | DGA411 SERIAL NO. LABEL | 1 | |
| 48 | 816D93-9 | INDICATION LABEL | 1 | |
| 49 | 620K18-7 | CONTROLLER | 1 | |
| 50 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | 782420-7 | LOCK NUT WRENCH 20 | 1 | |
| A02 | 158237-4 | GRIP 36 COMPLETE | 1 | |
| A03 | A-80852 | GRINDING WHEEL 100X6X16 | 1 | |
| A04B | 450128-8 | BATTERY COVER | 1 | |
| A05B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A06B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A06-1B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A07B | 821734-0 | PLASTIC CASE | 1 | |
| A07B | C10 | 162315-4 | LATCH | 2 |
| A07-1B | 821817-6 | PLASTIC CASE | 1 | |
| A07-1B | C10 | 162315-4 | LATCH | 2 |
| F02-1 | 194514-0 | VIBRATION PROOF GRIP SET | 1 | |
| F15 | 191V54-1 | CUTTING W.C.A. 100 SET | 1 |
