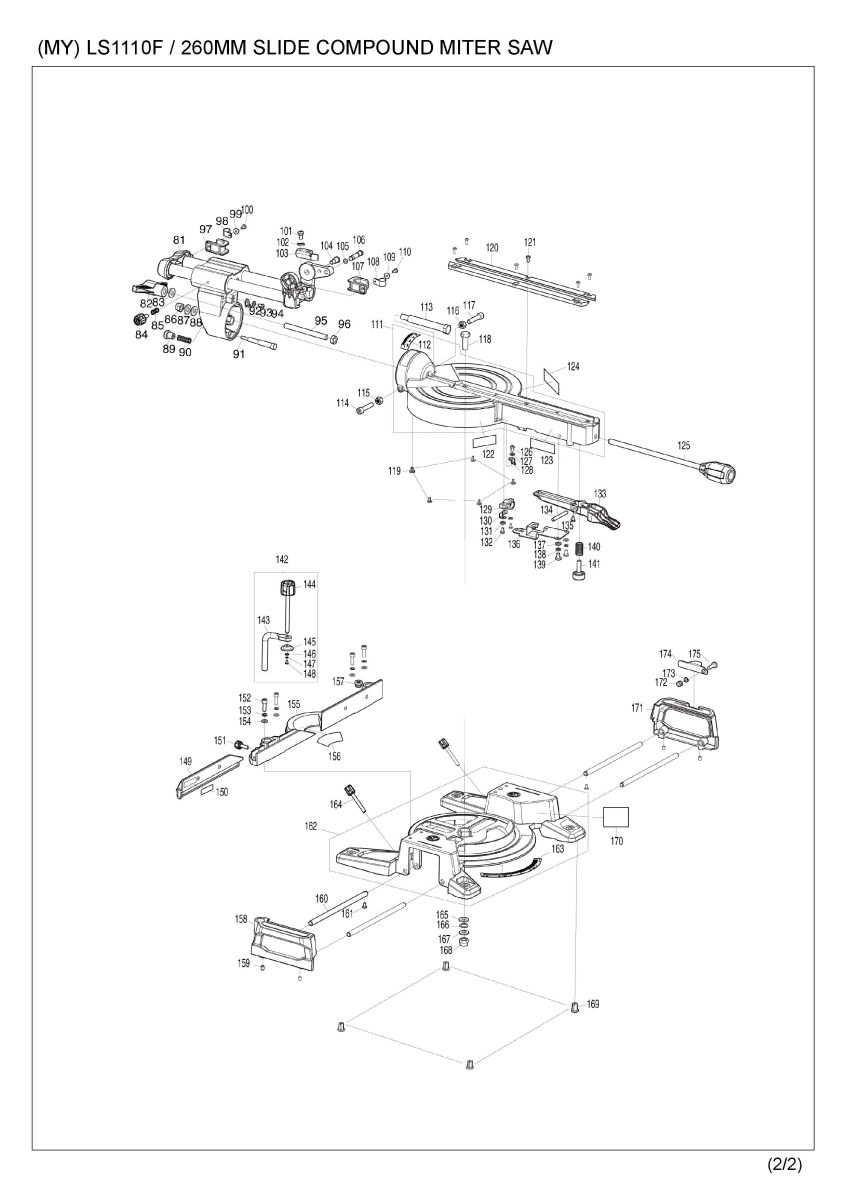

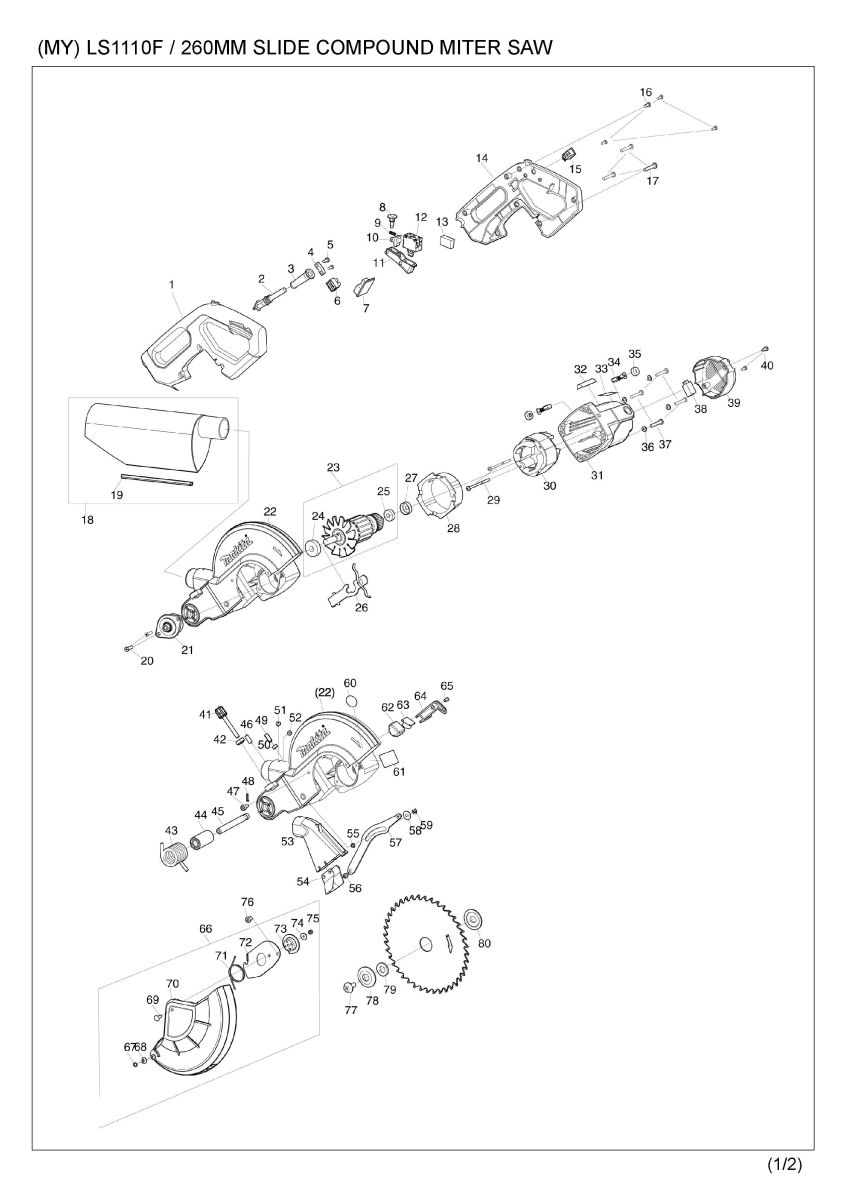

Part Diagram
Total: 179 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | JM00000648 | HANDLE LEFT | 1 | |
| 002 | JM23000152 | PW SUPPLY CORD H05VV-F 1-2 BSI | 1 | |
| 003 | JM23100165 | CORD GUARD S | 1 | |
| 004 | JM00000584 | CORD CLAMP | 1 | |
| 005 | JM00000548 | TAPPING SCREW ST4.2X13 | 2 | |
| 006 | JM23100171 | TERMINAL BLOCK 2P | 1 | |
| 007 | JM00000573 | PW CIRCUIT FOR LED LAMP | 1 | |
| 008 | JM23100177 | LOCK OFF BUTTON | 1 | |
| 009 | JM00000582 | COMPRESSION SPRING | 1 | |
| 010 | JM00000581 | LOCK OFF LINK ROCKER | 1 | |
| 011 | JM00000575 | SWITCH LEVER | 1 | |
| 012 | JM00000577 | SWITCH | 1 | |
| 013 | JM23100169 | CAPACITOR | 1 | |
| 014 | JM00000647 | HANDLE RIGHT | 1 | |
| 015 | JM00000579 | LAMP SWITCH | 1 | |
| 016 | JM00000548 | TAPPING SCREW ST4.2X13 | 4 | |
| 017 | JM00000551 | PAN HEAD SCREW M5X30 | 3 | |
| 018 | JM00000624 | DUST BAG ASSY | 1 | |
| 018 | D10 | INC. 19 | ||
| 019 | JM00000534 | DUST BAG CLAMP | 1 | |
| 020 | JM27000317 | FLAT HEAD SCREW M5X16 | 2 | |
| 021 | JM00000643 | OUTPUT SHAFT ASSEMBLY | 1 | |
| 022 | JM00000623 | UPPER BLADE GUARD COMP | 1 | |
| 022-1 | JM00000699 | UPPER BLADE GUARD COMP | 1 | |
| 023 | JM00000645 | ARMATURE ASSY (230V) | 1 | |
| 023 | D10 | INC. 24,25 | ||
| 024 | JM23500137 | BALL BEARING 6201 | 1 | |
| 025 | JM23200032 | BEARING 6001 | 1 | |
| 026 | JM00000644 | SPINDLE LOCK LEVER COMPLETE | 1 | |
| 027 | JM23100172 | ABSORBER RING | 1 | |
| 028 | JM00000625 | BUFFLE PLATE | 1 | |
| 029 | JM00000660 | SELF TAPPING SCREW ST5X60 | 2 | |
| 030 | JM00000626 | FIELD 230V | 1 | |
| 031 | JM00000629 | MOTOR HOUSING ASSY | 1 | |
| 032 | JM00000636 | NAME PLATE IN MY PH VN | 1 | |
| 034 | JM23000123 | CARBON BRUSH 2PCS/SET | 1 | |
| 035 | JM23100182 | SCREW CAP | 2 | |
| 036 | JM23100007 | FLAT WASHER 5 | 4 | |
| 037 | JM00000551 | PAN HEAD SCREW M5X30 | 4 | |
| 038 | JM00000662 | SOFT START PCB UNIT 220-240V | 1 | |
| 039 | JM00000661 | MOTOR END COVER | 1 | |
| 040 | JM00000548 | TAPPING SCREW ST4.2X13 | 2 | |
| 041 | JM00000444 | KNOB BOLT M6X46 | 1 | |
| 042 | JM00000536 | KNURLED NUT M6 | 1 | |
| 043 | JM00000611 | TORSION SPRING 38 | 1 | |
| 044 | JM00000610 | SPRING BUSH | 1 | |
| 045 | JM00000609 | PIVOT SHAFT 12X119 | 1 | |
| 046 | JM00000537 | HEX SOCKET SET SCREW M6X16 | 1 | |
| 047 | JM00000532 | HEX SOCKET HEAD BOLT M6X18 | 1 | |
| 048 | JM00000531 | R-PIN 6 | 1 | |
| 049 | JM00000538 | SET SCREW M6X18 | 1 | |
| 050 | JM23100035 | ANTI-LOOSEN RING | 1 | |
| 051 | JM00000460 | TAPPING SCREW ST4.2X9.5 | 1 | |
| 052 | JM00000460 | TAPPING SCREW ST4.2X9.5 | 1 | |
| 053 | JM00000618 | DUST PORT | 1 | |
| 054 | JM00000619 | DUST CHUTE PLATE | 1 | |
| 055 | JM23100098 | LINK SLEEVE | 1 | |
| 056 | JM00000495 | STEPPED H.S.H.BOLT M6X10 | 1 | |
| 057 | JM00000621 | LINK PLATE COMP | 1 | |
| 058 | JM23100071 | THIN FLAT WASHER 6 | 1 | |
| 059 | JM00000525 | STOP RING E-5 | 1 | |
| 060 | JM00000589 | CAUTION LABEL | 1 | |
| 062 | JM00000540 | LED LAMP BOX | 1 | |
| 063 | JM00000541 | LED LAMP COMP | 1 | |
| 064 | JM00000622 | LED WIRE COVER | 1 | |
| 065 | JM23100065 | PAN HEAD SCREW M4X8 | 1 | |
| 066 | JM00000613 | LOWER BLADE GUARD ASSY | 1 | |
| 066 | D10 | INC. 67-75 | ||
| 067 | JM00000503 | PUSH NUT 5 | 1 | |
| 068 | JM00000504 | GUARD WHEEL | 1 | |
| 069 | JM00000614 | SQUARE NECK BOLT M5X16 | 1 | |
| 070 | JM00000615 | LOWER BLADE GUARD | 1 | |
| 071 | JM00000507 | TORSION SPRING 40 | 1 | |
| 072 | JM00000616 | GUARD FIX PLATE | 1 | |
| 073 | JM00000617 | BOWL PLATE | 1 | |
| 074 | JM00000510 | FLAT WASHER 5L | 1 | |
| 075 | JM23100141 | HEX LOCK NUT 5 | 1 | |
| 076 | JM00000530 | STEPPED TRASS HEAD BOLT M6X10 | 1 | |
| 077 | JM00000620 | HEX SOCKET HEAD BOLT M8X20 LH | 1 | |
| 078 | JM23100124 | BLADE FLANGE | 1 | |
| 079 | JM27000101 | BLADE INNER LING 25.4 | 1 | |
| 080 | JM23100124 | BLADE FLANGE | 1 | |
| 081 | JM00000612 | SLIDING ARM ASSY | 1 | |
| 082 | JM00000477 | WING NUT M10 | 1 | |
| 083 | JM23100010 | FLAT WASHER 10 | 1 | |
| 084 | JM00000478 | KNOB BOLT M6X20 | 1 | |
| 085 | JM00000479 | COMPRESSION SPRING 9X18 | 1 | |
| 086 | JM23100009 | HEX LOCK NUT M10 | 1 | |
| 087 | JM23100010 | FLAT WASHER 10 | 1 | |
| 088 | JM23100010 | FLAT WASHER 10 | 1 | |
| 089 | JM00000480 | KNOB NUT M5 | 1 | |
| 090 | JM00000481 | COMPRESSION SPRING 10X32 | 1 | |
| 091 | JM00000608 | BEVEL STEP STOPPER BOLT M5X18 | 1 | |
| 092 | JM00000482 | BEVEL SCALE POINTER | 1 | |
| 093 | JM23100016 | FLAT WASHER 4 | 1 | |
| 094 | JM23100065 | PAN HEAD SCREW M4X8 | 1 | |
| 095 | JM00000607 | HEX SOCKET SCREW ROD M10X120 | 1 | |
| 096 | JM23000015 | HEX NUT M10 | 1 | |
| 097 | JM00000501 | CORD REEL HOOK | 1 | |
| 098 | JM00000500 | CORD CLIP | 1 | |
| 099 | JM00000499 | BIG FLAT WASHER 5 | 1 | |
| 100 | JM00000498 | PAN HEAD SCREW M5X16 | 1 | |
| 101 | JM00000517 | STEPPED PAN HEAD SCREW M6X10 | 1 | |
| 102 | JM23100094 | WAVE WASHER 8 | 1 | |
| 103 | JM00000516 | CUTTING DEPTH ADJUSTABLE PLATE | 1 | |
| 104 | JM00000515 | H.S.H. SPECIAL BOLT M10X10 | 1 | |
| 105 | JM23100150 | SEALING RING | 1 | |
| 106 | JM00000496 | LOCK PIN | 1 | |
| 107 | JM00000501 | CORD REEL HOOK | 1 | |
| 108 | JM00000500 | CORD CLIP | 1 | |
| 109 | JM00000499 | BIG FLAT WASHER 5 | 1 | |
| 110 | JM00000498 | PAN HEAD SCREW M5X16 | 1 | |
| 111 | JM00000605 | TURN TABLE COMPLETE | 1 | |
| 111 | D10 | INC. 112 | ||
| 112 | JM00000606 | SUPPORT ARM SCALE LABEL | 1 | |
| 113 | JM00000467 | CONNECTION SHAFT BOLT M10X20 | 1 | |
| 114 | JM00000603 | HEX SOCKET HEAD BOLT M8X40 | 1 | |
| 115 | JM23000028 | HEX. NUT M8 | 1 | |
| 116 | JM23000028 | HEX. NUT M8 | 1 | |
| 117 | JM00000603 | HEX SOCKET HEAD BOLT M8X40 | 1 | |
| 118 | JM00000468 | HEX BOLT M10X45 | 1 | |
| 119 | JM00000453 | SLIDING FOOT | 5 | |
| 120 | JM00000476 | KERF BOARD | 2 | |
| 121 | JM23100033 | PAN HEAD SCREW M4X12 | 6 | |
| 123 | JM23180057 | CAUTION LABEL | 1 | |
| 125 | JM00000463 | GRIP BOLT M10X244 | 1 | |
| 126 | JM23100065 | PAN HEAD SCREW M4X8 | 1 | |
| 127 | JM23100016 | FLAT WASHER 4 | 1 | |
| 128 | JM00000465 | TURN BASE POINTER | 1 | |
| 129 | JM00000454 | BACK SUPPORT | 1 | |
| 130 | JM00000455 | LOCK PLATE | 1 | |
| 131 | JM23100015 | SPRING WASHER 4 | 2 | |
| 132 | JM00000456 | PAN HEAD SCREW M4X16 | 2 | |
| 133 | JM00000459 | POSITION LOCK LEVER | 1 | |
| 134 | JM00000464 | PIN 6X50 | 1 | |
| 135 | JM00000460 | TAPPING SCREW ST4.2X9.5 | 1 | |
| 136 | JM00000457 | POSITION SPRING PLATE | 1 | |
| 137 | JM23100041 | FLAT WASHER 6 | 2 | |
| 138 | JM23100151 | SPRING WASHER 6 | 2 | |
| 139 | JM00000604 | PAN HEAD SCREW M6X12 | 2 | |
| 140 | JM00000461 | COMPRESSION SPRING 14.5X25 | 1 | |
| 141 | JM00000462 | FOOT BOLT M8X23 | 1 | |
| 142 | JM00000432 | VERTICAL VISE SET | 1 | |
| 142 | D10 | INC. 143-148 | ||
| 143 | JM00000474 | VISE ARM | 1 | |
| 144 | JM00000475 | KNOB BOLT M10X128 | 1 | |
| 145 | JM00000473 | PRESSURE PLATE | 1 | |
| 146 | JM00000472 | FLAT WASHER 4 XL | 1 | |
| 147 | JM23100015 | SPRING WASHER 4 | 1 | |
| 148 | JM23100033 | PAN HEAD SCREW M4X12 | 1 | |
| 149 | JM00000602 | SUB FENCE | 1 | |
| 150 | JM23580063 | CAUTION LABEL | 1 | |
| 151 | JM00000449 | KNOB BOLT M6X18 | 1 | |
| 152 | JM00000450 | HEX SOCKET HEAD BOLT M8X20 | 4 | |
| 153 | JM23100061 | SPRING WASHER 8 | 4 | |
| 154 | JM23100060 | FLAT WASHER 8 | 4 | |
| 155 | JM00000601 | RIP FENCE | 1 | |
| 157 | JM00000446 | WRENCH HOLDER SLEEVE | 1 | |
| 158 | JM00000433 | LEFT EXTENSION TABLE | 1 | |
| 159 | JM23100087 | HEX SOCKET SET SCREW M6X8 | 4 | |
| 160 | JM00000434 | EXTENSION PIPE 10X210 | 4 | |
| 161 | JM00000435 | PAN HEAD SCREW M4X8 | 2 | |
| 162 | JM00000600 | BASE COMP | 1 | |
| 162 | D10 | INC. 163 | ||
| 163 | JM00000439 | MITER SCALE LABEL | 1 | |
| 164 | JM00000444 | KNOB BOLT M6X46 | 2 | |
| 165 | JM23100010 | FLAT WASHER 10 | 1 | |
| 166 | JM00000437 | WAVE WASHER 10 | 1 | |
| 167 | JM23100010 | FLAT WASHER 10 | 1 | |
| 168 | JM23100009 | HEX LOCK NUT M10 | 1 | |
| 169 | JM00000436 | RUBBER FOOT | 4 | |
| 170 | JM23180056 | CAUTION LABEL | 1 | |
| 171 | JM00000442 | RIGHT EXTENSION TABLE | 1 | |
| 172 | JM00000441 | HEX. LOCK NUT M6 | 1 | |
| 173 | JM23100041 | FLAT WASHER 6 | 1 | |
| 174 | JM00000443 | SET PLATE | 1 | |
| 175 | JM00000074 | PAN HEAD SCREW M6X20 | 1 | |
| A01 | D-77338 | TCT SAW 260X40T | 1 | |
| A02 | JM00000445 | UNI.HEX KEY WRENCH 6MM & PH2 | 1 |
