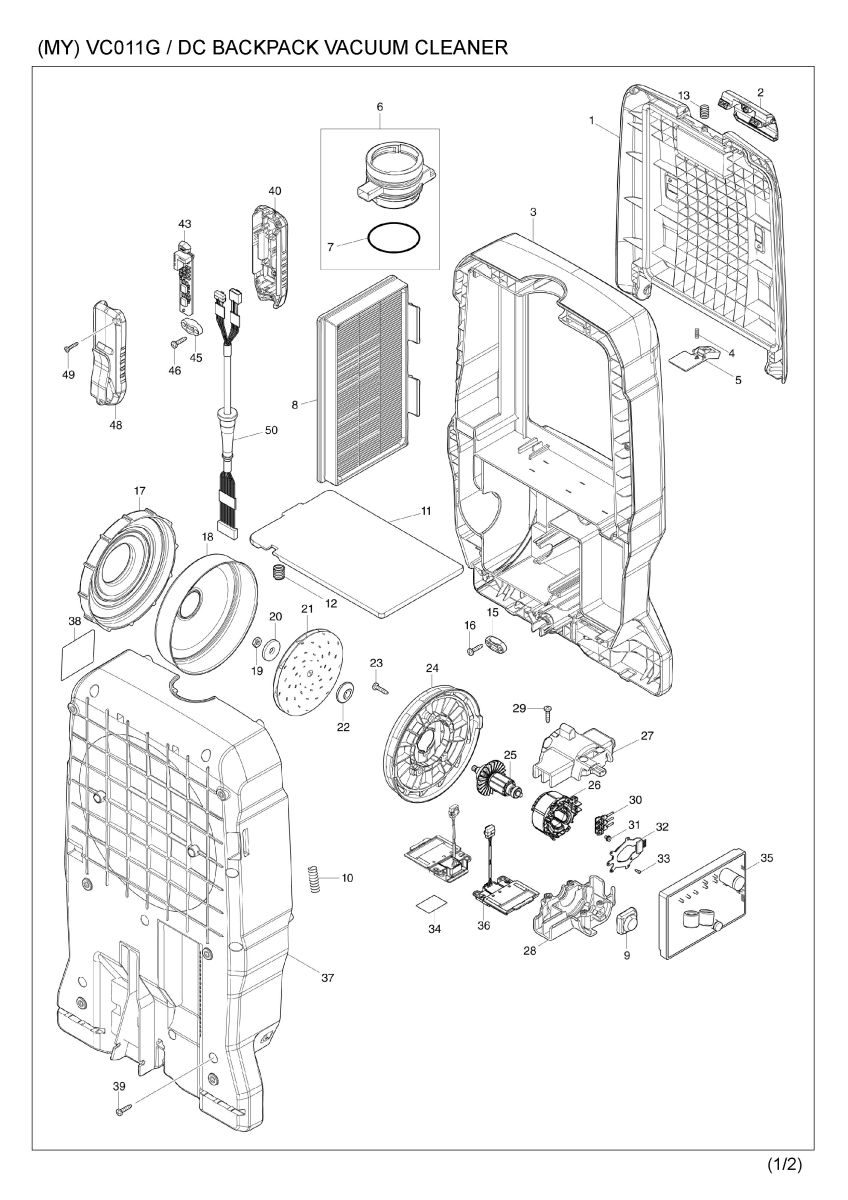

Part Diagram
Total: 87 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 141S81-0 | DUST BOX COVER COMPLETE | 1 | |
| 001 | C10 | 422A82-2 | SEAL A | 1 |
| 002 | 413E52-6 | HOOK | 1 | |
| 003 | 137050-3 | UPPER HOUSING ASSEMBLY | 1 | |
| 003 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 003 | C20 | 422A76-7 | REAR BLOCK FILTER | 1 |
| 004 | 232389-0 | COMPRESSION SPRING 5 | 1 | |
| 005 | 459912-8 | STOPPER PLATE | 1 | |
| 006 | 135771-1 | INLET ASS'Y | 1 | |
| 006 | D10 | INC. 7 | ||
| 007 | 213655-4 | O RING 56 | 1 | |
| 008 | 191D12-9 | MAIN FILTER H SET | 1 | |
| 009 | 422A84-8 | SUPPORT A | 1 | |
| 010 | 231297-2 | COMPRESSION SPRING 9 | 1 | |
| 011 | 459913-6 | PLATE | 1 | |
| 012 | 234141-2 | COMPRESSION SPRING 12 | 2 | |
| 013 | 234391-9 | COMPRESSION SPRING 8 | 1 | |
| 015 | 687124-5 | STRAIN RELIEF | 1 | |
| 016 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 017 | 422A83-0 | SUPPORT RING | 1 | |
| 018 | 347B87-6 | FAN COVER | 1 | |
| 019 | 252268-6 | HEX. NUT M6 | 1 | |
| 020 | 253752-4 | FLAT WASHER 8 | 1 | |
| 021 | 240178-9 | FAN 104 | 1 | |
| 022 | 313062-2 | FLANGE | 1 | |
| 023 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 024 | 413U78-4 | FAN BASE | 1 | |
| 025 | 619835-4 | ROTOR | 1 | |
| 026 | 629C56-8 | STATOR | 1 | |
| 027 | 1830C1-5 | MOTOR HOUSING SET | 1 | |
| 027 | D10 | INC. 28 | ||
| 028 | 1830C1-5 | MOTOR HOUSING SET | 1 | |
| 028 | D10 | INC. 27 | ||
| 029 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 030 | 638A29-8 | LEAD UNIT | 1 | |
| 031 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 032 | 620F39-9 | CONTROLLER B | 1 | |
| 033 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 034 | 8142Y9-1 | VC011G SERIAL NO. LABEL | 1 | |
| 035 | 620M49-8 | CONTROLLER | 1 | |
| 036 | 632P49-4 | TERMINAL UNIT | 2 | |
| 037 | 137051-1 | LOWER HOUSING ASSEMBLY | 1 | |
| 037 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 037 | C20 | 422A76-7 | REAR BLOCK FILTER | 1 |
| 038 | 8142Y7-5 | VC011G NAME PLATE | 1 | |
| 039 | 266326-2 | TAPPING SCREW 4X18 | 11 | |
| 040 | 1830D0-4 | SWITCH CASE SET | 1 | |
| 040 | C10 | 8071N8-7 | SWITCH LABEL | 1 |
| 040 | D10 | INC. 48 | ||
| 043 | 620M47-2 | SWITCH CIRCUIT | 1 | |
| 045 | 687124-5 | STRAIN RELIEF | 1 | |
| 046 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 048 | 1830D0-4 | SWITCH CASE SET | 1 | |
| 048 | C10 | 8071N8-7 | SWITCH LABEL | 1 |
| 048 | D10 | INC. 40 | ||
| 049 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 050 | 699235-4 | POWER SUPPLY CORD UNIT | 1 | |

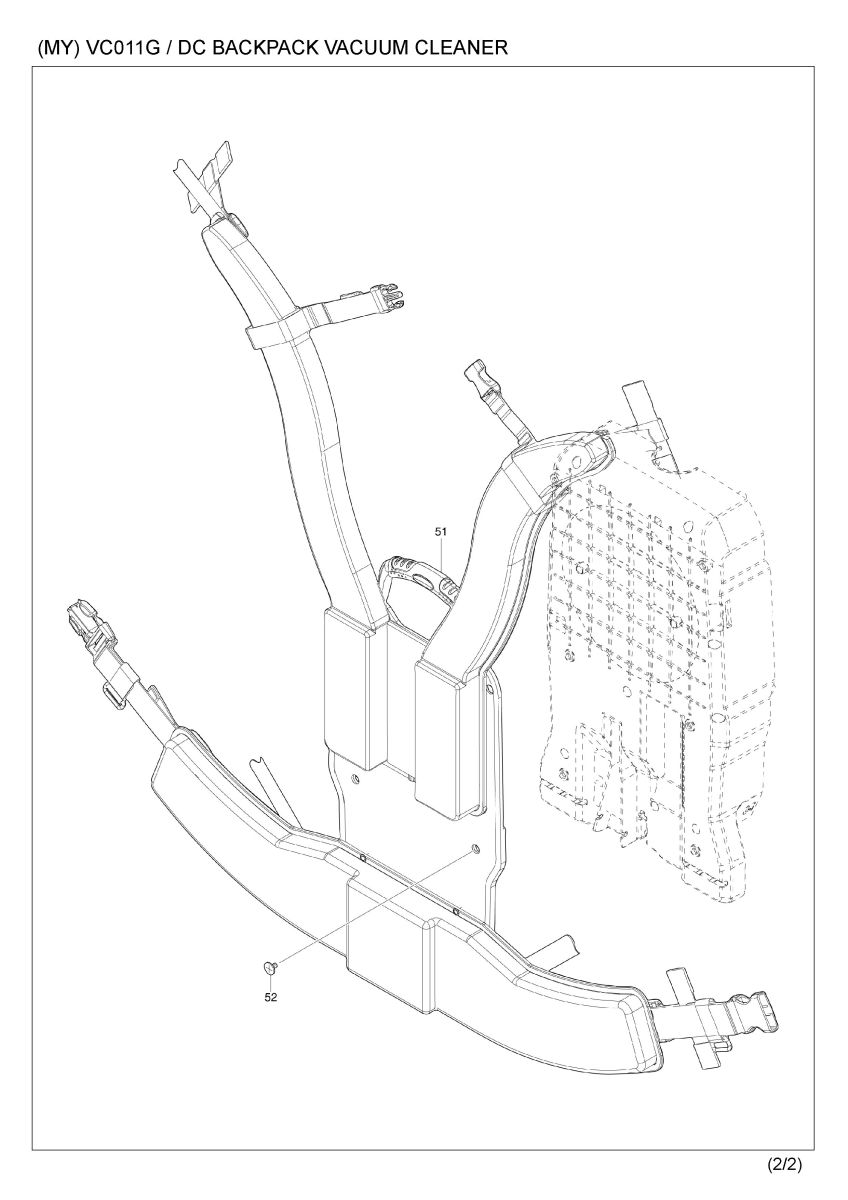

| 051 | 162C94-2 | HARNESS | 1 | |
| 052 | 265008-3 | + FLAT HEAD SCREW M5 | 6 | |
| A01 | 191C30-1 | DUST BAG SET | 1 | |
| A02 | 191G86-8 | NOZZLE ASSEMBLY SET | 1 | |
| A03 | 199453-9 | HOSE COMPLETE 32-1.0 SET | 1 | |
| A04 | 140G19-0 | TELESCOPIC PIPE COMPLETE | 1 | |
| A05 | 140G26-3 | BENT PIPE COMPLETE | 1 | |
| A06 | 166116-2 | HOSE BAND | 1 | |
| A07 | 191C26-2 | FILTER BAG SET | 1 | |
| A08 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| F20 | 191D71-3 | CYCLONE ATTACHMENT SET (LOCK) | 1 | |
| F22 | 191D73-9 | CYCLONE ATTACHMENT SET (LOCK) | 1 | |
| F24 | 191D75-5 | CYCLONE ATTACHMENT SET | 1 | |
| F25 | 191D76-3 | STRAIGHT PIPE SET 340 | 1 | |
| F26 | 191D77-1 | STRAIGHT PIPE SET 340 | 1 | |
| F27 | 191D78-9 | STRAIGHT PIPE SET 340 | 1 | |
| F29 | 191D80-2 | STRAIGHT PIPE SET 320 | 1 | |
| F31 | 191E30-3 | FLEXIBLE HOSE SET(LOCK) | 1 | |
| F69 | 198868-7 | FLEXIBLE HOSE SET28(WHI) | 1 | |
| F70 | 198873-4 | SHELF BRUSH SET28 WHI | 1 | |
| F71 | 198878-4 | ROUND BRUSH SET 28 WHI | 1 | |
| F75 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| F76 | 198990-0 | LONG SASH NOZZLE SET 28 BLU | 1 | |
| F77 | 198992-6 | LONG SASH NOZZLE SET 28 BLK | 1 | |
| F78 | 199038-1 | SEAT NOZZLE SET 28 WHI | 1 | |
| F79 | 199039-9 | SEAT NOZZLE SET 28 BLK | 1 | |
| F80 | 199041-2 | SEAT NOZZLE SET 28 BLU | 1 | |
| F82 | 199439-3 | CREVICE NOZZLE 415 SET | 1 | |
| F86 | 199491-1 | CYCLONE ATTACHMENT SET | 1 | |
| F99 | 1914A7-9 | ANGLE ATTACHMENT SET | 1 |
