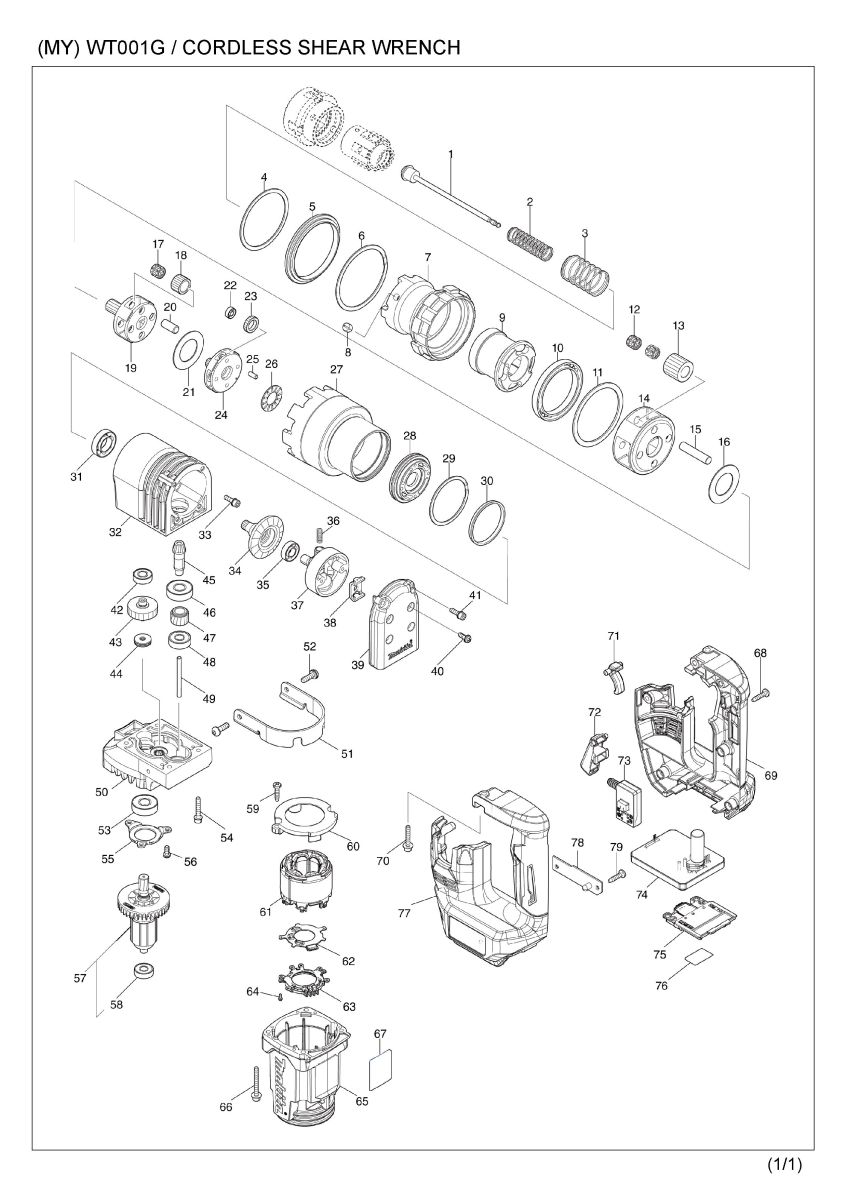

Part Diagram
Total: 98 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 165074-9 | CHIP ROD | 1 | |
| 002 | 233087-9 | COMPRESSION SPRING 13 | 1 | |
| 003 | 234143-8 | COMPRESSION SPRING 25 | 1 | |
| 004 | 257941-3 | SPIRO LOCK WASHER 62 | 1 | |
| 005 | 327C72-1 | SPACER | 1 | |
| 006 | 257940-5 | SPIRO LOCK WASHER 70 | 1 | |
| 007 | 327C74-7 | OUTER SUPPORT | 1 | |
| 008 | 266022-2 | - SET SCREW(DOG POINT) M8X8 | 2 | |
| 009 | 153872-3 | INNER SUPPORT COMPLETE | 1 | |
| 010 | 211611-8 | BALL BEARING 6810 | 1 | |
| 011 | 267282-9 | FLAT WASHER 60 | 1 | |
| 012 | 212954-1 | NEEDLE CAGE 810 | 8 | |
| 013 | 227117-6 | SPUR GEAR 20 | 4 | |
| 014 | 310147-5 | CARRIER | 1 | |
| 015 | 256228-0 | PIN 8 | 4 | |
| 016 | 216207-0 | WASHER 2542 | 1 | |
| 017 | 212954-1 | NEEDLE CAGE 810 | 4 | |
| 018 | 226270-5 | SPUR GEAR 25 | 4 | |
| 019 | 226275-5 | SPUR GEAR 11 | 1 | |
| 020 | 256227-2 | PIN 8 | 4 | |
| 021 | 216207-0 | WASHER 2542 | 1 | |
| 022 | 211044-7 | BALL BEARING 694 | 4 | |
| 023 | 226269-0 | SPUR GEAR 25 | 4 | |
| 024 | 226273-9 | SPUR GEAR 14 | 1 | |
| 025 | 256226-4 | PIN 4 | 4 | |
| 026 | 216403-0 | THRUST NEEDLE CAGE 1528 | 1 | |
| 027 | 227118-4 | INTERNAL GEAR 53-66 | 1 | |
| 028 | 327C73-9 | BRACKET | 1 | |
| 029 | 257929-3 | SPIRO LOCK WASHER 52 | 1 | |
| 030 | 257186-3 | RING 44 | 1 | |
| 031 | 211221-1 | BALL BEARING 6902 | 1 | |
| 032 | 141T01-0 | GEAR CASE COMPLETE | 1 | |
| 032 | C10 | 263002-9 | RUBBER PIN 4 | 2 |
| 033 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 4 | |
| 034 | 226812-5 | GEAR 14-41 | 1 | |
| 035 | 211082-9 | BALL BEARING 699 | 1 | |
| 036 | 233098-4 | COMPRESSION SPRING 4 | 1 | |
| 037 | 312E62-9 | ROD SUPPORTER | 1 | |
| 038 | 344062-1 | STOPPER PLATE | 1 | |
| 039 | 413T74-6 | REAR COVER | 1 | |
| 040 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 041 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 4 | |
| 042 | 210013-5 | BALL BEARING 698VV | 1 | |
| 043 | 226651-3 | HELICAL GEAR 30 | 1 | |
| 044 | 212048-2 | THRUST NEEDLE BEARING 617 | 1 | |
| 045 | 226711-1 | SPIRAL BEVEL GEAR 12 | 1 | |
| 046 | 211097-6 | BALL BEARING 6000LLB | 1 | |
| 047 | 226476-5 | HELICAL GEAR 18 | 1 | |
| 048 | 211031-6 | BALL BEARING 608LLB | 1 | |
| 049 | 256225-6 | PIN 4 | 1 | |
| 050 | 141T00-2 | GEAR HOUSING COMPLETE | 1 | |
| 051 | 347B90-7 | HOOK | 1 | |
| 052 | 265491-4 | H.S. BUTTON HEAD BOLT M5X16 | 2 | |
| 053 | 211097-6 | BALL BEARING 6000LLB | 1 | |
| 054 | 922148-7 | HEX. SOCKET HEAD BOLT M4X25 | 4 | |
| 055 | 344470-6 | BEARING RETAINER | 1 | |
| 056 | 911111-5 | PAN HEAD SCREW M4X10 WITH W | 3 | |
| 057 | 519831-1 | ROTOR ASS'Y | 1 | |
| 057 | D10 | INC. 58 | ||
| 058 | 211023-5 | BALL BEARING 607LB | 1 | |
| 059 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 060 | 458306-4 | BAFFLE PLATE | 1 | |
| 061 | 629C12-8 | STATOR | 1 | |
| 062 | 620K96-7 | CONTROLLER B | 1 | |
| 063 | 638A32-9 | LEAD UNIT | 1 | |
| 064 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| 065 | 458302-2 | MOTOR HOUSING | 1 | |
| 066 | 922909-5 | HEX. SOCKET HEAD BOLT M4X35 | 4 | |
| 067 | 8141X7-2 | WT001G NAME PLATE | 1 | |
| 068 | 265995-6 | TAPPING SCREW 4X18 | 6 | |
| 069 | 1830C8-1 | HANDLE SET | 1 | |
| 069 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 069 | C20 | 422226-8 | SPONGE SHEET | 1 |
| 069 | C30 | 8068T1-2 | INDICATION LABEL | 1 |
| 069 | D10 | INC. 77 | ||
| 070 | 922149-5 | H.S.H.BOLT M4X25 WITH WG | 2 | |
| 071 | 312E63-7 | CHIP LEVER | 1 | |
| 071-1 | 311928-0 | CHIP LEVER | 1 | |
| 072 | 458303-0 | SWITCH LEVER | 1 | |
| 073 | 650033-1 | SWITCH C3XA-3PSPM-1 | 1 | |
| 074 | 620M98-5 | CONTROLLER | 1 | |
| 075 | 632P64-8 | TERMINAL UNIT | 1 | |
| 076 | 8141Y7-9 | WT001G SERIAL NO. LABEL | 1 | |
| 077 | 1830C8-1 | HANDLE SET | 1 | |
| 077 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 077 | C20 | 422226-8 | SPONGE SHEET | 1 |
| 077 | C30 | 8068T1-2 | INDICATION LABEL | 1 |
| 077 | D10 | INC. 69 | ||
| 078 | 620809-0 | LED CIRCUIT | 1 | |
| 079 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| A01 | 153909-6 | OUTER SLEEVE 22-39 COMPLETE | 1 | |
| A02 | 764418-6 | INNER SLEEVE 22-39 COMPLETE | 1 | |
| A03 | 764361-9 | OUTER SLEEVE 20-37 | 1 | |
| A04 | 764417-8 | INNER SLEEVE 20-38 COMPLETE | 1 | |
| A05 | 783001-0 | (-) SCREWDRIVER 6 | 1 | |
| A06 | 161347-8 | SHOULDER BELT | 1 | |
| A07 | 821921-1 | PLASTIC CARRYING CASE | 1 | |
| A07 | C10 | 162271-8 | LATCH | 2 |
