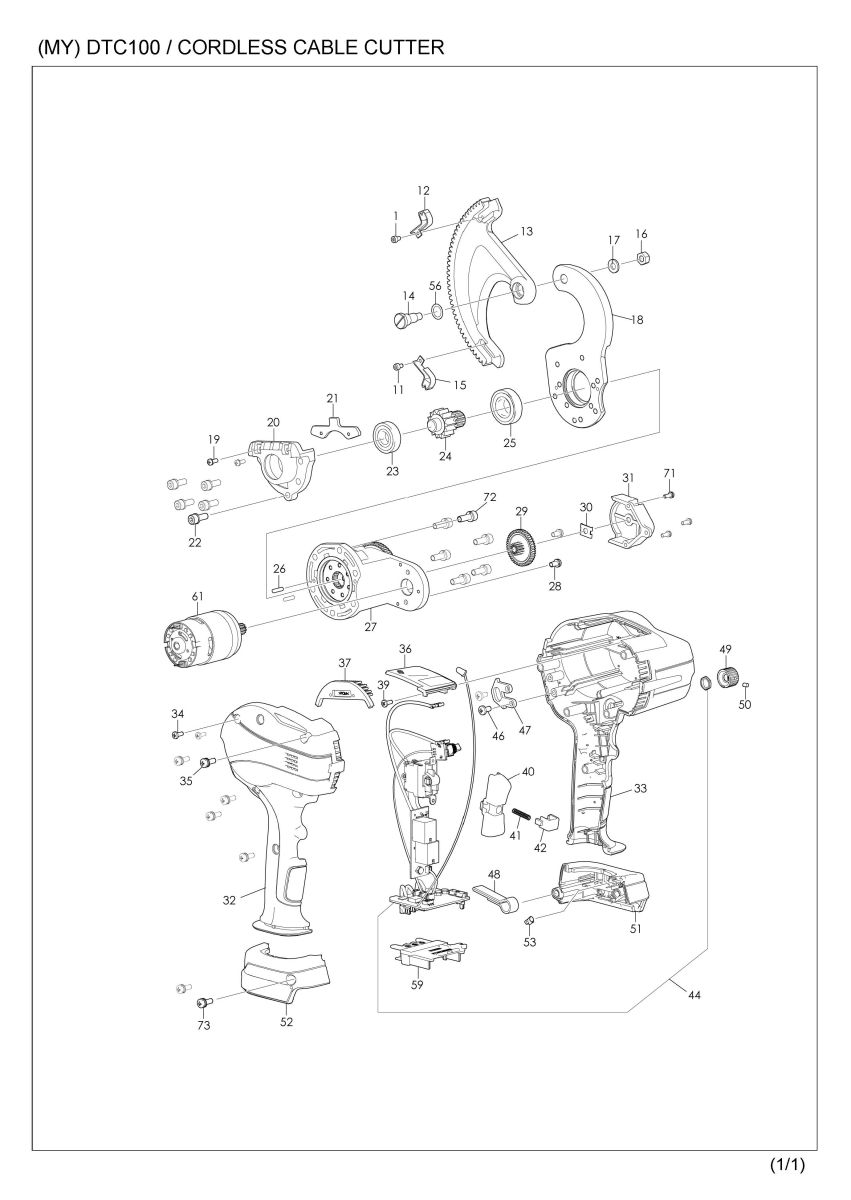

Part Diagram
Total: 56 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | ZM00000127 | H.S. HEAD SCREW M3X3 | 1 | |
| 11 | ZM00000127 | H.S. HEAD SCREW M3X3 | 1 | |
| 12 | ZM00000128 | SPRING GEAR B ASSY | 1 | |
| 13 | ZM00000129 | MOVING BLADE | 1 | |
| 14 | ZM00000130 | -SHOULDER SCREW | 1 | |
| 15 | ZM00000131 | SPRING GEAR A ASSY | 1 | |
| 16 | ZM00000132 | HEX LOCK NUT M6 | 1 | |
| 17 | ZM00000133 | SPRING WASHER 6 | 1 | |
| 18 | ZM00000134 | STATIONARY BLADE | 1 | |
| 19 | ZM00000135 | PAN HEAD SCREW M3X8 | 2 | |
| 20 | ZM00000136 | BEARING CASE | 1 | |
| 21 | ZM00000137 | CUTTER PLATE | 1 | |
| 22 | ZM00000138 | HEX. SOCKET HEAD BOLT M5X14 | 5 | |
| 23 | ZM00000139 | BALL BEARING 6001VV | 1 | |
| 24 | ZM00000140 | PINION GEAR | 1 | |
| 25 | ZM00000141 | BALL BEARING 6002VV | 1 | |
| 26 | ZM00000142 | NEEDLE PIN 3X11.8 | 2 | |
| 27 | ZM00000143 | GEAR CASE ASSY | 1 | |
| 28 | ZM00000144 | PAN HEAD SCREW M4X8 | 2 | |
| 29 | ZM00000145 | SPUR GEAR | 1 | |
| 30 | ZM00000146 | GEAR PLATE | 1 | |
| 31 | ZM00000147 | GEAR COVER | 1 | |
| 32 | ZM00000162 | HOUSING ASSY | 1 | |
| 32 | D10 | INC. 33 | ||
| 33 | ZM00000162 | HOUSING ASSY | 1 | |
| 33 | C10 | ZM00000163 | MAKITA LOGO LABEL | 1 |
| 33 | D10 | INC. 32 | ||
| 34 | ZM00000148 | TAPPING SCREW 3X14 | 2 | |
| 35 | ZM00000149 | PAN HEAD SCREW M4X12 | 5 | |
| 36 | ZM00000187 | LED COVER | 1 | |
| 36 | C10 | ZM00000188 | CAUTION LABEL | 1 |
| 37 | ZM00000150 | BRUSH PLATE | 1 | |
| 39 | ZM00000151 | TAPPING SCREW 3X8 | 1 | |
| 40 | ZM00000152 | SWITCH KNOB | 1 | |
| 41 | ZM00000153 | COMPRESSION SPRING | 1 | |
| 42 | ZM00000154 | LOCK OFF BUTTON | 1 | |
| 44 | ZM00000155 | SWITCH CIRCUIT UNIT | 1 | |
| 46 | ZM00000156 | TAPPING SCREW 4X12 | 2 | |
| 47 | ZM00000157 | STRAP PLATE | 1 | |
| 48 | ZM00000015 | STRAP RING | 1 | |
| 49 | ZM00000158 | DIAL KNOB | 1 | |
| 50 | ZM00000095 | HEX. SET SCREW M3X5 | 1 | |
| 51 | ZM00000185 | BATTERY CASE ASSY | 1 | |
| 51 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 51 | D10 | INC. 52 | ||
| 52 | ZM00000185 | BATTERY CASE ASSY | 1 | |
| 52 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 52 | D10 | INC. 51 | ||
| 53 | ZM00000159 | CAP | 1 | |
| 56 | ZM00000160 | FLAT WASHER | 1 | |
| 59 | 643874-2 | TERMINAL | 1 | |
| 61 | ZM00000161 | MOTOR ASSY | 1 | |
| 71 | ZM00000135 | PAN HEAD SCREW M3X8 | 3 | |
| 72 | ZM00000138 | HEX. SOCKET HEAD BOLT M5X14 | 6 | |
| 73 | ZM00000149 | PAN HEAD SCREW M4X12 | 2 | |
| A01 | ZM00000169 | PLASTIC CASE | 1 |
