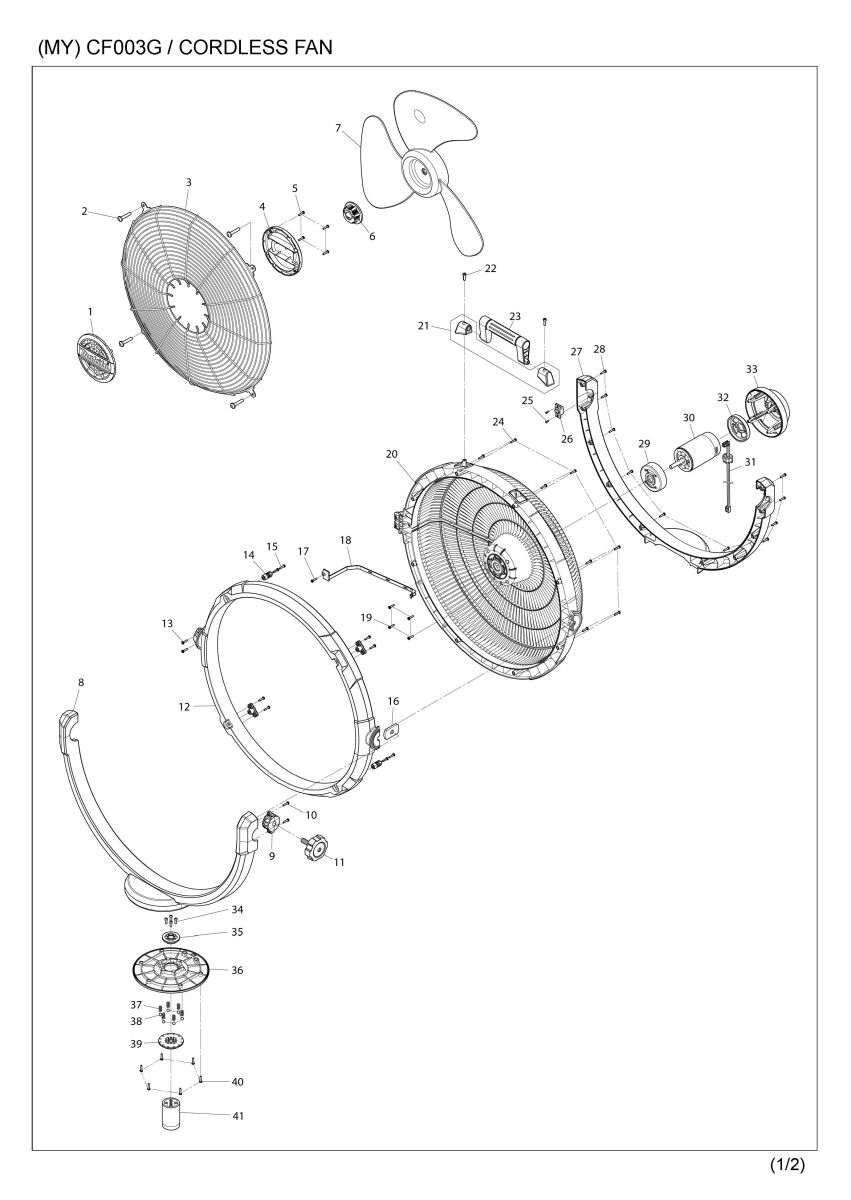

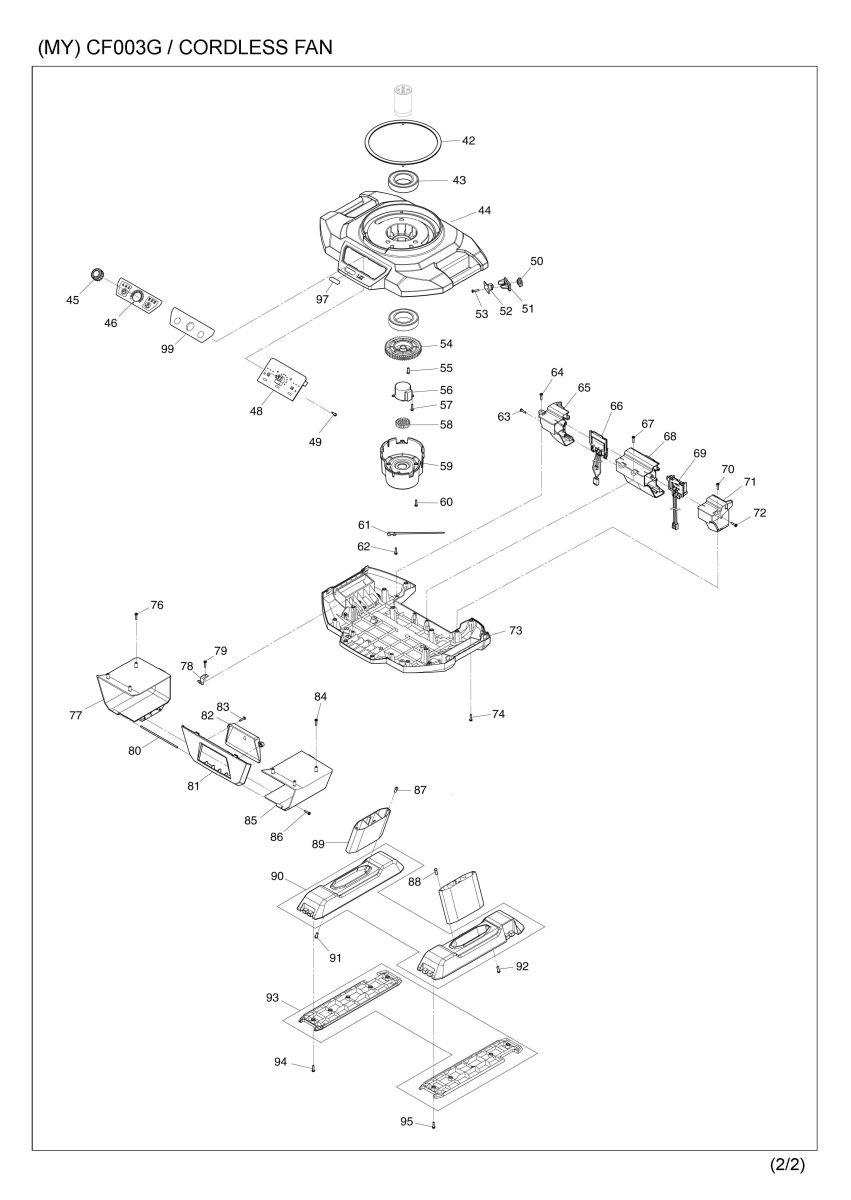

Part Diagram
Total: 101 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | TE00000704 | CENTER CAP FRONT | 1 | |
| 2 | TE00000706 | PAN HEAD SCREW M5X20 | 4 | |
| 3 | TE00000707 | FRONT GUARD | 1 | |
| 4 | TE00000708 | CENTER CAP REAR | 1 | |
| 5 | TE00000028 | TAPPING SCREW 3X14 | 4 | |
| 6 | TE00000709 | BLADE FIXING TUB NUT M8 LH | 1 | |
| 7 | TE00000710 | FAN BLADE 45 | 1 | |
| 8 | TE00000711 | FRONT SWINGING FLAME | 1 | |
| 9 | TE00000712 | ANGLE ADJUSTER RING | 1 | |
| 10 | TE00000028 | TAPPING SCREW 3X14 | 2 | |
| 11 | TE00000713 | TUB SCREW M10X31 | 1 | |
| 12 | TE00000714 | FRONT GUARD FIXING RING | 1 | |
| 13 | TE00000028 | TAPPING SCREW 3X14 | 2 | |
| 14 | TE00000715 | FRONT GUARD FIXING NUT M5 | 4 | |
| 15 | TE00000028 | TAPPING SCREW 3X14 | 8 | |
| 16 | TE00000716 | RECTANGLE NUT M10 | 1 | |
| 17 | TE00000028 | TAPPING SCREW 3X14 | 1 | |
| 18 | TE00000717 | WIRING COVER FOR REAR GUARD | 1 | |
| 19 | TE00000028 | TAPPING SCREW 3X14 | 4 | |
| 20 | TE00000718 | REAR GUARD | 1 | |
| 21 | TE00000719 | HANDLE HOLDER L/R SET | 1 | |
| 22 | TE00000720 | HEX SOCKET HEAD TAPPING SCREW | 2 | |
| 23 | TE00000721 | HANDLE | 1 | |
| 24 | TE00000028 | TAPPING SCREW 3X14 | 8 | |
| 25 | TE00000203 | SELF-TAPPING SCREW 2.5X8 | 2 | |
| 26 | TE00000722 | POM SMALL FASTENER 1 | 1 | |
| 27 | TE00000723 | REAR SWINGING FLAME | 1 | |
| 28 | TE00000028 | TAPPING SCREW 3X14 | 10 | |
| 29 | TE00000724 | FRONT MOTOR MOUNT | 1 | |
| 30 | TE00000725 | DC MOTOR ASSY | 1 | |
| 31 | TE00000726 | LEAD WIRE ASSY(MOTOR-PCB) | 1 | |
| 32 | TE00000727 | REAR MOTOR MOUNT | 1 | |
| 33 | TE00000728 | MOTOR HOUSING | 1 | |
| 34 | TE00000729 | PAN HEAD SCREW M4X12 | 4 | |
| 35 | TE00000733 | FIX RING FOR TURN TABLE | 1 | |
| 36 | TE00000731 | TURN TABLE | 1 | |
| 37 | TE00000732 | COMPRESSION SPRING 6 | 6 | |
| 38 | TE00000063 | STEEL BALL 6 | 6 | |
| 39 | TE00000730 | TURN TABLE BASE | 1 | |
| 40 | TE00000028 | TAPPING SCREW 3X14 | 6 | |
| 41 | TE00000734 | SWING SHAFT | 1 | |
| 42 | TE00000735 | TURN TABLE RING | 1 | |
| 43 | TE00000736 | BALL BEARING 6008ZZ | 2 | |
| 44 | TE00000737 | UPPER CONTROLLER HOUSING | 1 | |
| 45 | TE00000738 | KNOB FOR SPEED CONTROL | 1 | |
| 46 | TE00000740 | LABEL FOR SWITCH PANEL | 1 | |
| 48 | TE00000742 | PCB | 1 | |
| 49 | TE00000388 | TAPPING SCREW 3X10 | 4 | |
| 50 | TE00000743 | DC SOCKET COVER | 1 | |
| 51 | TE00000744 | DC SOCKET PANEL | 1 | |
| 52 | TE00000745 | DC SOCKET | 1 | |
| 53 | TE00000028 | TAPPING SCREW 3X14 | 2 | |
| 54 | TE00000746 | GEAR 54 | 1 | |
| 55 | TE00000729 | PAN HEAD SCREW M4X12 | 4 | |
| 56 | TE00000747 | MOTOR ASSY FOR SWINGING | 1 | |
| 056-1 | TE00000818 | MOTOR ASSY FOR SWINGING | 1 | |
| 57 | TE00000028 | TAPPING SCREW 3X14 | 2 | |
| 58 | TE00000748 | GEAR 20 | 1 | |
| 59 | TE00000749 | SWING UNIT HOUSING | 1 | |
| 60 | TE00000028 | TAPPING SCREW 3X14 | 3 | |
| 61 | TE00000418 | CABLE TIE | 1 | |
| 62 | TE00000028 | TAPPING SCREW 3X14 | 1 | |
| 63 | TE00000028 | TAPPING SCREW 3X14 | 2 | |
| 64 | TE00000028 | TAPPING SCREW 3X14 | 1 | |
| 65 | TE00000750 | BATTERY HOLDER LEFT | 1 | |
| 66 | TE00000751 | BATTERY TERMINAL(LXT) | 1 | |
| 67 | TE00000028 | TAPPING SCREW 3X14 | 2 | |
| 68 | TE00000752 | BATTERY HOLDER CENTER | 1 | |
| 69 | TE00000753 | BATTERY TERMINAL(XGT) | 1 | |
| 70 | TE00000028 | TAPPING SCREW 3X14 | 1 | |
| 71 | TE00000754 | BATTERY HOLDER RIGHT | 1 | |
| 72 | TE00000028 | TAPPING SCREW 3X14 | 2 | |
| 73 | TE00000755 | LOWER CONTROLLER HOUSING | 1 | |
| 74 | TE00000028 | TAPPING SCREW 3X14 | 12 | |
| 76 | TE00000028 | TAPPING SCREW 3X14 | 3 | |
| 77 | TE00000767 | ACCESSORY BOX LEFT SIDE | 1 | |
| 78 | TE00000768 | ACCESSORY BOX LID STOPPER | 2 | |
| 79 | TE00000028 | TAPPING SCREW 3X14 | 2 | |
| 80 | TE00000769 | HINGE ROD FOR ACCESSORY BOX | 1 | |
| 81 | TE00000770 | ACCESSORY BOX LID OUTER PANEL | 1 | |
| 82 | TE00000771 | ACCESSORY BOX LID CENTER PANEL | 1 | |
| 83 | TE00000028 | TAPPING SCREW 3X14 | 2 | |
| 84 | TE00000028 | TAPPING SCREW 3X14 | 3 | |
| 85 | TE00000772 | ACCESSORY BOX RIGHT SIDE | 1 | |
| 86 | TE00000028 | TAPPING SCREW 3X14 | 2 | |
| 87 | TE00000773 | TAPPING SCREW 4X10 | 4 | |
| 88 | TE00000773 | TAPPING SCREW 4X10 | 4 | |
| 89 | TE00000774 | ALUMINUM LEG | 2 | |
| 90 | TE00000775 | UPPER FOOTS SET | 1 | |
| 91 | TE00000773 | TAPPING SCREW 4X10 | 3 | |
| 92 | TE00000773 | TAPPING SCREW 4X10 | 3 | |
| 93 | TE00000776 | LOWER FOOTS SET | 1 | |
| 94 | TE00000028 | TAPPING SCREW 3X14 | 5 | |
| 95 | TE00000028 | TAPPING SCREW 3X14 | 5 | |
| 96 | TE00000822 | SWITCH NUT | 1 | |
| 97 | TE00000580 | XGT LABEL | 1 | |
| 98 | TE00000823 | WASHER 7 | 1 | |
| 99 | TE00000741 | SWITCH PANEL | 1 | |
| 099-1 | TE00000820 | SWITCH PANEL | 1 | |
| A01 | TE00000793 | AC ADAPTER IN:100-240V OUT:13V | 1 | |
| A02 | TE00000780 | POWER SUPPLY CORD UK | 1 |
