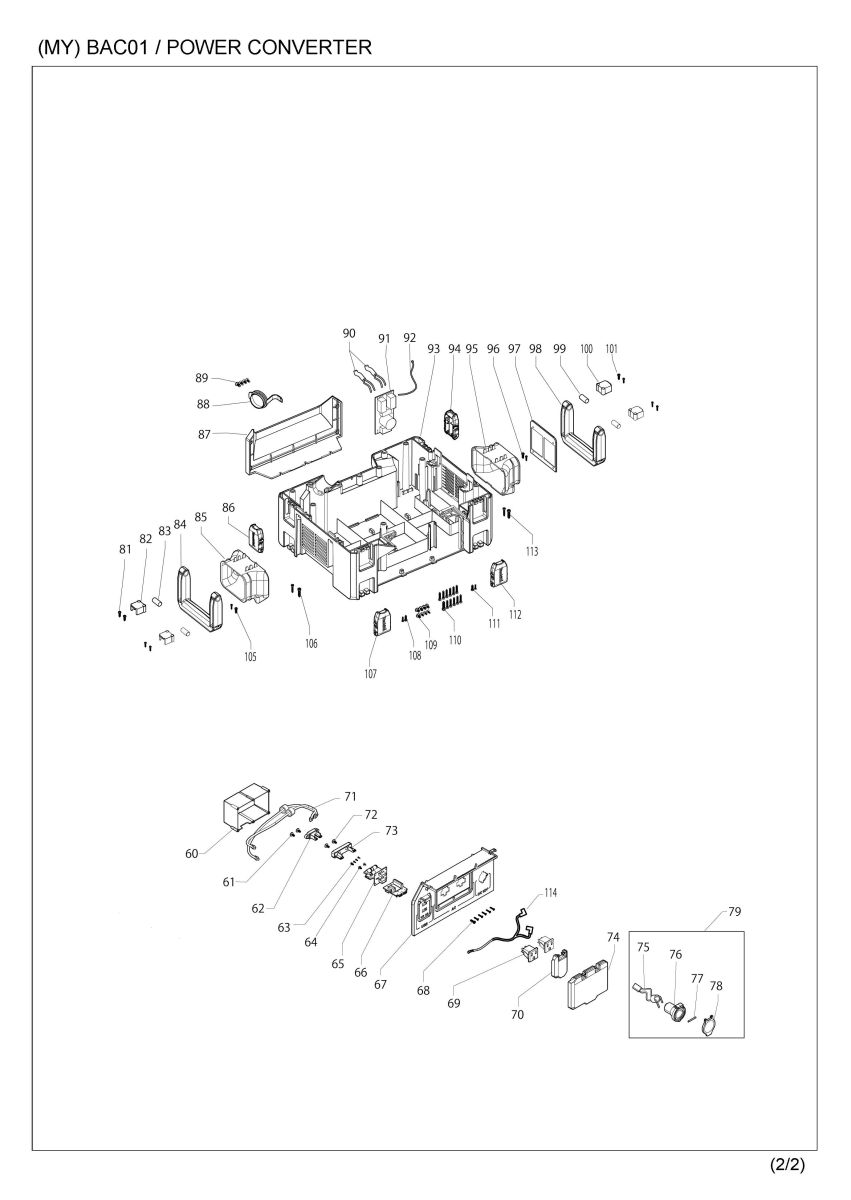

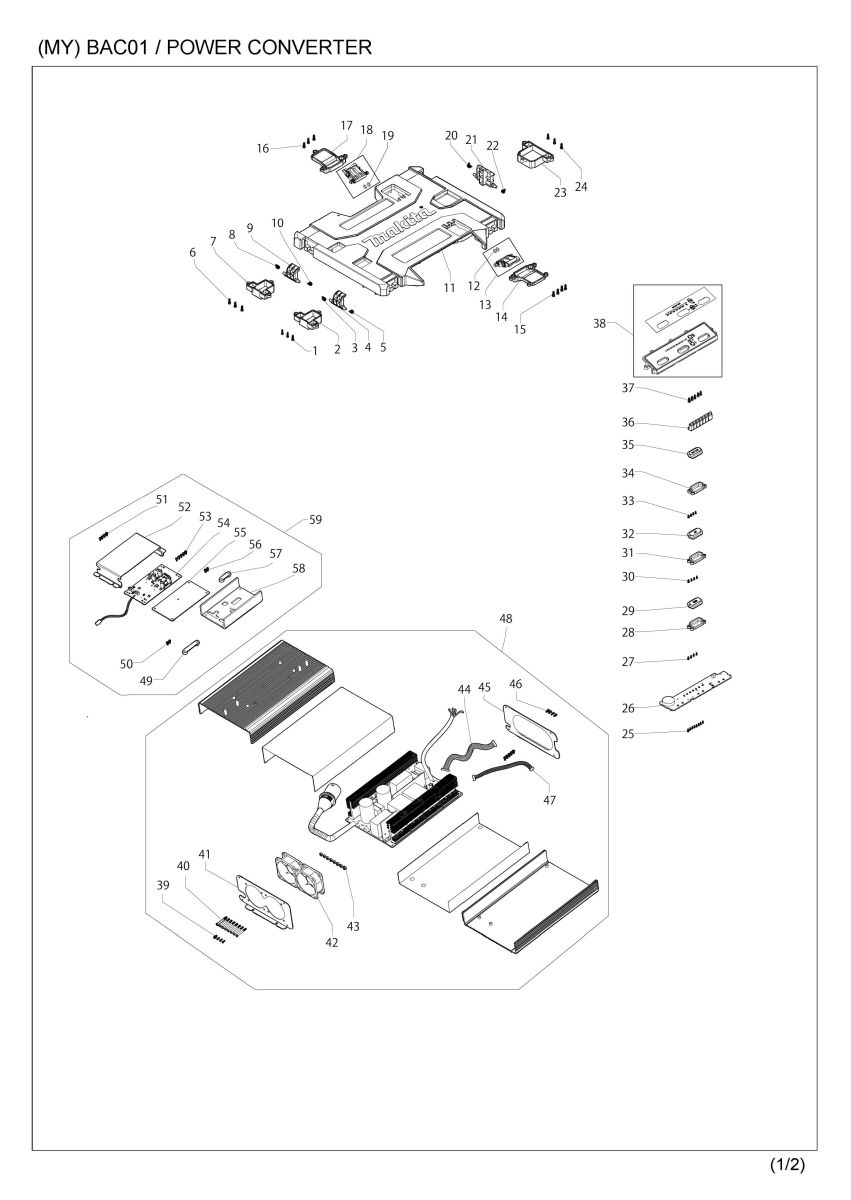

Part Diagram
Total: 115 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | QY00000011 | TAPPING SCREW 3X12 | 3 | |
| 2 | QY00000158 | HOOK B COVER | 1 | |
| 3 | QY00000159 | TORSION SPRING A | 1 | |
| 4 | QY00000160 | HOOK B | 1 | |
| 5 | QY00000161 | TORSION SPRING B | 1 | |
| 6 | QY00000011 | TAPPING SCREW 3X12 | 3 | |
| 7 | QY00000158 | HOOK B COVER | 1 | |
| 8 | QY00000159 | TORSION SPRING A | 1 | |
| 9 | QY00000162 | HOOK C | 1 | |
| 10 | QY00000161 | TORSION SPRING B | 1 | |
| 11 | QY00000163 | TOP HOUSING | 1 | |
| 12 | QY00000164 | O-RING | 2 | |
| 13 | QY00000165 | LATCH B | 1 | |
| 13 | D10 | INC. 12 | ||
| 14 | QY00000166 | LATCH B COVER | 1 | |
| 15 | QY00000011 | TAPPING SCREW 3X12 | 4 | |
| 16 | QY00000011 | TAPPING SCREW 3X12 | 3 | |
| 17 | QY00000167 | LATCH A COVER | 1 | |
| 18 | QY00000165 | LATCH B | 1 | |
| 18 | D10 | INC. 19 | ||
| 19 | QY00000164 | O-RING | 2 | |
| 20 | QY00000159 | TORSION SPRING A | 1 | |
| 21 | QY00000168 | HOOK A | 1 | |
| 22 | QY00000161 | TORSION SPRING B | 1 | |
| 23 | QY00000169 | HOOK A COVER | 1 | |
| 24 | QY00000011 | TAPPING SCREW 3X12 | 3 | |
| 25 | QY00000170 | TAPPING SCREW 2.0X6 | 8 | |
| 26 | QY00000171 | CONTROL PCB | 1 | |
| 27 | QY00000170 | TAPPING SCREW 2.0X6 | 4 | |
| 28 | QY00000172 | KEY FRAME | 1 | |
| 29 | QY00000173 | USB BUTTON | 1 | |
| 30 | QY00000170 | TAPPING SCREW 2.0X6 | 4 | |
| 31 | QY00000172 | KEY FRAME | 1 | |
| 32 | QY00000174 | AC BUTTON | 1 | |
| 33 | QY00000170 | TAPPING SCREW 2.0X6 | 4 | |
| 34 | QY00000172 | KEY FRAME | 1 | |
| 35 | QY00000175 | DC BUTTON | 1 | |
| 36 | QY00000176 | LENS | 1 | |
| 37 | QY00000177 | TAPPING SCREW 3.0X8 | 5 | |
| 38 | QY00000178 | PANEL ASSY | 1 | |
| 39 | QY00000011 | TAPPING SCREW 3X12 | 4 | |
| 40 | QY00000179 | SCREW 4.0X29.5 | 8 | |
| 41 | QY00000180 | FAN PLATE | 1 | |
| 42 | QY00000181 | FAN | 2 | |
| 43 | QY00000182 | HEX. NUT M4 | 8 | |
| 44 | QY00000183 | LEAD UNIT A | 1 | |
| 45 | QY00000184 | PLATE B | 1 | |
| 46 | QY00000011 | TAPPING SCREW 3X12 | 4 | |
| 47 | QY00000185 | LEAD UNIT B | 1 | |
| 48 | QY00000255 | MAIN PCB ASSY | 1 | |
| 48 | D10 | INC. 39-47 | ||
| 49 | QY00000187 | LEAD HOLDER A | 1 | |
| 50 | QY00000188 | SCREW M3X6 | 2 | |
| 51 | QY00000188 | SCREW M3X6 | 4 | |
| 52 | QY00000189 | SHIELD | 1 | |
| 53 | QY00000190 | SCREW M3X8 | 5 | |
| 54 | QY00000191 | DC DC CONVERTER PCB | 1 | |
| 55 | QY00000192 | HEAT DISSIPATION SHEET | 1 | |
| 56 | QY00000188 | SCREW M3X6 | 2 | |
| 57 | QY00000193 | LEAD HOLDER B | 1 | |
| 58 | QY00000194 | HEAT SINK DC | 1 | |
| 59 | QY00000195 | DC PCB ASSY | 1 | |
| 59 | D10 | INC. 49-58 | ||
| 60 | QY00000196 | AC PLUG BRACKET | 1 | |
| 61 | QY00000026 | TAPPING SCREW 3X8 | 2 | |
| 62 | QY00000197 | USB HOLDER PLATE | 1 | |
| 63 | QY00000170 | TAPPING SCREW 2.0X6 | 4 | |
| 64 | QY00000198 | TAPPING SCREW FLANGE 2X5 | 2 | |
| 65 | QY00000199 | USB PCB | 1 | |
| 66 | QY00000200 | USB TYPE-C PCB | 1 | |
| 67 | QY00000202 | PANEL OUTPUT | 1 | |
| 68 | QY00000036 | TAPPING SCREW 3X12 | 6 | |
| 69 | QY00000068 | AC OUTPUT SOCKET E | 2 | |
| 70 | QY00000210 | USB COVER | 1 | |
| 71 | QY00000211 | LEAD UNIT D | 2 | |
| 72 | QY00000026 | TAPPING SCREW 3X8 | 2 | |
| 73 | QY00000212 | AC SOCKET HOLDER PLATE | 1 | |
| 74 | QY00000213 | AC PLUG COVER | 1 | |
| 75 | QY00000214 | LEAD UNIT E | 1 | |
| 76 | QY00000215 | CIGAR LIGHTER SOCKET | 1 | |
| 77 | QY00000216 | PIN | 1 | |
| 78 | QY00000217 | CIGAR LIGHTER SOCKET COVER | 1 | |
| 79 | QY00000218 | CIGAR LIGHTER SOCKET ASSY | 1 | |
| 79 | D10 | INC. 75-78 | ||
| 81 | QY00000219 | TAPPING SCREW 3X30 | 4 | |
| 82 | QY00000220 | HANDLE PIN COVER | 2 | |
| 83 | QY00000221 | HANDLE PIN | 2 | |
| 84 | QY00000222 | HANDLE | 1 | |
| 85 | QY00000223 | DUCT | 1 | |
| 86 | QY00000224 | LATCH A | 1 | |
| 87 | QY00000225 | CONTAINNER BOX COVER | 1 | |
| 88 | QY00000226 | PLUG COVER | 1 | |
| 89 | QY00000227 | COUNTERSUNK TAPPING SCREW 4X1 | 4 | |
| 90 | QY00000229 | LEAD UNIT F | 1 | |
| 91 | QY00000233 | FILTER PCB ASSY (H) | 1 | |
| 92 | QY00000235 | EARTH WIRE | 1 | |
| 93 | QY00000236 | BOTTOM HOUSING | 1 | |
| 94 | QY00000224 | LATCH A | 1 | |
| 95 | QY00000223 | DUCT | 1 | |
| 96 | QY00000011 | TAPPING SCREW 3X12 | 2 | |
| 97 | QY00000237 | FILTER | 1 | |
| 98 | QY00000222 | HANDLE | 1 | |
| 99 | QY00000221 | HANDLE PIN | 2 | |
| 100 | QY00000220 | HANDLE PIN COVER | 2 | |
| 101 | QY00000219 | TAPPING SCREW 3X30 | 4 | |
| 105 | QY00000011 | TAPPING SCREW 3X12 | 2 | |
| 106 | QY00000001 | TAPPING SCREW 4X20 | 2 | |
| 107 | QY00000224 | LATCH A | 1 | |
| 108 | QY00000011 | TAPPING SCREW 3X12 | 2 | |
| 109 | QY00000026 | TAPPING SCREW 3X8 | 8 | |
| 110 | QY00000001 | TAPPING SCREW 4X20 | 12 | |
| 111 | QY00000011 | TAPPING SCREW 3X12 | 2 | |
| 112 | QY00000224 | LATCH A | 1 | |
| 113 | QY00000001 | TAPPING SCREW 4X20 | 2 | |
| A01 | QY00000251 | NAMEPLATE | 1 |
