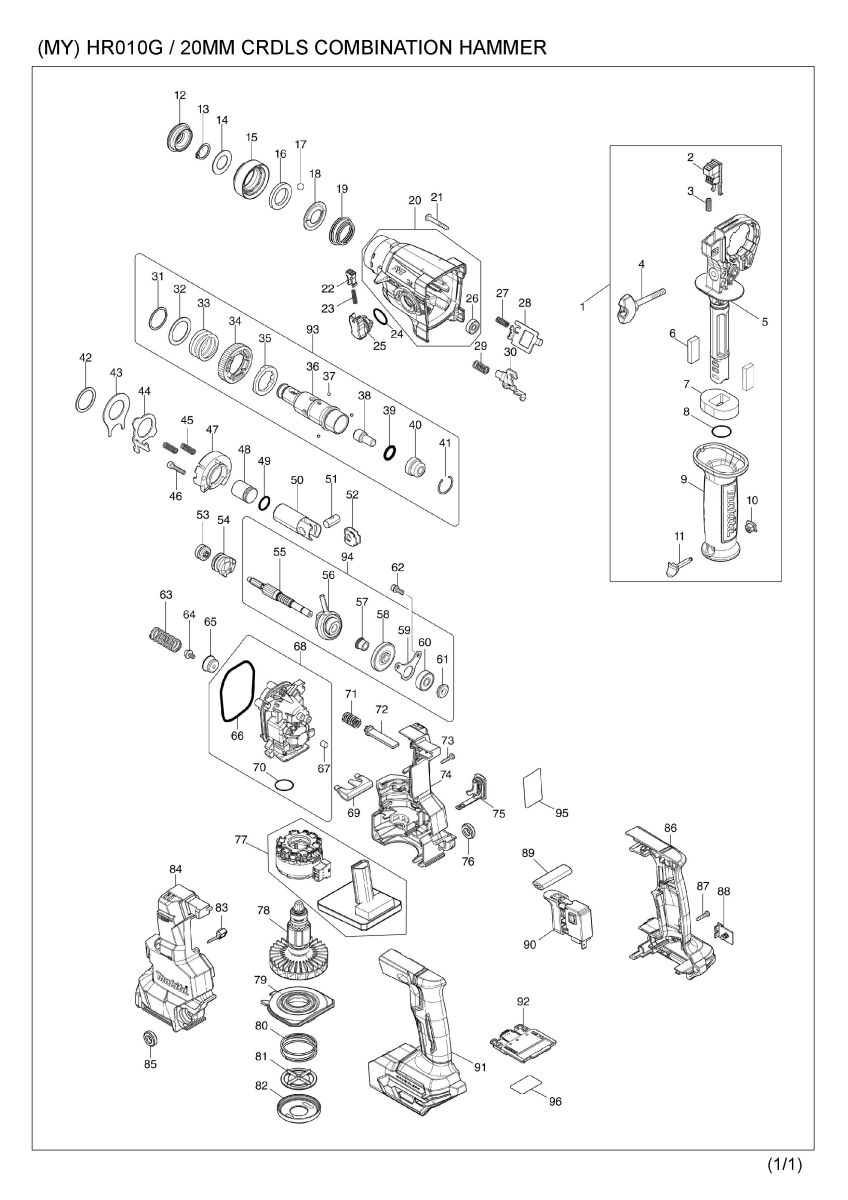

Part Diagram
Total: 264 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 122D63-1 | GRIP ASSEMBLY | 1 | |
| 001 | D10 | INC. 2-11 | ||
| 002 | 413N19-8 | LOCK BUTTON | 1 | |
| 003 | 233360-7 | COMPRESSION SPRING 4 | 1 | |
| 004 | 265625-9 | THUMB SCREW M6X50 | 1 | |
| 005 | 413N18-0 | SIDE HANDLE BASE | 1 | |
| 006 | 422A20-4 | SPONGE SHEET B | 2 | |
| 007 | 422A19-9 | SPONGE SHEET A | 1 | |
| 008 | 213262-3 | O RING 18 | 1 | |
| 009 | 413N20-3 | GRIP 36 | 1 | |
| 010 | 422255-1 | CAP | 1 | |
| 011 | 162C55-2 | FIX PIN | 1 | |
| 012 | 286037-3 | CAP 34 | 1 | |
| 013 | 961057-5 | RETAINING RING S-17 | 1 | |
| 014 | 253377-4 | FLAT WASHER 17 | 1 | |
| 015 | 458845-4 | CHUCK COVER | 1 | |
| 016 | 257416-2 | RING 21 | 1 | |
| 017 | 216022-2 | STEEL BALL 7.0 | 2 | |
| 018 | 346177-0 | GUIDE WASHER | 1 | |
| 019 | 232347-6 | CONICAL COMP. SPRING 21-29 | 1 | |
| 020 | 136975-8 | GEAR HOUSING ASS'Y | 1 | |
| 020 | D10 | INC. 26 | ||
| 021 | 266050-7 | TAPPING SCREW 4X30 | 4 | |
| 022 | 458851-9 | LOCK BUTTON | 1 | |
| 023 | 234264-6 | COMPRESSION SPRING 3 | 1 | |
| 024 | 213278-8 | O RING 17 | 1 | |
| 025 | 162C16-2 | CHANGE LEVER COMPLETE | 1 | |
| 026 | 210035-5 | BALL BEARING 625DDW | 1 | |
| 027 | 232805-2 | COMPRESSION SPRING 4 | 1 | |
| 028 | 347A82-0 | LOCK PLATE | 1 | |
| 029 | 232795-9 | COMPRESSION SPRING 8 | 1 | |
| 029-1 | 232795-9 | COMPRESSION SPRING 8 | 1 | |
| 030 | 347A83-8 | CHANGE PLATE B | 1 | |
| 030-1 | 347A83-8 | CHANGE PLATE B | 1 | |
| 031 | 347555-7 | SPIRAL RETAINING RING 25 | 1 | |
| 032 | 267304-5 | FLAT WASHER 25 | 1 | |
| 033 | 232360-4 | COMPRESSION SPRING 25 | 1 | |
| 034 | 226854-9 | SPUR GEAR 44 | 1 | |
| 035 | 327B07-6 | DRIVING FLANGE | 1 | |
| 036 | 326886-7 | TOOL HOLDER | 1 | |
| 037 | 216019-1 | STEEL BALL 3 | 3 | |
| 038 | 326887-5 | IMPACT BOLT | 1 | |
| 039 | 213117-2 | O RING 11 | 1 | |
| 040 | 327C61-6 | CUP SLEEVE 9 | 1 | |
| 041 | 233942-5 | RING SPRING 22 | 1 | |
| 042 | 267175-0 | FLAT WASHER 24 | 1 | |
| 043 | 345681-6 | JOINT PLATE | 1 | |
| 044 | 347A81-2 | CHANGE PLATE A | 1 | |
| 045 | 232794-1 | COMPRESSION SPRING 6 | 2 | |
| 046 | 922137-2 | HEX. SOCKET HEAD BOLT M4X20 | 2 | |
| 047 | 141M98-7 | INNER SUPPORT COMPLETE | 1 | |
| 048 | 327215-7 | STRIKER | 1 | |
| 049 | 213832-8 | O-RING 13 | 1 | |
| 050 | 327B06-8 | PISTON CYLINDER | 1 | |
| 051 | 324612-8 | PISTON JOINT | 1 | |
| 052 | 347A84-6 | GUIDE PLATE | 1 | |
| 053 | 227A97-2 | SPUR GEAR 12 | 1 | |
| 054 | 327B05-0 | CLUTCH CAM | 1 | |
| 055 | 327B04-2 | CAM SHAFT | 1 | |
| 056 | 219032-8 | SWASH BEARING 9 | 1 | |
| 057 | 257893-8 | SLEEVE 7 | 1 | |
| 058 | 227A27-3 | SPIRAL BEVEL GEAR 25 | 1 | |
| 059 | 347A79-9 | BEARING RETAINER B | 1 | |
| 060 | 210025-8 | BALL BEARING 627LLB | 1 | |
| 061 | 257897-0 | RING 7 | 1 | |
| 062 | 266273-7 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 063 | 232793-3 | COMPRESSION SPRING 12 | 1 | |
| 064 | 266831-9 | HEX SOCKET HEAD BOLT M4X8 | 1 | |
| 065 | 347A80-4 | SPRING GUIDE | 1 | |
| 066 | 213833-6 | O-RING 60 | 1 | |
| 067 | 443138-2 | FILTER | 1 | |
| 068 | 136976-6 | INNER HOUSING ASS'Y | 1 | |
| 068 | D10 | INC. 66,67,70 | ||
| 069 | 347A85-4 | BEARING RETAINER | 1 | |
| 070 | 213325-5 | O RING 19 | 1 | |
| 071 | 232797-5 | COMPRESSION SPRING 8 | 1 | |
| 072 | 413N16-4 | PUSHER | 1 | |
| 073 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 5 | |
| 074 | 183Y25-0 | HOUSING SET | 1 | |
| 074 | D10 | INC. 84 | ||
| 075 | 140G30-2 | CAP COMPLETE | 1 | |
| 076 | 422A09-2 | CUSHION RING 8 | 1 | |
| 077 | 629B82-1 | STATOR COMPLETE | 1 | |
| 078 | 619782-9 | ROTOR | 1 | |
| 078 | C10 | 213134-2 | O-RING 11 | 1 |
| 078 | C11 | 213A62-7 | O-RING 11 | 1 |
| 079 | 413N13-0 | AIR DUCT | 1 | |
| 080 | 232796-7 | COMPRESSION SPRING 37 | 1 | |
| 081 | 413N14-8 | VALVE | 1 | |
| 082 | 413N15-6 | CAP | 1 | |
| 083 | 620K85-2 | LED CIRCUIT | 1 | |
| 084 | 183Y25-0 | HOUSING SET | 1 | |
| 084 | D10 | INC. 74 | ||
| 085 | 422A09-2 | CUSHION RING 8 | 1 | |
| 086 | 183Y92-5 | HANDLE SET | 1 | |
| 086 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 086 | C20 | 8007R2-2 | XGT LOGO LABEL | 1 |
| 086 | D10 | INC. 91 | ||
| 087 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 6 | |
| 088 | 422A08-4 | CAP | 1 | |
| 089 | 454980-6 | F/R CHANGE LEVER | 1 | |
| 090 | 651439-6 | SWITCH C3JR-4B-2 | 1 | |
| 091 | 183Y92-5 | HANDLE SET | 1 | |
| 091 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 091 | C20 | 8007R2-2 | XGT LOGO LABEL | 1 |
| 091 | D10 | INC. 86 | ||
| 092 | 632P65-6 | TERMINAL UNIT | 1 | |
| 093 | 136977-4 | TOOL HOLDER ASS'Y | 1 | |
| 093 | D10 | INC. 31-41 | ||
| 094 | 136978-2 | CAM SHAFT ASS'Y | 1 | |
| 094 | D10 | INC. 55-61 | ||
| 095 | 8589B0-0 | HR010G NAME PLATE | 1 | |
| 096 | 8589F2-4 | HR010G SERIAL NO. LABEL | 1 | |
| A01 | 413N42-3 | DEPTH GAUGE | 1 | |
| A02B | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A02B | C10 | 453974-8 | LATCH | 4 |
| A03B | 8356R1-9 | INNER TRAY | 1 | |
| A04B | 191B36-3 | BATTERY BL4025 SET | 2 | |
| A05B | 412393-7 | BATTERY COVER | 1 | |
| A06B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A06B | D10 | COMPO-PARTS | ||
| A07B | ***DX16 | DX16DUST COLLECTION SYSTEM SET | 1 | |
| A07B | C10 | 422992-7 | SEALING CAP | 5 |
| A07B | D10 | COMPO-PARTS | ||
| B01 | 199544-6 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 195127-0 | OIL VESSEL SET | 1 |
| B01 | D10 | INC. 12,13,17,39,41,49 | ||
| F03 | 1911K0-5 | TOOL HANGER SET | 1 | |
| F05 | 1911P5-0 | DUST CASE SET | 1 | |
| F06 | 1911P8-4 | DUSTCUP SET | 1 | |
| F24 | 1911P2-6 | DX16DUST COLLECTION SYSTEM SET | 1 | |
| G12 | 1914X3-8 | DUST EXTRACTION PAD SET | 1 | |
