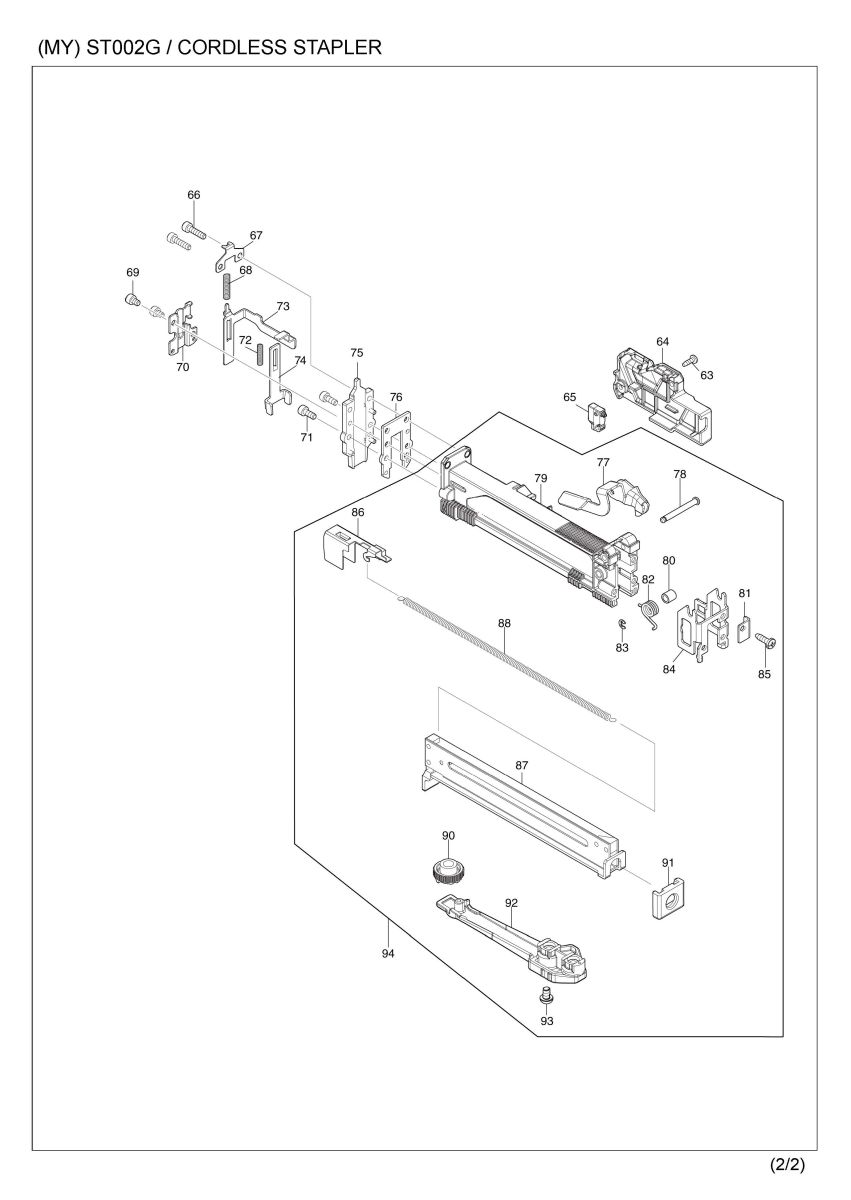

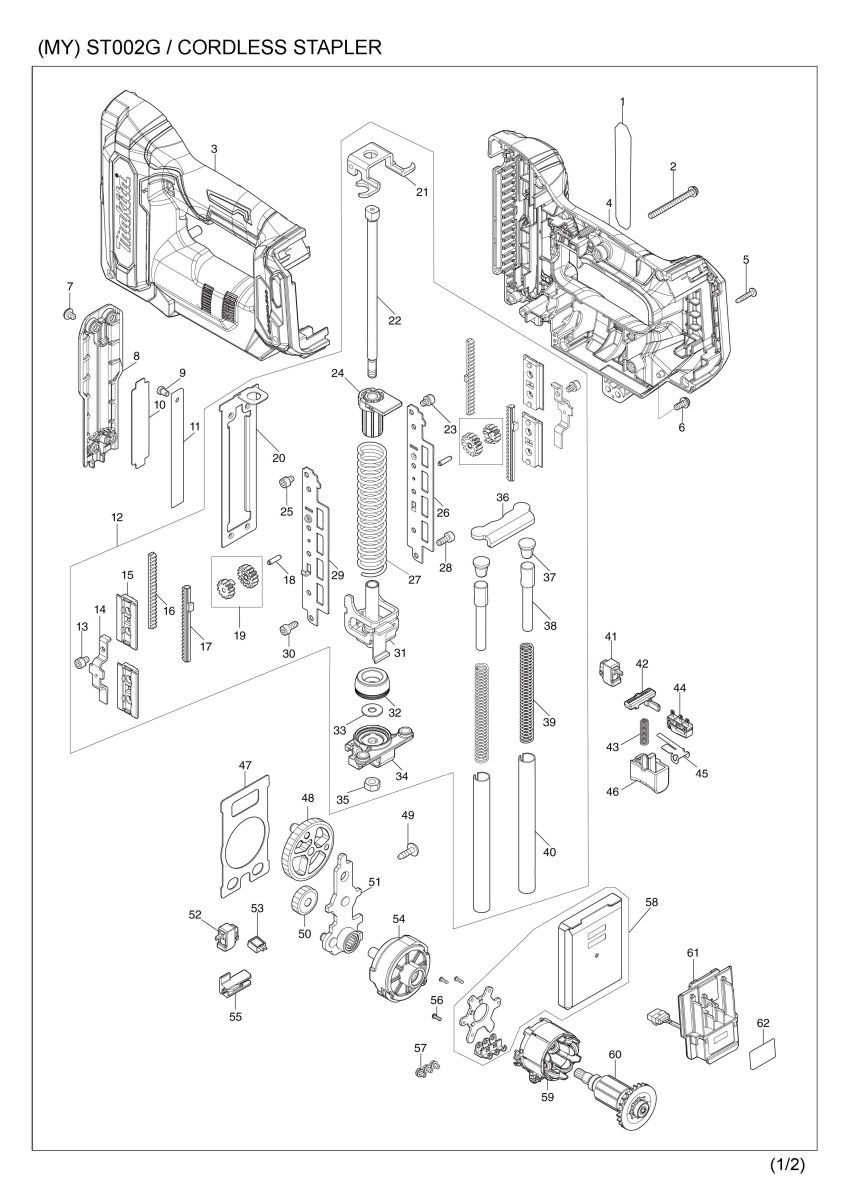

Part Diagram
Total: 117 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 8584B6-8 | ST002G NAME PLATE | 1 | |
| 002 | 911173-3 | PAN HEAD SCREW M4X45 | 1 | |
| 003 | 183X27-0 | HOUSING SET | 1 | |
| 003 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 003 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 003 | C30 | 931102-0 | HEX. NUT M4 | 1 |
| 003 | C40 | 8007R2-2 | XGT LOGO LABEL | 1 |
| 003 | D10 | INC. 4 | ||
| 004 | 183X27-0 | HOUSING SET | 1 | |
| 004 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 004 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 004 | C30 | 931102-0 | HEX. NUT M4 | 1 |
| 004 | C40 | 8007R2-2 | XGT LOGO LABEL | 1 |
| 004 | D10 | INC. 3 | ||
| 005 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | |
| 006 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 2 | |
| 007 | 915101-0 | BINDING HEAD SCREW M4X6 | 4 | |
| 008 | 413N52-0 | FRONT COVER | 1 | |
| 009 | 256882-0 | FLAT FILLISTER HD. PIN 4 | 1 | |
| 010 | 347528-0 | UPPER PLATE | 1 | |
| 011 | 347715-1 | DRIVER | 1 | |
| 012 | 136944-9 | COUNTER WEIGHT ASS'Y | 1 | |
| 012 | D10 | INC. 13-40 | ||
| 013 | 251566-5 | H.S.H BOLT M4X6 WITH W | 2 | |
| 014 | 347146-4 | PINION GUIDE | 2 | |
| 015 | 413330-4 | COUNTER WEIGHT HOLDER | 4 | |
| 016 | 313421-0 | COUNTER WEIGHT A | 2 | |
| 017 | 310925-3 | COUNTER WEIGHT B | 2 | |
| 018 | 326902-5 | PINION SHAFT | 2 | |
| 019 | 136104-3 | SPUR GEAR ASSEMBLY | 2 | |
| 020 | 347933-1 | RAIL | 1 | |
| 021 | 347936-5 | BOTTOM PLATE | 1 | |
| 022 | 327939-5 | GUIDE BOLT | 1 | |
| 023 | 251566-5 | H.S.H BOLT M4X6 WITH W | 1 | |
| 023-1 | 266199-3 | HEX.SOCKET HEAD BOLT M4X6 | 1 | |
| 024 | 313464-2 | BOTTOM HOLDER | 1 | |
| 025 | 251566-5 | H.S.H BOLT M4X6 WITH W | 1 | |
| 025-1 | 266199-3 | HEX.SOCKET HEAD BOLT M4X6 | 1 | |
| 026 | 347938-1 | GUIDE RAIL L | 1 | |
| 027 | 232822-2 | COMPRESSION SPRING 17 | 1 | |
| 028 | 266167-6 | HEX. SOCKET HEAD BOLT M4X10 | 1 | |
| 029 | 347939-9 | GUIDE RAIL R | 1 | |
| 030 | 266167-6 | HEX. SOCKET HEAD BOLT M4X10 | 1 | |
| 031 | 347A99-3 | HAMMER | 1 | |
| 032 | 422A00-0 | CUSHION | 1 | |
| 033 | 253804-1 | FLAT WASHER 6 | 1 | |
| 034 | 312D79-6 | HOLDER | 1 | |
| 035 | 252273-3 | HEX. NUT M6 | 1 | |
| 036 | 347A98-5 | COUNTER STOPPER | 1 | |
| 037 | 422A01-8 | COUNTER CUSHION | 2 | |
| 038 | 327B22-0 | WEIGHT | 2 | |
| 039 | 232630-1 | COMPRESSION SPRING 7 | 2 | |
| 040 | 327943-4 | GUIDE PIPE | 2 | |
| 041 | 140W22-7 | SWITCH COMPLETE | 1 | |
| 042 | 456799-9 | TRIGGER LOCK | 1 | |
| 043 | 232370-1 | COMPRESSION SPRING 5 | 1 | |
| 044 | 632S31-1 | SWITCH UNIT | 1 | |
| 045 | 232672-5 | LEAF SPRING | 1 | |
| 046 | 413N51-2 | TRIGGER | 1 | |
| 047 | 347934-9 | GEAR PLATE | 1 | |
| 048 | 141G69-8 | SPUR GEAR 61 COMPLETE | 1 | |
| 049 | 266901-4 | TAPPING SCREW 4X14 | 1 | |
| 050 | 226892-1 | SPUR GEAR 25 | 1 | |
| 051 | 141G70-3 | BASE PLATE COMPLETE | 1 | |
| 052 | 140W22-7 | SWITCH COMPLETE | 1 | |
| 053 | 620507-6 | LED CIRCUIT | 1 | |
| 054 | 122B56-6 | GEAR ASSEMBLY | 1 | |
| 055 | 413N54-6 | LED COVER | 1 | |
| 056 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 057 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 058 | 620L52-3 | CONTROLLER | 1 | |
| 059 | 629B97-8 | STATOR | 1 | |
| 060 | 619813-4 | ROTOR | 1 | |
| 061 | 632R99-1 | TERMINAL UNIT | 1 | |
| 062 | 8584C0-7 | ST002G SERIAL NO. LABEL | 1 | |
| 063 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | |
| 064 | 413N53-8 | CONTACT ARM COVER | 1 | |
| 065 | 632U38-9 | SWITCH UNIT | 1 | |
| 066 | 922127-5 | HEX. SOCKET HEAD BOLT M4X16 | 2 | |
| 067 | 347B00-4 | SPRING RAIL | 1 | |
| 068 | 232608-4 | COMPRESSION SPRING 4 | 1 | |
| 069 | 922102-1 | HEX. SOCKET HEAD BOLT M4X6 | 2 | |
| 070 | 347685-4 | CONTACT ARM GUIDE | 1 | |
| 071 | 922112-8 | HEX. SOCKET HEAD BOLT M4X10 | 2 | |
| 072 | 232607-6 | COMPRESSION SPRING 3 | 1 | |
| 073 | 347A06-6 | CONTACT ARM | 1 | |
| 074 | 347716-9 | CONTACT TOP | 1 | |
| 075 | 140U25-9 | DRIVER GUIDE COMPLETE | 1 | |
| 076 | 347B68-0 | UNDER DRIVER GUIDE | 1 | |
| 077 | 347B02-0 | LOCK LEVER | 1 | |
| 078 | 256956-7 | PIN 4 | 1 | |
| 079 | 413L10-4 | MAIN MAGAZINE | 1 | |
| 080 | 257881-5 | SLEEVE 5 | 1 | |
| 081 | 347717-7 | LOCK PLATE | 1 | |
| 082 | 232606-8 | TORSION SPRING 8 | 1 | |
| 083 | 961017-7 | STOP RING E-3 | 1 | |
| 084 | 347742-8 | SUPPORTER | 1 | |
| 085 | 266192-7 | TAPPING SCREW 4X14 | 3 | |
| 086 | 141N14-5 | PUSHER COMPLETE | 1 | |
| 087 | 162844-7 | SUB MAGAZINE | 1 | |
| 088 | 231740-1 | TENSION SPRING 4 | 1 | |
| 090 | 412771-1 | ADJUSTER | 1 | |
| 091 | 421637-4 | MAGAZINE END | 1 | |
| 091-1 | 422C05-2 | MAGAZINE END | 1 | |
| 092 | 454627-2 | DEPTH GUIDE | 1 | |
| 093 | 266868-6 | H.S.BUTTON HEAD SCREW M5X8 | 2 | |
| 094 | 136958-8 | MAGAZINE ASS'Y | 1 | |
| 094 | D10 | INC. 77-88,90-93 | ||
| 094-1 | 137180-0 | MAGAZINE ASS'Y | 1 | |
| 094-1 | D10 | INC. 77-88,90-93 | ||
| A01 | 251314-2 | + SCREW M4X12 | 1 | |
| A02 | 346317-0 | HOOK | 1 | |
| A03 | 422960-0 | NOSE ADAPTER | 1 | |
| A04 | 821834-6 | PLASTIC CASE | 1 | |
| A04 | C10 | 162302-3 | LATCH | 2 |
| A05 | 8063V6-6 | ST002GZ PLASTIC CASE LABEL | 2 | |
| A06 | 835V71-8 | INNER TRAY | 1 |
