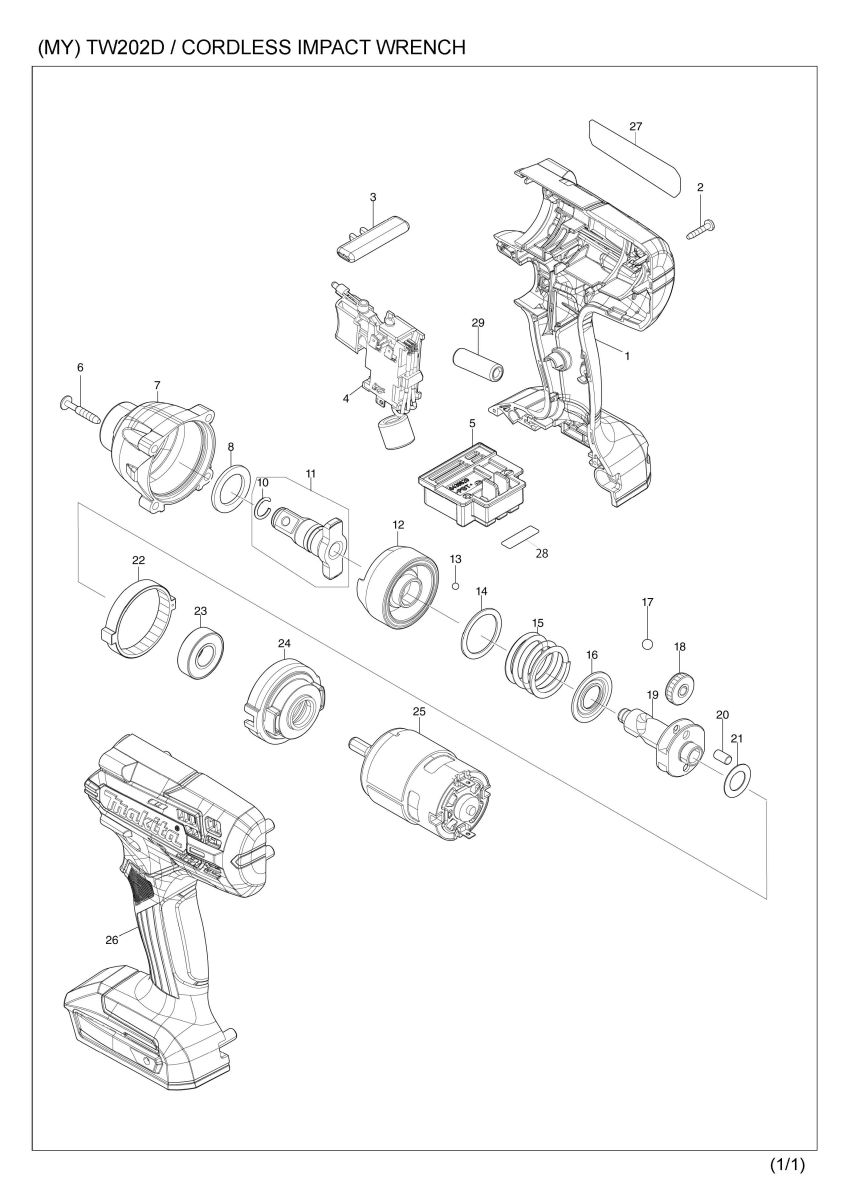

Part Diagram
Total: 50 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183X47-4 | HOUSING SET | 1 | |
| 001 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 001 | D10 | INC. 26 | ||
| 002 | 266429-2 | TAPPING SCREW 3X16 | 8 | |
| 003 | 452399-3 | F/R CHANGE LEVER | 1 | |
| 004 | 632U41-0 | SWITCH UNIT | 1 | |
| 005 | 643862-9 | TERMINAL | 1 | |
| 006 | 266374-1 | TAPPING SCREW 4X25 | 4 | |
| 007 | 141M84-8 | HAMMER CASE COMPLETE | 1 | |
| 008 | 261151-6 | NYLON WASHER 19 | 1 | |
| 010 | 231907-1 | RING SPRING 10 | 1 | |
| 011 | 135796-5 | ANVIL E ASSEMBLY | 1 | |
| 011 | D10 | INC. 10 | ||
| 012 | 326110-8 | HAMMER | 1 | |
| 013 | 216040-0 | STEEL BALL 3.5 | 24 | |
| 014 | 267175-0 | FLAT WASHER 24 | 1 | |
| 015 | 233430-2 | COMPRESSION SPRING 24 | 1 | |
| 016 | 267766-7 | CUP WASHER 14 | 1 | |
| 017 | 216041-8 | STEEL BALL 5.6 | 2 | |
| 018 | 227362-3 | SPUR GEAR 22 | 2 | |
| 019 | 326109-3 | SPINDLE | 1 | |
| 020 | 256253-1 | PIN 5 | 2 | |
| 021 | 267212-0 | FLAT WASHER 12 | 1 | |
| 022 | 227279-0 | INTERNAL GEAR 51 | 1 | |
| 023 | 210107-6 | BALL BEARING 6001ZZ | 1 | |
| 024 | 453056-6 | INTERNAL GEAR CASE | 1 | |
| 025 | 629195-6 | DC MOTOR | 1 | |
| 026 | 183X47-4 | HOUSING SET | 1 | |
| 026 | C10 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 026 | D10 | INC. 1 | ||
| 027 | 8586M3-3 | TW202D NAME PLATE | 1 | |
| 028 | 8586M7-5 | TW202D SERIAL NO. LABEL | 1 | |
| A01B | 161464-4 | SHOULDER STRAP | 1 | |
| A02B | 197940-2 | TOOL HANGER SET | 1 | |
| A02B | C10 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 2 |
| A02-1B | 347075-1 | TOOL CATCHER | 1 | |
| A03B | 452652-7 | BATTERY COVER | 1 | |
| A04B | 191N69-0 | BATTERY BL1820G SET | 2 | |
| A05B | ***DC18WB | DC18WB BATTERY CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A06B | 821909-1 | PLASTIC CARRYING CASE | 1 | |
| A06B | C10 | 455522-9 | SLIDE LATCH | 2 |
| A08B | 346449-3 | HOOK | 1 | |
| A09B | 251314-2 | + SCREW M4X12 | 1 | |
| A10B | 266622-8 | + TRUSS HEAD SCREW M4X12 | 2 | |
| B01B | 197940-2 | TOOL HANGER SET | 1 | |
| B01B | D10 | INC. A02, A10 | ||
| D01 | 638A83-2 | LEAD UNIT | 1 | |
| D02 | 638A84-0 | LEAD UNIT | 1 | |
| F01 | 195779-7 | HOOK SET | 1 |
