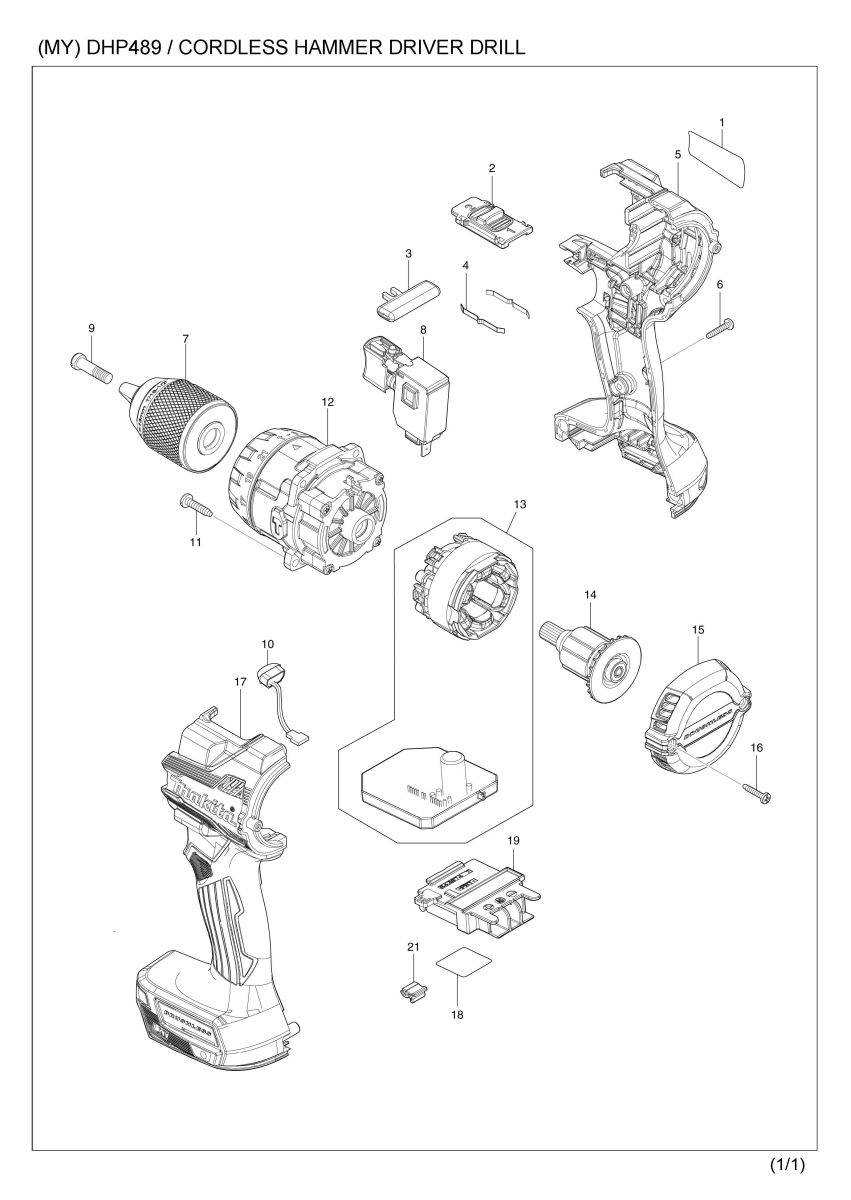

Part Diagram
Total: 40 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 8585E1-5 | DHP489 NAME PLATE | 1 | |
| 2 | 127494-5 | SPEED CHANGE LEVER ASSEMBLY | 1 | |
| 2 | C10 | 233438-6 | COMPRESSION SPRING 4 | 2 |
| 3 | 419041-9 | F/R CHANGE LEVER | 1 | |
| 4 | 232220-0 | LEAF SPRING | 2 | |
| 5 | 183X19-9 | HOUSING SET | 1 | |
| 5 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 5 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 5 | D10 | INC. 17 | ||
| 6 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 7 | |
| 7 | 763261-0 | KEYLESS DRILL CHUCK 13 | 1 | |
| 8 | 650710-5 | SWITCH C3JW-4B | 1 | |
| 9 | 251468-5 | - FLAT HEAD SCREW M6X22 | 1 | |
| 10 | 620549-0 | LED CIRCUIT | 1 | |
| 11 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 12 | 122D65-7 | GEAR ASSEMBLY | 1 | |
| 13 | 629B98-6 | STATOR COMPLETE | 1 | |
| 14 | 619797-6 | ROTOR | 1 | |
| 15 | 413N80-5 | REAR COVER | 1 | |
| 16 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 17 | 183X19-9 | HOUSING SET | 1 | |
| 17 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 17 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 17 | D10 | INC. 5 | ||
| 18 | 8585E9-9 | DHP489 SERIAL NO. LABEL | 1 | |
| 19 | 643874-2 | TERMINAL | 1 | |
| 21 | 424517-3 | CUSHION | 1 | |
| A01 | 251314-2 | + SCREW M4X12 | 1 | |
| A02 | 346317-0 | HOOK | 1 | |
| A03 | 784637-8 | +- BIT 2-45 | 1 | |
| A04B | 821550-0 | CONNECTOR PLASTIC CASE (TYPE2) | 1 | |
| A04B | C10 | 453974-8 | LATCH | 4 |
| A05B | 8064L4-6 | DHP489RTJ PLASTIC CASE LABEL | 2 | |
| A06B | 837916-4 | INNER TRAY | 1 | |
| A07B | 450128-8 | BATTERY COVER | 1 | |
| A08B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A08B | D10 | COMPO-PARTS | ||
| A09B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A10B | 8064L3-8 | DHP489RTJ INDICATION LABEL | 1 | |
| F01 | 1912A4-3 | GRIP ASSEMBLY SET | 1 |
