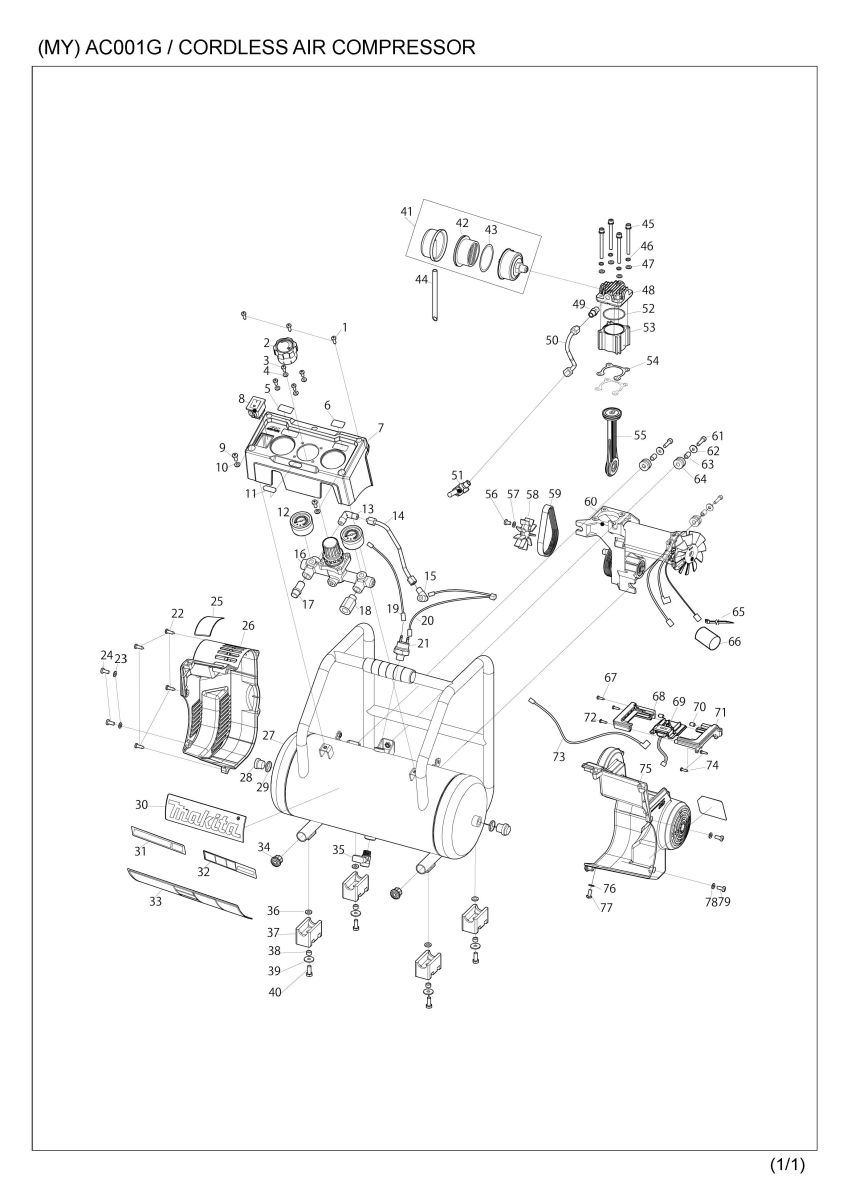

Part Diagram
Total: 82 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | HY00001197 | TAPPING SCREW ST4.2X16 | 3 | |
| 2 | HY00000996 | REGULATOR KNOB | 1 | |
| 3 | HY00001193 | BIND HEAD SCREW M4X12 | 4 | |
| 4 | HY00001201 | FLAT WASHER 4 | 4 | |
| 5 | HY00001141 | TANK LABEL | 1 | |
| 6 | HY00001143 | TOOL LABEL | 1 | |
| 7 | HY00001144 | COVER F | 1 | |
| 8 | HY00001145 | SWITCH | 1 | |
| 9 | HY00001194 | BIND HEAD SCREW M5X12 | 2 | |
| 10 | HY00001200 | FLAT WASHER 5 | 2 | |
| 11 | HY00001146 | XGT LOGO LABEL | 1 | |
| 12 | HY00000344 | PRESSURE GAUGE L | 2 | |
| 13 | HY00001139 | ELBOW 6-R1/4 | 1 | |
| 14 | HY00001147 | PIPE 6 SET (OUT) | 1 | |
| 15 | HY00001139 | ELBOW 6-R1/4 | 1 | |
| 16 | HY00001149 | REGULATOR R1/4 COMPLETE | 1 | |
| 17 | HY00001150 | SAFETY VALVE COMPLETE R1/4(PT1 | 1 | |
| 18 | HY00001124 | QUICK COUPLER R1/4 | 1 | |
| 19 | HY00001152 | LEAD UNIT YELLOW | 1 | |
| 20 | HY00001153 | LEAD UNIT BLACK & WHITE | 1 | |
| 21 | HY00001154 | PRESSURE SWITCH | 1 | |
| 021-1 | HY00001253 | PRESSURE SWITCH | 1 | |
| 22 | HY00001197 | TAPPING SCREW ST4.2X16 | 4 | |
| 23 | HY00001200 | FLAT WASHER 5 | 2 | |
| 24 | HY00001194 | BIND HEAD SCREW M5X12 | 2 | |
| 25 | HY00001156 | CAUTION LABEL | 1 | |
| 26 | HY00001157 | COVER L | 1 | |
| 27 | HY00001159 | TANK ASSEMBLY | 1 | |
| 28 | HY00000307 | HEX FLANGE BOLT G1/2(PF1/2) | 2 | |
| 028-1 | HY00000307 | HEX FLANGE BOLT G1/2(PF1/2) | 2 | |
| 29 | HY00000308 | RUBBER SEAL 20 | 2 | |
| 30 | HY00001160 | MAKITA LOGO LABEL | 1 | |
| 33 | HY00001206 | CAUTION LABEL | 1 | |
| 34 | HY00001161 | CAP 19 | 2 | |
| 35 | HY00000312 | DRAIN VALVE R3/8 | 1 | |
| 035-1 | HY00000312 | DRAIN VALVE R3/8 | 1 | |
| 36 | HY00001093 | FLAT WASHER 6 | 4 | |
| 37 | HY00001162 | RUBBER FOOT | 4 | |
| 38 | HY00001003 | SLEEVE 6 | 4 | |
| 39 | HY00001004 | FLAT WASHER 6L | 4 | |
| 40 | HY00001005 | HEX.BOLT M6X16 | 4 | |
| 41 | HY00001163 | AIR FILTER ASSEMBLY | 1 | |
| 41 | D10 | INC. 42,43 | ||
| 42 | HY00000970 | AIR FILTER ELEMENT | 1 | |
| 43 | HY00001164 | O-RING 50 | 1 | |
| 44 | HY00001165 | MUFFLER TUBE 8 | 1 | |
| 45 | HY00001192 | HEX SOCKET HEAD BOLT M5X60 | 4 | |
| 46 | HY00001198 | SPRING WASHER 5 | 4 | |
| 47 | HY00001200 | FLAT WASHER 5 | 4 | |
| 48 | HY00001167 | CYLINDER HEAD ASSEMBLY | 1 | |
| 49 | HY00001168 | HARF UNION 6-R1/8 | 1 | |
| 50 | HY00001169 | PIPE 6 SET (IN) | 1 | |
| 51 | HY00001170 | CHECK VALVE ASSY | 1 | |
| 52 | HY00001171 | O-RING 37 | 1 | |
| 53 | HY00001172 | CYLINDER 36 | 1 | |
| 54 | HY00001173 | CYLINDER SIM | 1 | |
| 55 | HY00001174 | PISTON ASSEMBLY | 1 | |
| 56 | HY00001195 | BIND HEAD SCREW M5X8 | 1 | |
| 57 | HY00001200 | FLAT WASHER 5 | 1 | |
| 58 | HY00001175 | FAN 60 | 1 | |
| 59 | HY00001176 | POLY LIBBED BELT 5-265 | 1 | |
| 60 | HY00001177 | MOTOR ASSEMBLY | 1 | |
| 61 | HY00001191 | HEX SOCKET HEAD BOLT M5X20 | 3 | |
| 62 | HY00001199 | FLAT WASHER 5L | 3 | |
| 63 | HY00001178 | SLEEVE 5 | 3 | |
| 64 | HY00001179 | CUSHION | 3 | |
| 65 | HY00001189 | BOND | 1 | |
| 66 | HY00001190 | TUBE | 1 | |
| 67 | HY00001196 | TAPPING SCREW ST3X13 | 1 | |
| 68 | HY00001180 | TERMINAL CASE L | 1 | |
| 69 | HY00001181 | TERMINAL UNIT | 1 | |
| 70 | HY00001182 | RUBBER PIN 6 | 2 | |
| 71 | HY00001183 | TERMINAL CASE R | 1 | |
| 72 | HY00001196 | TAPPING SCREW ST3X13 | 2 | |
| 73 | HY00001184 | LEAD UNIT BROWN | 1 | |
| 74 | HY00001196 | TAPPING SCREW ST3X13 | 2 | |
| 75 | HY00001185 | COVER R | 1 | |
| 76 | HY00001200 | FLAT WASHER 5 | 2 | |
| 77 | HY00001194 | BIND HEAD SCREW M5X12 | 2 | |
| 78 | HY00001200 | FLAT WASHER 5 | 1 | |
| 79 | HY00001194 | BIND HEAD SCREW M5X12 | 1 | |
| C01 | HY00001204 | COLOR CARTON | 1 |
