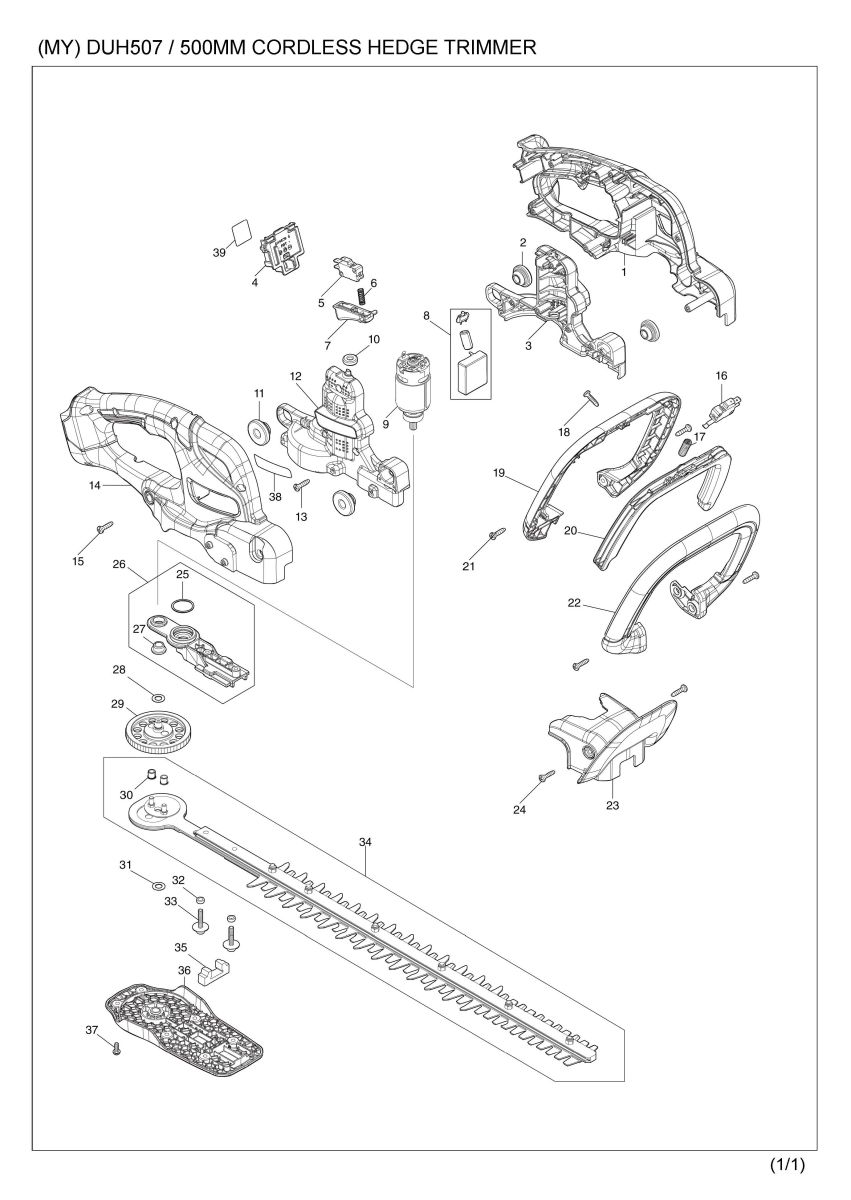

Part Diagram
Total: 67 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183Y38-1 | HANDLE SET | 1 | |
| 1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 1 | C20 | 8062W1-7 | CAUTION LABEL | 1 |
| 1 | D10 | INC. 14 | ||
| 001-1 | 1830R3-6 | HANDLE SET | 1 | |
| 001-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 001-1 | C20 | 8074L4-9 | CAUTION LABEL | 1 |
| 001-1 | D10 | INC. 14 | ||
| 2 | 424394-3 | RUBBER RING 8 | 2 | |
| 3 | 183X36-9 | MOTOR HOUSING SET | 1 | |
| 3 | C10 | 931102-0 | HEX. NUT M4 | 6 |
| 3 | D10 | INC. 12 | ||
| 4 | 644809-6 | TERMINAL | 1 | |
| 5 | 650036-5 | SWITCH DMU-1212D-020 | 1 | |
| 6 | 231372-4 | COMPRESSION SPRING 5 | 1 | |
| 7 | 413M81-7 | SWITCH LEVER R | 1 | |
| 8 | 620L02-8 | CONTROLLER | 1 | |
| 9 | 629B95-2 | DC MOTOR | 1 | |
| 10 | 424195-9 | RUBBER RING 6 | 1 | |
| 11 | 424394-3 | RUBBER RING 8 | 2 | |
| 12 | 183X36-9 | MOTOR HOUSING SET | 1 | |
| 12 | C10 | 931102-0 | HEX. NUT M4 | 6 |
| 12 | D10 | INC. 3 | ||
| 13 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 14 | 183Y38-1 | HANDLE SET | 1 | |
| 14 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 14 | C20 | 8062W1-7 | CAUTION LABEL | 1 |
| 14 | D10 | INC. 1 | ||
| 014-1 | 1830R3-6 | HANDLE SET | 1 | |
| 014-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 014-1 | C20 | 8074L4-9 | CAUTION LABEL | 1 |
| 014-1 | D10 | INC. 1 | ||
| 15 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 16 | 650037-3 | SWITCH DMU-1212D-021 | 1 | |
| 17 | 231325-3 | COMPRESSION SPRING 6 | 1 | |
| 18 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 19 | 413M89-1 | FRONT GRIP COVER E | 1 | |
| 20 | 413M90-6 | SWITCH LEVER FE | 1 | |
| 21 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 22 | 413M88-3 | FRONT GRIP E | 1 | |
| 23 | 413M82-5 | PROTECTOR | 1 | |
| 24 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 25 | 213961-7 | O RING 22 | 1 | |
| 26 | 136928-7 | BEARING HOUSING ASS'Y | 1 | |
| 26 | D10 | INC. 25,27 | ||
| 27 | 214064-0 | PLANE BEARING 8 | 1 | |
| 28 | 253215-0 | FLAT WASHER 8 | 1 | |
| 29 | 136843-5 | GEAR ASSEMBLY | 1 | |
| 30 | 262570-9 | NYLON SLEEVE 5 | 2 | |
| 31 | 253215-0 | FLAT WASHER 8 | 1 | |
| 32 | 257802-7 | RING 5 | 2 | |
| 33 | 265A89-3 | H.S.H.BOLT M5X25 WITH WR | 2 | |
| 34 | 1911J1-6 | SHEAR BLADE 500E SET | 1 | |
| 34 | C10 | 188605-7 | OIL VESSEL SET | 1 |
| 34 | D10 | INC. 30 | ||
| 35 | 422904-0 | DUST GUARD | 1 | |
| 36 | 413M87-5 | UNDER COVER | 1 | |
| 37 | 911118-1 | PAN HEAD SCREW M4X12 | 6 | |
| 38 | 8582M6-3 | DUH507 NAME PLATE | 1 | |
| 39 | 8582M9-7 | DUH507 SERIAL NO.LABEL | 1 | |
| A01 | 413L91-8 | BLADE COVER 500 | 1 | |
| A02B | 450128-8 | BATTERY COVER | 1 | |
| A03B | ***DC18WC | DC18WC BATTERY CHARGER | 1 | |
| A03B | D10 | COMPO-PARTS | ||
| A04B | 197600-6 | BATTERY BL1830B SET | 1 | |
| F01 | 1910T1-0 | CHIP RECEIVER 500 SET | 1 | |
| F02 | 1911J1-6 | SHEAR BLADE 500E SET | 1 |
