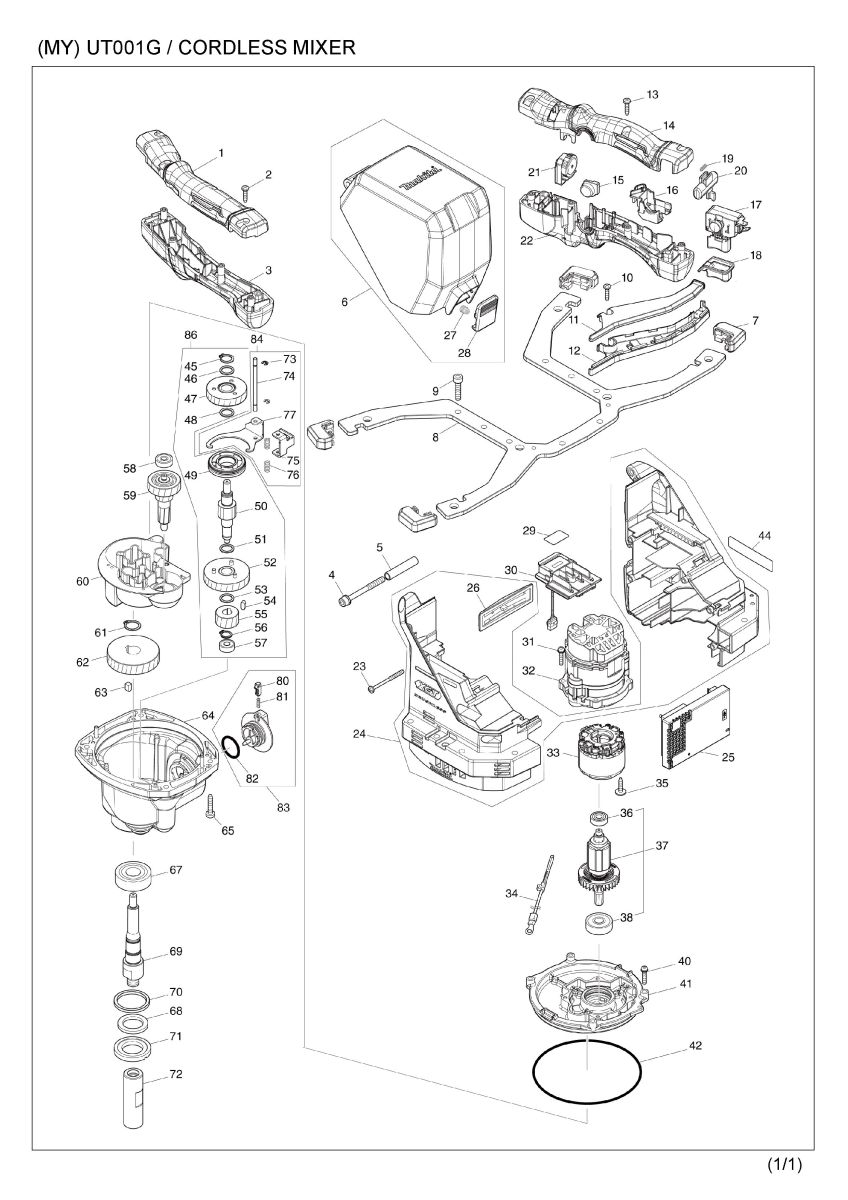

Part Diagram
Total: 100 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183X11-5 | LEFT GRIP SET | 1 | |
| 001 | D10 | INC. 3 | ||
| 002 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 003 | 183X11-5 | LEFT GRIP SET | 1 | |
| 003 | D10 | INC. 1 | ||
| 004 | 922383-7 | H.S.H.BOLT M6X60 WITH WR | 1 | |
| 005 | 257885-7 | SLEEVE 6 | 1 | |
| 006 | 122D95-8 | COVER L ASSEMBLY | 1 | |
| 006 | D10 | INC. 27,28 | ||
| 007 | 422906-6 | HANDLE GUARD | 4 | |
| 008 | 347A13-9 | HANDLE | 1 | |
| 009 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 8 | |
| 010 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 011 | 413J45-3 | HANDLE COVER | 1 | |
| 012 | 413J46-1 | LEAD HOLDER | 1 | |
| 013 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 014 | 183X10-7 | RIGHT GRIP SET | 1 | |
| 014 | D10 | INC. 22 | ||
| 015 | 458819-5 | LOCK ON BUTTON COVER | 1 | |
| 016 | 413J58-4 | SWITCH SUPPORT | 1 | |
| 017 | 650035-7 | SWITCH C3JW-4BM-1L-R | 1 | |
| 018 | 458816-1 | SWITCH COVER | 1 | |
| 019 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 020 | 412551-5 | LOCK OFF BUTTON | 1 | |
| 021 | 620E29-6 | DIAL CIRCUIT | 1 | |
| 022 | 183X10-7 | RIGHT GRIP SET | 1 | |
| 022 | D10 | INC. 14 | ||
| 023 | 266467-4 | TAPPING SCREW 4X50 | 6 | |
| 024 | 183X13-1 | HOUSING SET | 1 | |
| 024 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 024 | C20 | 8032A7-2 | XGT LOGO LABEL | 1 |
| 024 | D10 | INC. 26 | ||
| 025 | 620J16-5 | CONTROLLER | 1 | |
| 026 | 413J49-5 | LOGO PLATE | 1 | |
| 027 | 232676-7 | COMPRESSION SPRING 7 | 1 | |
| 028 | 413J53-4 | HOOK | 1 | |
| 029 | 8584E0-1 | UT001G SERIAL NO. LABEL | 1 | |
| 030 | 632P49-4 | TERMINAL UNIT | 1 | |
| 031 | 911138-5 | P.H.SCREW M4X20 WITH WR | 4 | |
| 032 | 413J44-5 | MOTOR HOUSING | 1 | |
| 033 | 629B88-9 | STATOR | 1 | |
| 035 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 2 | |
| 036 | 211022-7 | BALL BEARING 607ZZ | 1 | |
| 037 | 519789-4 | ROTOR ASSEMBLY | 1 | |
| 037 | D10 | INC. 36,38 | ||
| 038 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 040 | 911138-5 | P.H.SCREW M4X20 WITH WR | 4 | |
| 041 | 136830-4 | MOTOR BRACKET ASSY | 1 | |
| 041 | C10 | 213406-5 | O RING 30 | 1 |
| 042 | 213A27-9 | O-RING 115 | 1 | |
| 044 | 8584D8-8 | UT001G NAME PLATE | 1 | |
| 045 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 046 | 267104-3 | FLAT WASHER 12 | 1 | |
| 047 | 141K49-8 | SPUR GEAR 42 COMPLETE | 1 | |
| 048 | 267104-3 | FLAT WASHER 12 | 1 | |
| 049 | 313437-5 | SPEED CHANGE RING | 1 | |
| 050 | 327A22-4 | SHAFT | 1 | |
| 051 | 267104-3 | FLAT WASHER 12 | 1 | |
| 052 | 141K50-3 | SPUR GEAR 49 COMPLETE | 1 | |
| 053 | 267104-3 | FLAT WASHER 12 | 1 | |
| 054 | 254239-9 | KEY 4 | 1 | |
| 055 | 227984-9 | HELICAL GEAR 13 | 1 | |
| 056 | 961006-2 | RETAINING RING S-10 | 1 | |
| 057 | 211012-0 | BALL BEARING 606ZZ | 1 | |
| 058 | 211016-2 | BALL BEARING 626LLB | 1 | |
| 059 | 141N61-6 | SPUR GEAR 10-16 COMPLETE | 1 | |
| 060 | 413J48-7 | GEAR COVER | 1 | |
| 061 | 961056-7 | RETAINING RING S-16 | 1 | |
| 062 | 227985-7 | HELICAL GEAR 34 | 1 | |
| 063 | 254211-1 | KEY 5 | 1 | |
| 064 | 136891-4 | GEAR CASE ASSEMBLY | 1 | |
| 064 | C10 | 213507-9 | O RING 40 | 1 |
| 065 | 266459-3 | TAPPING SCREW 5X25 | 4 | |
| 067 | 211278-2 | BALL BEARING 6203DDW | 1 | |
| 068 | 422905-8 | FELT RING 24 | 1 | |
| 069 | 327A23-2 | SPINDLE | 1 | |
| 070 | 257884-9 | RING 33 | 1 | |
| 071 | 285821-3 | BEARING RETAINER 22-41 | 1 | |
| 072 | 327B34-3 | SHAFT HOLDER 1/2-M12 | 1 | |
| 073 | 961017-7 | STOP RING E-3 | 2 | |
| 074 | 256A24-2 | PIN 4 | 1 | |
| 075 | 347A11-3 | CHANGE PLATE A | 1 | |
| 076 | 234218-3 | COMPRESSION SPRING 5 | 2 | |
| 077 | 347A12-1 | CHANGE PLATE B | 1 | |
| 080 | 161568-2 | LOCK BUTTON COMPLETE | 1 | |
| 081 | 232344-2 | COMPRESSION SPRING 3 | 1 | |
| 082 | 213370-0 | O RING 22 | 1 | |
| 083 | 136822-3 | CHANGE LEVER ASSEMBLY | 1 | |
| 083 | D10 | INC. 80-82 | ||
| 084 | 136821-5 | CHANGE PLATE ASSEMBLY | 1 | |
| 084 | D10 | INC. 73-77 | ||
| 086 | 136892-2 | GEAR ASSEMBLY | 1 | |
| 086 | D10 | INC. 45-57 | ||
| A01 | A-43773 | SHAFT COMPLETE | 1 | |
| A02 | 265440-1 | HEX. BOLT M8X16 | 1 | |
| A03 | A-43717 | MIXING BLADE | 1 | |
| A03 | D10 | INC. A02 | ||
| A04 | 781006-4 | WRENCH 13 | 1 | |
| A05 | 781010-3 | WRENCH 19 | 1 | |
| F01 | 1911R6-2 | COVER L SET | 1 |
