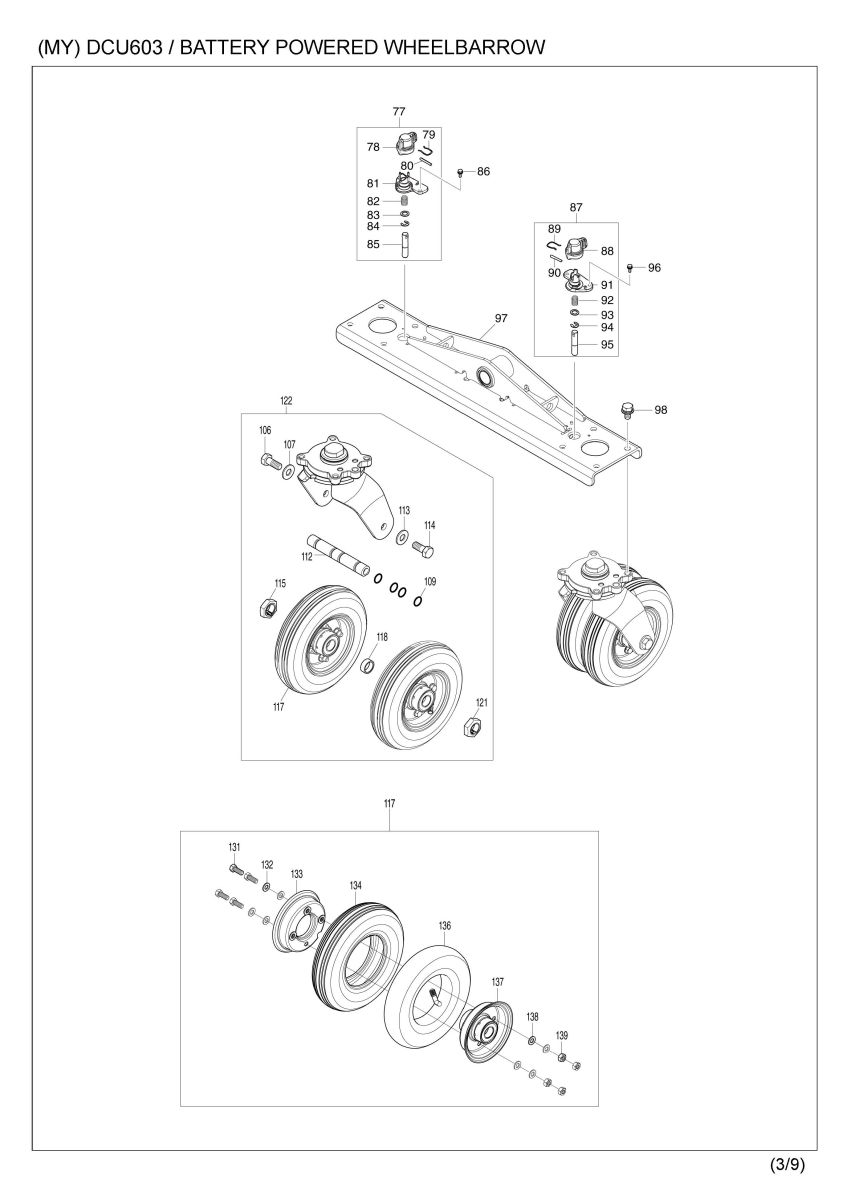

Part Diagram
Total: 323 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|

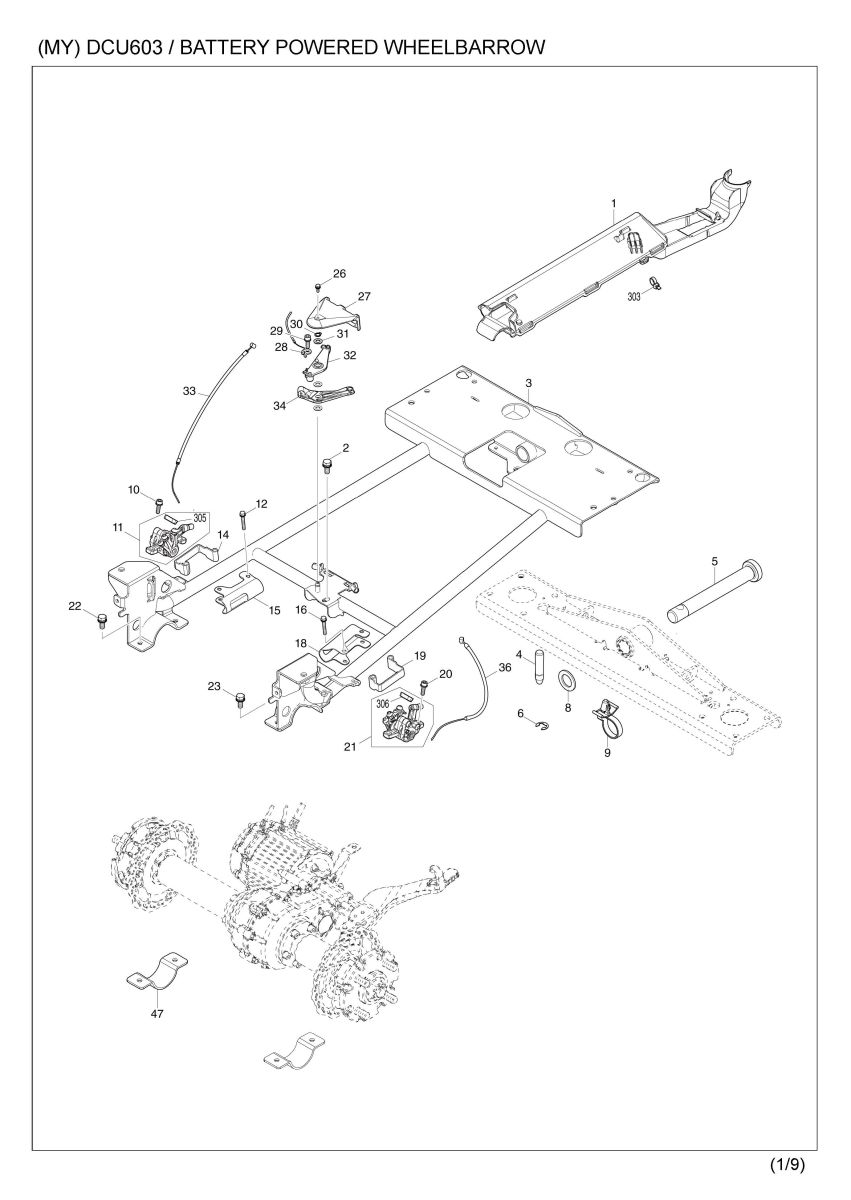

| 1 | 412561-2 | CORD COVER | 1 | |
| 2 | 265B11-6 | HEX. BOLT M8X20 WITH WR | 1 | |
| 3 | 141P49-8 | MAIN FRAME COMPLETE | 1 | |
| 3 | C10 | 8064B2-0 | INDICATION LABEL | 1 |
| 4 | 256940-2 | PIN 14 | 1 | |
| 5 | 327472-7 | BASE SHAFT 25 | 1 | |
| 6 | 961062-2 | STOP RING E-12 | 1 | |
| 8 | 261163-9 | RUBBER WASHER 25 | 1 | |
| 9 | 687F01-7 | BAND | 1 | |
| 10 | 265D23-1 | HEX. S.H.B M6X22 WITH GM | 2 | |
| 11 | 136868-9 | BRAKE CALIPER R ASS'Y | 1 | |
| 11 | D10 | INC. 305 | ||
| 12 | 265C76-4 | HEX. BOLT M5X35 WITH WR | 2 | |
| 14 | 347993-3 | SCRAPER | 1 | |
| 15 | 347995-9 | CLAMP R | 1 | |
| 16 | 265C76-4 | HEX. BOLT M5X35 WITH WR | 2 | |
| 18 | 347994-1 | CLAMP L | 1 | |
| 19 | 347993-3 | SCRAPER | 1 | |
| 20 | 265D23-1 | HEX. S.H.B M6X22 WITH GM | 2 | |
| 21 | 136869-7 | BRAKE CALIPER L ASS'Y | 1 | |
| 21 | D10 | INC. 306 | ||
| 22 | 265B11-6 | HEX. BOLT M8X20 WITH WR | 2 | |
| 23 | 265B11-6 | HEX. BOLT M8X20 WITH WR | 2 | |
| 24 | 232737-3 | COMPRESSION SPRING 19 | 1 | |
| 25 | 413D27-9 | NEUTRAL LEVER LOCK | 1 | |
| 26 | 265C46-3 | HEX. BOLT M4X12 WITH WG | 1 | |
| 27 | 413D28-7 | BRAKE EQUALIZER COVER | 1 | |
| 28 | 347629-4 | CABLE CLAMP | 1 | |
| 29 | 265B14-0 | H.S.H.BOLT M6X20 WITH WR | 1 | |
| 30 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | |
| 31 | 253165-9 | FLAT WASHER 8 | 3 | |
| 32 | 319906-4 | BRAKE EQUALIZER R | 1 | |
| 33 | 140P25-9 | BRAKE CABLE 370 | 1 | |
| 34 | 319905-6 | BRAKE EQUALIZER L | 1 | |
| 36 | 140P25-9 | BRAKE CABLE 370 | 1 | |
| 38 | 256A03-0 | ROD 4.5 | 1 | |
| 39 | 961017-7 | STOP RING E-3 | 2 | |
| 40 | 252289-8 | HEX. CAP NUT M14 | 4 | |
| 41 | 253475-4 | SPRING WASHER 14 | 4 | |

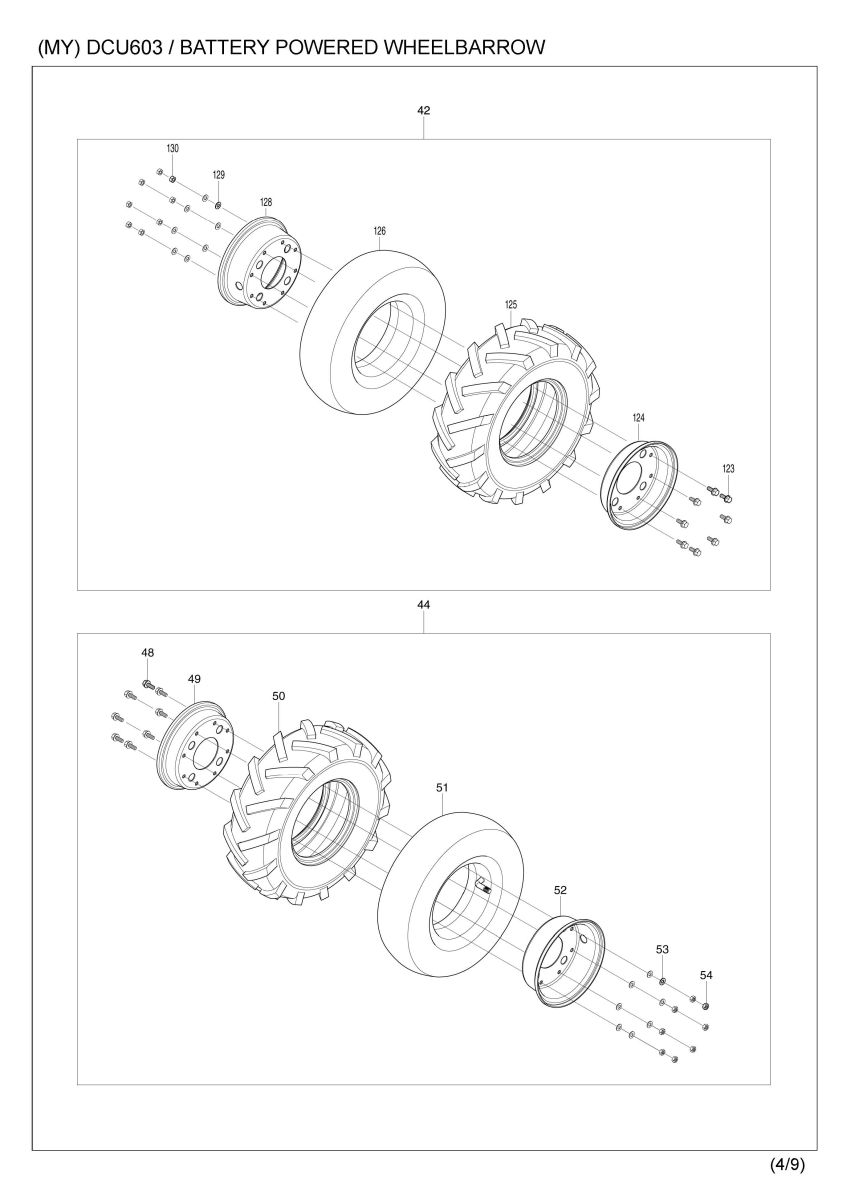

| 42 | 141G99-9 | TIRE 330 R ASSEMBLY | 1 | |
| 42 | D10 | INC. 123-126,128-130 | ||
| 44 | 141H00-0 | TIRE 330 L ASSEMBLY | 1 | |
| 44 | D10 | INC. 48-54 | ||
| 45 | 253475-4 | SPRING WASHER 14 | 4 | |
| 46 | 252289-8 | HEX. CAP NUT M14 | 4 | |
| 47 | 347621-0 | CLAMP 57 | 2 | |
| 48 | 265C39-0 | HEX. FLANGE HD. BOLT M6X16 | 8 | |
| 49 | 347950-1 | WHEEL 150 | 1 | |
| 50 | 422857-3 | TIRE 330 | 1 | |
| 51 | 162B39-4 | TUBE 330 | 1 | |
| 51 | C10 | GQ00000001 | VALVE CAP M8 | 1 |
| 52 | 347949-6 | WHEEL 150 | 1 | |
| 53 | 253551-4 | FLAT WASHER 6 | 8 | |
| 54 | 252308-0 | HEX. NUT M6-10 | 8 | |

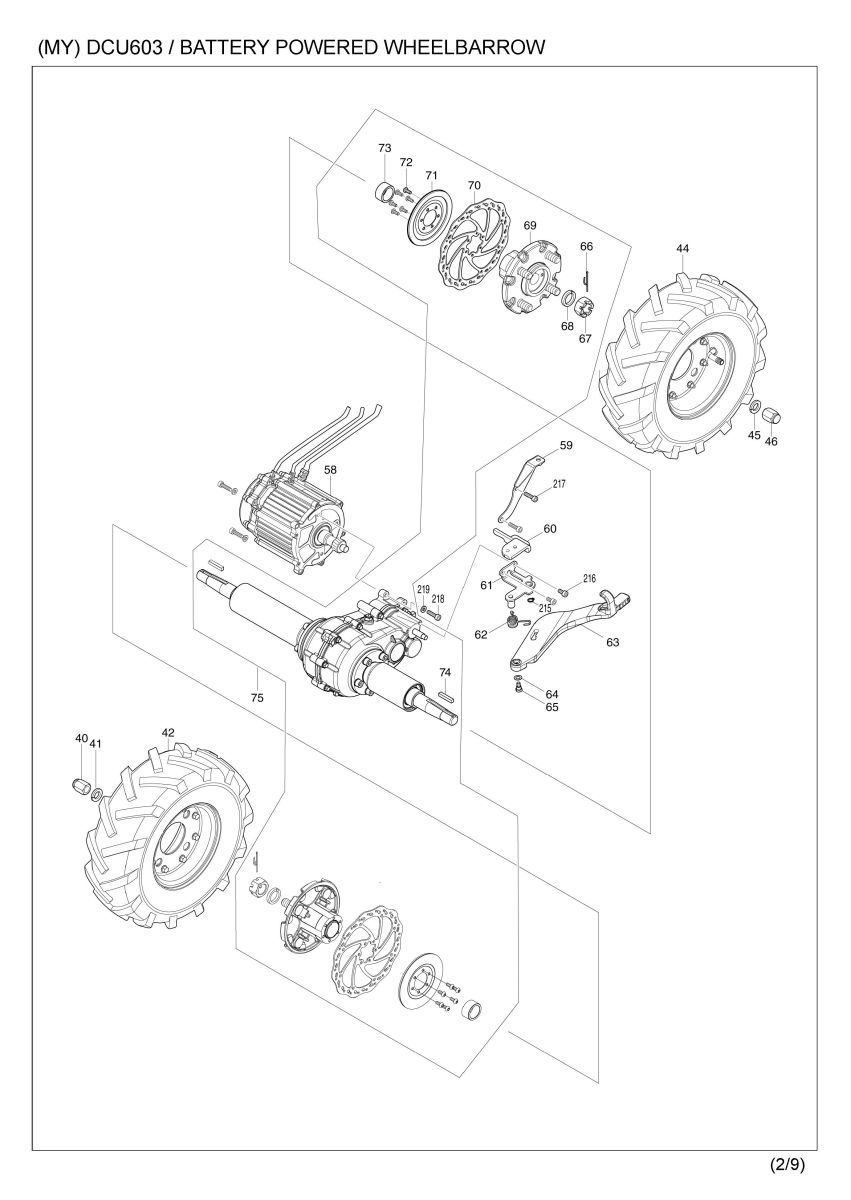

| 58 | 122E51-4 | MOTOR ASSEMBLY | 1 | |
| 59 | 347698-5 | DIFF BRACKET | 1 | |
| 60 | 347A16-3 | NEUTRAL LEVER | 1 | |
| 61 | 347697-7 | NEUTRAL LEVER HOLDER | 1 | |
| 62 | 232616-5 | TORSION SPRING 14 | 1 | |
| 63 | 413D41-5 | NEUTRAL CHANGE LEVER | 1 | |
| 64 | 253430-6 | FLAT WASHER 8 | 1 | |
| 65 | 265465-5 | SHOULDER HEX. BOLT M6 | 1 | |
| 66 | NP00000001 | SPLIT PIN 3-35 | 2 | |
| 67 | NP00000002 | HEX. NUT M20 | 2 | |
| 68 | NP00000003 | SPRING WASHER 22 | 2 | |
| 69 | 313304-4 | HUB | 2 | |
| 70 | 347208-8 | BRAKE DISC | 2 | |
| 71 | 141P62-6 | PLATE COMPLETE | 2 | |
| 72 | 265C87-9 | H.S.B. HEAD SCREW M5X12 | 12 | |
| 73 | 327626-6 | SLEEVE 25 | 2 | |
| 74 | NP00000004 | KEY 6 | 2 | |
| 75 | 122D22-5 | DIFFERENTIAL GEAR UNIT | 1 | |
| 75 | D10 | INC. 66-74 | ||
| 77 | 122C29-5 | TURNING LOCK R ASSEMBLY | 1 | |
| 77 | D10 | INC. 78-85 | ||
| 78 | 413D33-4 | LOCK LEVER | 1 | |
| 79 | 327938-7 | SNAP RETAINER | 1 | |
| 80 | 268181-8 | PIN 3 | 1 | |
| 81 | 413D32-6 | LIFTER GUIDE R | 1 | |
| 82 | 232617-3 | COMPRESSION SPRING 10 | 1 | |
| 83 | 253173-0 | FLAT WASHER 10 | 1 | |
| 84 | 961013-5 | STOP RING E-7 | 1 | |
| 85 | 256A04-8 | PIN 10 | 1 | |
| 86 | 265C46-3 | HEX. BOLT M4X12 WITH WG | 2 | |
| 87 | 122C28-7 | TURNING LOCK L ASSEMBLY | 1 | |
| 87 | D10 | INC. 88-95 | ||
| 88 | 413D33-4 | LOCK LEVER | 1 | |
| 89 | 327938-7 | SNAP RETAINER | 1 | |
| 90 | 268181-8 | PIN 3 | 1 | |
| 91 | 413D31-8 | LIFTER GUIDE L | 1 | |
| 92 | 232617-3 | COMPRESSION SPRING 10 | 1 | |
| 93 | 253173-0 | FLAT WASHER 10 | 1 | |
| 94 | 961013-5 | STOP RING E-7 | 1 | |
| 95 | 256A04-8 | PIN 10 | 1 | |
| 96 | 265C46-3 | HEX. BOLT M4X12 WITH WG | 2 | |
| 97 | 162712-4 | REAR BASE | 1 | |
| 98 | 265B13-2 | HEX. BOLT M10X20 WITH WG | 8 | |
| 106 | 265B10-8 | HEX BOLT M12X40 | 1 | |
| 107 | 253460-7 | FLAT WASHER 13 | 1 | |
| 109 | 213211-0 | O RING 15 | 4 | |
| 109-1 | 213A73-2 | O-RING 15 | 4 | |
| 112 | 327646-0 | AXLE 20 | 1 | |
| 113 | 253460-7 | FLAT WASHER 13 | 1 | |
| 114 | 265B10-8 | HEX BOLT M12X40 | 1 | |
| 115 | 136835-4 | HEX. SLEEVE 20 ASS'Y | 1 | |
| 115 | C10 | 263027-3 | RUBBER PIN 4 | 1 |
| 117 | 141H01-8 | TIRE 210 ASSEMBLY | 2 | |
| 117 | D10 | INC. 131-134,136-139 | ||
| 118 | 257498-4 | RING 20 | 1 | |
| 121 | 136835-4 | HEX. SLEEVE 20 ASS'Y | 1 | |
| 121 | C10 | 263027-3 | RUBBER PIN 4 | 1 |
| 122 | 127457-1 | CASTER 210 ASSEMBLY | 2 | |
| 122 | D10 | INC. 106,107,109,112-115, | ||
| 122 | D20 | INC. 117,118,121 | ||
| 123 | 265C39-0 | HEX. FLANGE HD. BOLT M6X16 | 8 | |
| 124 | 347950-1 | WHEEL 150 | 1 | |
| 125 | 422857-3 | TIRE 330 | 1 | |
| 126 | 162B39-4 | TUBE 330 | 1 | |
| 126 | C10 | GQ00000001 | VALVE CAP M8 | 1 |
| 128 | 347949-6 | WHEEL 150 | 1 | |
| 129 | 253551-4 | FLAT WASHER 6 | 8 | |
| 130 | 252308-0 | HEX. NUT M6-10 | 8 | |
| 131 | 265C40-5 | HEX. BOLT M8X20 | 4 | |
| 132 | 253552-2 | FLAT WASHER 8 | 4 | |
| 133 | 347952-7 | WHEEL 100 | 1 | |
| 134 | 422860-4 | TIRE 210 | 1 | |
| 136 | 162B40-9 | TUBE 210 | 1 | |
| 136 | C10 | GQ00000001 | VALVE CAP M8 | 1 |
| 137 | 347951-9 | WHEEL 100 | 1 | |
| 138 | 253552-2 | FLAT WASHER 8 | 4 | |
| 139 | 252309-8 | HEX. NUT M8-13 | 4 | |

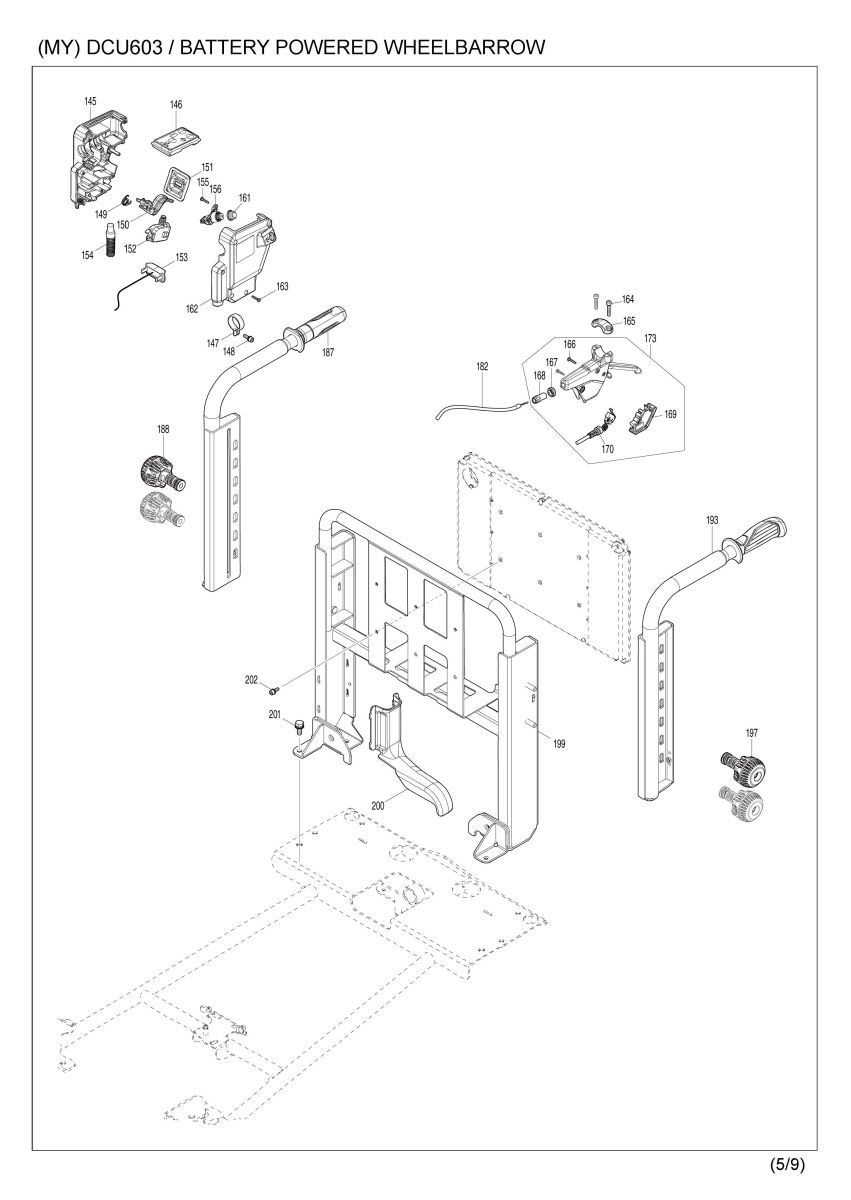

| 145 | 183X90-3 | SWITCH BOX SET | 1 | |
| 145 | C10 | 8065A9-5 | CAUTION LABEL | 1 |
| 145 | D10 | INC. 162 | ||
| 146 | 140P26-7 | SWITCH CIRCUIT COMPLETE | 1 | |
| 146 | C10 | 183X57-1 | SWITCH PLATE SET | 1 |
| 146 | C20 | 266490-9 | TAPPING SCREW PT 2X6 | 3 |
| 147 | 346249-1 | PIPE CLAMP 28 | 1 | |
| 148 | 265A97-4 | H.S.H.BOLT M5X16 WITH WR | 1 | |
| 149 | 232738-1 | TORSION SPRING 11 | 1 | |
| 150 | 412206-2 | SWITCH LEVER | 1 | |
| 151 | 422554-1 | LEVER COVER | 1 | |
| 152 | 651395-0 | SWITCH C3JW-6B-PA6N | 1 | |
| 153 | 620C26-0 | LED CIRCUIT | 1 | |
| 154 | 699178-0 | POWER SUPPLY CORD UNIT | 1 | |
| 155 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 156 | 122C26-1 | BUZZER SWITCH ASSEMBLY | 1 | |
| 156 | C10 | 632T14-7 | SWITCH UNIT | 1 |
| 161 | 422555-9 | SWITCH COVER | 1 | |
| 162 | 183X90-3 | SWITCH BOX SET | 1 | |
| 162 | C10 | 8065A9-5 | CAUTION LABEL | 1 |
| 162 | D10 | INC. 145 | ||
| 163 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 6 | |
| 164 | 265C98-4 | HEX SOCKET HEAD BOLT M5X25 | 2 | |
| 165 | 312C48-1 | CLAMP 22 | 1 | |
| 166 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 167 | 312C44-9 | ADJUST NUT | 1 | |
| 168 | 312C43-1 | ADJUST BOLT | 1 | |
| 169 | 413D25-3 | SWITCH HOLDER | 1 | |
| 170 | 632T13-9 | SWITCH UNIT | 1 | |
| 173 | 127458-9 | BRAKE LEVER ASSEMBLY | 1 | |
| 173 | D10 | INC. 166-170 | ||
| 182 | 140P23-3 | BRAKE CABLE 1590 | 1 | |
| 187 | 140T47-3 | HANDLE R COMPLETE | 1 | |
| 188 | 141H20-4 | HANDLE LOCK KNOB | 2 | |
| 188 | C10 | 232739-9 | COMPRESSION SPRING 15 | 2 |
| 188 | C20 | 313400-8 | SPRING HOLDER | 2 |
| 193 | 140P15-2 | HANDLE L COMPLETE | 1 | |
| 197 | 141H20-4 | HANDLE LOCK KNOB | 2 | |
| 197 | C10 | 232739-9 | COMPRESSION SPRING 15 | 2 |
| 197 | C20 | 313400-8 | SPRING HOLDER | 2 |
| 199 | 141N97-5 | HANDLE BASE COMPLETE | 1 | |
| 199 | C10 | 8059G2-2 | INDICATION LABEL | 1 |
| 200 | 412562-0 | HANDLE BASE COVER | 1 | |
| 201 | 265B11-6 | HEX. BOLT M8X20 WITH WR | 4 | |
| 202 | 265A96-6 | H.S.H.BOLT M5X14 WITH WR | 6 | |
| 204 | 262206-0 | RUBBER RING 6 | 2 | |
| 205 | 256942-8 | ROD 6 | 2 | |

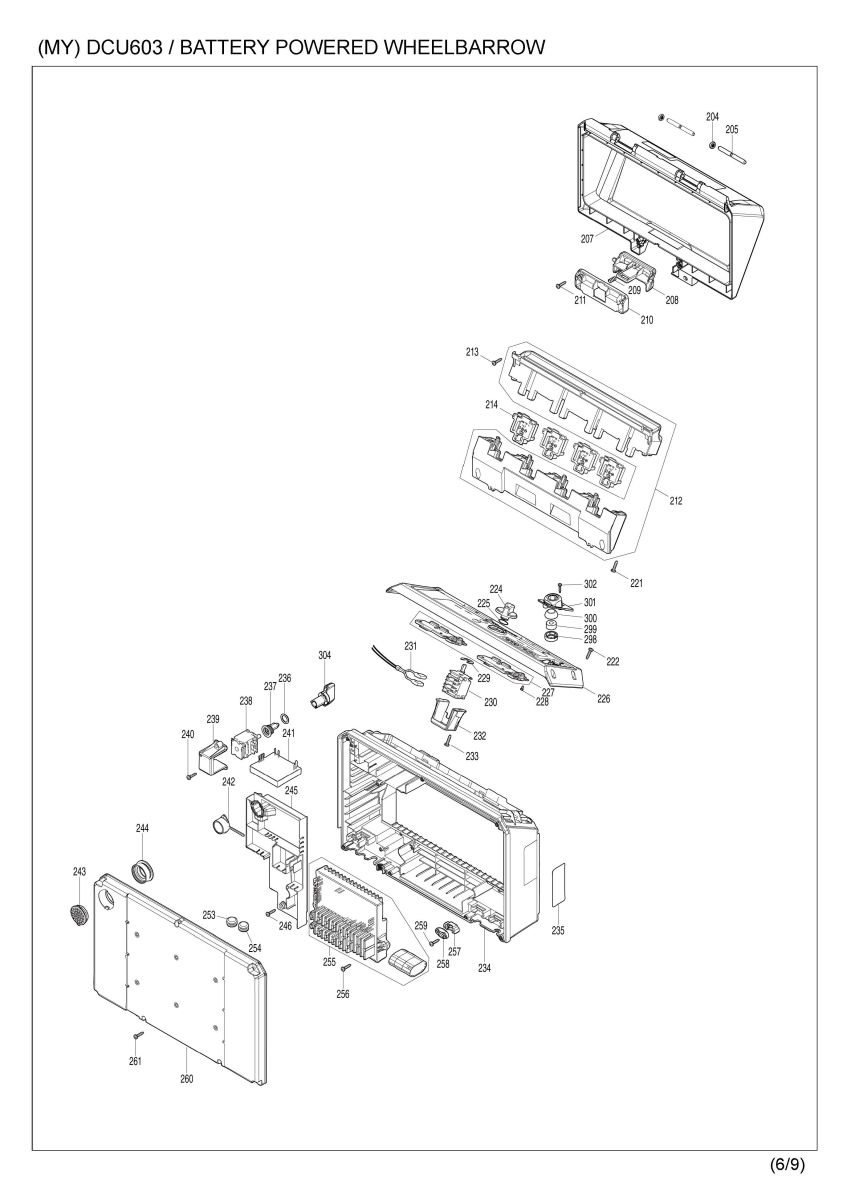

| 207 | 141K01-6 | BATTERY COVER COMPLETE | 1 | |
| 207 | C10 | 8048W7-5 | CAUTION LABEL | 1 |
| 207 | C20 | 8059G1-4 | INDICATION LABEL | 1 |
| 207 | C30 | 816M70-5 | INDICATION LABEL | 1 |
| 208 | 412195-1 | BATTERY COVER HOOK | 1 | |
| 209 | 231240-1 | COMPRESSION SPRING 7 | 1 | |
| 210 | 412533-7 | HOOK RETAINER | 1 | |
| 211 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 212 | 183V34-1 | TERMINAL CASE SET | 1 | |
| 212 | C10 | 263005-3 | RUBBER PIN 6 | 8 |
| 213 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 214 | 644809-6 | TERMINAL | 4 | |
| 215 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | |
| 216 | 265C85-3 | HEX SOCKET HEAD BOLT M6X12 | 2 | |
| 217 | 265C86-1 | HEX SOCKET HEAD BOLT M6X22 | 2 | |
| 218 | 265C86-1 | HEX SOCKET HEAD BOLT M6X22 | 3 | |
| 219 | 347A43-0 | SPACER 6 | 3 | |
| 221 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 222 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 224 | 412196-9 | CHANGE LEVER | 1 | |
| 225 | 213A15-6 | O-RING 14 | 1 | |
| 226 | 141L75-3 | TOP COVER COMPLETE | 1 | |
| 226 | C10 | 8048W3-3 | INDICATION LABEL | 1 |
| 227 | 620C24-4 | INDICATION CIRCUIT | 1 | |
| 228 | 265C42-1 | TAPPING SCREW 3X6 | 10 | |
| 229 | 961062-2 | STOP RING E-12 | 1 | |
| 230 | 651444-3 | SWITCH 1703.4703 | 1 | |
| 231 | 638A27-2 | LEAD UNIT | 1 | |
| 232 | 451343-7 | SWITCH HOLDER | 1 | |
| 233 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 234 | 412188-8 | CENTER CASE | 1 | |
| 235 | 8118K4-0 | DCU603 NAME PLATE | 1 | |
| 236 | 213A15-6 | O-RING 14 | 1 | |
| 237 | 413D29-5 | KEY JOINT | 1 | |
| 238 | 650622-2 | SWITCH | 1 | |
| 239 | 451343-7 | SWITCH HOLDER | 1 | |
| 240 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 241 | 620G67-0 | CONTROLLER | 1 | |
| 242 | 620C25-2 | BUZZER CIRCUIT | 1 | |
| 243 | 413D35-0 | BUZZER COVER | 1 | |
| 244 | 422840-0 | GROMMET | 1 | |
| 245 | 412194-3 | INNER CASE | 1 | |
| 246 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 253 | 682114-3 | GROMMET | 1 | |
| 254 | 682114-3 | GROMMET | 1 | |
| 255 | 620D13-5 | CONTROLLER | 1 | |
| 256 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 257 | 687051-6 | STRAIN RELIEF | 1 | |
| 258 | 687124-5 | STRAIN RELIEF | 1 | |
| 259 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 260 | 412190-1 | FRONT COVER | 1 | |
| 261 | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 264 | 699180-3 | POWER SUPPLY CORD UNIT | 1 | |
| 265 | 699181-1 | POWER SUPPLY CORD UNIT | 1 | |

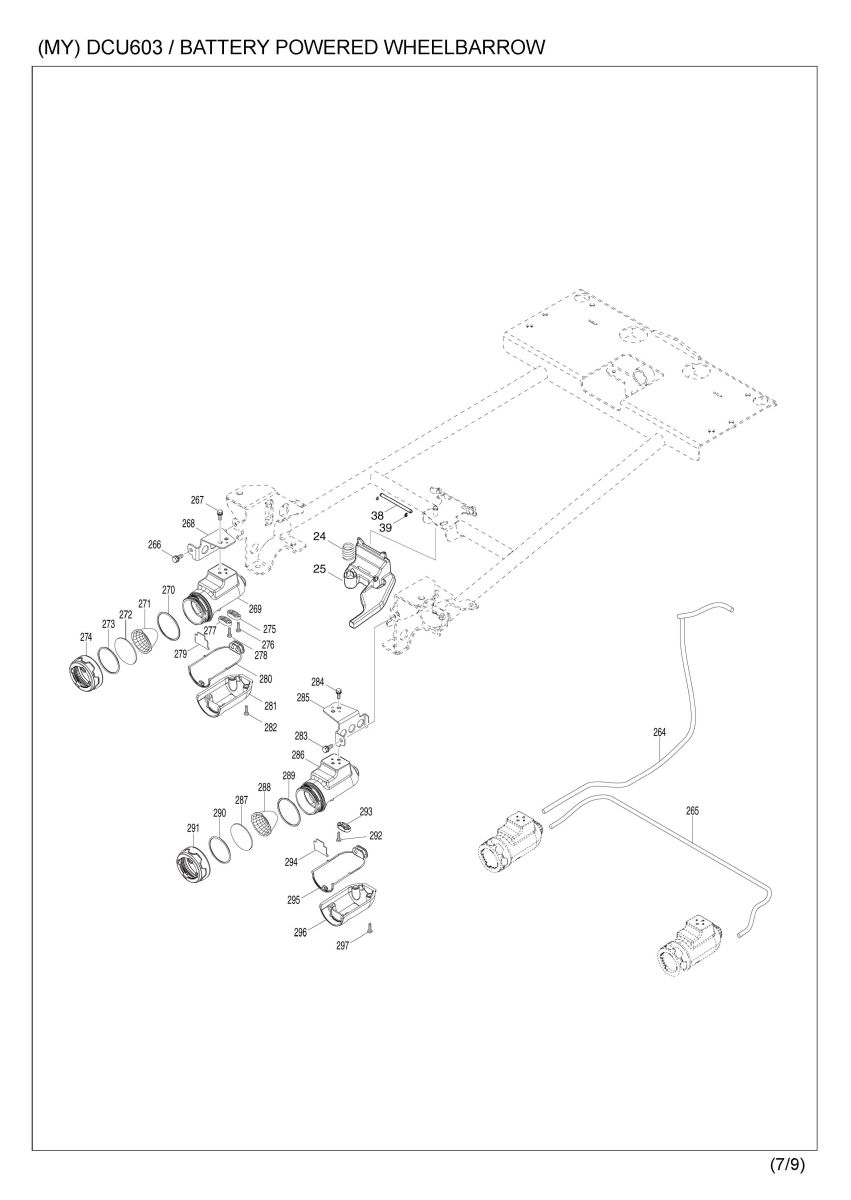

| 266 | 265B16-6 | HEX. BOLT M6X16 WITH WR | 1 | |
| 267 | 265B17-4 | HEX. BOLT M5X16 WITH WR | 2 | |
| 268 | 347622-8 | LIGHT STAY R | 1 | |
| 269 | 319594-7 | LIGHT CASE | 1 | |
| 270 | 213656-2 | O RING 53 | 1 | |
| 271 | 457636-0 | REFLECTOR | 1 | |
| 272 | 457634-4 | LENS | 1 | |
| 273 | 213604-1 | O RING 50 | 1 | |
| 274 | 457635-2 | COVER | 1 | |
| 275 | 687124-5 | STRAIN RELIEF | 1 | |
| 276 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 277 | 687124-5 | STRAIN RELIEF | 1 | |
| 278 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 279 | 620685-2 | LED CIRCUIT | 1 | |
| 280 | 422151-3 | PACKING | 1 | |
| 281 | 319595-5 | LIGHT CASE COVER | 1 | |
| 282 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | |
| 283 | 265B16-6 | HEX. BOLT M6X16 WITH WR | 1 | |
| 284 | 265B17-4 | HEX. BOLT M5X16 WITH WR | 2 | |
| 285 | 347623-6 | LIGHT STAY L | 1 | |
| 286 | 319594-7 | LIGHT CASE | 1 | |
| 287 | 457634-4 | LENS | 1 | |
| 288 | 457636-0 | REFLECTOR | 1 | |
| 289 | 213656-2 | O RING 53 | 1 | |
| 290 | 213604-1 | O RING 50 | 1 | |
| 291 | 457635-2 | COVER | 1 | |
| 292 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 293 | 687124-5 | STRAIN RELIEF | 1 | |
| 294 | 620685-2 | LED CIRCUIT | 1 | |
| 295 | 422166-0 | PACKING | 1 | |
| 296 | 319595-5 | LIGHT CASE COVER | 1 | |
| 297 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | |
| 298 | 413D37-6 | LEVEL CASE | 1 | |
| 299 | 242101-0 | LEVEL INDICATOR | 1 | |
| 300 | 413D36-8 | LEVEL COVER | 1 | |
| 301 | 413D38-4 | LEVEL RETANER | 1 | |
| 302 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 303 | 687F00-9 | BAND | 1 | |
| 304 | 413D30-0 | KEY | 1 | |
| 305 | 422961-8 | PAD RETAINER | 1 | |
| 306 | 422961-8 | PAD RETAINER | 1 | |

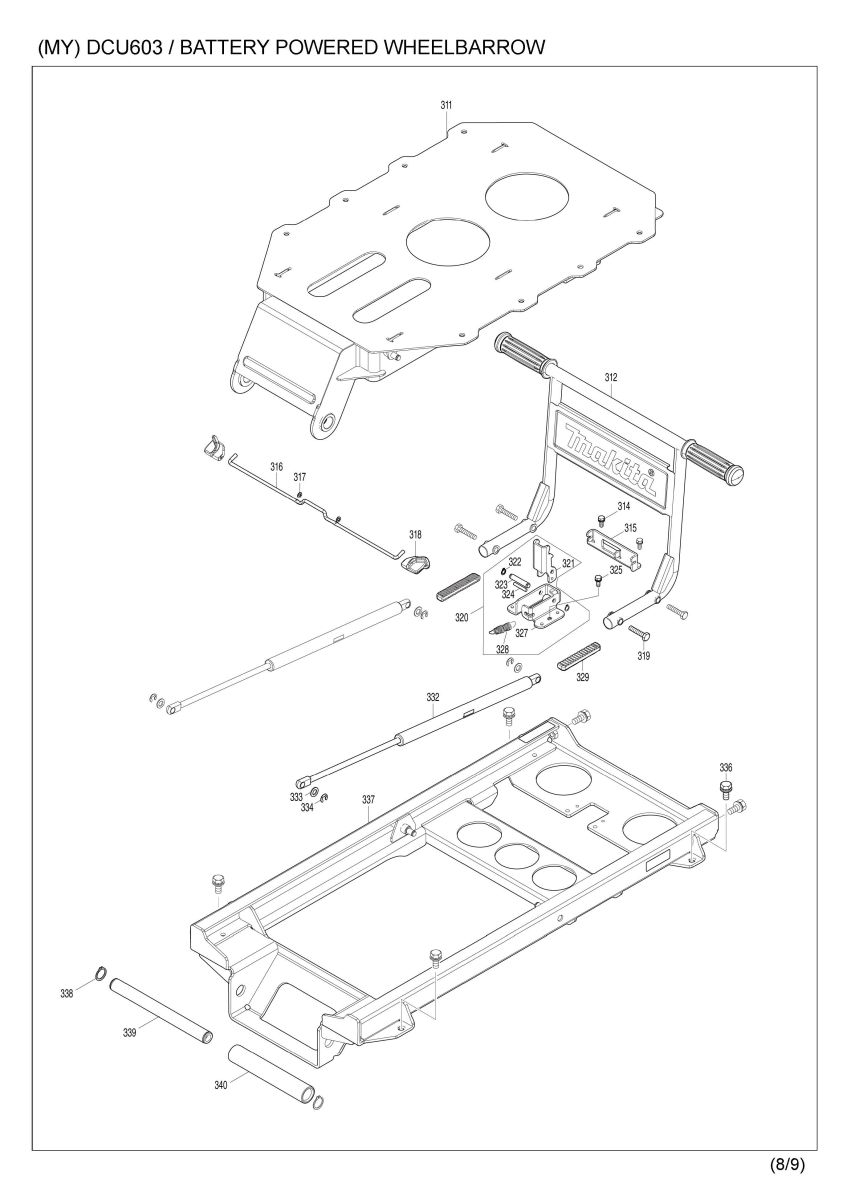

| 311 | 162717-4 | UPPER FRAME | 1 | |
| 312 | 140P16-0 | DUMP HANDLE COMPLETE | 1 | |
| 312 | C10 | 8048W5-9 | MAKITA LOGO LABEL | 1 |
| 312-1 | 141R22-0 | DUMP HANDLE COMPLETE | 1 | |
| 312-2 | C10 | 8048W5-9 | MAKITA LOGO LABEL | 1 |
| 314 | 265B16-6 | HEX. BOLT M6X16 WITH WR | 2 | |
| 315 | 347628-6 | HOLDER | 1 | |
| 316 | 327470-1 | ROD 5 | 1 | |
| 317 | 941102-2 | FLAT WASHER 5 | 2 | |
| 318 | 412197-7 | KNOB | 2 | |
| 319 | 921461-0 | HEX. BOLT M8X40 | 4 | |
| 320 | 122C30-0 | DUMP LOCK ASSEMBLY | 1 | |
| 320 | D10 | INC. 321-324,327,328 | ||
| 321 | 347626-0 | ARM | 1 | |
| 322 | 961004-6 | RETAINING RING (EXT) S-8 | 2 | |
| 323 | 256943-6 | PIN 8 | 1 | |
| 324 | 256196-7 | PIN 5 | 1 | |
| 325 | 265B16-6 | HEX. BOLT M6X16 WITH WR | 2 | |
| 327 | 347627-8 | BASE | 1 | |
| 328 | 232618-1 | TENSION SPRING 11 | 1 | |
| 329 | 422556-7 | CUSHION RUBBER | 2 | |
| 332 | 162816-2 | GAS SPRING 240 | 2 | |
| 333 | 941252-3 | FLAT WASHER 10 | 4 | |
| 334 | 961014-3 | STOP RING E-8 | 4 | |
| 336 | 265508-3 | HEX.BOLT M10X25 | 6 | |
| 337 | 141N98-3 | DUMP BASE COMPLETE | 1 | |
| 337 | C10 | 8059G3-0 | CAUTION LABEL | 2 |
| 337 | C20 | 8059G6-4 | INDICATION LABEL | 1 |
| 337 | C30 | 8059G7-2 | INDICATION LABEL | 1 |
| 338 | 961102-6 | RETAINING RING S-22 | 2 | |
| 339 | 327474-3 | SHAFT 22 | 1 | |
| 340 | 327480-8 | SLEEVE 22 | 1 | |
| 342 | 265B12-4 | FLAT H. SQUARE NECK BOLT M8X24 | 6 | |
| 343 | 261164-7 | RUBBER WASHER 20 | 6 | |

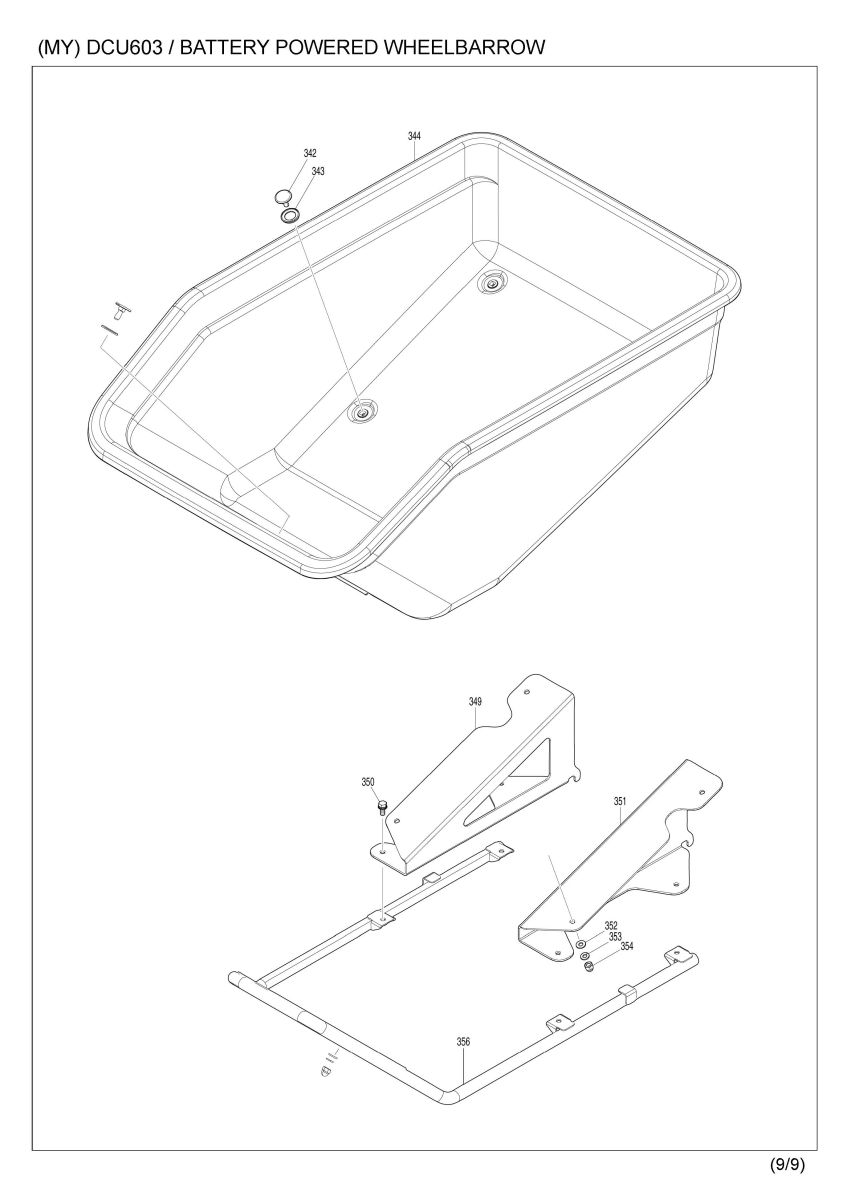

| 344 | 412198-5 | DUMP BUCKET 200 | 1 | |
| 349 | 347624-4 | BUCKET BASE R | 1 | |
| 350 | 265B11-6 | HEX. BOLT M8X20 WITH WR | 4 | |
| 351 | 347625-2 | BUCKET BASE L | 1 | |
| 352 | 941201-0 | FLAT WASHER 8 | 6 | |
| 353 | 942201-3 | SPRING WASHER 8 | 6 | |
| 354 | 252278-3 | HEX. CAP NUT M8 | 6 | |
| 356 | 141N86-0 | BUCKET GUARD COMPLETE | 1 | |
| 356 | C10 | 457744-7 | CAP 22 | 2 |
| 357 | 941201-0 | FLAT WASHER 8 | 1 | |
| F01 | 191B63-0 | DUMP UNIT SET | 1 | |
| F01-1 | 1914G7-1 | DUMP UNIT SET | 1 | |
| F02 | 191B69-8 | DUMP BUCKET 200 SET | 1 | |
| F03 | 1911K4-7 | TIRE 330 (SINGLE) SET | 1 | |
| F04 | 1911K5-5 | GRAY TIRE 330 (SINGLE) SET | 1 | |
| F05 | 1911K6-3 | GRAY TIRE 210 (SINGLE) SET | 1 |
Back Download
