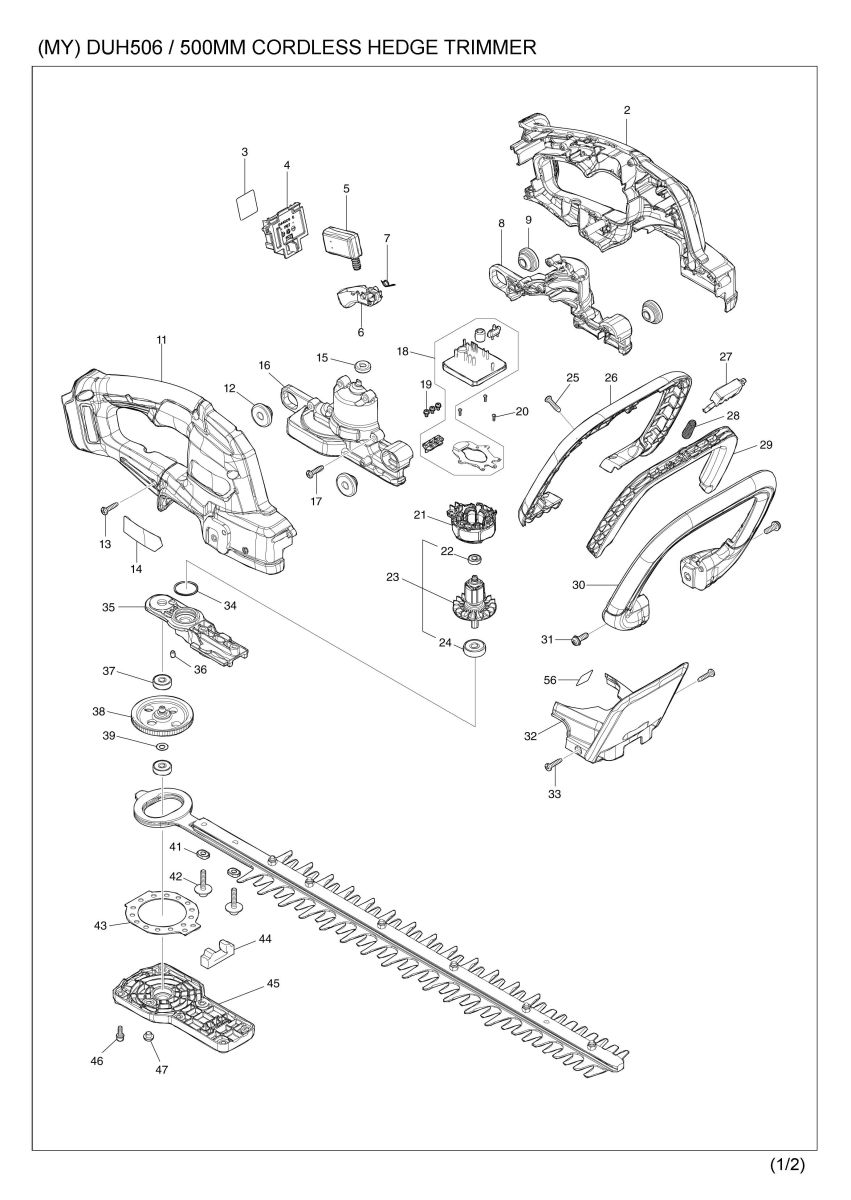

Part Diagram
Total: 76 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 2 | 183V39-1 | HANDLE SET | 1 | |
| 2 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 2 | D10 | INC. 11 | ||
| 3 | 8580M8-7 | DUH506 SERIAL NO. LABEL | 1 | |
| 4 | 644809-6 | TERMINAL | 1 | |
| 5 | 650033-1 | SWITCH C3XA-3PSPM-1 | 1 | |
| 6 | 413J41-1 | SWITCH LEVER RE | 1 | |
| 7 | 232770-5 | TORSION SPRING 6 | 1 | |
| 8 | 183V95-1 | MOTOR HOUSING SET | 1 | |
| 8 | D10 | INC. 16 | ||
| 9 | 424394-3 | RUBBER RING 8 | 2 | |
| 11 | 183V39-1 | HANDLE SET | 1 | |
| 11 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 11 | D10 | INC. 2 | ||
| 12 | 424394-3 | RUBBER RING 8 | 2 | |
| 13 | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 14 | 8580M5-3 | DUH506 NAME PLATE | 1 | |
| 15 | 424195-9 | RUBBER RING 6 | 1 | |
| 16 | 183V95-1 | MOTOR HOUSING SET | 1 | |
| 16 | D10 | INC. 8 | ||
| 17 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 18 | 620J54-7 | CONTROLLER | 1 | |
| 19 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 20 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 21 | 629B24-5 | STATOR | 1 | |
| 22 | 211157-4 | BALL BEARING 695ZZ | 1 | |
| 23 | 519764-0 | ROTOR ASSY | 1 | |
| 23 | D10 | INC. 22,24 | ||
| 24 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 25 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 26 | 413J39-8 | FRONT HANDLE COVER E | 1 | |
| 27 | 650034-9 | SWITCH D2VW-01L3-3HS | 1 | |
| 28 | 231325-3 | COMPRESSION SPRING 6 | 1 | |
| 29 | 413J40-3 | SWITCH LEVER FE | 1 | |
| 30 | 413J38-0 | FRONT HANDLE E | 1 | |
| 31 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | |
| 32 | 141K47-2 | PROTECTOR COMPLETE | 1 | |
| 32 | C10 | 8059E3-6 | CAUTION LABEL | 1 |
| 032-1 | 1410D5-0 | PROTECTOR COMPLETE | 1 | |
| 032-1 | C11 | 8074L3-1 | CAUTION LABEL | 1 |
| 33 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 34 | 213961-7 | O RING 22 | 1 | |
| 35 | 312D09-7 | BEARING HOUSING E | 1 | |
| 36 | 263002-9 | RUBBER PIN 4 | 1 | |
| 37 | 211016-2 | BALL BEARING 626LLB | 2 | |
| 38 | 141K44-8 | GEAR COMPLETE | 1 | |
| 39 | 253715-0 | FLAT WASHER 6 | 1 | |

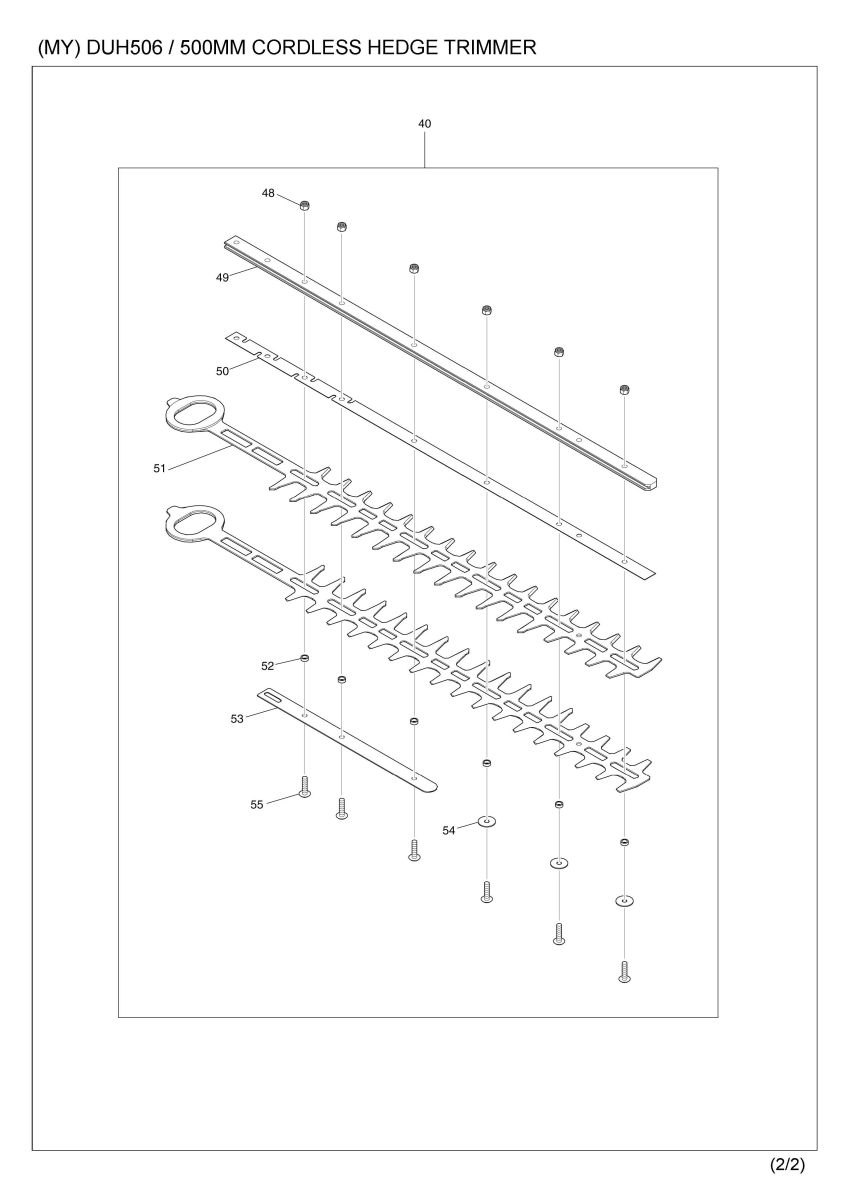

| 40 | 1910H8-2 | SHEAR BLADE 500E SET | 1 | |
| 40 | C10 | 199450-5 | GREASE VESSEL SET | 1 |
| 40 | C20 | 313436-7 | SPACER | 2 |
| 40 | D10 | INC. 48-55 | ||
| 040-1 | 1914G4-7 | SHEAR BLADE 500E SET | 1 | |
| 040-1 | C10 | 199450-5 | GREASE VESSEL SET | 1 |
| 040-1 | C20 | 313436-7 | SPACER | 2 |
| 040-1 | D10 | INC. 48-55 | ||
| 41 | 313436-7 | SPACER | 2 | |
| 42 | 265A89-3 | H.S.H.BOLT M5X25 WITH WR | 2 | |
| 43 | 347A10-5 | PLATE | 1 | |
| 44 | 422904-0 | DUST GUARD | 1 | |
| 45 | 413J26-7 | UNDER COVER | 1 | |
| 46 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 6 | |
| 47 | 266559-9 | H.S.BUTTON HEAD BOLT M6X4 | 1 | |
| 48 | 264013-7 | HEX. LOCK NUT M5-8 | 6 | |
| 49 | 327981-6 | GUIDE BAR 500E | 1 | |
| 50 | 347986-0 | PLATE 500E | 1 | |
| 51 | 725299-3 | SHEAR BLADE 500E | 2 | |
| 051-1 | 725328-2 | SHEAR BLADE 500 E | 2 | |
| 52 | 257876-8 | RING 5 | 6 | |
| 53 | 347990-9 | LOWER PLATE | 1 | |
| 54 | 253571-8 | FLAT WASHER 5 | 3 | |
| 55 | 265A40-3 | +TRUSS HEAD SCREW M5X20 | 6 | |
| A01 | 413L91-8 | BLADE COVER 500 | 1 | |
| F01 | 1910H8-2 | SHEAR BLADE 500E SET | 1 | |
| F01-1 | 1914G4-7 | SHEAR BLADE 500E SET | 1 | |
| F02 | 1910T1-0 | CHIP RECEIVER 500 SET | 1 | |
| F03 | 199450-5 | GREASE VESSEL SET | 1 |
