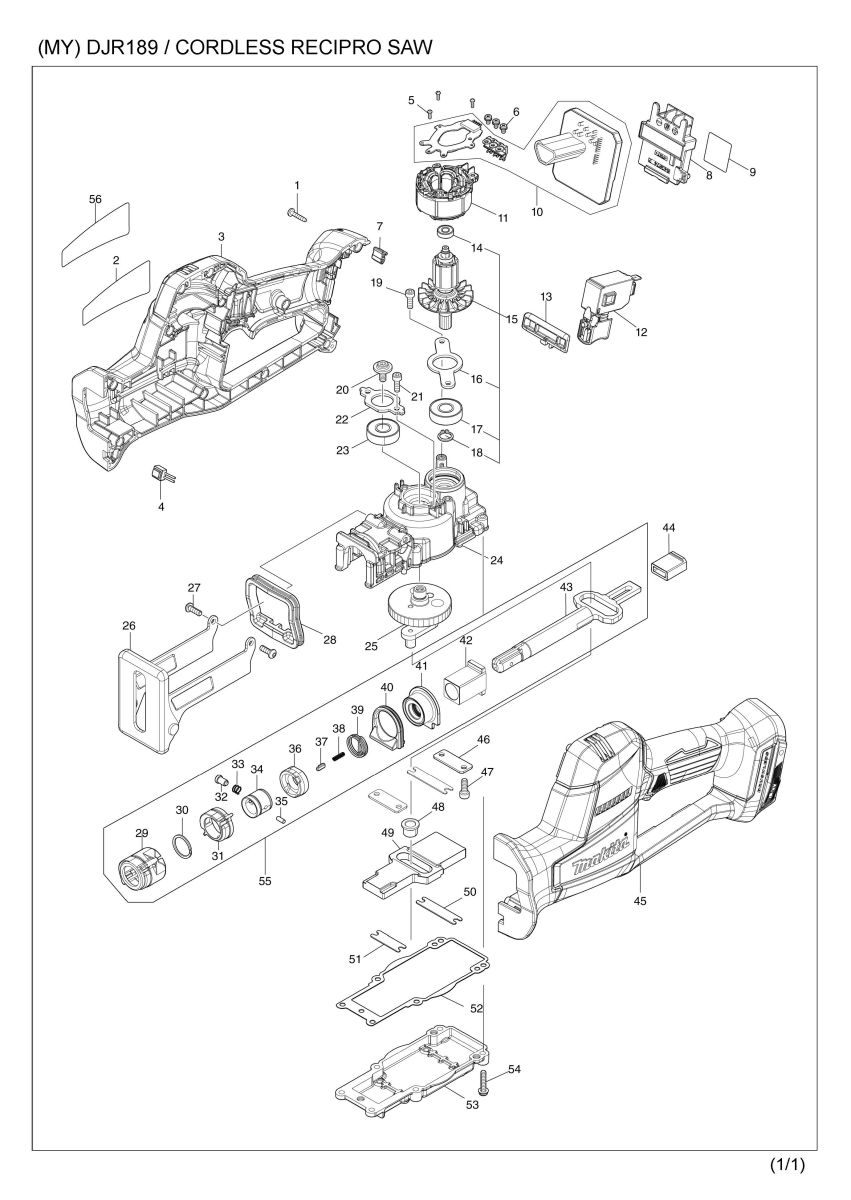

Part Diagram
Total: 69 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266130-9 | TAPPING SCREW BIND PT 3X16 | ||
| 2 | 858X57-7 | DJR189 NAME PLATE | ||
| 3 | 183W50-9 | HOUSING SET | ||
| 3 | C10 | 263005-3 | RUBBER PIN 6 | |
| 3 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | |
| 3 | D10 | INC. 45 | ||
| 4 | 620K03-0 | LED CIRCUIT | ||
| 5 | 266490-9 | TAPPING SCREW PT 2X6 | ||
| 6 | 652069-6 | FLAT HEAD SCREW M3X6 | ||
| 7 | 424517-3 | CUSHION | ||
| 8 | 643874-2 | TERMINAL | ||
| 9 | 858X65-8 | DJR189 SERIAL NO. LABEL | ||
| 10 | 620K04-8 | CONTROLLER | ||
| 11 | 629B65-1 | STATOR | ||
| 12 | 650710-5 | SWITCH C3JW-4B | ||
| 13 | 413L03-1 | LOCK OFF BUTTON | ||
| 14 | 210039-7 | BALL BEARING 695DDW | ||
| 15 | 519770-5 | ROTOR ASS'Y | ||
| 15 | D10 | INC. 14,16-18 | ||
| 16 | 285054-0 | BEARING RETAINER 58 | ||
| 17 | 210059-1 | BALL BEARING 6000DDW | ||
| 18 | 961006-2 | RETAINING RING S-10 | ||
| 19 | 265353-6 | HEX. SOCKET HEAD BOLT M4X12 | ||
| 20 | 265C93-4 | HEX. S.F.H. BOLT M5X12 | ||
| 21 | 265353-6 | HEX. SOCKET HEAD BOLT M4X12 | ||
| 22 | 285055-8 | BEARING RETAINER 33 | ||
| 23 | 210059-1 | BALL BEARING 6000DDW | ||
| 24 | 136824-9 | GEAR HOUSING ASS'Y | ||
| 24 | C10 | 263002-9 | RUBBER PIN 4 | |
| 24 | C20 | 213434-0 | O RING 26 | |
| 25 | 141L92-3 | GEAR COMPLETE | ||
| 26 | 162B95-4 | SHOE | ||
| 27 | 265C84-5 | HEX. SOCKET BUTTON BOLT M4X12 | ||
| 28 | 422950-3 | SEAL RING | ||
| 29 | 422949-8 | PROTECTOR | ||
| 30 | 257430-8 | RETAINING RING(EXT)18 | ||
| 31 | 313448-0 | DRIVING SLEEVE | ||
| 32 | 256569-4 | SHOULDER PIN 5 | ||
| 33 | 234381-2 | COMPRESSION SPRING 6 | ||
| 34 | 327650-9 | GUIDE SLEEVE | ||
| 35 | 256A11-1 | PIN 3 | ||
| 36 | 458968-8 | CONNECTING SLEEVE | ||
| 37 | 310912-2 | PUSH PIN | ||
| 38 | 232472-3 | COMPRESSION SPRING 2 | ||
| 39 | 233594-2 | TORSION SPRING 17 | ||
| 40 | 422951-1 | RUBBER RING | ||
| 41 | 141L93-1 | SEAL HOLDER COMPLETE | ||
| 42 | 214215-5 | PLANE BEARING 14 | ||
| 43 | 162B76-8 | SLIDER | ||
| 44 | 313450-3 | SLIDER GUIDE | ||
| 45 | 183W50-9 | HOUSING SET | ||
| 45 | C10 | 263005-3 | RUBBER PIN 6 | |
| 45 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | |
| 45 | D10 | INC. 3 | ||
| 46 | 347A47-2 | PLATE A | ||
| 47 | 265353-6 | HEX. SOCKET HEAD BOLT M4X12 | ||
| 48 | 327A55-9 | COLLARED SLEEVE 8 | ||
| 49 | 313446-4 | COUNTER WEIGHT | ||
| 50 | 347A49-8 | PLATE R | ||
| 51 | 347A48-0 | PLATE F | ||
| 52 | 422952-9 | GASKET | ||
| 53 | 312D37-2 | GEAR HOUSING COVER | ||
| 54 | 911138-5 | P.H.SCREW M4X20 WITH WR | ||
| 55 | 136867-1 | SLIDER ASS'Y | ||
| 55 | D10 | INC. 29-43 | ||
| 56 | 8058N1-7 | CLEAR LABEL | ||
| A01 | B-05038 | RECIPRO SAW BLADE FOR METAL | ||
| A02 | B-05044 | RECIPRO SAW BLADE FOR PLYWOOD | ||
| A03 | B-05153 | RECIPRO SAW BLADE FOR WOOD |
