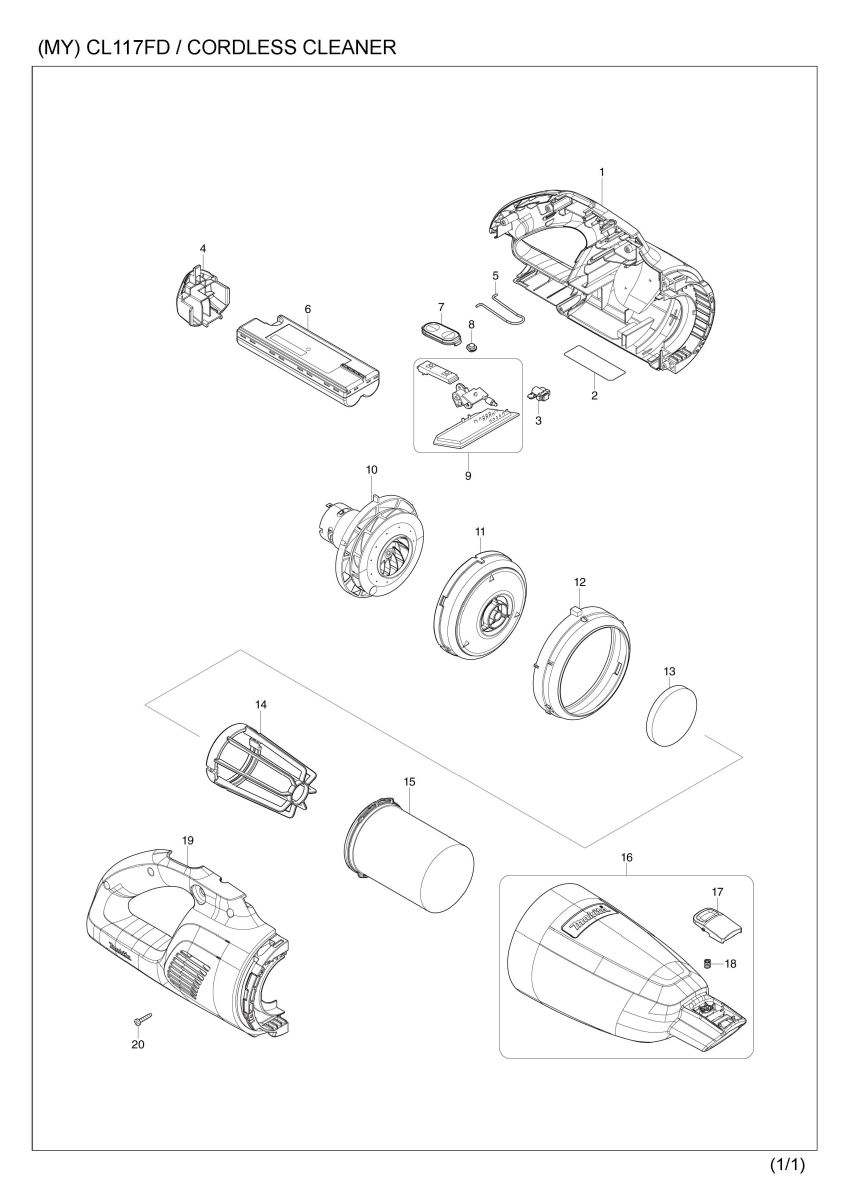

Part Diagram
Total: 63 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183W36-3 | HOUSING SET | 1 | |
| 1 | C10 | 422925-2 | SPONGE SHEET 48-60 | 2 |
| 1 | C20 | 423293-6 | SPONGE 6-20 | 1 |
| 1 | D10 | INC. 19 | ||
| 001-1 | 183X67-8 | HOUSING SET | 1 | |
| 001-1 | C10 | 422925-2 | SPONGE SHEET 48-60 | 2 |
| 001-1 | C20 | 423293-6 | SPONGE 6-20 | 1 |
| 001-1 | D10 | INC. 19 | ||
| 2 | 858L99-9 | CL117FD NAME PLATE | 1 | |
| 3 | 140K40-3 | LENS CASE COMPLETE | 1 | |
| 4 | 413K49-1 | COVER | 1 | |
| 5 | 324885-3 | HANGER | 1 | |
| 6 | 632R12-9 | BATTERY | 1 | |
| 7 | 144096-2 | SWITCH PLATE COMPLETE | 1 | |
| 7 | C10 | 810P35-7 | SWITCH LABEL | 1 |
| 8 | 450522-4 | LENS | 1 | |
| 9 | 620H15-5 | CONTROLLER | 1 | |
| 10 | 122C96-0 | MOTOR ASSEMBLY | 1 | |
| 11 | 458834-9 | FAN COVER | 1 | |
| 12 | 422377-7 | RUBBER RING | 1 | |
| 13 | 422268-2 | SPONGE SHEET 57 | 1 | |
| 14 | 458467-0 | STAY | 1 | |
| 15 | 199966-0 | EASY SHAKE OFF FILTER B SET | 1 | |
| 16 | 136781-1 | CAPSULE ASS'Y | 1 | |
| 16 | C10 | 266326-2 | TAPPING SCREW 4X18 | 1 |
| 16 | C20 | 941051-3 | FLAT WASHER 4 | 1 |
| 16 | C30 | 424208-6 | VALVE | 1 |
| 16 | D10 | INC. 17,18 | ||
| 17 | 458939-5 | BUTTON A | 1 | |
| 18 | 232485-4 | COMPRESSION SPRING 5 | 1 | |
| 19 | 183W36-3 | HOUSING SET | 1 | |
| 19 | C10 | 422925-2 | SPONGE SHEET 48-60 | 2 |
| 19 | C20 | 423293-6 | SPONGE 6-20 | 1 |
| 19 | D10 | INC. 1 | ||
| 019-1 | 183X67-8 | HOUSING SET | 1 | |
| 019-1 | C10 | 422925-2 | SPONGE SHEET 48-60 | 2 |
| 019-1 | C20 | 423293-6 | SPONGE 6-20 | 1 |
| 019-1 | D10 | INC. 1 | ||
| 20 | 266429-2 | TAPPING SCREW 3X16 | 6 | |
| A01 | 198528-1 | FLOOR/CARPET T-NOZZLE WHI | 1 | |
| A01 | C10 | 451410-8 | ROLLER | 4 |
| A01 | C20 | 743108-4 | BRUSH 205 | 1 |
| A03 | 413770-6 | SASH NOZZLE | 1 | |
| A04 | 459353-8 | PIPE | 1 | |
| A05 | 459354-6 | NOZZLE HOLDER | 1 | |
| A06 | ***DC1002 | DC1002 BATTERY CHARGER | 1 | |
| F03 | 191D71-3 | CYCLONE ATTACHMENT SET (LOCK) | 1 | |
| F04 | 191D76-3 | STRAIGHT PIPE SET 340 | 1 | |
| F06 | 191X06-4 | NOZZLE ASSEMBLY SET | 1 | |
| F11 | 198751-8 | PRE FILTER SET EU | 1 | |
| F13 | 198753-4 | EASY SHAKE OFF FILTER SET | 1 | |
| F15 | 198868-7 | FLEXIBLE HOSE SET28(WHI) | 1 | |
| F16 | 198873-4 | SHELF BRUSH SET28 WHI | 1 | |
| F17 | 198878-4 | ROUND BRUSH SET 28 WHI | 1 | |
| F18 | 198915-4 | FILTER SET | 1 | |
| F19 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| F20 | 199038-1 | SEAT NOZZLE SET 28 WHI | 1 | |
| F21 | 199439-3 | CREVICE NOZZLE 415 SET | 1 | |
| F22 | 199491-1 | CYCLONE ATTACHMENT SET | 1 | |
| F23 | 199900-0 | TOOL BAG SET | 1 | |
| F24 | 199901-8 | TOOL BAG SET | 1 | |
| F26 | 199971-7 | HOLDER SET | 1 | |
| F92 | 1911L1-0 | CLEANER STAND SET | 1 |
