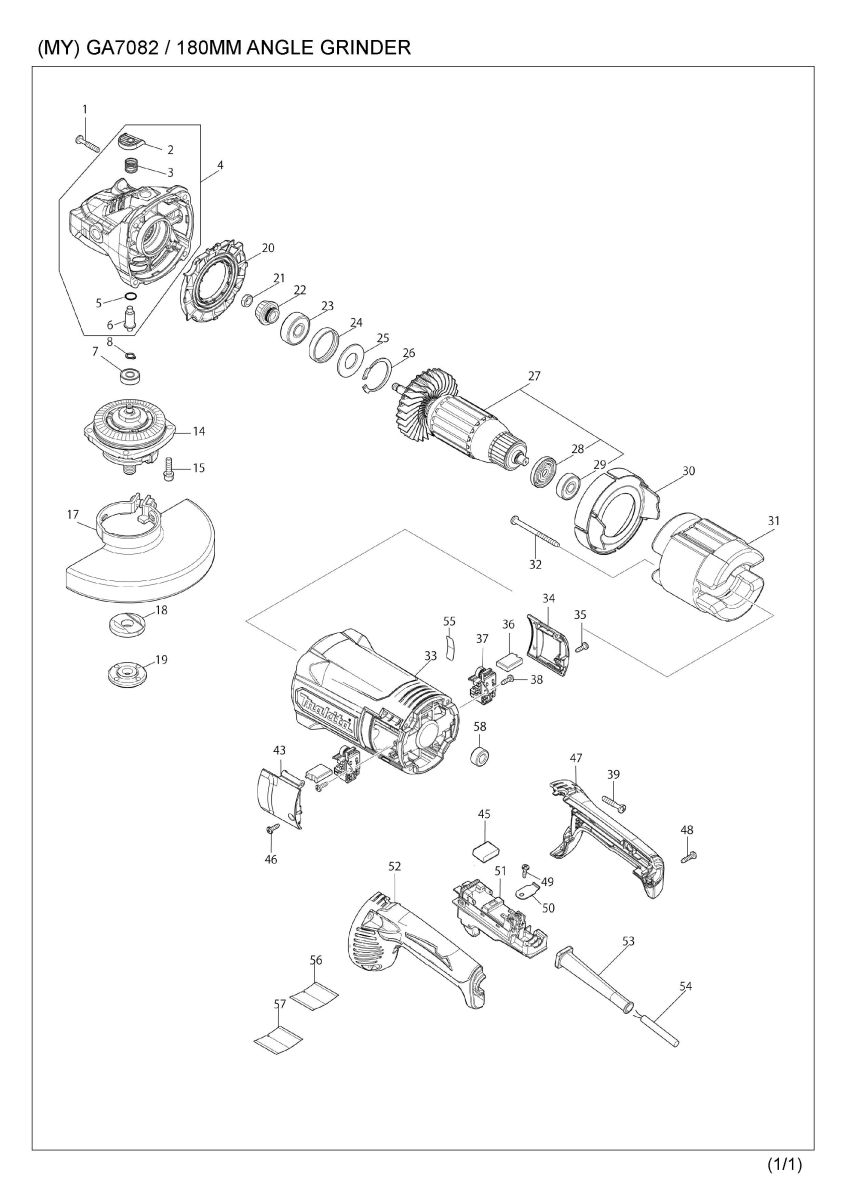

Part Diagram
Total: 150 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 001-1 | 922253-0 | H.S.H.BOLT M5X30 WITH WR | 4 | |
| 002 | 413H41-9 | PIN CAP | 1 | |
| 003 | 233292-8 | COMPRESSION SPRING 12 | 1 | |
| 004 | 136698-8 | GEAR HOUSING ASSY | 1 | |
| 004 | C10 | 262118-7 | FELT RING 18 | 1 |
| 004 | C20 | 263002-9 | RUBBER PIN 4 | 1 |
| 004 | D10 | INC. 2,3,5,6 | ||
| 005 | 213062-1 | O RING 9 | 1 | |
| 006 | 256491-5 | SHOULDER PIN 5 | 1 | |
| 007 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 008 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | |
| 014 | 122C65-1 | TORQUE LIMITER ASSEMBLY 180 | 1 | |
| 014 | C10 | 213760-7 | O RING 78 | 1 |
| 014 | C15 | 252429-8 | NUT M15-23 | 1 |
| 014 | C16 | 252323-4 | CIRCULAR NUT M15-23 | 1 |
| 014 | C20 | 232163-6 | CUP SPRING 20 | 2 |
| 014 | C25 | 267798-4 | LOCK WASHER | 2 |
| 014 | C30 | 227998-8 | SPIRAL BEVEL GEAR 53 | 1 |
| 014 | C35 | 265120-9 | PAN HEAD SCREW M5X16 | 3 |
| 014 | C40 | 285741-1 | BEARING RETAINER 50 | 1 |
| 014 | C45 | 267167-9 | FLAT WASHER 15 | 1 |
| 014 | C50 | 211278-2 | BALL BEARING 6203DDW | 1 |
| 014 | C55 | 312D39-8 | BEARING BOX | 1 |
| 014 | C60 | 141D62-4 | SPINDLE COMPLETE | 1 |
| 015 | 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | |
| 017 | 122889-7 | WHEEL COVER 180K ASSEMBLY | 1 | |
| 017 | C10 | 213017-6 | O RING 6 | 1 |
| 017 | C20 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 017-1 | 122889-7 | WHEEL COVER 180K ASSEMBLY | 1 | |
| 017-1 | C20 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 018 | 224490-5 | INNER FLANGE 14-45 | 1 | |
| 019 | 224485-8 | LOCK NUT 14-45 | 1 | |
| 020 | 456238-9 | DIFFUSER | 1 | |
| 021 | 252194-9 | HEX. NUT M8 | 1 | |
| 022 | 227954-8 | SPIRAL BEVEL GEAR 15 | 1 | |
| 023 | 211132-0 | BALL BEARING 6301DDW | 1 | |
| 024 | 262085-6 | RUBBER RING 38 | 1 | |
| 025 | 267299-2 | FLAT WASHER 20 | 1 | |
| 026 | 962211-4 | RETAINING RING R-42 | 1 | |
| 027 | 511A29-2 | ARMATURE ASS'Y 240V | 1 | |
| 027 | C10 | 240161-6 | FAN 86 | 1 |
| 027 | D10 | INC. 28,29 | ||
| 028 | 681630-2 | INSULATION WASHER | 1 | |
| 029 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 030 | 456239-7 | BAFFLE PLATE | 1 | |
| 031 | 621944-7 | FIELD 240V | 1 | |
| 032 | 266038-7 | TAPPING SCREW 5X70 | 2 | |
| 033 | 413599-0 | MOTOR HOUSING | 1 | |
| 034 | 456246-0 | BRUSH HOLDER COVER R | 1 | |
| 035 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 036 | 191T31-1 | CARBON BRUSH SET CB-224 | 1 | |
| 037 | 643715-2 | BRUSH HOLDER | 2 | |
| 038 | 266385-6 | TAPPING SCREW 4X14 | 2 | |
| 039 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 043 | 456245-2 | BRUSH HOLDER COVER L | 1 | |
| 046 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 047 | 183C63-0 | HANDLE SET | 1 | |
| 047 | D10 | INC. 52 | ||
| 048 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 049 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 050 | 687169-3 | STRAIN RELIEF | 1 | |
| 051 | 632F74-5 | SWITCH UNIT | 1 | |
| 052 | 183C63-0 | HANDLE SET | 1 | |
| 052 | D10 | INC. 47 | ||
| 053 | 682573-1 | CORD GUARD 10 | 1 | |
| 054 | 692607-2 | POWER SUPPLY CORD 1.5-2-2.5 | 1 | |
| 055 | 811S61-7 | GA7082 SERIAL NO. LABEL | 1 | |
| 056 | 811S57-8 | GA7082 NAME PLATE | 1 | |
| 057 | 8038D3-7 | CLEAR LABEL | 1 | |
| A01 | 143486-6 | GRIP 37 COMPLETE | 1 | |
| A02 | 782034-2 | LOCK NUT WRENCH 35 | 1 | |
| F05 | 197476-1 | DUST COVER ATTACHMENT SET | 1 | |
| F07 | 192227-7 | SUPER FLANGE | 1 | |
| F09 | 194305-9 | LOCK NUT RELEASE SOCKET 35 SET | 1 | |
| 001 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 001-1 | 922253-0 | H.S.H.BOLT M5X30 WITH WR | 4 | |
| 002 | 413H41-9 | PIN CAP | 1 | |
| 003 | 233292-8 | COMPRESSION SPRING 12 | 1 | |
| 004 | 136698-8 | GEAR HOUSING ASSY | 1 | |
| 004 | C10 | 262118-7 | FELT RING 18 | 1 |
| 004 | C20 | 263002-9 | RUBBER PIN 4 | 1 |
| 004 | D10 | INC. 2,3,5,6 | ||
| 005 | 213062-1 | O RING 9 | 1 | |
| 006 | 256491-5 | SHOULDER PIN 5 | 1 | |
| 007 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 008 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | |
| 014 | 122C65-1 | TORQUE LIMITER ASSEMBLY 180 | 1 | |
| 014 | C10 | 213760-7 | O RING 78 | 1 |
| 014 | C15 | 252429-8 | NUT M15-23 | 1 |
| 014 | C16 | 252323-4 | CIRCULAR NUT M15-23 | 1 |
| 014 | C20 | 232163-6 | CUP SPRING 20 | 2 |
| 014 | C25 | 267798-4 | LOCK WASHER | 2 |
| 014 | C30 | 227998-8 | SPIRAL BEVEL GEAR 53 | 1 |
| 014 | C35 | 265120-9 | PAN HEAD SCREW M5X16 | 3 |
| 014 | C40 | 285741-1 | BEARING RETAINER 50 | 1 |
| 014 | C45 | 267167-9 | FLAT WASHER 15 | 1 |
| 014 | C50 | 211278-2 | BALL BEARING 6203DDW | 1 |
| 014 | C55 | 312D39-8 | BEARING BOX | 1 |
| 014 | C60 | 141D62-4 | SPINDLE COMPLETE | 1 |
| 015 | 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | |
| 017 | 122889-7 | WHEEL COVER 180K ASSEMBLY | 1 | |
| 017 | C10 | 213017-6 | O RING 6 | 1 |
| 017 | C20 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 017-1 | 122889-7 | WHEEL COVER 180K ASSEMBLY | 1 | |
| 017-1 | C20 | 265198-2 | +PAN HEAD SCREW M8X25 | 1 |
| 018 | 224490-5 | INNER FLANGE 14-45 | 1 | |
| 019 | 224485-8 | LOCK NUT 14-45 | 1 | |
| 020 | 456238-9 | DIFFUSER | 1 | |
| 021 | 252194-9 | HEX. NUT M8 | 1 | |
| 022 | 227954-8 | SPIRAL BEVEL GEAR 15 | 1 | |
| 023 | 211132-0 | BALL BEARING 6301DDW | 1 | |
| 024 | 262085-6 | RUBBER RING 38 | 1 | |
| 025 | 267299-2 | FLAT WASHER 20 | 1 | |
| 026 | 962211-4 | RETAINING RING R-42 | 1 | |
| 027 | 511A29-2 | ARMATURE ASS'Y 240V | 1 | |
| 027 | C10 | 240161-6 | FAN 86 | 1 |
| 027 | D10 | INC. 28,29 | ||
| 028 | 681630-2 | INSULATION WASHER | 1 | |
| 029 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 030 | 456239-7 | BAFFLE PLATE | 1 | |
| 031 | 621944-7 | FIELD 240V | 1 | |
| 032 | 266038-7 | TAPPING SCREW 5X70 | 2 | |
| 033 | 413599-0 | MOTOR HOUSING | 1 | |
| 034 | 456246-0 | BRUSH HOLDER COVER R | 1 | |
| 035 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 036 | 191T31-1 | CARBON BRUSH SET CB-224 | 1 | |
| 037 | 643715-2 | BRUSH HOLDER | 2 | |
| 038 | 266385-6 | TAPPING SCREW 4X14 | 2 | |
| 039 | 251489-7 | TAPPING SCREW 5X30 | 4 | |
| 043 | 456245-2 | BRUSH HOLDER COVER L | 1 | |
| 046 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 047 | 183C63-0 | HANDLE SET | 1 | |
| 047 | D10 | INC. 52 | ||
| 048 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 049 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 050 | 687169-3 | STRAIN RELIEF | 1 | |
| 051 | 632F74-5 | SWITCH UNIT | 1 | |
| 052 | 183C63-0 | HANDLE SET | 1 | |
| 052 | D10 | INC. 47 | ||
| 053 | 682573-1 | CORD GUARD 10 | 1 | |
| 054 | 692607-2 | POWER SUPPLY CORD 1.5-2-2.5 | 1 | |
| 055 | 811S61-7 | GA7082 SERIAL NO. LABEL | 1 | |
| 056 | 811S57-8 | GA7082 NAME PLATE | 1 | |
| 057 | 8038D3-7 | CLEAR LABEL | 1 | |
| A01 | 143486-6 | GRIP 37 COMPLETE | 1 | |
| A02 | 782034-2 | LOCK NUT WRENCH 35 | 1 | |
| F05 | 197476-1 | DUST COVER ATTACHMENT SET | 1 | |
| F07 | 192227-7 | SUPER FLANGE | 1 | |
| F09 | 194305-9 | LOCK NUT RELEASE SOCKET 35 SET | 1 |
