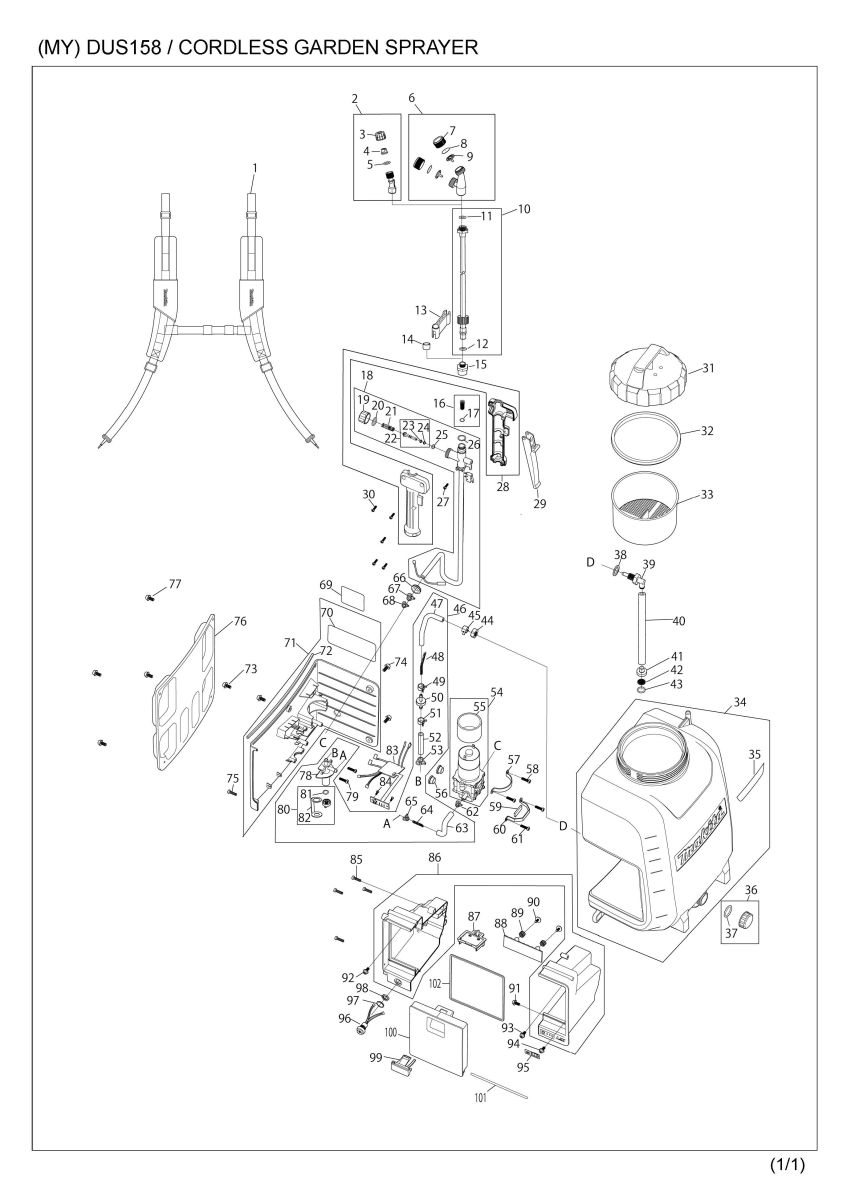

Part Diagram
Total: 127 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | PR00000319 | HARNESS LR SET | 1 | |
| 2 | PR00000251 | SINGLE NOZZLE ASSY | 1 | |
| 2 | D10 | INC. 3-5 | ||
| 3 | PR00000252 | CAP NUT | 1 | |
| 4 | PR00000253 | SPRAYER NOZZLE | 1 | |
| 5 | PR00000254 | O-RING 12X2 | 1 | |
| 6 | PR00000255 | TWIN HEAD MIST NOZZLE ASSY | 1 | |
| 6 | D10 | INC. 7-9 | ||
| 7 | PR00000256 | CAP NUT | 2 | |
| 8 | PR00000257 | SPRAY CORE | 2 | |
| 008-1 | PR00000257 | SPRAY CORE | 2 | |
| 008-2 | PR00000258 | DISK | 1 | |
| 008-3 | PR00000258 | DISK | 2 | |
| 9 | PR00000258 | DISK | 2 | |
| 009-1 | PR00000258 | DISK | 2 | |
| 009-2 | PR00000257 | SPRAY CORE | 1 | |
| 009-3 | PR00000257 | SPRAY CORE | 2 | |
| 10 | PR00000260 | SPRAY WAND ASSY | 1 | |
| 10 | D10 | INC. 11,12 | ||
| 11 | PR00000259 | GASKET 11.5 | 1 | |
| 12 | PR00000186 | O RING 6X2 | 1 | |
| 13 | PR00000314 | HOOK FOR SPRAY WAND | 1 | |
| 14 | PR00000263 | RUBBER CAP | 1 | |
| 15 | PR00000264 | SPRAY WAND THREAD ADAPTOR | 1 | |
| 16 | PR00000147 | FILTER ASSEMBLY | 1 | |
| 16 | D10 | INC. 17 | ||
| 17 | PR00000146 | O SEAL RING 4.5X1.5 | 1 | |
| 18 | PR00000266 | HOSE WITH SWITCH ASSY | 1 | |
| 18 | D10 | INC. 19-22,25,26 | ||
| 018-1 | PR00000501 | HOSE WITH SWITCH ASSY | 1 | |
| 018-1 | D10 | INC. 19-22,25,26 | ||
| 19 | PR00000152 | LOCK COVER | 1 | |
| 20 | PR00000254 | O-RING 12X2 | 1 | |
| 21 | PR00000150 | SPRING | 1 | |
| 22 | PR00000151 | VALVE ROD | 1 | |
| 22 | D10 | INC. 23,24 | ||
| 23 | PR00000205 | O RING 3X1.5 | 1 | |
| 24 | PR00000205 | O RING 3X1.5 | 1 | |
| 25 | PR00000186 | O RING 6X2 | 1 | |
| 26 | PR00000149 | O RING 8X1.8 | 1 | |
| 27 | PR00000182 | TAPPINNG SCREW ST2.9X12 | 1 | |
| 28 | PR00000153 | HANDLE SET | 1 | |
| 028-1 | PR00000502 | HANDLE SET | 1 | |
| 29 | PR00000148 | HANDLE TRIGGER ASSEMBLY | 1 | |
| 30 | PR00000182 | TAPPINNG SCREW ST2.9X12 | 5 | |
| 31 | PR00000316 | TANK LID | 1 | |
| 031-1 | PR00000485 | TANK LID(W/SEAL RING) | 1 | |
| 32 | PR00000315 | TANK LID SEALING LID | 1 | |
| 33 | PR00000313 | TANK FILTER | 1 | |
| 34 | PR00000477 | 15L TANK | 1 | |
| 34 | D10 | INC. 35 | ||
| 034-1 | PR00000512 | 15L TANK | 1 | |
| 034-1 | D10 | INC. 35 | ||
| 35 | PR00000373 | 15L MODEL LABEL | 1 | |
| 36 | PR00000312 | DRAIN PLUG ASSY | 1 | |
| 36 | D10 | INC. 37 | ||
| 37 | PR00000479 | O-RING 21.2X2.65 | 1 | |
| 38 | PR00000259 | GASKET 11.5 | 1 | |
| 39 | PR00000265 | TANK ELBOW JOINT | 1 | |
| 40 | PR00000280 | TUBE 8X230 | 1 | |
| 41 | PR00000279 | SUCTION HEAD | 1 | |
| 42 | PR00000278 | NET FILTER FOR SUCTION HEAD | 1 | |
| 43 | PR00000277 | O-RING 17.5X3 | 1 | |
| 44 | PR00000262 | PLASTIC NUT 1/2" | 1 | |
| 45 | PR00000261 | HOSE CLIP | 1 | |
| 46 | PR00000287 | SUCTION TUBE SET | 1 | |
| 46 | D10 | INC. 47-53,63-65,78,80 | ||
| 47 | PR00000281 | TUBE 6X140 | 1 | |
| 48 | PR00000282 | SPRING 5X127 | 1 | |
| 49 | PR00000261 | HOSE CLIP | 1 | |
| 50 | PR00000283 | CHECK VALVE ASSEMBLY | 1 | |
| 51 | PR00000261 | HOSE CLIP | 1 | |
| 52 | PR00000284 | TUBE 6X55 | 1 | |
| 53 | PR00000184 | SNAPPER HOSE CLAMP (L) | 1 | |
| 54 | PR00000270 | PUMP UNIT WITH MOTOR | 1 | |
| 54 | D10 | INC. 55 | ||
| 55 | PR00000268 | ANTI VIBRATION RING | 1 | |
| 56 | PR00000292 | ANTI VIBRATION PAD | 2 | |
| 57 | PR00000272 | MOTOR FIXED PLATE | 1 | |
| 58 | PR00000271 | TAPPING SCREW ST4.0X16 | 2 | |
| 59 | PR00000274 | RUBBER SHEET | 1 | |
| 60 | PR00000273 | PUMP FIXED PLATE | 1 | |
| 61 | PR00000271 | TAPPING SCREW ST4.0X16 | 2 | |
| 62 | PR00000267 | SNAPPER HOSE CLAMP (M) | 1 | |
| 63 | PR00000275 | TUBE 6X90 | 1 | |
| 64 | PR00000276 | SPRING | 1 | |
| 65 | PR00000267 | SNAPPER HOSE CLAMP (M) | 1 | |
| 66 | PR00000155 | GROMMET | 1 | |
| 67 | PR00000184 | SNAPPER HOSE CLAMP (L) | 1 | |
| 68 | PR00000267 | SNAPPER HOSE CLAMP (M) | 1 | |
| 69 | PR00000365 | NAME PLATE DUS158 | 1 | |
| 70 | PR00000354 | WARNING LABEL | 1 | |
| 71 | PR00000472 | PUMP HOUSING ASSY EU | 1 | |
| 71 | D10 | INC. 70,72 | ||
| 72 | PR00000290 | SEALING STRIP | 1 | |
| 73 | PR00000288 | PAN HEAD SCREW M5X12 WITH WR | 2 | |
| 74 | PR00000288 | PAN HEAD SCREW M5X12 WITH WR | 2 | |
| 75 | PR00000271 | TAPPING SCREW ST4.0X16 | 1 | |
| 76 | PR00000289 | BACK PAD | 1 | |
| 77 | PR00000288 | PAN HEAD SCREW M5X12 WITH WR | 4 | |
| 78 | PR00000285 | BASE | 1 | |
| 79 | PR00000271 | TAPPING SCREW ST4.0X16 | 2 | |
| 80 | PR00000286 | KNOB LOCK CAP ASSEMBLY | 1 | |
| 80 | D10 | INC. 81,82 | ||
| 81 | PR00000186 | O RING 6X2 | 1 | |
| 82 | PR00000475 | KNOB LOCK CAP STRAP | 1 | |
| 83 | PR00000295 | PCB | 1 | |
| 84 | PR00000293 | TAPPING SCREW ST2.9X10 | 2 | |
| 85 | PR00000271 | TAPPING SCREW ST4.0X16 | 4 | |
| 86 | PR00000297 | BATTERY HOUSING SET | 1 | |
| 87 | PR00000302 | BATTERY TERMINAL | 1 | |
| 88 | PR00000130 | DAM-BOARD | 1 | |
| 89 | PR00000194 | SPRING | 2 | |
| 90 | PR00000132 | TAPPING SCREW ST4.0X12 | 2 | |
| 91 | PR00000288 | PAN HEAD SCREW M5X12 WITH WR | 1 | |
| 92 | PR00000288 | PAN HEAD SCREW M5X12 WITH WR | 1 | |
| 93 | PR00000288 | PAN HEAD SCREW M5X12 WITH WR | 1 | |
| 94 | PR00000288 | PAN HEAD SCREW M5X12 WITH WR | 1 | |
| 95 | PR00000307 | INDICATION LABEL | 1 | |
| 96 | PR00000299 | SWITCH | 1 | |
| 97 | PR00000298 | SWITCH GASKET | 1 | |
| 98 | PR00000300 | HEX NUT(SWITCH) | 1 | |
| 99 | PR00000304 | BATTERY COVER CLIP | 1 | |
| 100 | PR00000305 | BATTERY COVER | 1 | |
| 101 | PR00000306 | SHAFT 3X136 | 1 | |
| 102 | PR00000303 | BATTERY COVER SEAL PAD | 1 | |
| A01 | PR00000317 | MEASURING CUP(ML) | 1 |
