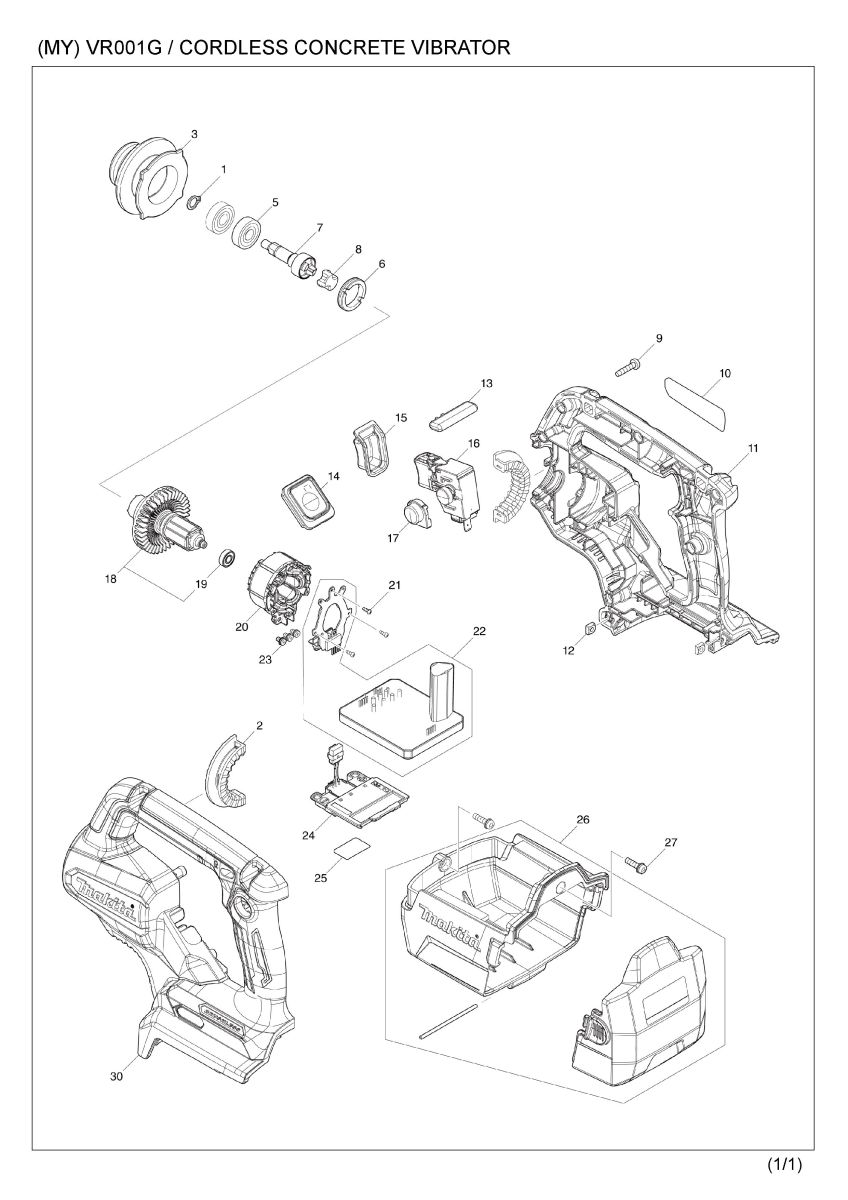

Part Diagram
Total: 50 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 961005-4 | RETAINING RING S-9 | 1 | |
| 002 | 422910-5 | RUBBER RING | 2 | |
| 003 | 313434-1 | HOSE HOLDER | 1 | |
| 005 | 210051-7 | BALL BEARING 609LLB | 2 | |
| 006 | 285053-2 | BEARING RETAINER 19-26 | 1 | |
| 007 | 141K76-5 | SPINDLE COMPLETE | 1 | |
| 008 | 424833-3 | SPACER | 1 | |
| 009 | 266045-0 | TAPPING SCREW 4X20 | 11 | |
| 010 | 858L48-6 | VR001G NAME PLATE | 1 | |
| 011 | 183V84-6 | HOUSING SET | 1 | |
| C10 | 8005T5-8 | XGT LOGO LABEL | 1 | |
| C20 | 263005-3 | RUBBER PIN 6 | 2 | |
| D10 | INC. 30 | |||
| 012 | 252173-7 | SQUARE NUT | 2 | |
| 013 | 458822-6 | LOCK LEVER | 1 | |
| 014 | 141K86-2 | SWITCH CIRCUIT COMPLETE | 1 | |
| C10 | 8055V0-7 | SWITCH LABEL | 1 | |
| 015 | 422966-8 | SWITCH COVER | 1 | |
| 016 | 651493-0 | SWITCH C3JW-4CM-1L | 1 | |
| 017 | 458819-5 | LOCK ON BUTTON COVER | 1 | |
| 018 | 136692-0 | ROTOR ASS'Y | 1 | |
| D10 | INC. 19 | |||
| 019 | 210039-7 | BALL BEARING 695DDW | 1 | |
| 020 | 629B21-1 | STATOR | 1 | |
| 021 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 022 | 620H53-7 | CONTROLLER | 1 | |
| 023 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 024 | 632P65-6 | TERMINAL UNIT | 1 | |
| 025 | 858L51-7 | VR001G SERIAL NO. LABEL | 1 | |
| 026 | 136704-9 | BATTERY CASE S ASS'Y | 1 | |
| C10 | 816B52-1 | CAUTION LABEL | 1 | |
| C20 | 810196-7 | CAUTION LABEL | 1 | |
| 027 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 030 | 183V84-6 | HOUSING SET | 1 | |
| C10 | 8005T5-8 | XGT LOGO LABEL | 1 | |
| C20 | 263005-3 | RUBBER PIN 6 | 2 | |
| D10 | INC. 11 | |||
| A01 | 781213-9 | WRENCH 8 | 1 | |
| F01 | 1910C2-9 | FLEXIBLE SHAFT 32-2.4 SET | 1 | |
| C10 | HA00000309 | SHAFT (2.0M) | 1 | |
| F02 | 1910C4-5 | FLEXIBLE SHAFT 38-2.4 SET | 1 | |
| C10 | HA00000309 | SHAFT (2.0M) | 1 | |
| F03 | 1910E1-5 | FLEXIBLE SHAFT 32-1.2 SET | 1 | |
| C10 | HA00000307 | SHAFT (1.0M) | 1 | |
| F04 | 1910E2-3 | FLEXIBLE SHAFT 32-1.7 SET | 1 | |
| C10 | HA00000308 | SHAFT (1.5M) | 1 | |
| F05 | 1910E3-1 | FLEXIBLE SHAFT 38-1.2 SET | 1 | |
| C10 | HA00000307 | SHAFT (1.0M) | 1 | |
| F06 | 1910J1-0 | BATTERY CASE L SET | 1 | |
| F07 | 1910J4-4 | BATTERY CASE H SET | 1 |
