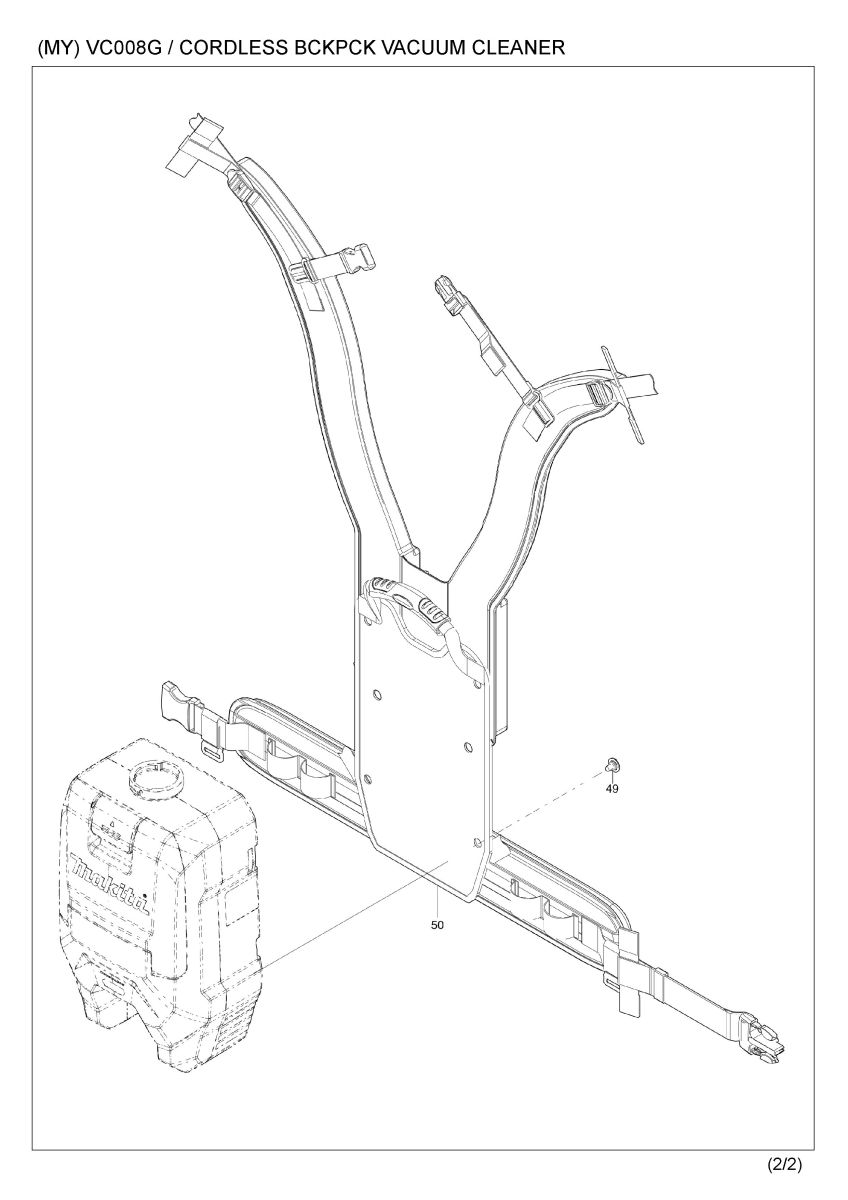

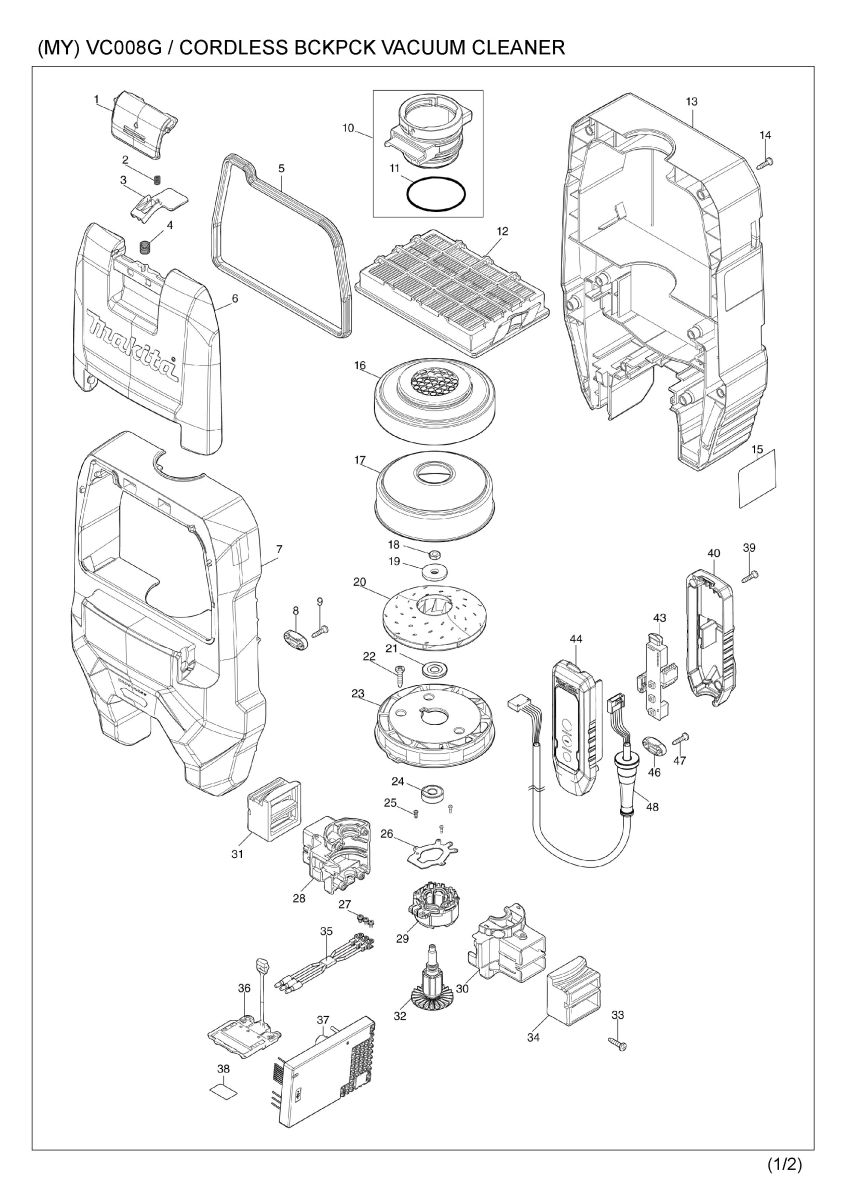

Part Diagram
Total: 91 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 413E52-6 | HOOK | 1 | |
| 002 | 232389-0 | COMPRESSION SPRING 5 | 1 | |
| 003 | 459912-8 | STOPPER PLATE | 1 | |
| 004 | 234391-9 | COMPRESSION SPRING 8 | 1 | |
| 005 | 422850-7 | SEAL | 1 | |
| 006 | 413E51-8 | DUST BOX COVER | 1 | |
| 007 | 136647-5 | UPPER HOUSING ASSY | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 8025F3-0 | XGT LOGO LABEL | 1 | |
| 008 | 687124-5 | STRAIN RELIEF | 1 | |
| 009 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 010 | 135771-1 | INLET ASS'Y | 1 | |
| D10 | INC. 11 | |||
| 011 | 213655-4 | O RING 56 | 1 | |
| 012 | 191Y27-2 | MAIN FILTER H SET | 1 | |
| 013 | 141H47-4 | LOWER HOUSING COMPLETE | 1 | |
| C10 | 422854-9 | REAR BLOCK FILTER A | 2 | |
| C20 | 422855-7 | REAR BLOCK FILTER B | 1 | |
| 014 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 015 | 8116N6-5 | VC008G NAME PLATE | 1 | |
| 016 | 422851-5 | SUPPORT RING | 1 | |
| 017 | 347965-8 | FAN COVER | 1 | |
| 018 | 252268-6 | HEX. NUT M6 | 1 | |
| 019 | 253752-4 | FLAT WASHER 8 | 1 | |
| 020 | 240178-9 | FAN 104 | 1 | |
| 021 | 313062-2 | FLANGE | 1 | |
| 022 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 023 | 413E42-9 | FAN BASE | 1 | |
| 024 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 025 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 026 | 620H32-5 | CONTROLLER B | 1 | |
| 027 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 028 | 183V01-6 | MOTOR HOUSING SET | 1 | |
| D10 | INC. 30 | |||
| 029 | 629B16-4 | STATOR | 1 | |
| 030 | 183V01-6 | MOTOR HOUSING SET | 1 | |
| D10 | INC. 28 | |||
| 031 | 422856-5 | SUPPORT A | 1 | |
| 032 | 619746-3 | ROTOR | 1 | |
| 033 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 034 | 422856-5 | SUPPORT A | 1 | |
| 035 | 638A29-8 | LEAD UNIT | 1 | |
| 036 | 632P49-4 | TERMINAL UNIT | 1 | |
| 037 | 620H30-9 | CONTROLLER | 1 | |
| 038 | 8116P4-3 | VC008G SERIAL NO. LABEL | 1 | |
| 039 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 040 | 183V66-8 | SWITCH CASE SET | 1 | |
| C10 | 8045G1-7 | SWITCH LABEL | 1 | |
| D10 | INC. 44 | |||
| 043 | 620H33-3 | SWITCH CIRCUIT | 1 | |
| 044 | 183V66-8 | SWITCH CASE SET | 1 | |
| C10 | 8045G1-7 | SWITCH LABEL | 1 | |
| D10 | INC. 40 | |||
| 046 | 687124-5 | STRAIN RELIEF | 1 | |
| 047 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 048 | 699193-4 | POWER SUPPLY CORD UNIT | 1 | |
| 049 | 265008-3 | + FLAT HEAD SCREW M5 | 4 | |
| 050 | 162B36-0 | HARNESS | 1 | |
| A01 | 197898-5 | DUST BAG ASSEMBLY SET 2L | 1 | |
| A02 | 191G86-8 | NOZZLE ASSEMBLY SET | 1 | |
| A03 | 199453-9 | HOSE COMPLETE 32-1.0 SET | 1 | |
| A04 | 140G19-0 | TELESCOPIC PIPE COMPLETE | 1 | |
| A05 | 140G26-3 | BENT PIPE COMPLETE | 1 | |
| A06 | 166116-2 | HOSE BAND | 1 | |
| A07 | 197903-8 | FILTER BAG SET 2L(10PCS)EU | 1 | |
| A08 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| F14 | 191B15-1 | CLEANING WAND SET | 1 | |
| F27 | 191E30-3 | FLEXIBLE HOSE SET(LOCK) | 1 | |
| F29 | 191G87-6 | NOZZLE ASSEMBLY SET | 1 | |
| F30 | 191M30-1 | BRUSH NOZZLE SET | 1 | |
| F31 | 191M77-5 | JOINT A 32 SET | 1 | |
| F32 | 191M78-3 | JOINT B 35 SET | 1 | |
| F33 | 191M79-1 | JOINT C 38 SET | 1 | |
| F35 | 191Y14-1 | HARNESS COVER SET | 1 | |
| F36 | 191Y27-2 | MAIN FILTER H SET | 1 | |
| F39 | 192236-6 | TAPERED NOZZLE SET | 1 | |
| F42 | 195545-2 | FRONT CUFF 38 SET | 1 | |
| F43 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F44 | 195547-8 | FRONT CUFF 22 SET | 1 | |
| F45 | 195548-6 | JOINT 22-38 SET | 1 | |
| F46 | 195549-4 | T-NOZZLE ASSY A SET(DRY)38 | 1 | |
| F47 | 195551-7 | T-NOZZLE SET 38 | 1 | |
| F56 | 198184-7 | F/C SWITCHING T-NOZZLE 38 | 1 | |
| F60 | 198533-8 | F/C SWITCHING T-NOZZLE 38 EU | 1 | |
| F61 | 198537-0 | SHELF BRUSH SET28 IVO EU | 1 | |
| F63 | 198552-4 | ROUND BRUSH SET 28 IVO | 1 | |
| F72 | 198990-0 | LONG SASH NOZZLE SET 28 BLU | 1 | |
| F75 | 199039-9 | SEAT NOZZLE SET 28 BLK | 1 | |
| F76 | 199041-2 | SEAT NOZZLE SET 28 BLU | 1 | |
| F81 | 199843-6 | PIPE 465 COMPLETE SET | 1 | |
| F82 | 199844-4 | JOINT PIPE 465 SET | 1 |
