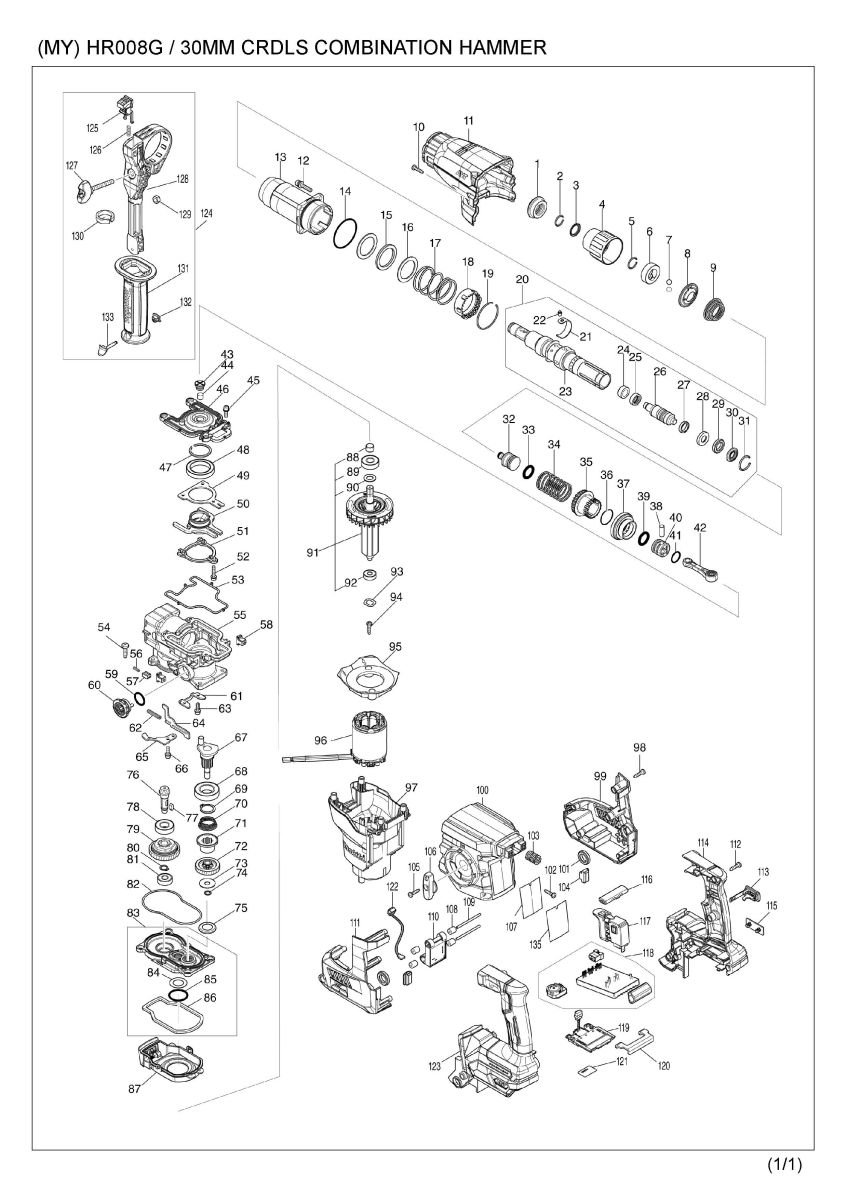

Part Diagram
Total: 342 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 286288-8 | CAP 35 | 1 | |
| 002 | 233989-9 | RING SPRING 14 | 1 | |
| 003 | 346834-0 | WASHER 16 | 1 | |
| 004 | 459685-3 | CHUCK COVER | 1 | |
| 005 | 233992-0 | RING SPRING 15 | 1 | |
| 006 | 327269-4 | RING 17 | 1 | |
| 007 | 216022-2 | STEEL BALL 7.0 | 2 | |
| 008 | 347944-6 | GUIDE WASHER | 1 | |
| 009 | 232503-8 | CONICAL COMP. SPRING 21-34 | 1 | |
| 010 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 011 | 459167-5 | BARREL COVER | 1 | |
| 012 | 266793-1 | HEX. S.H.B. M5X25 WITH WR | 4 | |
| 013 | 140J35-0 | BARREL COMPLETE | 1 | |
| 013 | C10 | 213636-8 | OIL SEAL 25 | 1 |
| 014 | 213620-3 | O RING 46 | 1 | |
| 015 | 422493-5 | RUBBER RING 31 | 1 | |
| 016 | 267354-0 | FLAT WASHER 31 | 2 | |
| 017 | 232496-9 | COMPRESSION SPRING 37 | 1 | |
| 018 | 419986-1 | LOCK SLEEVE | 1 | |
| 019 | 233952-2 | RING SPRING 41 | 1 | |
| 020 | 136312-6 | TOOL HOLDER ASS'Y | 1 | |
| 020 | D10 | INC. 21-31 | ||
| 021 | 347501-0 | LEAF SPRING | 1 | |
| 022 | 256598-7 | SHOULDER PIN 4 | 1 | |
| 023 | 327277-5 | TOOL HOLDER | 1 | |
| 024 | 327515-5 | SLEEVE 11 | 1 | |
| 025 | 327516-3 | RING 11 | 1 | |
| 026 | 140S89-1 | IMPACT BOLT A COMPLETE | 1 | |
| 027 | 213880-7 | SEAL RING 12 | 1 | |
| 028 | 327268-6 | RING 11 | 1 | |
| 029 | 424267-0 | CUSHION RING 12 | 1 | |
| 030 | 327271-7 | WASHER 11 | 1 | |
| 031 | 231987-7 | RING SPRING 21 | 1 | |
| 032 | 327266-0 | STRIKER | 1 | |
| 033 | 213881-5 | O RING 16 | 1 | |
| 034 | 232497-7 | COMPRESSION SPRING 27 | 1 | |
| 035 | 327276-7 | DRIVING SLEEVE | 1 | |
| 036 | 232501-2 | RING SPRING 24 | 1 | |
| 037 | 226868-8 | SPIRAL BEVEL GEAR 31 | 1 | |
| 038 | 268122-4 | PIN 7 | 1 | |
| 039 | 213881-5 | O RING 16 | 1 | |
| 040 | 319807-6 | PISTON | 1 | |
| 041 | 213226-7 | O RING 16 | 1 | |
| 042 | 140J36-8 | CONNECTING ROD COMPLETE | 1 | |
| 043 | 459180-3 | FILTER CAP | 1 | |
| 044 | 443153-6 | FELT | 1 | |
| 045 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 4 | |
| 046 | 319802-6 | CRANK CAP | 1 | |
| 047 | 961140-8 | RETAINING RING | 1 | |
| 048 | 211423-9 | BALL BEARING 6806DDW | 1 | |
| 049 | 347500-2 | BEARING RETAINER B | 1 | |
| 050 | 140J31-8 | COUNTER WEIGHT COMPLETE | 1 | |
| 051 | 310927-9 | WEIGHT RETAINER | 1 | |
| 052 | 266948-8 | HEX S. H. BOLT M4X20 WITH WR | 3 | |
| 053 | 459182-9 | SEAL RING B | 1 | |
| 054 | 266021-4 | TAPPING SCREW 5X20 | 4 | |
| 055 | 140J33-4 | CRANK HOUSING COMPLETE | 1 | |
| 056 | 232499-3 | COMPRESSION SPRING 2 | 1 | |
| 057 | 310929-5 | PUSH CORN | 1 | |
| 058 | 455165-7 | FIX GUIDE | 2 | |
| 059 | 213262-3 | O RING 18 | 1 | |
| 060 | 459175-6 | LINK LEVER | 1 | |
| 061 | 347497-5 | BEARING RETAINER A | 1 | |
| 062 | 234019-9 | COMPRESSION SPRING 4 | 1 | |
| 063 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 2 | |
| 064 | 345814-3 | LINK PLATE | 1 | |
| 065 | 347498-3 | GUIDE PLATE | 1 | |
| 066 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 1 | |
| 067 | 140M22-7 | CRANK SHAFT COMPLETE | 1 | |
| 068 | 211323-3 | BALL BEARING 6904LLU | 1 | |
| 069 | 961060-6 | RETAINING RING S-20 | 1 | |
| 070 | 232498-5 | CONICAL COMP. SPRING 21-26 | 1 | |
| 071 | 327273-3 | CLUTCH | 1 | |
| 072 | 226869-6 | HELICAL GEAR 31 | 1 | |
| 073 | 267353-2 | FLAT WASHER 8 | 1 | |
| 074 | 961034-7 | RETAINING RING | 1 | |
| 075 | 345818-5 | CUP WASHER 16 | 1 | |
| 076 | 226867-0 | SPIRAL BEVEL GEAR 8 | 1 | |
| 077 | 254239-9 | KEY 4 | 1 | |
| 078 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 079 | 125386-2 | TORQUE LIMITER ASS'Y | 1 | |
| 080 | 961006-2 | RETAINING RING S-10 | 1 | |
| 081 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 082 | 459181-1 | SEAL RING A | 1 | |
| 083 | 136330-4 | GEAR HOUSING ASS'Y | 1 | |
| 083 | D10 | INC. 84-86 | ||
| 084 | 253749-3 | FLAT WASHER 16 | 1 | |
| 085 | 213445-5 | O-RING 26 | 1 | |
| 086 | 459183-7 | SPONGE SHEET | 1 | |
| 087 | 140J32-6 | AIR DUCT COMPLETE | 1 | |
| 088 | 331775-3 | SLEEVE 10 | 1 | |
| 089 | 211097-6 | BALL BEARING 6000LLB | 1 | |
| 090 | 253828-7 | FLAT WASHER 10 | 1 | |
| 091 | 519722-6 | ROTOR ASS'Y | 1 | |
| 091 | D10 | INC. 88-90,92 | ||
| 092 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 093 | 253555-6 | WAVE WASHER 12 | 1 | |
| 094 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 095 | 413F13-2 | BAFFLE PLATE | 1 | |
| 096 | 629A96-4 | STATOR | 1 | |
| 097 | 141H81-4 | MOTOR HOUSING COMPLETE | 1 | |
| 097 | C10 | 263027-3 | RUBBER PIN 4 | 1 |
| 098 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 099 | 183V77-3 | HOUSING SET | 1 | |
| 099 | D10 | INC. 111 | ||
| 100 | 413F12-4 | HANDLE BASE | 1 | |
| 101 | 459184-5 | CUSHION RING 12 | 2 | |
| 102 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 103 | 232500-4 | COMPRESSION SPRING 10 | 1 | |
| 104 | 422863-8 | BATTERY CUSHION | 2 | |
| 105 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 106 | 459174-8 | CHANGE LEVER | 1 | |
| 107 | 8119V9-3 | HR008G NAME PLATE | 1 | |
| 108 | 422472-3 | SPONGE SLEEVE 3 | 4 | |
| 109 | 256886-2 | ROD 3 | 2 | |
| 110 | 620J19-9 | ACCELEROMETER CIRCUIT | 1 | |
| 111 | 183V77-3 | HOUSING SET | 1 | |
| 111 | D10 | INC. 99 | ||
| 112 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 113 | 140G30-2 | CAP COMPLETE | 1 | |
| 113 | C10 | 213A05-9 | O-RING16 | 1 |
| 114 | 183V96-9 | HANDLE SET | 1 | |
| 114 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 114 | C20 | 8005T5-8 | XGT LOGO LABEL | 1 |
| 114 | D10 | INC. 123 | ||
| 115 | 459753-2 | CAP | 1 | |
| 116 | 453124-5 | F/R CHANGE LEVER | 1 | |
| 117 | 651439-6 | SWITCH C3JR-4B-2 | 1 | |
| 118 | 620J18-1 | CONTROLLER | 1 | |
| 119 | 632P65-6 | TERMINAL UNIT | 1 | |
| 120 | 347885-6 | SUPPORT PLATE | 1 | |
| 121 | 8119W3-2 | HR008G SERIAL NO. LABEL | 1 | |
| 122 | 620G34-5 | LED CIRCUIT | 1 | |
| 123 | 183V96-9 | HANDLE SET | 1 | |
| 123 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 123 | C20 | 8005T5-8 | XGT LOGO LABEL | 1 |
| 123 | D10 | INC. 114 | ||
| 124 | 126882-3 | GRIP ASSEMBLY | 1 | |
| 124 | D10 | INC. 125-133 | ||
| 125 | 144959-2 | LOCK BUTTON COMPLETE | 1 | |
| 126 | 233360-7 | COMPRESSION SPRING 4 | 1 | |
| 127 | 265625-9 | THUMB SCREW M6X50 | 1 | |
| 128 | 458355-1 | SIDE HANDLE BASE | 1 | |
| 129 | 931302-2 | HEX. NUT M6 | 1 | |
| 130 | 422258-5 | SPONGE SHEET | 1 | |
| 131 | 458357-7 | GRIP 36 | 1 | |
| 132 | 422255-1 | CAP | 1 | |
| 133 | 161838-9 | FIX PIN | 1 | |
| 135 | 8052T1-3 | CLEAR LABEL | 1 | |
| A01 | 331886-4 | DEPTH GAUGE | 1 | |
| A02 | 194683-7 | GREASE VESSEL SET | 1 | |
| A03 | 443122-7 | CLOTH | 1 | |
| A04B | 821875-2 | PLASTIC CASE | 1 | |
| A04B | C10 | 162271-8 | LATCH | 2 |
| A05 | 191L91-5 | SPACER SET | 1 | |
| A08 | 195173-3 | DUSTCUP SET | 1 | |
| A10B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A10B | D10 | COMPO-PARTS | ||
| A11B | 412393-7 | BATTERY COVER | 1 | |
| A12B | 191B26-6 | BATTERY BL4040 SET | 2 | |
| B01 | 1910R8-2 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 181490-7 | HAMMER GREASE 30G | 2 |
| B01 | C11 | 1914C5-7 | GREASE SET | 2 |
| B01 | D10 | INC. 1,2,5,7,22,26,27,29,31, | ||
| B01 | D20 | INC. 33,36,39 | ||
| F06 | 191F49-8 | DUST CASE SET | 1 | |
| F09 | 191F95-1 | DX10DUST COLLECTION SYSTEM SET | 1 | |
| F11 | 191L91-5 | SPACER SET | 1 | |
| F12 | 191W90-3 | HOOK SET | 1 | |
| F24 | 199557-7 | FILTER SET | 1 | |
| G12 | 1914X3-8 | DUST EXTRACTION PAD SET | 1 | |
