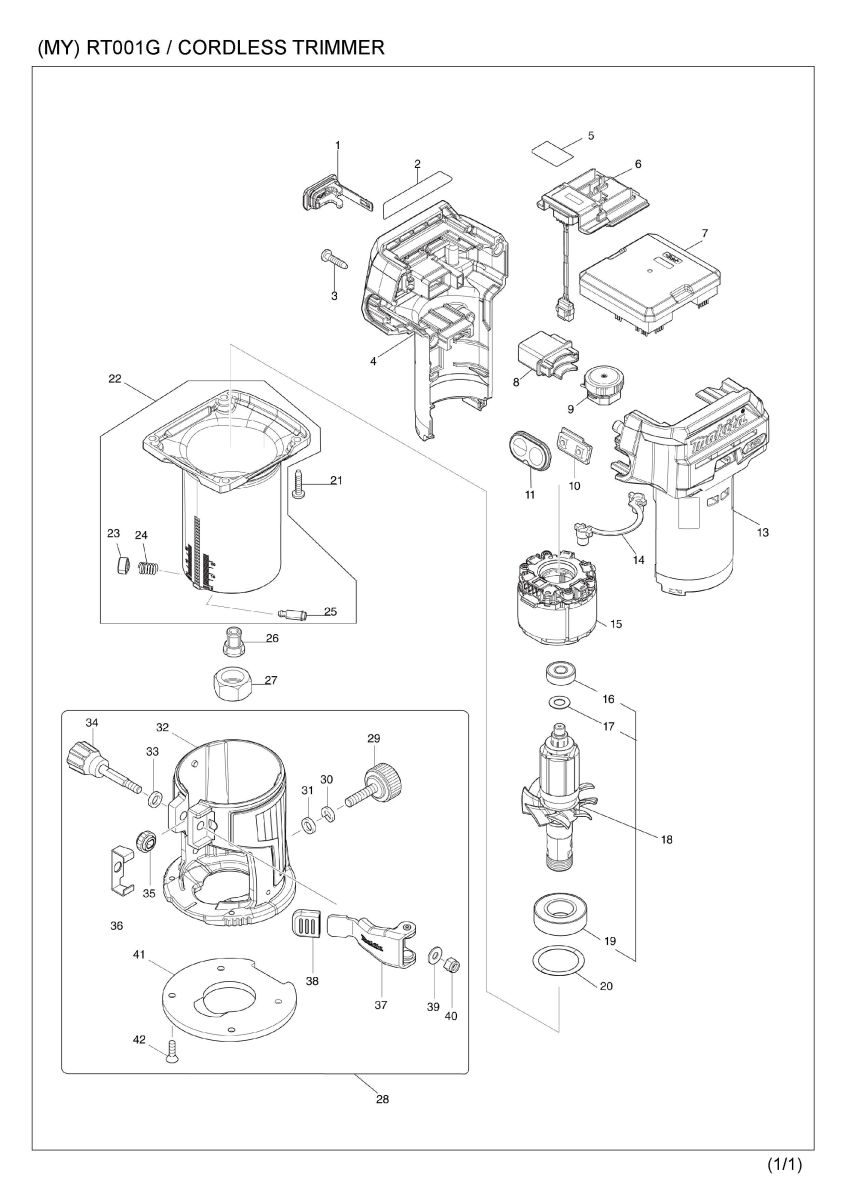

Part Diagram
Total: 104 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 140F99-0 | CAP COMPLETE | 1 | |
| 001 | C10 | 213A05-9 | O-RING16 | 1 |
| 002 | 8116J2-5 | RT001G NAME PLATE | 1 | |
| 003 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 004 | 183V78-1 | HOUSING SET | 1 | |
| 004 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 004 | C20 | 8007R2-2 | XGT LOGO LABEL | 1 |
| 004 | D10 | INC. 13 | ||
| 005 | 8116J9-1 | RT001G SERIAL NO. LABEL | 1 | |
| 006 | 632P49-4 | TERMINAL UNIT | 1 | |
| 007 | 620H85-4 | CONTROLLER | 1 | |
| 008 | 413E39-8 | DIAL COVER | 1 | |
| 009 | 620H86-2 | DIAL CIRCUIT | 1 | |
| 010 | 620H87-0 | SWITCH CIRCUIT | 1 | |
| 011 | 144662-5 | SWITCH PLATE COMPLETE | 1 | |
| 013 | 183V78-1 | HOUSING SET | 1 | |
| 013 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 013 | C20 | 8007R2-2 | XGT LOGO LABEL | 1 |
| 013 | D10 | INC. 4 | ||
| 014 | 620721-4 | LED CIRCUIT | 1 | |
| 015 | 629B02-5 | STATOR | 1 | |
| 016 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 017 | 253186-1 | FLAT WASHER 7 | 1 | |
| 018 | 519735-7 | ROTOR ASS'Y | 1 | |
| 018 | D10 | INC. 16,17,19 | ||
| 019 | 210301-0 | BALL BEARING 6003DDW | 1 | |
| 020 | 253906-3 | WAVE WASHER 26 | 1 | |
| 021 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 022 | 136686-5 | OUTER HOUSING ASS'Y | 1 | |
| 022 | D10 | INC. 23-25 | ||
| 023 | 452468-0 | PUSH BUTTON | 1 | |
| 024 | 233127-3 | COMPRESSION SPRING 7 | 1 | |
| 025 | 256437-1 | PIN 4 | 1 | |
| 026 | 763637-1 | COLLET CONE 1/4" | 1 | |
| 027 | 763615-1 | COLLET NUT | 1 | |
| 028 | 196613-4 | TRIMMER BASE SET | 1 | |
| 028 | D10 | INC. 29-42 | ||
| 029 | 265763-7 | THUMB SCREW M6X25 | 1 | |
| 030 | 253428-3 | SPRING WASHER 6 | 1 | |
| 031 | 941151-9 | FLAT WASHER 6 | 1 | |
| 032 | 142403-3 | TRIMMER BASE COMPLETE | 1 | |
| 033 | 941151-9 | FLAT WASHER 6 | 1 | |
| 034 | 265792-0 | THUMB SCREW M5X35 | 1 | |
| 035 | 227262-7 | SPUR GEAR 16 | 1 | |
| 036 | 346392-6 | CAM PLATE | 1 | |
| 037 | 163524-8 | LOCK LEVER COMPLETE | 1 | |
| 038 | 424396-9 | RUBBER CAP | 1 | |
| 039 | 941101-4 | FLAT WASHER 5 | 1 | |
| 040 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 041 | 454842-8 | BASE PROTECTOR | 1 | |
| 042 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 4 | |
| A01 | 122965-7 | STRAIGHT GUIDE ASSEMBLY | 1 | |
| A01 | C10 | 252649-4 | THUMB NUT M6 | 1 |
| A01 | C20 | 266339-3 | CAP SQUARE NECK BOLT M6X20 | 1 |
| A01 | C30 | 346382-9 | GUIDE PLATE | 1 |
| A02 | 195559-1 | DUST NOZZLE SET | 1 | |
| A02 | C10 | 265774-2 | THUMB SCREW M4X19 | 1 |
| A03 | 343577-5 | TEMPLET GUIDE 10 | 1 | |
| A04 | 781011-1 | WRENCH 22 | 1 | |
| A05 | 781039-9 | WRENCH 13 | 1 | |
| A07 | 763619-3 | COLLET CONE 3/8" | 1 | |
| A08B | 344364-5 | TEMPLET GUIDE 16 | 1 | |
| A12B | 122703-7 | TRIMMER GUIDE ASS'Y | 1 | |
| A12B | C10 | 251471-6 | - FLAT HEAD SCREW M5 | 1 |
| A12B | C20 | 265135-6 | + COUNTERSUNK HEAD SCREW M4X1 | 1 |
| A12B | C30 | 265763-7 | THUMB SCREW M6X25 | 1 |
| A12B | C40 | 265764-5 | THUMB SCREW M6 | 1 |
| A12B | C50 | 317788-8 | GUIDE HOLDER | 1 |
| A12B | C60 | 324378-0 | ROLLER 11 | 1 |
| A12B | C70 | 341136-9 | HOOK | 1 |
| A12B | C80 | 941151-9 | FLAT WASHER 6 | 1 |
| A13B | 196094-2 | PLUNGE BASE SET | 1 | |
| A13B | D10 | COMPO-PARTS | ||
| A14B | 198987-9 | TILT BASE SET | 1 | |
| A15B | 153489-2 | GRIP 36 COMPLETE | 1 | |
| A16B | 194733-8 | DUST NOZZLE SET | 1 | |
| A16B | C10 | 265774-2 | THUMB SCREW M4X19 | 1 |
| A16B | C20 | 213022-3 | O RING 3 | 2 |
| A17B | 195564-8 | GUIDE HOLDER SET | 1 | |
| A17B | C10 | 252649-4 | THUMB NUT M6 | 1 |
| A17B | C20 | 256850-3 | ROD 8 | 2 |
| A17B | C30 | 266339-3 | CAP SQUARE NECK BOLT M6X20 | 1 |
| A19B | 194579-2 | GUIDE RAIL ADAPTER SET | 1 | |
| A20C | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A20C | C10 | 453974-8 | LATCH | 4 |
| A23C | 837247-1 | TRAY | 1 | |
| A25C | 412393-7 | BATTERY COVER | 2 | |
| A26C | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A26C | D10 | COMPO-PARTS | ||
| A27C | 191B26-6 | BATTERY BL4040 SET | 2 | |
| F25 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F26 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F28 | 194416-0 | SHEET 10000 SET | 1 | |
| F29 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F30 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F34 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F36 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F39 | 195136-9 | STRAIGHT GUIDE SET | 1 | |
| F40 | 195137-7 | ROD 8 SET | 1 | |
| F59 | 196615-0 | TRIMMER BASE SET (12PCS) | 1 | |
| F60 | 196664-7 | BEVEL GUIDE SET | 1 | |
| F62 | 196922-1 | OFFSET BASE SET | 1 | |
| G08 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| G09 | 199141-8 | GUIDE RAIL 1500 SET | 1 |
