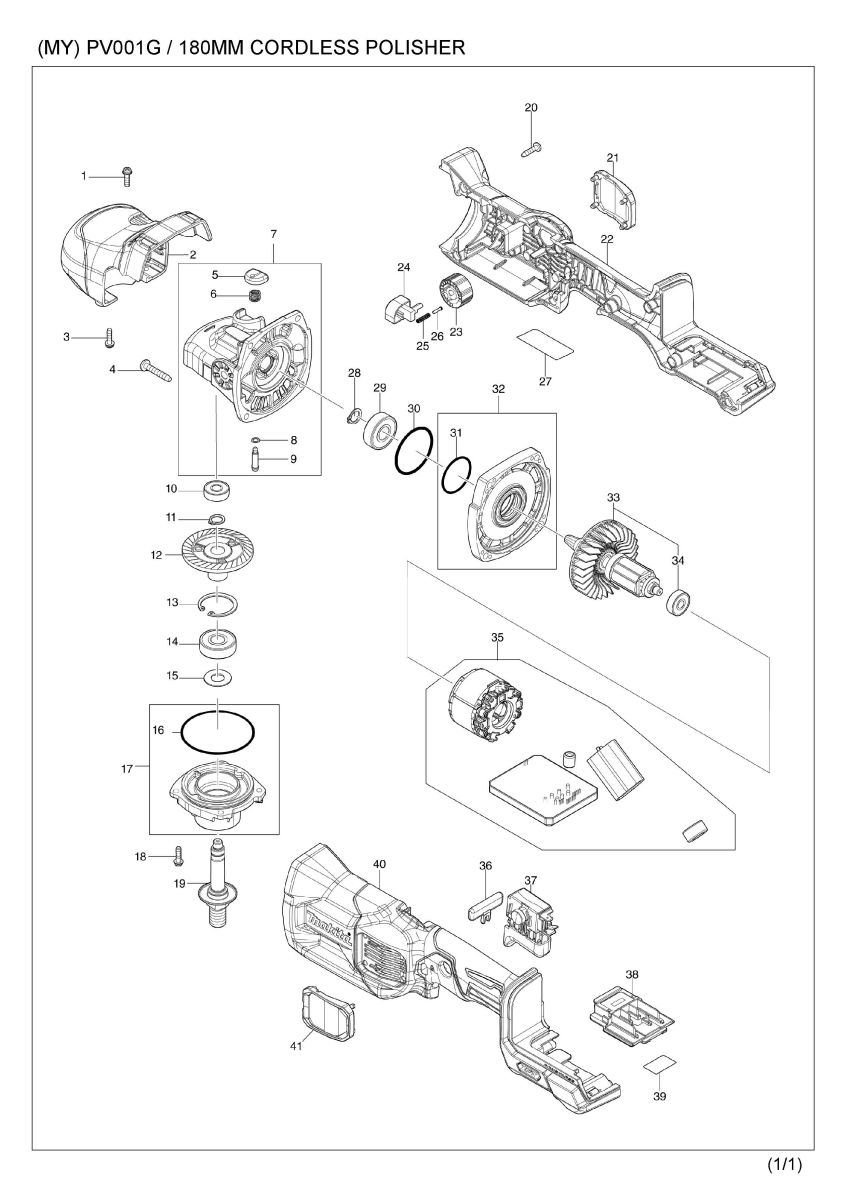

Part Diagram
Total: 65 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 002 | 413F66-1 | HEAD COVER | 1 | |
| 003 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 004 | 266173-1 | TAPPING SCREW 5X30 | 4 | |
| 005 | 412234-7 | PIN CAP | 1 | |
| 006 | 233072-2 | COMPRESSION SPRING 8 | 1 | |
| 007 | 136628-9 | GEAR HOUSING ASS'Y | 1 | |
| 007 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 007 | D10 | INC. 5,6,8,9 | ||
| 008 | 213960-9 | O RING 5 | 1 | |
| 009 | 256546-6 | SHOULDER PIN 4 | 1 | |
| 010 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 011 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 012 | 227953-0 | SPIRAL BEVEL GEAR 52 | 1 | |
| 013 | 962151-6 | RETAINING RING R-32 | 1 | |
| 014 | 211106-1 | BALL BEARING 6201LLB | 1 | |
| 015 | 267113-2 | FLAT WASHER 12 | 1 | |
| 016 | 213654-6 | O RING 60 | 1 | |
| 017 | 136629-7 | BEARING BOX ASS'Y | 1 | |
| 017 | D10 | INC. 16 | ||
| 018 | 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | |
| 019 | 141J24-8 | SPINDLE COMPLETE | 1 | |
| 020 | 265995-6 | TAPPING SCREW 4X18 | 10 | |
| 021 | 422871-9 | DUST COVER | 1 | |
| 022 | 183V37-5 | MOTOR HOUSING SET | 1 | |
| 022 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 022 | C20 | 8005T5-8 | XGT LOGO LABEL | 1 |
| 022 | D10 | INC. 40 | ||
| 023 | 271472-8 | DIAL 28 | 1 | |
| 024 | 620415-1 | SUB CONTROLLER | 1 | |
| 025 | 233002-3 | COMPRESSION SPRING 3 | 1 | |
| 026 | 255058-6 | RIVET 2 | 1 | |
| 027 | 8115Y5-8 | PV001G NAME PLATE | 1 | |
| 028 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 029 | 211137-0 | BALL BEARING 6201LLU | 1 | |
| 030 | 213842-5 | O-RING 40 | 1 | |
| 031 | 213459-4 | O RING 32 | 1 | |
| 032 | 136630-2 | GEAR HOUSING COVER ASS'Y | 1 | |
| 032 | D10 | INC. 31 | ||
| 033 | 519738-1 | ROTOR ASS'Y | 1 | |
| 033 | D10 | INC. 34 | ||
| 034 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 035 | 629B10-6 | STATOR COMPLETE | 1 | |
| 036 | 458972-7 | LOCK OFF BUTTON | 1 | |
| 037 | 650020-0 | SWITCH C3JR-4B-2L | 1 | |
| 038 | 632P65-6 | TERMINAL UNIT | 1 | |
| 039 | 8116A3-0 | PV001G SERIAL NO. LABEL | 1 | |
| 040 | 183V37-5 | MOTOR HOUSING SET | 1 | |
| 040 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 040 | C20 | 8005T5-8 | XGT LOGO LABEL | 1 |
| 040 | D10 | INC. 22 | ||
| 041 | 422871-9 | DUST COVER | 1 | |
| A01 | 262542-4 | SLEEVE 18 | 1 | |
| A02 | 413F67-9 | LOOP HANDLE | 1 | |
| A03 | 743053-3 | PAD 165 | 1 | |
| A04 | 192629-7 | WOOL PAD 180 | 1 | |
| A05 | 266171-5 | HEX. SOCKET HEAD BOLT M8X25 | 2 | |
| A06 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A07 | 158237-4 | GRIP 36 COMPLETE | 1 | |
| A08 | 422871-9 | DUST COVER | 2 | |
| A09B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A09B | D10 | COMPO-PARTS | ||
| A10B | 191B26-6 | BATTERY BL4040 SET | 1 | |
| A11B | 832411-9 | TOOL BAG | 1 | |
| F23 | 191D53-5 | WOOL PAD 180 SET | 1 |
