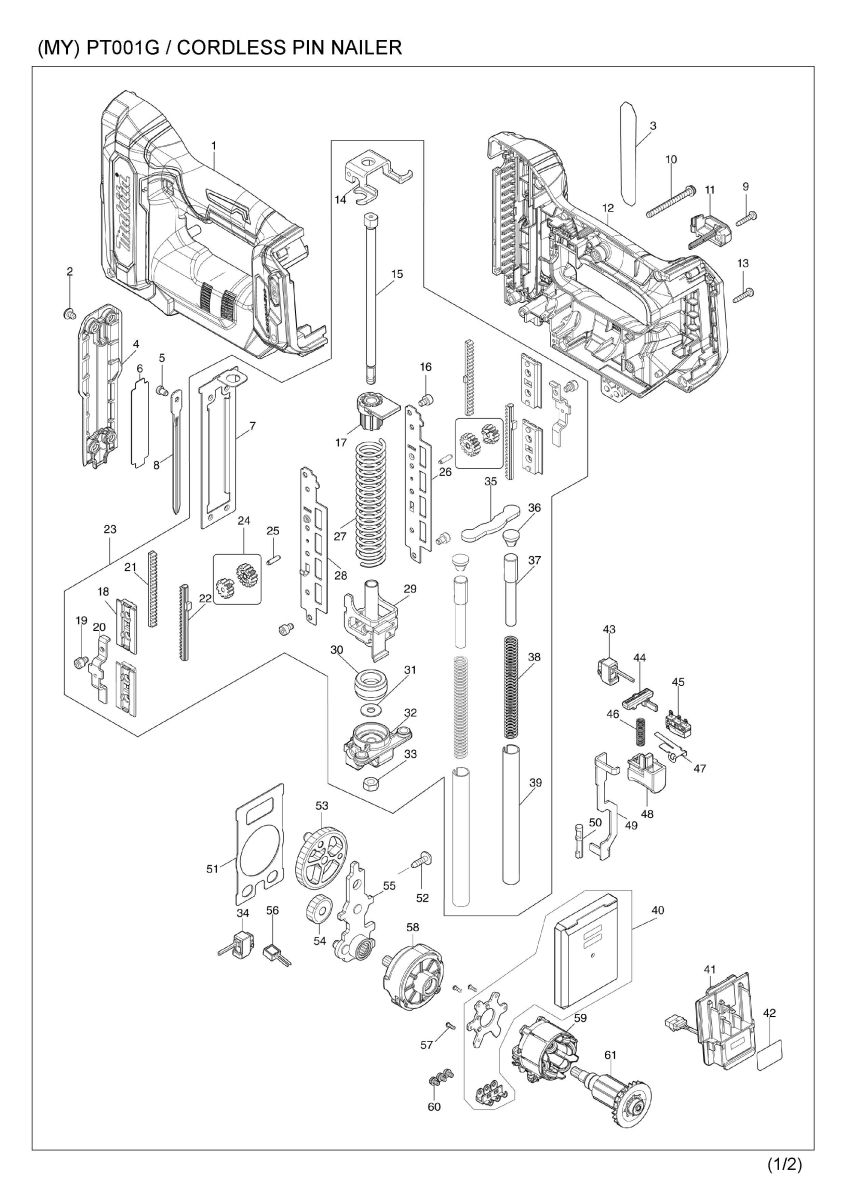

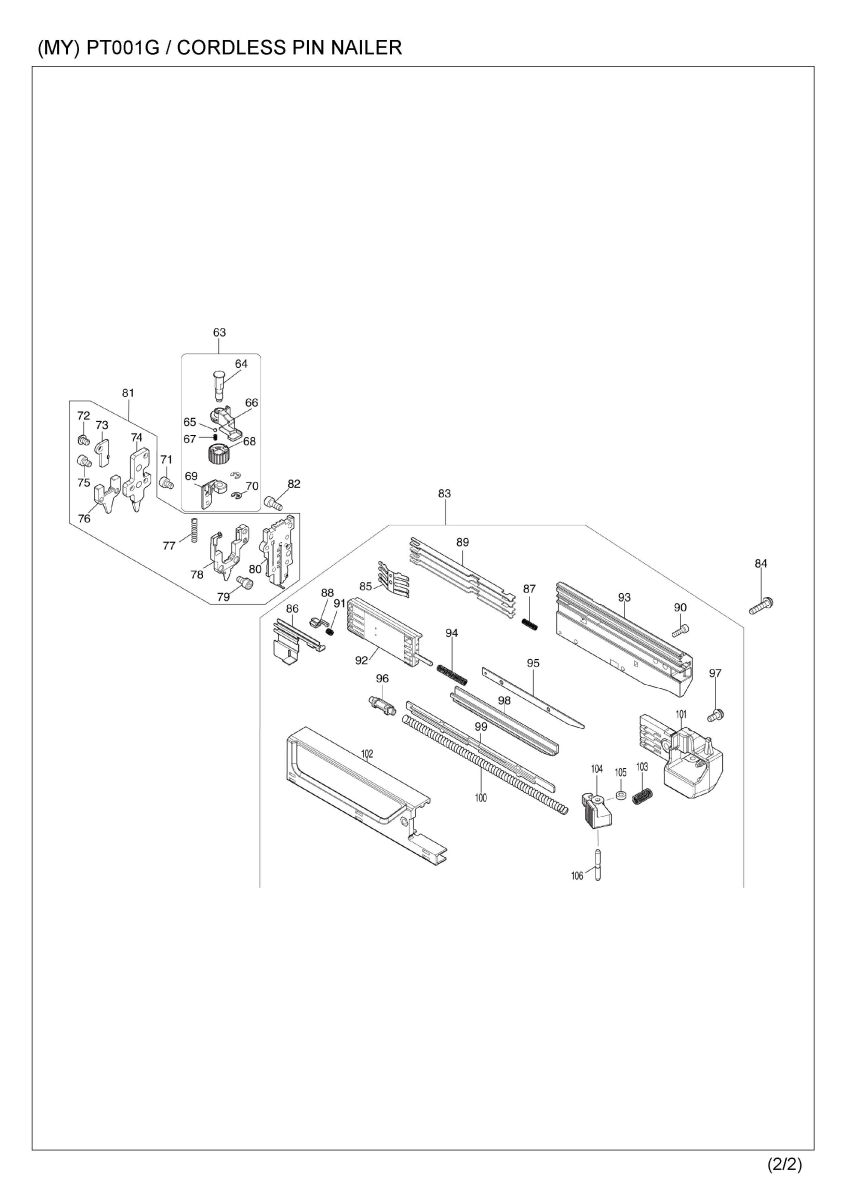

Part Diagram
Total: 131 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183V33-3 | HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 | |
| C30 | 931102-0 | HEX. NUT M4 | 1 | |
| C40 | 8007R2-2 | XGT LOGO LABEL | 1 | |
| D10 | INC. 12 | |||
| 002 | 915101-0 | BINDING HEAD SCREW M4X6 | 4 | |
| 003 | 8116E5-4 | PT001G NAME PLATE | 1 | |
| 004 | 413D63-5 | FRONT COVER | 1 | |
| 005 | 256882-0 | FLAT FILLISTER HD. PIN 4 | 1 | |
| 006 | 347528-0 | UPPER PLATE | 1 | |
| 007 | 347933-1 | RAIL | 1 | |
| 008 | 347935-7 | DRIVER | 1 | |
| 009 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | |
| 010 | 911173-3 | PAN HEAD SCREW M4X45 | 1 | |
| 011 | 413D62-7 | HOUSING R COVER | 1 | |
| 012 | 183V33-3 | HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 | |
| C30 | 931102-0 | HEX. NUT M4 | 1 | |
| C40 | 8007R2-2 | XGT LOGO LABEL | 1 | |
| D10 | INC. 1 | |||
| 013 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | |
| 014 | 347936-5 | BOTTOM PLATE | 1 | |
| 015 | 327939-5 | GUIDE BOLT | 1 | |
| 016 | 266199-3 | HEX.SOCKET HEAD BOLT M4X6 | 4 | |
| 017 | 313406-6 | BOTTOM HOLDER | 1 | |
| 018 | 413330-4 | COUNTER WEIGHT HOLDER | 4 | |
| 019 | 251566-5 | H.S.H BOLT M4X6 WITH W | 2 | |
| 020 | 347146-4 | PINION GUIDE | 2 | |
| 021 | 313421-0 | COUNTER WEIGHT A | 2 | |
| 022 | 310925-3 | COUNTER WEIGHT B | 2 | |
| 023 | 136695-4 | COUNTER WEIGHT ASS'Y | 1 | |
| D10 | INC. 7,14-22,24-33,35-39 | |||
| 024 | 136104-3 | SPUR GEAR ASSEMBLY | 2 | |
| 025 | 326902-5 | PINION SHAFT | 2 | |
| 026 | 347938-1 | GUIDE RAIL L | 1 | |
| 027 | 232741-2 | COMPRESSION SPRING 17 | 1 | |
| 028 | 347939-9 | GUIDE RAIL R | 1 | |
| 029 | 347937-3 | HAMMER | 1 | |
| 030 | 422457-9 | CUSHION | 1 | |
| 031 | 253804-1 | FLAT WASHER 6 | 1 | |
| 032 | 312C49-9 | HOLDER | 1 | |
| 033 | 252273-3 | HEX. NUT M6 | 1 | |
| 034 | 140W22-7 | SWITCH COMPLETE | 1 | |
| 035 | 347729-0 | COUNTER STOPPER | 1 | |
| 036 | 422592-3 | COUNTER CUSHION | 2 | |
| 037 | 327942-6 | WEIGHT | 2 | |
| 038 | 232630-1 | COMPRESSION SPRING 7 | 2 | |
| 039 | 327943-4 | GUIDE PIPE | 2 | |
| 040 | 620H96-9 | CONTROLLER | 1 | |
| 041 | 632R99-1 | TERMINAL UNIT | 1 | |
| 042 | 8116F2-7 | PT001G SERIAL NO. LABEL | 1 | |
| 043 | 140W22-7 | SWITCH COMPLETE | 1 | |
| 044 | 456799-9 | TRIGGER LOCK | 1 | |
| 045 | 632S31-1 | SWITCH UNIT | 1 | |
| 046 | 232370-1 | COMPRESSION SPRING 5 | 1 | |
| 047 | 232672-5 | LEAF SPRING | 1 | |
| 048 | 413328-1 | TRIGGER | 1 | |
| 049 | 347932-3 | LOCK ARM | 1 | |
| 050 | 327941-8 | LOCK PIN | 1 | |
| 051 | 347934-9 | GEAR PLATE | 1 | |
| 052 | 266901-4 | TAPPING SCREW 4X14 | 1 | |
| 053 | 141G69-8 | SPUR GEAR 61 COMPLETE | 1 | |
| 054 | 226892-1 | SPUR GEAR 25 | 1 | |
| 055 | 141G70-3 | BASE PLATE COMPLETE | 1 | |
| 056 | 620507-6 | LED CIRCUIT | 1 | |
| 057 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 058 | 122B56-6 | GEAR ASSEMBLY | 1 | |
| 059 | 629A99-8 | STATOR | 1 | |
| 060 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 061 | 619727-7 | ROTOR | 1 | |
| 063 | 136663-7 | ADJUSTER ASSEMBLY | 1 | |
| D10 | INC. 64-70 | |||
| 064 | 327940-0 | ADJUSTER SHAFT | 1 | |
| 065 | 216031-1 | STEEL BALL 2.3 | 1 | |
| 066 | 413D64-3 | CONTACT ARM | 1 | |
| 067 | 234254-9 | COMPRESSION SPRING 2 | 1 | |
| 068 | 413D61-9 | ADJUSTER | 1 | |
| 069 | 313405-8 | ARM | 1 | |
| 070 | 961017-7 | STOP RING E-3 | 2 | |
| 071 | 922102-1 | HEX. SOCKET HEAD BOLT M4X6 | 1 | |
| 072 | 265C44-7 | H.L.BUTTON HEAD BOLT M4X6 | 1 | |
| 073 | 347929-2 | SPRING COVER | 1 | |
| 074 | 141G71-1 | DRIVER GUIDE COVER COMPLETE | 1 | |
| 075 | 922102-1 | HEX. SOCKET HEAD BOLT M4X6 | 3 | |
| 076 | 313404-0 | CONTACT TOP COVER | 1 | |
| 077 | 232740-4 | COMPRESSION SPRING 3 | 1 | |
| 078 | 141D51-9 | CENTER PLATE COMPLETE | 1 | |
| 079 | 922106-3 | HEX. SOCKET HEAD BOLT M4X8 | 2 | |
| 080 | 141D52-7 | DRIVER GUIDE COMPLETE | 1 | |
| 081 | 122B55-8 | DRIVER GUIDE ASSEMBLY | 1 | |
| D10 | INC. 72-80 | |||
| 082 | 922112-8 | HEX. SOCKET HEAD BOLT M4X10 | 3 | |
| 083 | 136657-2 | MAGAZINE ASSEMBLY | 1 | |
| D10 | INC. 85-106 | |||
| 084 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | |
| 085 | 232362-0 | LEAF SPRING | 1 | |
| 086 | 347138-3 | PUSHER | 1 | |
| 087 | 232367-0 | COMPRESSION SPRING 3 | 4 | |
| 088 | 310176-8 | STOPPER | 1 | |
| 089 | 346239-4 | NAIL STOPPER | 4 | |
| 090 | 266177-3 | HEX. SOCKET HEAD BOLT M3X10 | 2 | |
| 091 | 233018-8 | COMPRESSION SPRING 3 | 1 | |
| 092 | 457382-5 | NAIL GUIDE HOLDER | 1 | |
| 093 | 458195-7 | MAGAZINE | 1 | |
| 094 | 233459-8 | COMPRESSION SPRING 3 | 1 | |
| 095 | 347137-5 | SPACER | 1 | |
| 096 | 457383-3 | SHOULDER PIN 5-6 | 1 | |
| 097 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 098 | 144335-0 | LOWER RAIL COMPLETE | 1 | |
| 099 | 457387-5 | SPRING COVER | 1 | |
| 100 | 232366-2 | COMPRESSION SPRING 5 | 1 | |
| 101 | 457381-7 | SLIDE DOOR CAP | 1 | |
| 102 | 457380-9 | UPPER RAIL | 1 | |
| 103 | 233117-6 | COMPRESSION SPRING 6 | 1 | |
| 104 | 413329-9 | LEVER | 1 | |
| 105 | 262054-7 | URETHANE RING 3 | 1 | |
| 106 | 256793-9 | PIN 3 | 1 | |
| A01 | 195246-2 | SAFETY GOGGLE | 1 | |
| A02 | 251314-2 | + SCREW M4X12 | 1 | |
| A03 | 346317-0 | HOOK | 1 | |
| A04 | 422844-2 | NOSE ADAPTER | 2 | |
| A05 | 783201-2 | HEX. WRENCH 3 | 1 | |
| A06B | 821834-6 | PLASTIC CASE | 1 | |
| C10 | 162302-3 | LATCH | 2 | |
| A07B | 835V71-8 | INNER TRAY | 1 | |
| A08B | 8049B0-8 | PT001GD101 PLASTIC CASE LABEL | 2 | |
| A09B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A10B | 191B36-3 | BATTERY BL4025 SET | 1 |
