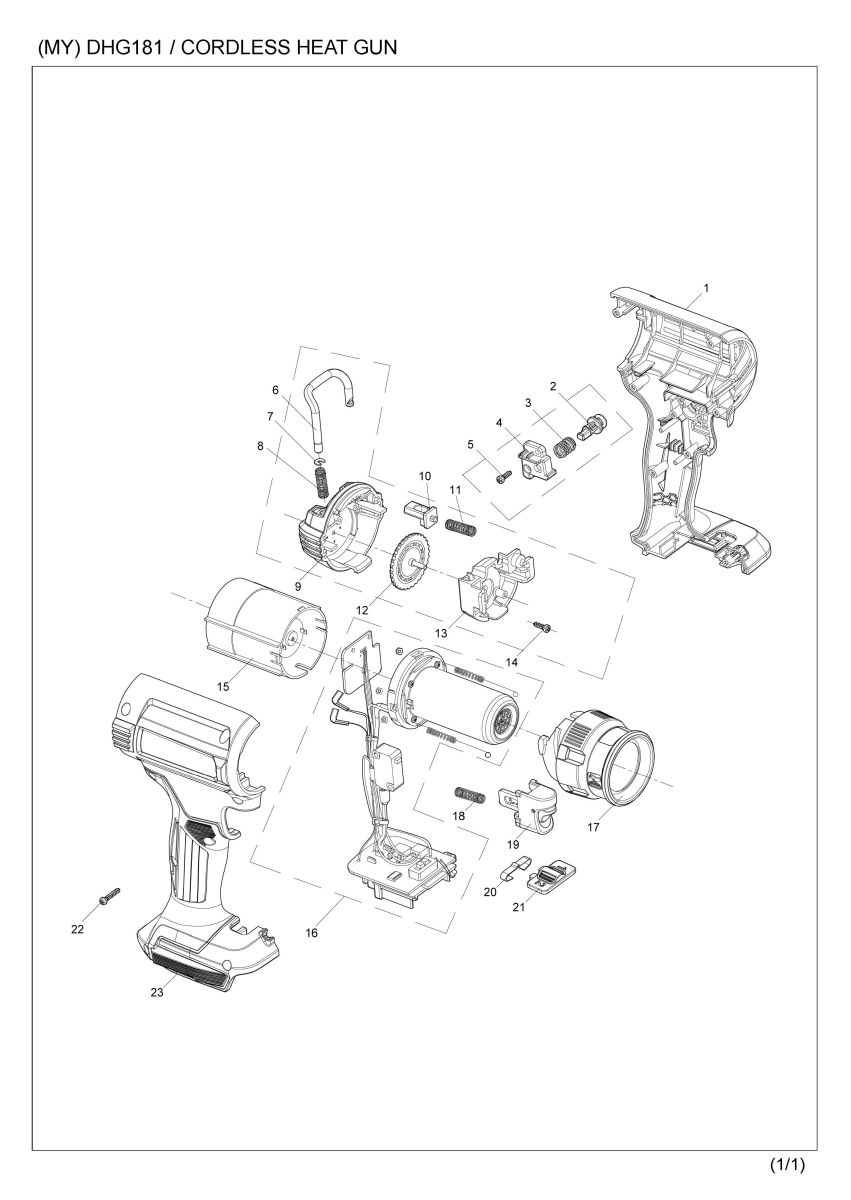

Part Diagram
Total: 36 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | PR00000420 | HOUSING SET | 1 | |
| D10 | INC. 23 | |||
| 002 | PR00000380 | LOCK ON BUTTON | 1 | |
| 003 | PR00000381 | SPRING9 | 1 | |
| 004 | PR00000382 | SUPPORT FRAME | 1 | |
| 005 | PR00000293 | TAPPING SCREW ST2.9X10 | 2 | |
| 006 | PR00000383 | HOOK | 1 | |
| 007 | PR00000384 | SNAP RING | 1 | |
| 008 | PR00000385 | SPRING6 | 1 | |
| 009 | PR00000421 | REAR COVER | 1 | |
| 010 | PR00000422 | HOOK BUTTON | 1 | |
| 011 | PR00000388 | SPRING5 | 1 | |
| 012 | PR00000423 | DIAL | 1 | |
| 013 | PR00000425 | INNER COVER | 1 | |
| 014 | PR00000293 | TAPPING SCREW ST2.9X10 | 3 | |
| 015 | PR00000390 | MOTOR ASSEMBLY | 1 | |
| 016 | PR00000427 | HEATER ASSEMBLY | 1 | |
| C10 | PR00000424 | NUT 2.5 | 2 | |
| C20 | PR00000426 | SCREW 2.5X10 | 2 | |
| C30 | PR00000428 | TENSION SPRING 3 | 2 | |
| 017 | PR00000392 | FRONT COVER ASSEMBLY | 1 | |
| 018 | PR00000393 | SPRING 4 | 1 | |
| 019 | PR00000394 | TRIGGER ASSEMBLY | 1 | |
| 020 | PR00000429 | LEAF SPRING | 1 | |
| 021 | PR00000430 | CHANGE LEVER | 1 | |
| 022 | PR00000395 | TAPPING SCREW ST2.9X16 | 8 | |
| 023 | PR00000420 | HOUSING SET | 1 | |
| D10 | INC. 1 | |||
| A01 | PR00000031 | REDUCTION NOZZLE 20mm | 1 | |
| A02 | PR00000030 | REFLECTOR NOZZLE | 1 | |
| A03 | PR00000029 | WIDE-SLOT NOZZLE | 1 | |
| A04 | PR00000028 | GLASS PROTECTION NOZZLE | 1 | |
| A05A | PR00000404 | PLASTIC CASE | 1 | |
| A15B | 197280-8 | BATTERY BL1850B SET | 1 | |
| A19B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| D10 | COMPO-PARTS |
