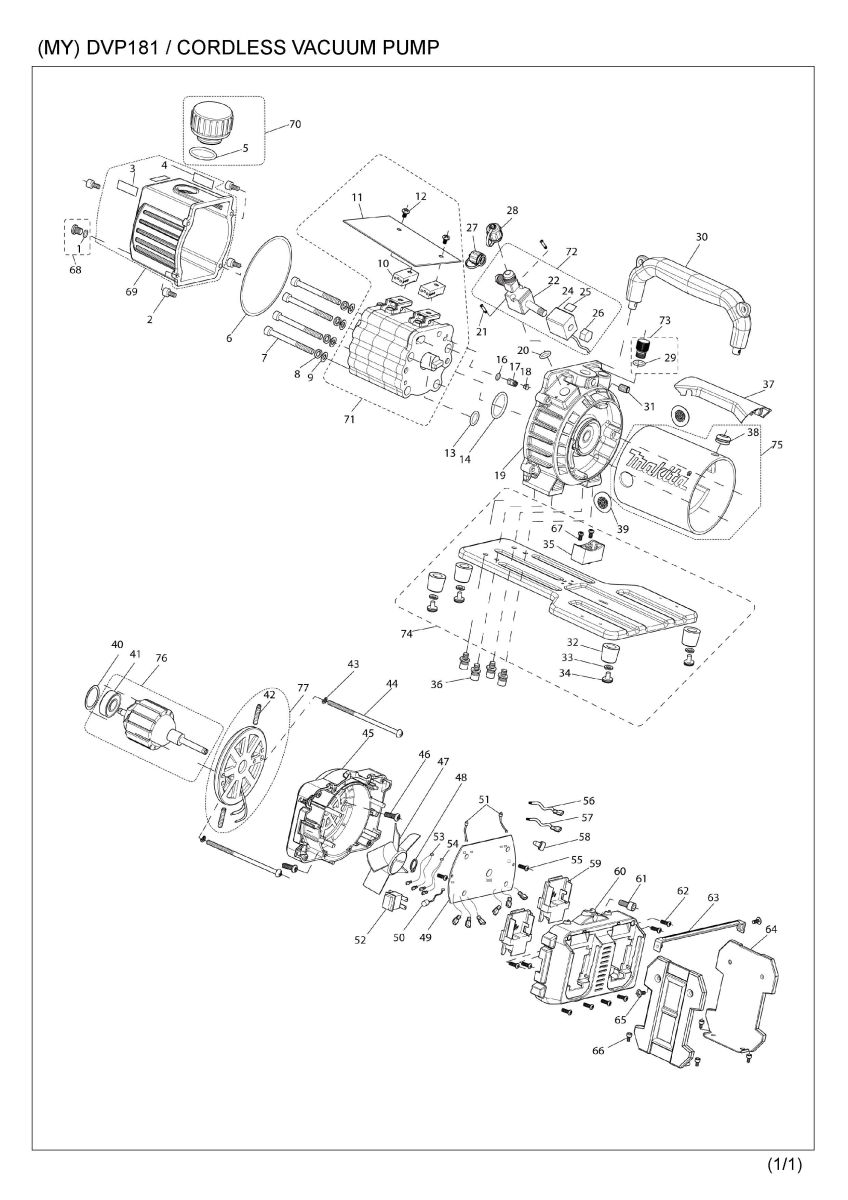

Part Diagram
Total: 94 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | AS000VP010 | O-RING 10X2.5 | 1 | |
| 002 | AS000VP011 | HEXAGON BOLT M5X16 | 4 | |
| 003 | AS00SS0537 | CAUTION LABEL 18X18 | 1 | |
| 004 | AS00SS0306 | CAUTION LABEL (OIL) | 1 | |
| 005 | AS000VP013 | O-RING 26X2.2 | 1 | |
| 006 | AS000VP092 | O-RING 120X3.1 | 1 | |
| 007 | AS000VP093 | HEX SOCKET HEAD BOLT M8X90 | 4 | |
| 008 | AS000VP094 | SPRING WASHER 8 | 4 | |
| 009 | AS000VP095 | FLAT WASHER 8 | 4 | |
| 010 | AS000VP097 | VALVE COVER | 2 | |
| 011 | AS000VP098 | CAP BOARD | 1 | |
| 012 | AS000VP099 | PAN HEAD SCREW M5X8 | 2 | |
| 013 | AS000VP100 | O-RING 12X1.6 | 1 | |
| 014 | AS000VP101 | O-RING 34.5X2 | 1 | |
| 016 | AS000VP103 | O-RING 13X2 | 1 | |
| 017 | AS000VP104 | SPRING 7X0.5X6 | 1 | |
| 018 | AS000VP105 | GAS BALLAST VALVE ELEMENT | 1 | |
| 019 | AS00VP106M | TRESTLE MA245 | 1 | |
| 020 | AS000VP107 | O-RING 15X2 | 1 | |
| 021 | AS000VP173 | PAN HEAD SCREW M3X25 | 2 | |
| 022 | AS000VP109 | SOLENOID VALVE ASSY | 1 | |
| 024 | AS000VP111 | SOLENOID VALVE C1-18V COIL | 1 | |
| 025 | AS00SS0537 | CAUTION LABEL 18X18 | 1 | |
| 026 | AS000VP112 | SOLENOID VALVE NUT | 1 | |
| 027 | AS000VP017 | INLET PORT CAP (5/16") | 1 | |
| 028 | AS000VP113 | INLET PORT CAP 4# (3/8SAE) | 1 | |
| 029 | AS000VP115 | O-RING | 1 | |
| 030 | AS000VP117 | HANDLE MA245 | 1 | |
| 031 | AS000VP118 | HEX SOCKET HEAD BOLT M8X8 | 1 | |
| 032 | AS000VP121 | RUBBER BLANKET 5# | 4 | |
| 033 | AS000VP122 | FLAT WASHER | 4 | |
| 034 | AS000VP123 | PAN HEAD SCREW M4X8 | 4 | |
| 035 | AS000VP124 | MOTOR SUPPORT | 1 | |
| 036 | AS000VP026 | HEXAGON BOLT (W/WAHSER) M5X16 | 4 | |
| 037 | AS000VP125 | WIRING COVER | 1 | |
| 038 | AS000VP126 | RUBBER RING | 1 | |
| 039 | AS000VP020 | INLET PORT CAP | 2 | |
| 040 | AS000VP128 | BEARING WASHER | 1 | |
| 041 | AS000VP130 | BEARING 6201 | 1 | |
| 042 | AS000VP132 | CARBON BRUSH SPRING DC18V | 2 | |
| 043 | AS000VP027 | SPRING WASHER M5 | 2 | |
| 044 | AS000VP133 | PAN HEAD SCREW M5X130 | 2 | |
| 045 | AS000VP134 | BATTERY HOLDER F | 1 | |
| 046 | AS000VP066 | HEXAGON BOLT M5X12 | 2 | |
| 047 | AS000VP135 | FAN | 1 | |
| 048 | AS000VP136 | CIRCLIP | 1 | |
| 048-1 | AS000VP175 | CIRCLIP | 1 | |
| 049 | AS000VP137 | CIRCUIT BOARD B8-18V | 1 | |
| 049-1 | AS000VP176 | CIRCUIT BOARD | 1 | |
| 049-2 | AS000VP176 | CIRCUIT BOARD | 1 | |
| 049-2 | D10 | INC.50-54 | ||
| 050 | AS000VP138 | BUZZER | 1 | |
| 051 | AS000VP139 | LED LAMP | 2 | |
| 052 | AS000VP140 | SWITCH | 1 | |
| 053 | AS000VP141 | WIRING ASSY L FOR SWITCH | 1 | |
| 054 | AS000VP142 | WIRING ASSY S FOR SWITCH | 1 | |
| 055 | AS000VP035 | TAPPING SCREW M3X10 | 2 | |
| 056 | AS000VP143 | RED CONNECTING LINE | 1 | |
| 057 | AS000VP144 | BLACK CONNECTING LINE | 1 | |
| 058 | AS000VP145 | CLOSED END SPLICE | 2 | |
| 059 | 643899-6 | TERMINAL | 2 | |
| 060 | AS000VP146 | BATTERY HOLDER | 1 | |
| 061 | AS000VP147 | HEX SOCKET HEAD BOLT M5X10 | 1 | |
| 062 | AS000VP035 | TAPPING SCREW M3X10 | 8 | |
| 063 | AS000VP148 | BATTERY GUARD CONNECTING ROD | 1 | |
| 064 | AS000VP149 | BATTERY GUARD | 2 | |
| 065 | AS000VP123 | PAN HEAD SCREW M4X8 | 2 | |
| 066 | AS000VP174 | HEX SOCKET HEAD BOLT M4X10 | 4 | |
| 067 | AS000VP123 | PAN HEAD SCREW M4X8 | 2 | |
| 068 | AS00VP086M | OIL DRAIN PLUG ASSY | 1 | |
| 068 | D10 | INC. 1 | ||
| 069 | AS00VP091M | OIL TANK MA245 ASSY | 1 | |
| 069 | D10 | INC. 3,4 | ||
| 070 | AS000VP087 | EXHAUST PORT ASSY | 1 | |
| 070 | D10 | INC. 5 | ||
| 071 | AS000VP096 | PUMP HEAD ASSY | 1 | |
| 071 | D10 | INC. 10-12 | ||
| 072 | AS000VP108 | SOLENOID VALVE ASSY | 1 | |
| 072 | D10 | INC. 22,24-24 | ||
| 073 | AS000VP114 | GAS BALLAST ASSY | 1 | |
| 073 | D10 | INC. 29 | ||
| 074 | AS000VP119 | BASE ASSY | 1 | |
| 074 | D10 | INC. 32-35,67 | ||
| 075 | AS00VP127M | MOTOR HOUSING ASSY | 1 | |
| 075 | D10 | INC. 38 | ||
| 076 | AS000VP129 | ARMATURE ASSY | 1 | |
| 076 | D10 | INC. 41 | ||
| 077 | AS000VP131 | MOTOR REAR COVER ASSY | 1 | |
| 077 | D10 | INC. 42 | ||
| 078 | AS000VP177 | STRAINER | 1 | |
| A01 | 821822-3 | PLASTIC CASE | 1 | |
| A02 | AS0Y06110K | ADAPTER | 1 | |
| A03 | AS0VP083MK | VACUUM PUMP OIL | 1 | |
| C01 | ASPK0103MK | SLEEVE BOX | 1 |
