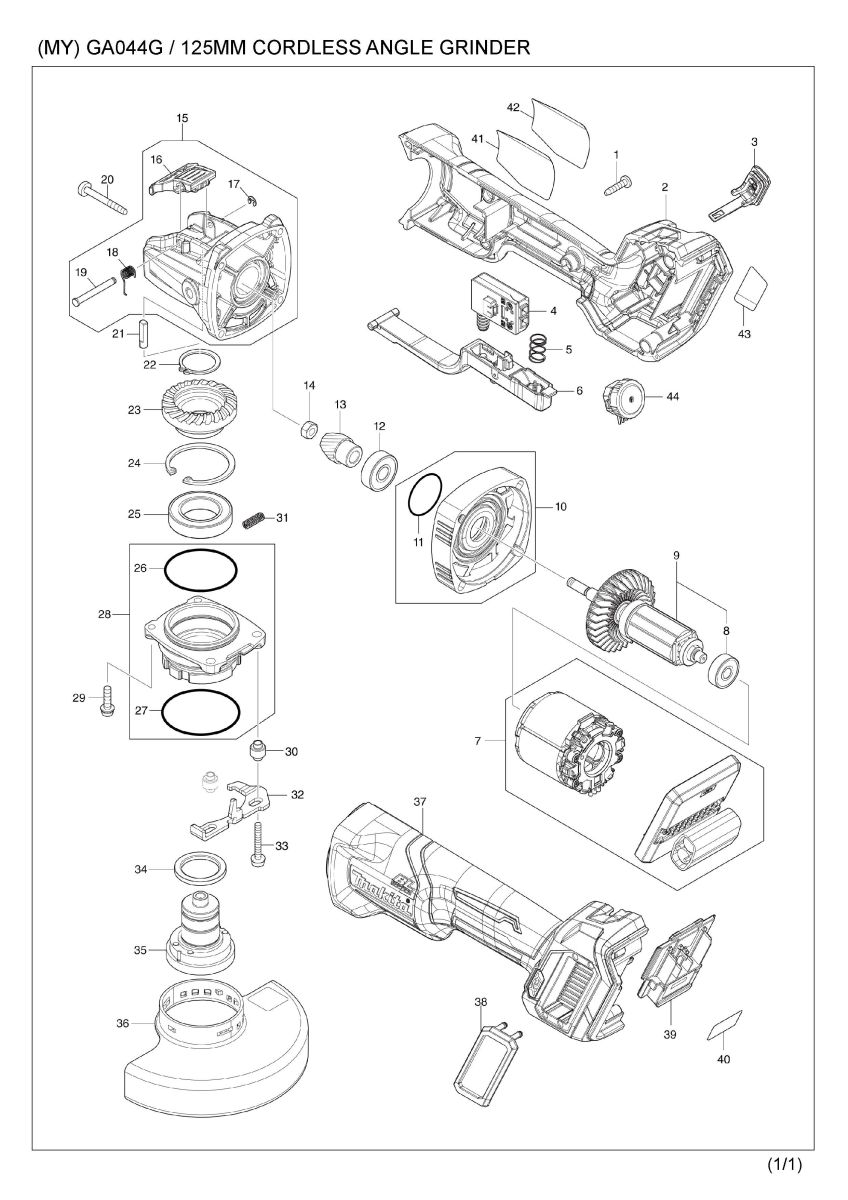

Part Diagram
Total: 78 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 002 | 183W45-2 | MOTOR HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 8005T5-8 | XGT LOGO LABEL | 1 | |
| D10 | INC. 37 | |||
| 003 | 140G30-2 | CAP COMPLETE | 1 | |
| C10 | 213A05-9 | O-RING16 | 1 | |
| C20 | 818H48-4 | CAP LABEL | 1 | |
| 004 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 005 | 233263-5 | COMPRESSION SPRING 9 | 1 | |
| 006 | 140T33-4 | SWITCH LEVER COMPLETE | 1 | |
| 007 | 629A00-3 | STATOR COMPLETE | 1 | |
| 008 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 009 | 519762-4 | ROTOR ASS'Y | 1 | |
| D10 | INC. 8 | |||
| 010 | 136190-4 | GEAR HOUSING COVER ASS'Y | 1 | |
| D10 | INC. 11 | |||
| 011 | 213445-5 | O-RING 26 | 1 | |
| 012 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 013 | 226950-3 | SPIRAL BEVEL GEAR 10 | 1 | |
| 014 | 252186-8 | HEX. NUT M6 | 1 | |
| 015 | 136715-4 | GEAR HOUSING ASS'Y | 1 | |
| D10 | INC. 16-19 | |||
| 016 | 459967-3 | LEVER | 1 | |
| 017 | 961017-7 | STOP RING E-3 | 1 | |
| 018 | 232576-1 | TORSION SPRING 5 | 1 | |
| 019 | 256935-5 | HEADED PIN 4 | 1 | |
| 020 | 266048-4 | TAPPING SCREW 4X40 | 4 | |
| 021 | 327460-4 | SHAFT | 1 | |
| 022 | 961104-2 | RETAINING RING S-24 | 1 | |
| 023 | 226951-1 | SPIRAL BEVEL GEAR 37 | 1 | |
| 024 | 962201-7 | RETAINING RING (INT) R-42 | 1 | |
| 025 | 210208-0 | BALL BEARING 6905DDW | 1 | |
| 026 | 213622-9 | O RING 45 | 1 | |
| 027 | 213783-5 | O-RING 48 | 1 | |
| 028 | 136716-2 | BEARING BOX ASS'Y | 1 | |
| D10 | INC. 26,27 | |||
| 029 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | |
| 030 | 327322-6 | SLEEVE 4 | 2 | |
| 031 | 232490-1 | COMPRESSION SPRING 4 | 1 | |
| 032 | 347A22-8 | LEVER | 1 | |
| 033 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | |
| 034 | 327459-9 | RING 25 | 1 | |
| 035 | 127428-8 | SPINDLE ASSEMBLY | 1 | |
| 036 | 141L27-4 | WHEEL COVER 125 COMPLETE | 1 | |
| C10 | 8050A1-8 | CAUTION LABEL | 1 | |
| 037 | 183W45-2 | MOTOR HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 8005T5-8 | XGT LOGO LABEL | 1 | |
| D10 | INC. 2 | |||
| 038 | 422610-7 | DUST COVER | 1 | |
| 039 | 632P65-6 | TERMINAL UNIT | 1 | |
| 040 | 858G49-4 | GA044G SERIAL NO. LABEL | 1 | |
| 041 | 858G46-0 | GA044G NAME PLATE | 1 | |
| 042 | 8008U5-3 | CLEAR LABEL | 1 | |
| 043 | 8015J1-9 | INDICATION LABEL | 1 | |
| 044 | 620D30-5 | DIAL CIRCUIT | 1 | |
| A01 | 199710-5 | CUTTING W.C.A. 125 SET | 1 | |
| A02 | 158237-4 | GRIP 36 COMPLETE | 1 | |
| A03 | E-00402 | GRINDING WHEEL INOX 125 X-LOCK | 1 | |
| A04B | 8054S5-0 | GA044GD201 INDICATION LABEL | 1 | |
| A04C | 8054S7-6 | GA044GM201 INDICATION LABEL | 1 | |
| A05B | 8054V7-7 | GA044GD201 PLASTIC CASE LABEL | 2 | |
| A05C | 8054V9-3 | GA044GM201 PLASTIC CASE LABEL | 2 | |
| A06B | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| C10 | 453974-8 | LATCH | 4 | |
| A06C | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| C10 | 453974-8 | LATCH | 4 | |
| A07B | 835E79-0 | INNER TRAY | 1 | |
| A07C | 835E79-0 | INNER TRAY | 1 | |
| A08B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A08C | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A09B | 191B36-3 | BATTERY BL4025 SET | 2 | |
| A09C | 191B26-6 | BATTERY BL4040 SET | 2 | |
| A10B | 412393-7 | BATTERY COVER | 2 | |
| A10C | 412393-7 | BATTERY COVER | 2 |
