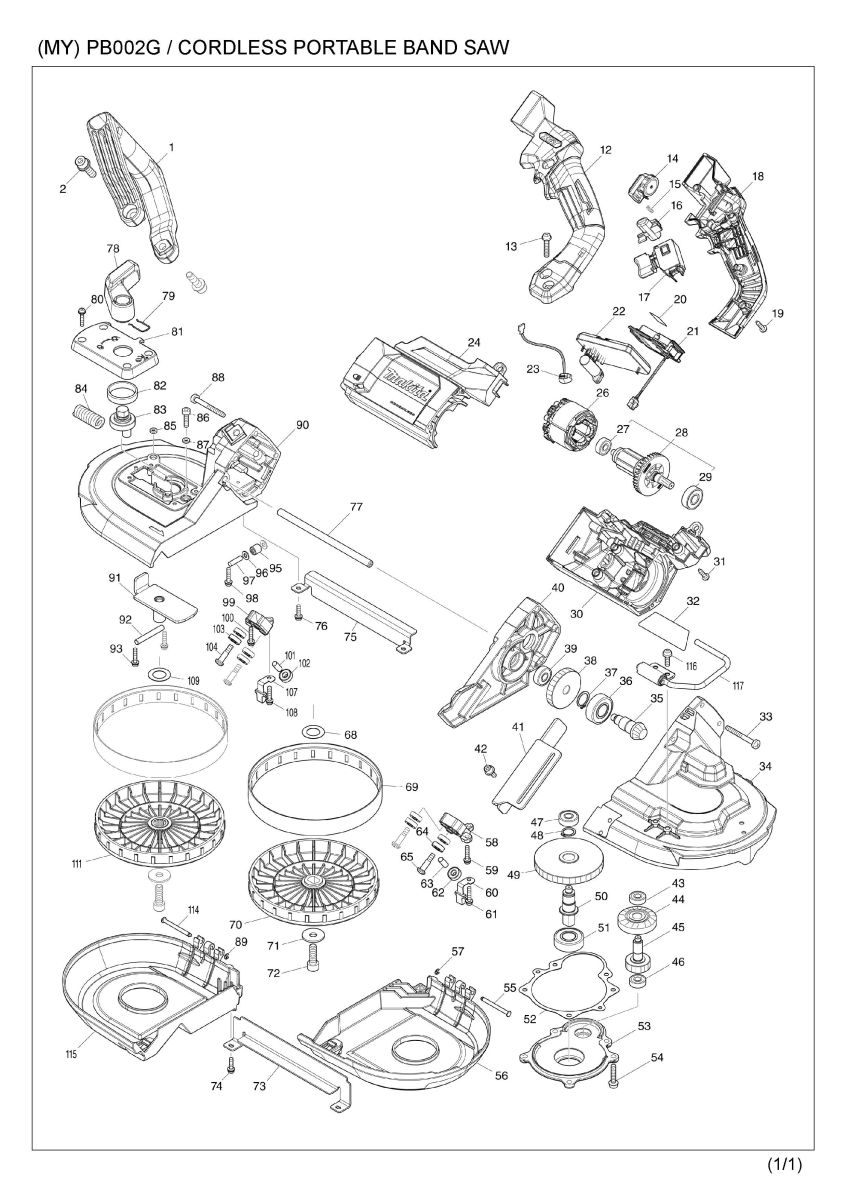

Part Diagram
Total: 128 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 273030-6 | GRIP | 1 | |
| 002 | 922453-2 | HEX.SOCKET HEAD BOLT M8X30 | 2 | |
| 012 | 183V79-9 | HANDLE SET | 1 | |
| 012 | C10 | 8012U4-2 | XGT LOGO LABEL | 1 |
| 012 | D10 | INC. 18 | ||
| 013 | 911243-8 | PAN HEAD SCREW M5X25 | 2 | |
| 014 | 620A64-0 | DIAL CURCUIT | 1 | |
| 015 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 016 | 412551-5 | LOCK OFF BUTTON | 1 | |
| 017 | 651486-7 | SWITCH C3JW-4B-R | 1 | |
| 018 | 183V79-9 | HANDLE SET | 1 | |
| 018 | C10 | 8012U4-2 | XGT LOGO LABEL | 1 |
| 018 | D10 | INC. 12 | ||
| 019 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 020 | 8116W3-4 | PB002G SERIAL NO. LABEL | 1 | |
| 021 | 632P49-4 | TERMINAL UNIT | 1 | |
| 022 | 620J36-9 | CONTROLLER | 1 | |
| 023 | 620549-0 | LED CIRCUIT | 1 | |
| 024 | 183V14-7 | MOTOR HOUSING SET | 1 | |
| 024 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 024 | D10 | INC. 30 | ||
| 026 | 629B03-3 | STATOR | 1 | |
| 027 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 028 | 519736-5 | ROTOR ASS'Y | 1 | |
| 028 | D10 | INC. 27,29 | ||
| 029 | 210141-6 | BALL BEARING 6000DDW | 1 | |
| 030 | 183V14-7 | MOTOR HOUSING SET | 1 | |
| 030 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 030 | D10 | INC. 24 | ||
| 031 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 032 | 8116V7-9 | PB002G NAME PLATE | 1 | |
| 033 | 266056-5 | TAPPING SCREW 5X45 | 4 | |
| 034 | 141G83-4 | REAR FRAME COMPLETE | 1 | |
| 034 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 034 | C20 | 424736-1 | SPONGE | 1 |
| 035 | 227930-2 | SPIRAL BEVEL GEAR 11 | 1 | |
| 036 | 211487-3 | BALL BEARING 6202DDW | 1 | |
| 037 | 961055-9 | RETAINING RING S-15 | 1 | |
| 038 | 227934-4 | HELICAL GEAR 61 | 1 | |
| 039 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 040 | 141H06-8 | GEAR HOUSING COMPLETE | 1 | |
| 041 | 347940-4 | STOPPER PLATE | 1 | |
| 042 | 922224-7 | H.S.H.BOLT M5X16 WITH WG | 2 | |
| 043 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 044 | 227931-0 | SPIRAL BEVEL GEAR 29 | 1 | |
| 045 | 227932-8 | SPUR GEAR 12 | 1 | |
| 046 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 047 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 048 | 961054-1 | RETAINING RING S-14 | 1 | |
| 049 | 227933-6 | SPUR GEAR 39 | 1 | |
| 050 | 327947-6 | SPINDLE | 1 | |
| 051 | 211487-3 | BALL BEARING 6202DDW | 1 | |
| 052 | 422845-0 | GASKET | 1 | |
| 053 | 312C55-4 | BEARING BOX | 1 | |
| 054 | 911243-8 | PAN HEAD SCREW M5X25 | 5 | |
| 055 | 256689-4 | PIN 4 | 1 | |
| 056 | 413D72-4 | REAR WHEEL COVER | 1 | |
| 056-1 | 141N85-2 | REAR WHEEL COVER COMPLETE | 1 | |
| 057 | 961017-7 | STOP RING E-3 | 1 | |
| 058 | 312C53-8 | LOWER HOLDER | 1 | |
| 059 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 060 | 162B33-6 | HOOK | 1 | |
| 061 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 062 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 063 | 256033-5 | PIN 6 | 1 | |
| 064 | 210187-2 | BALL BEARING 696ZZ | 4 | |
| 065 | 251337-0 | + PAN HEAD SCREW M5 | 2 | |
| 068 | 267164-5 | FLAT WASHER 15 | 1 | |
| 069 | 421333-4 | RUBBER TIRE | 2 | |
| 070 | 413D66-9 | WHEEL B | 1 | |
| 071 | 253852-0 | FLAT WASHER 8 | 2 | |
| 072 | 265C56-0 | H.S. HEAD BOLT M8X25 | 2 | |
| 073 | 347942-0 | SAW GUARD COVER | 1 | |
| 074 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 075 | 347941-2 | SAW GUARD | 1 | |
| 076 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 077 | 327948-4 | GUARD ROD 8 | 1 | |
| 078 | 271470-2 | LEVER 65 | 1 | |
| 079 | 231955-0 | RING SPRING 12 | 1 | |
| 080 | 911138-5 | P.H.SCREW M4X20 WITH WR | 4 | |
| 081 | 413D73-2 | LEVER HOLDER | 1 | |
| 082 | 214408-4 | PLANE BEARING 30 | 1 | |
| 083 | 326351-6 | LEVER SHAFT | 1 | |
| 084 | 234313-9 | COMPRESSION SPRING 9 | 1 | |
| 085 | 262130-7 | URETHANE RING 4 | 1 | |
| 086 | 265382-9 | HEX. SOCKET HEAD BOLT M5X20 | 1 | |
| 087 | 262130-7 | URETHANE RING 4 | 1 | |
| 088 | 266056-5 | TAPPING SCREW 5X45 | 4 | |
| 089 | 961017-7 | STOP RING E-3 | 1 | |
| 090 | 141G86-8 | FRONT FRAME COMPLETE | 1 | |
| 090 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 090 | C20 | 263005-3 | RUBBER PIN 6 | 1 |
| 091 | 162B48-3 | SLIDE PLATE | 1 | |
| 092 | 268241-6 | PIN 6 | 1 | |
| 093 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | |
| 095 | 212199-1 | NEEDLE BEARING 510 | 1 | |
| 096 | 267010-2 | FLAT WASHER 5 | 2 | |
| 097 | 256155-1 | PIN 5 | 1 | |
| 098 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 099 | 312C54-6 | UPPER HOLDER | 1 | |
| 099-1 | 312C54-6 | UPPER HOLDER | 1 | |
| 100 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 101 | 256033-5 | PIN 6 | 1 | |
| 102 | 210187-2 | BALL BEARING 696ZZ | 1 | |
| 103 | 210187-2 | BALL BEARING 696ZZ | 4 | |
| 104 | 251337-0 | + PAN HEAD SCREW M5 | 2 | |
| 107 | 162B33-6 | HOOK | 1 | |
| 108 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 109 | 267164-5 | FLAT WASHER 15 | 1 | |
| 111 | 141G78-7 | WHEEL COMPLETE A | 1 | |
| 114 | 256689-4 | PIN 4 | 1 | |
| 115 | 413D71-6 | FRONT WHEEL COVER | 1 | |
| 115-1 | 141N84-4 | FRONT WHEEL COVER COMPLETE | 1 | |
| 116 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | |
| 117 | 122B60-5 | HOOK ASSEMBLY | 1 | |
| 118 | 263027-3 | RUBBER PIN 4 | 1 | |
| A02 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A03B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A03B | D10 | COMPO-PARTS | ||
| A04B | 191B26-6 | BATTERY BL4040 SET | 2 | |
| A05B | 412393-7 | BATTERY COVER | 1 | |
| A06B | 821882-5 | PLASTIC CASE | 1 | |
| A06B | C10 | 162271-8 | LATCH | 2 |
| A06B | C20 | 451134-6 | HANDLE | 1 |
| A06B | C30 | 452875-7 | SHAFT | 2 |
| A07B | 8049S3-1 | PB002GM201 PLASTIC CASE LABEL | 2 | |
| A08 | B-30128 | BAND SAW BLADE 10TPI BIM | 1 | |
| F01 | 191897-9 | CUTTING WAX | 1 |
