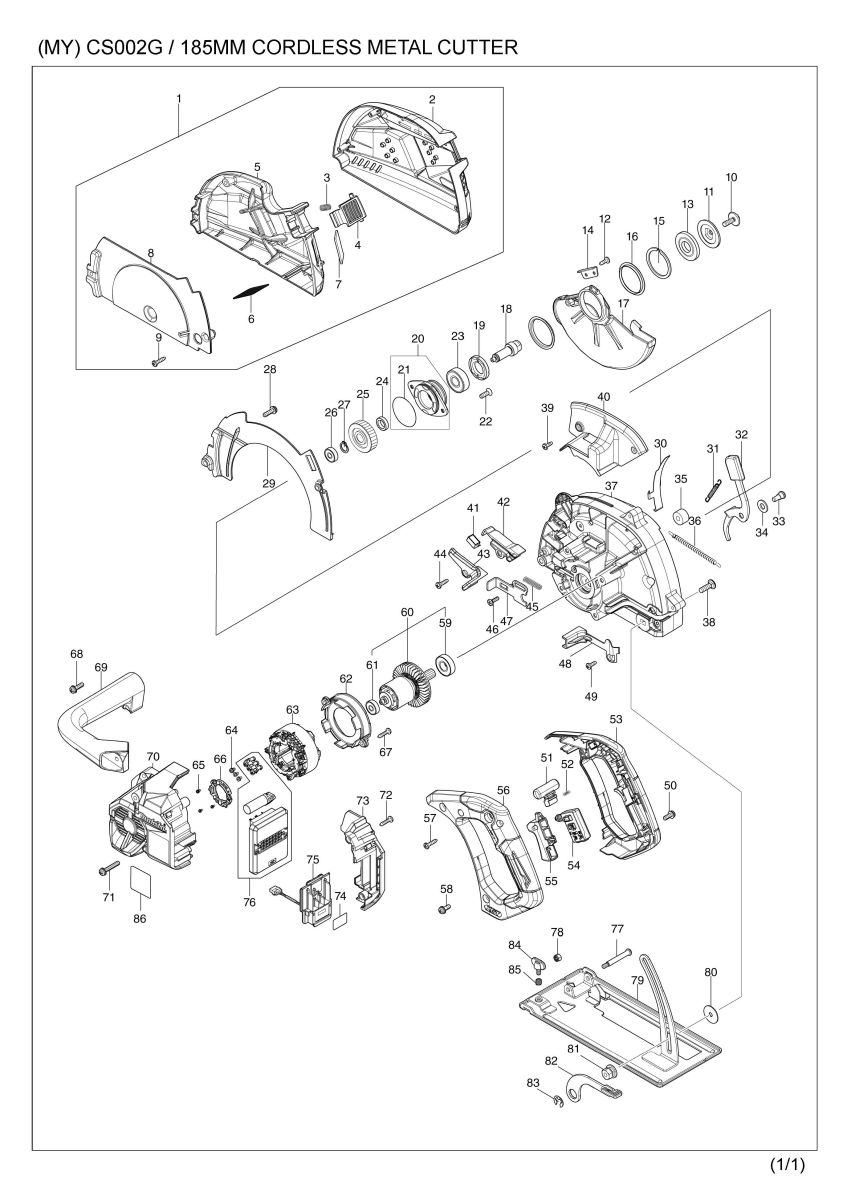

Part Diagram
Total: 111 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 136729-3 | DUST CASE ASS'Y | 1 | |
| 1 | D10 | INC. 2-9 | ||
| 2 | 183W40-2 | DUST CASE COVER SET | 1 | |
| 2 | C10 | 8012U4-2 | XGT LOGO LABEL | 1 |
| 2 | C20 | 810055-5 | CAUTION LABEL | 1 |
| 3 | 233189-1 | COMPRESSION SPRING 6 | 1 | |
| 4 | 413E80-1 | HOOK | 1 | |
| 5 | 312C66-9 | DUST CASE | 1 | |
| 6 | 347996-7 | PUNCHING METAL COVER | 1 | |
| 7 | 431005-3 | HEAT RESISTING GLASS | 1 | |
| 8 | 312C67-7 | DUST PLATE | 1 | |
| 9 | 265995-6 | TAPPING SCREW 4X18 | 5 | |
| 10 | 266458-5 | HEX.SOCKET HEX.BOLT M6X18 | 1 | |
| 11 | 224366-6 | OUTER FLANGE 40 | 1 | |
| 12 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 13 | 224370-5 | INNER FLANGE 40 | 1 | |
| 14 | 344944-7 | SUB PLATE | 1 | |
| 15 | 961186-4 | RETAINING RING WR-40 | 1 | |
| 16 | 347964-0 | SPACER | 2 | |
| 17 | 312C69-3 | SAFETY COVER | 1 | |
| 18 | 327957-3 | SPINDLE | 1 | |
| 19 | 285802-7 | BEARING RETAINER 19-33 | 1 | |
| 20 | 136703-1 | BEARING BOX ASS'Y | 1 | |
| 20 | D10 | INC. 21 | ||
| 21 | 213565-5 | O RING 42 | 1 | |
| 22 | 265034-2 | + COUNTERSUNK HEAD SCREW M5X1 | 2 | |
| 23 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 24 | 257011-8 | RING 12 | 1 | |
| 25 | 227944-1 | HELICAL GEAR 29 | 1 | |
| 26 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 27 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 28 | 911228-4 | PAN HEAD SCREW M5X18 | 2 | |
| 29 | 312C68-5 | BLADE COVER | 1 | |
| 30 | 347A66-8 | PROTECTOR | 1 | |
| 31 | 231823-7 | TENSION SPRING 4 | 1 | |
| 32 | 162B55-6 | LEVER | 1 | |
| 33 | 251267-5 | + PAN HEAD SCREW M6 | 1 | |
| 033-1 | 265506-7 | SHOULDER HEX. BOLT M6 | 1 | |
| 033-2 | 265D04-5 | + PAN HEAD SCREW M6 | 1 | |
| 34 | 941201-0 | FLAT WASHER 8 | 1 | |
| 034-1 | 253139-0 | FLAT WASHER 8 | 1 | |
| 35 | 262552-1 | RUBBER SLEEVE 6 | 1 | |
| 36 | 231845-7 | TENSION SPRING 4 | 1 | |
| 37 | 141H36-9 | GEAR HOUSING COMPLETE | 1 | |
| 37 | C10 | 213437-4 | O RING 28 | 1 |
| 37 | C20 | 263002-9 | RUBBER PIN 4 | 1 |
| 037-1 | 141V52-5 | GEAR HOUSING COMPLETE | 1 | |
| 037-1 | C10 | 213437-4 | O RING 28 | 1 |
| 037-1 | C20 | 263002-9 | RUBBER PIN 4 | 1 |
| 38 | 266737-1 | FLAT HEAD SQ. NECK BOLT M6X20 | 1 | |
| 39 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | |
| 40 | 413E82-7 | GEAR HOUSING COVER | 1 | |
| 040-1 | 413X46-5 | GEAR HOUSING COVER | 1 | |
| 41 | 620936-3 | LED CIRCUIT | 1 | |
| 42 | 413E86-9 | LED CASE | 1 | |
| 43 | 413E85-1 | LED COVER | 1 | |
| 44 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | |
| 45 | 233084-5 | COMPRESSION SPRING 6 | 1 | |
| 46 | 251529-1 | + PAN HEAD SCREW M4X14 | 1 | |
| 47 | 347963-2 | SHAFT LOCK | 1 | |
| 48 | 413E79-6 | LEAD COVER | 1 | |
| 49 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 50 | 911218-7 | PAN HEAD SCREW M5X14 | 2 | |
| 51 | 419704-7 | LOCK OFF BUTTON | 1 | |
| 051-1 | 459264-7 | LOCK OFF BUTTON | 1 | |
| 52 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 53 | 183V81-2 | HANDLE SET | 1 | |
| 53 | D10 | INC. 56 | ||
| 54 | 650008-0 | SWITCH C3XB-1LPSPM | 1 | |
| 054-1 | 650039-9 | SWITCH C3XB-1LPSPM | 1 | |
| 55 | 413C24-9 | SWITCH LEVER | 1 | |
| 56 | 183V81-2 | HANDLE SET | 1 | |
| 56 | D10 | INC. 53 | ||
| 57 | 265995-6 | TAPPING SCREW 4X18 | 3 | |
| 58 | 911218-7 | PAN HEAD SCREW M5X14 | 2 | |
| 59 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 60 | 519749-6 | ROTOR ASS'Y | 1 | |
| 60 | D10 | INC. 59,61 | ||
| 61 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 62 | 413E81-9 | BAFFLE PLATE | 1 | |
| 63 | 629A85-9 | STATOR | 1 | |
| 64 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 65 | 652093-9 | PAN HEAD SCREW M2X5 | 3 | |
| 065-1 | 652119-7 | PAN HEAD SCREW M2X6 | 3 | |
| 66 | 632R96-7 | SENSOR UNIT | 1 | |
| 67 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 68 | 911228-4 | PAN HEAD SCREW M5X18 | 3 | |
| 69 | 413E78-8 | GRIP | 1 | |
| 70 | 141H38-5 | MOTOR HOUSING COMPLETE | 1 | |
| 70 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 71 | 911253-5 | PAN HEAD SCREW M5X30 | 4 | |
| 72 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 73 | 141H41-6 | TERMINAL HOUSING COMPLETE | 1 | |
| 73 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 74 | 8117M5-6 | CS002G SERIAL NO. LABEL | 1 | |
| 75 | 632P49-4 | TERMINAL UNIT | 1 | |
| 76 | 620H98-5 | CONTROLLER | 1 | |
| 77 | 265075-8 | + PAN HEAD SCREW M5 | 1 | |
| 78 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 79 | 162B41-7 | BASE | 1 | |
| 80 | 253196-8 | FLAT WASHER 6 | 1 | |
| 81 | 252312-9 | COLLERED HEX. NUT M6-13 | 1 | |
| 82 | 271460-5 | LEVER 90 | 1 | |
| 83 | 257953-6 | BOW STOP RING E-12 | 1 | |
| 84 | 265701-9 | THUMB SCREW M6X14 | 1 | |
| 85 | 231316-4 | COMPRESSION SPRING 7 | 1 | |
| 86 | 8117J0-5 | CS002G NAME PLATE | 1 | |
| A01 | 783203-8 | HEX. WRENCH 5 | 1 | |
| A02 | E-12918 | EFFICUT METAL FOR METAL CUTTIN | 1 | |
| A03 | 192219-6 | SAFETY GOGGLE | 1 | |
| A04 | 164095-8 | GUIDE RULE | 1 |
