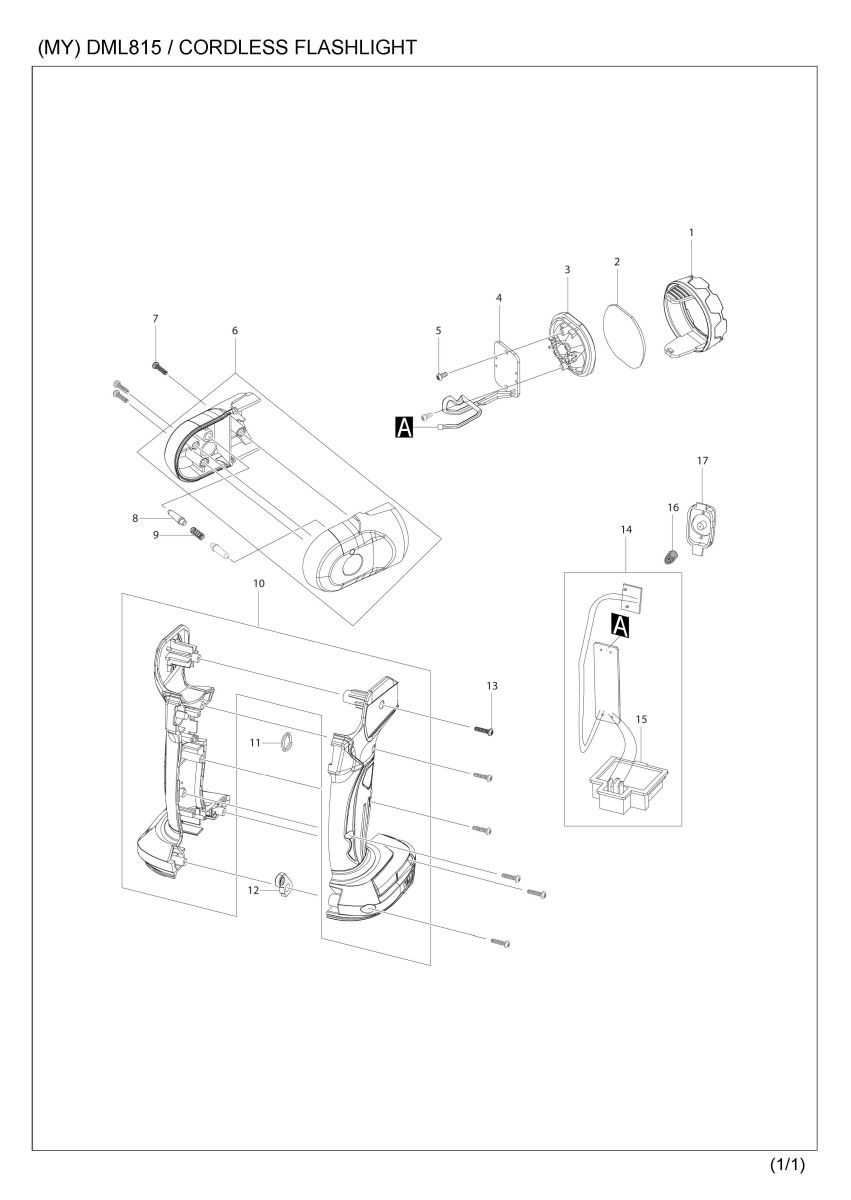

Part Diagram
Total: 21 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | GM00001299 | BEZEL(C1720802002) | 1 | |
| 2 | GM00001298 | LENS(C1720802001) | 1 | |
| 3 | GM00002074 | REFLECTOR | 1 | |
| 4 | GM00002075 | LED PCBA ASSY | 1 | |
| 004-1 | GM00002243 | LED PCBA ASSY (CE) | 1 | |
| 5 | GM00001332 | SCREW 3 X 8 PB | 2 | |
| 6 | GM00002076 | HEAD HOUSING ASSY | 1 | |
| 7 | GM00001333 | SCREW 3 X 12PB B0130120702 | 3 | |
| 8 | GM00001295 | LOCKING SHAFT(C4120802001) | 2 | |
| 9 | GM00001294 | COMPRESSION SPRING B1303802922 | 1 | |
| 10 | GM00001303 | HOUSING L/R(G0180200400) | 1 | |
| 11 | GM00001292 | RING (B3103184009) | 1 | |
| 12 | GM00001290 | HOOK PLATE(B2804802921) | 1 | |
| 012-1 | GM00002285 | HOOK PLATE | 1 | |
| 13 | GM00001333 | SCREW 3 X 12PB B0130120702 | 6 | |
| 14 | GM00002078 | MAIN PCBA ASSY | 1 | |
| 14 | D10 | INC. 15 | ||
| 15 | GM00001117 | BATTERY HOLDER C2010239007 | 1 | |
| 16 | GM00002077 | SPRING | 1 | |
| 17 | GM00001291 | SWITCH COVER(G0180200200) | 1 | |
| A01 | GM00001289 | HOOK BAND SET(G0180200100) | 1 |
