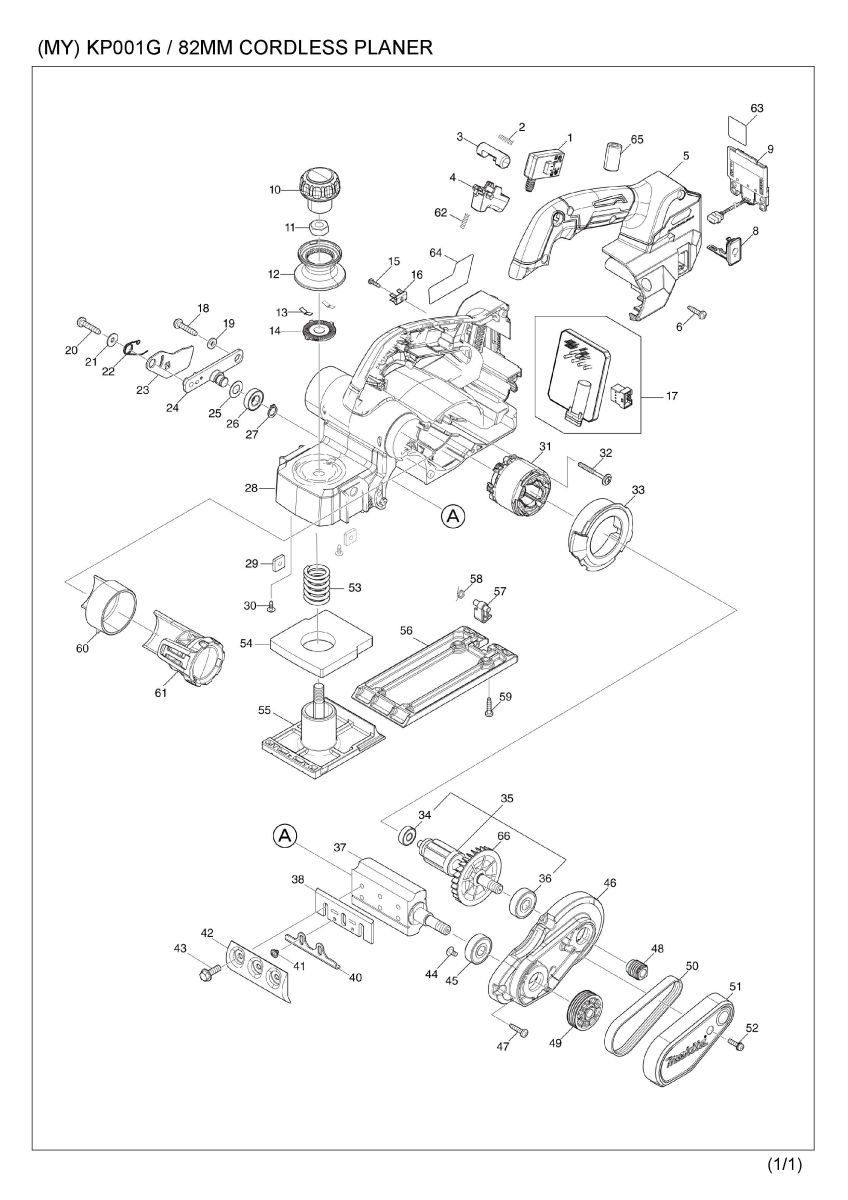

Part Diagram
Total: 95 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 002 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 003 | 419704-7 | LOCK OFF BUTTON | 1 | |
| 004 | 457432-6 | SWITCH LEVER | 1 | |
| 005 | 136650-6 | HANDLE COVER SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 1 | |
| C20 | 8005T5-8 | XGT LOGO LABEL | 1 | |
| 006 | 265995-6 | TAPPING SCREW 4X18 | 6 | |
| 008 | 140F99-0 | CAP COMPLETE | 1 | |
| C10 | 213A05-9 | O-RING16 | 1 | |
| C20 | 818H07-8 | CAP LABEL | 1 | |
| 009 | 632P49-4 | TERMINAL UNIT | 1 | |
| 010 | 451328-3 | KNOB COVER | 1 | |
| 011 | 252313-7 | HEX. NUT M10 | 1 | |
| 012 | 413F22-1 | KNOB | 1 | |
| 013 | 232185-6 | LEAF SPRING | 2 | |
| 014 | 347970-5 | CAM PLATE | 1 | |
| 015 | 266556-5 | TAPPING SCREW 3X12 | 1 | |
| 016 | 232570-3 | LEAF SPRING | 1 | |
| 017 | 620J02-6 | CONTROLLER | 1 | |
| 018 | 266041-8 | TAPPING SCREW 5X25 | 1 | |
| 019 | 267012-8 | FLAT WASHER 5 | 1 | |
| 020 | 266041-8 | TAPPING SCREW 5X25 | 1 | |
| 021 | 253194-2 | FLAT WASHER 5 | 1 | |
| 022 | 233521-9 | TORSION SPRING 10 | 1 | |
| 023 | 345765-0 | DRUM COVER | 1 | |
| 024 | 158184-9 | DRUM HOLDER COMPLETE | 1 | |
| 025 | 253758-2 | FLAT WASHER 10 | 1 | |
| 026 | 210057-5 | BALL BEARING 6900LLB | 1 | |
| 027 | 961006-2 | RETAINING RING S-10 | 1 | |
| 028 | 136606-9 | MAIN FRAME ASSEMBLY | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 1 | |
| 029 | 264002-2 | SQUARE NUT M5 | 2 | |
| 030 | 265A77-0 | TAPPING SCREW 3X10 | 2 | |
| 031 | 629B15-6 | STATOR | 1 | |
| 032 | 265679-6 | TAPPING SCREW 4X40 | 2 | |
| 033 | 459891-0 | BAFFLE PLATE | 1 | |
| 034 | 210034-7 | BALL BEARING 607LLB | 1 | |
| 035 | 519742-0 | ROTOR ASS'Y | 1 | |
| D10 | INC. 34,36,66 | |||
| 036 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 037 | 158156-4 | DRUM COMPLETE | 1 | |
| 038 | D-16346 | 82MM HSS PLANER BLADE | 1 | |
| 040 | 345644-2 | ADJUST PLATE | 2 | |
| 041 | 251246-3 | + PAN HEAD SCREW M4X5 | 4 | |
| 042 | 187676-1 | DRUM PLATE SET | 1 | |
| 043 | 251609-3 | HEX. FLANGE HEAD BOLT M6X17 | 6 | |
| 044 | 251291-8 | + SCREW M4X8 | 2 | |
| 045 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 046 | 141J58-1 | BRACKET COMPLETE | 1 | |
| C10 | 263002-9 | RUBBER PIN 4 | 1 | |
| 047 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 048 | 222193-5 | V-PULLEY 4-17L | 1 | |
| 049 | 222194-3 | V-PULLEY 4-39.5 | 1 | |
| 050 | 225071-8 | POLY V-BELT 4-241 | 1 | |
| 051 | 459893-6 | BELT COVER | 1 | |
| 052 | 911133-5 | PAN HEAD SCREW M4X18 | 1 | |
| 053 | 231004-3 | COMPRESSION SPRING 18 | 1 | |
| 054 | 422531-3 | RUBBER PACKING | 1 | |
| 055 | 312C78-2 | FRONT BASE | 1 | |
| 056 | 312D13-6 | BASE | 1 | |
| 057 | 413L64-1 | FOOT | 1 | |
| 058 | 231698-4 | TORSION SPRING 7 | 1 | |
| 059 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 060 | 459892-8 | NOZZLE | 1 | |
| 061 | 125353-7 | DUCT ASS'Y | 1 | |
| 062 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 063 | 8117C3-0 | KP001G SERIAL NO. LABEL | 1 | |
| 064 | 8117B6-7 | KP001G NAME PLATE | 1 | |
| 066 | 240079-1 | FAN 62 | 1 | |
| A01 | 122785-9 | GUIDE RULE ASS'Y | 1 | |
| C10 | 213009-5 | O RING 4 | 1 | |
| C20 | 251871-0 | SCREW M5X10 | 1 | |
| C30 | 251878-6 | SCREW M5X20 | 1 | |
| C40 | 253807-5 | FLAT WASHER 5 | 2 | |
| C50 | 345768-4 | GUIDE HOLDER | 1 | |
| A02 | 122695-0 | BLADE GAUGE ASS'Y | 1 | |
| C10 | 265131-4 | PAN HEAD SCREW M5X18 | 2 | |
| C20 | 418465-6 | GAUGE PLATE | 1 | |
| A03 | 782209-3 | SOCKET WRENCH 9 | 1 | |
| A04 | 251878-6 | SCREW M5X20 | 1 | |
| A05 | 253807-5 | FLAT WASHER 5 | 1 | |
| A06 | 342390-8 | DEPTH GUIDE | 1 | |
| A07 | 123004-6 | SHARPENING HOLDER ASS'Y | 1 | |
| C10 | 251920-3 | CAP SQUARE NECK BOLT M6X30 | 2 | |
| C20 | 934301-3 | WING NUT M6 | 2 | |
| A09B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| C10 | 453974-8 | LATCH | 4 | |
| A10B | 8354R2-5 | INNER TRAY | 1 | |
| A11A | 442198-1 | ANTI CORROSION PAPER | 1 | |
| A12B | 8050P9-7 | KP001GM201 MODEL NO. LABEL | 1 | |
| A14B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A15B | 191B26-6 | BATTERY BL4040 SET | 2 | |
| A16B | 412393-7 | BATTERY COVER | 2 |
