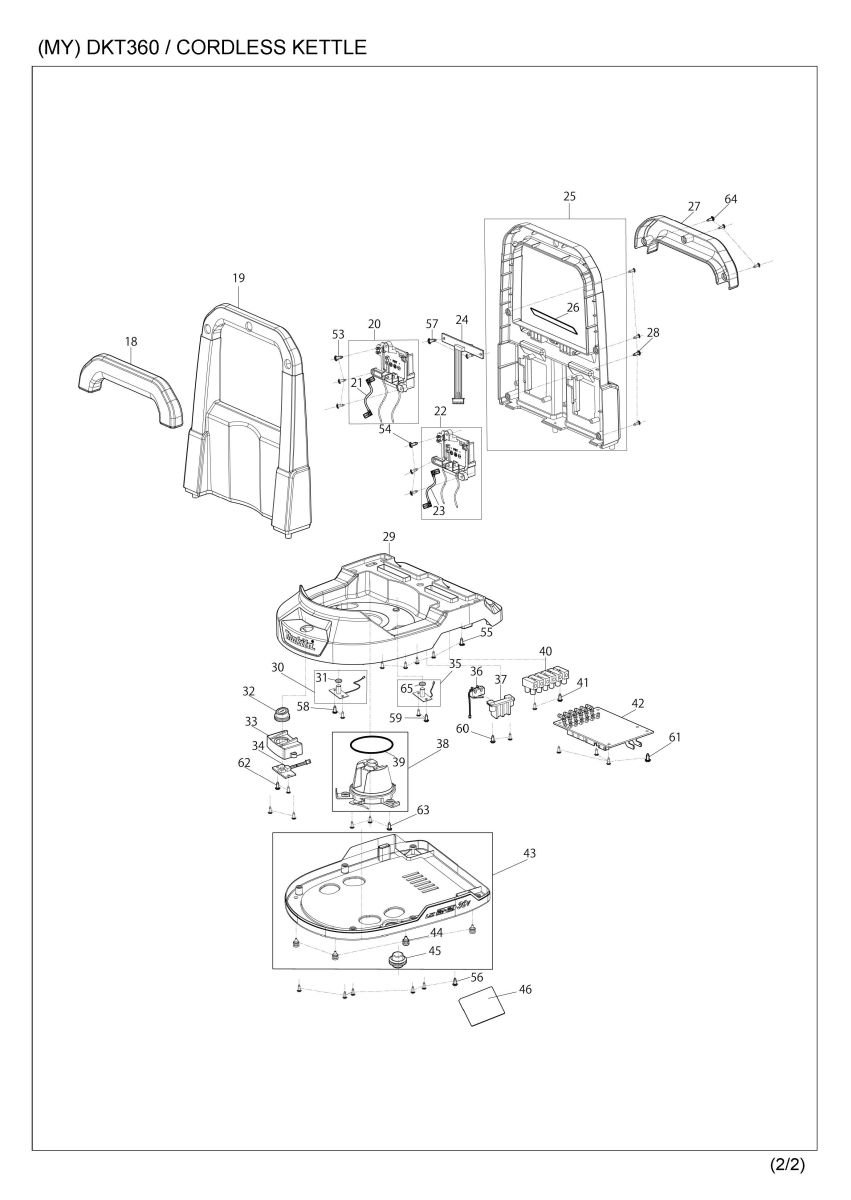

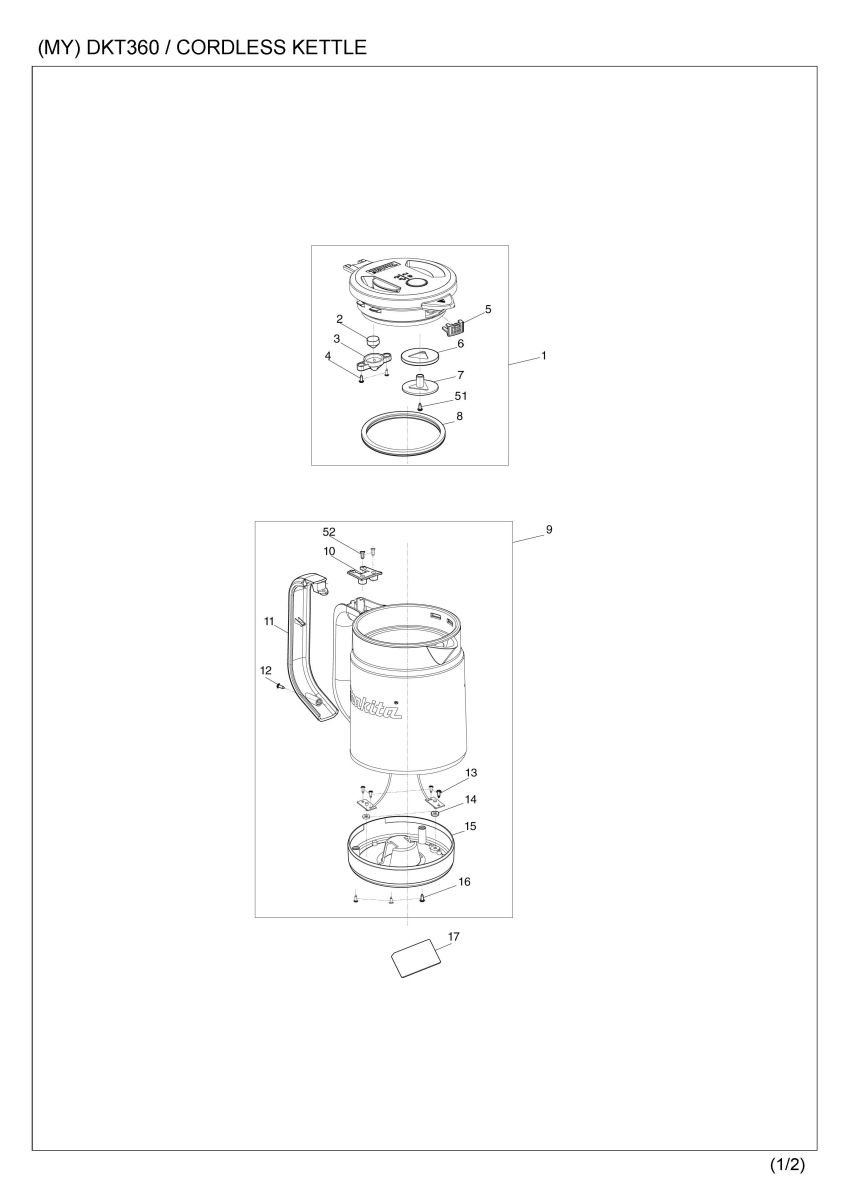

Part Diagram
Total: 70 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | KF00000076 | TOP COVER ASSEMBLY(BLUE) | 1 | |
| D10 | INC. 2-8,51 | |||
| 002 | KF00000078 | PLUG | 1 | |
| 003 | KF00000079 | PLUG COVER | 1 | |
| 004 | KF00000080 | COUNTERSUNK SCREW ST3X12 | 2 | |
| 005 | KF00000081 | FILTER NET | 1 | |
| 006 | KF00000082 | SILICONE OF WATER STOPPER | 1 | |
| 007 | KF00000083 | WATER STOPPPER | 1 | |
| 008 | KF00000084 | SEAL RING OF COVER | 1 | |
| 009 | KF00000085 | KETTLE ASSEMBLY(BLUE) | 1 | |
| D10 | INC. 10-16,52 | |||
| 010 | KF00000087 | HANDLE CLIP | 1 | |
| 011 | KF00000088 | HANDLE COVER | 1 | |
| 012 | KF00000002 | TAPPING SCREW ST3X12 | 1 | |
| 013 | KF00000089 | TAPPING SCREW ST3X8 | 4 | |
| 014 | KF00000090 | SEAL RING | 2 | |
| 015 | KF00000091 | BOTTOM COVER | 1 | |
| 016 | KF00000092 | H.L. SOCKET HEAD SCREW T10 | 3 | |
| 017 | KF00000098 | KETTLE NAME PLATE | 1 | |
| 018 | KF00000103 | HANDLE COVER L(BLUE) | 1 | |
| 019 | KF00000104 | HANDLE BASE L(BLUE) | 1 | |
| 020 | KF00000106 | UNIVERSAL BATTERY HOLDER A | 1 | |
| D10 | INC. 21 | |||
| 021 | KF00000107 | LEAD UNIT A | 1 | |
| 022 | KF00000108 | UNIVERSAL BATTERY HOLDER B | 1 | |
| D10 | INC. 23 | |||
| 023 | KF00000109 | LEAD UNIT B | 1 | |
| 024 | KF00000110 | BATTERY QUANTITY DISPLY BOARD | 1 | |
| 025 | KF00000111 | HANDLE BASE R ASSEMBLY(BLUE) | 1 | |
| D10 | INC. 26 | |||
| 026 | KF00000113 | BATTERY-QUANTITY FILM | 1 | |
| 027 | KF00000114 | HANDLE COVER R | 1 | |
| 028 | KF00000115 | SCREW ST3X10 | 4 | |
| 029 | KF00000116 | BASE(BLUE) | 1 | |
| 030 | KF00000118 | NTC BOTTOM CONTACT PAD A ASSY | 1 | |
| D10 | INC. 31 | |||
| 031 | KF00000119 | SEAL RING | 1 | |
| 032 | KF00000120 | BUTTON | 1 | |
| 033 | KF00000121 | PCB SWITCH SUPPORT | 1 | |
| 034 | KF00000122 | SWITCH BOARD | 1 | |
| 035 | KF00000123 | NTC BOTTOM CONTACT PAD B ASSY | 1 | |
| D10 | INC. 65 | |||
| 036 | KF00000124 | MICRO-SWITCH ASSEMBLY | 1 | |
| 037 | KF00000125 | MICRO-SWITCH SUPPORT | 1 | |
| 038 | KF00000126 | COUPLER ASSEMBLY | 1 | |
| D10 | INC. 39 | |||
| 039 | KF00000127 | COUPLER BASE SEAL RING | 1 | |
| 040 | KF00000128 | TERMIANL | 1 | |
| 041 | KF00000129 | SCREW ST3X14 | 2 | |
| 042 | KF00000130 | MAIN PCB | 1 | |
| 043 | KF00000131 | BASE COVER ASSEMBLY | 1 | |
| D10 | INC. 44,45 | |||
| 044 | KF00000028 | FOOT | 4 | |
| 045 | KF00000132 | SILICONE BUTTON | 1 | |
| 046 | KF00000138 | BASE NAMEPLATE | 1 | |
| 051 | KF00000080 | COUNTERSUNK SCREW ST3X12 | 1 | |
| 052 | KF00000080 | COUNTERSUNK SCREW ST3X12 | 2 | |
| 053 | KF00000002 | TAPPING SCREW ST3X12 | 3 | |
| 054 | KF00000002 | TAPPING SCREW ST3X12 | 3 | |
| 055 | KF00000002 | TAPPING SCREW ST3X12 | 5 | |
| 056 | KF00000002 | TAPPING SCREW ST3X12 | 6 | |
| 057 | KF00000089 | TAPPING SCREW ST3X8 | 2 | |
| 058 | KF00000089 | TAPPING SCREW ST3X8 | 2 | |
| 059 | KF00000089 | TAPPING SCREW ST3X8 | 2 | |
| 060 | KF00000089 | TAPPING SCREW ST3X8 | 2 | |
| 061 | KF00000089 | TAPPING SCREW ST3X8 | 4 | |
| 062 | KF00000089 | TAPPING SCREW ST3X8 | 4 | |
| 063 | KF00000089 | TAPPING SCREW ST3X8 | 3 | |
| 064 | KF00000115 | SCREW ST3X10 | 3 | |
| 065 | KF00000119 | SEAL RING | 1 |
